Product Overview
The Parryware PRUNO Wall Mixer 2-in-1, Model T5816A1, is a versatile plumbing fixture designed for hot and cold water mixing. This wall-mounted unit, constructed from brass with a chrome finish, provides a combined solution for water delivery, suitable for both shower and sink applications. Its dual-handle design allows for precise control over water temperature and flow.
Package Contents
Verify that all components are present before beginning installation.
- 1 x Parryware PRUNO Wall Mixer 2-in-1 (Model T5816A1)
- Installation hardware (e.g., wall flanges, gaskets, screws) - (Note: Specific hardware may vary, refer to packaging)
Safety Information
Please read and understand all instructions before installation and use. Failure to follow these instructions may result in property damage or personal injury.
- Water Supply: Always turn off the main water supply before attempting any installation or maintenance.
- Professional Installation: For optimal performance and safety, professional plumbing installation is recommended.
- Tools: Use appropriate tools for installation. Avoid overtightening connections.
- Chemicals: Do not use harsh chemicals or abrasive cleaners on the chrome finish, as this can cause damage.
- Temperature: Ensure water temperature is regulated to prevent scalding.
Setup & Installation
The Parryware PRUNO Wall Mixer is designed for wall-mounted installation. Ensure the wall surface is suitable and plumbing connections are accessible.

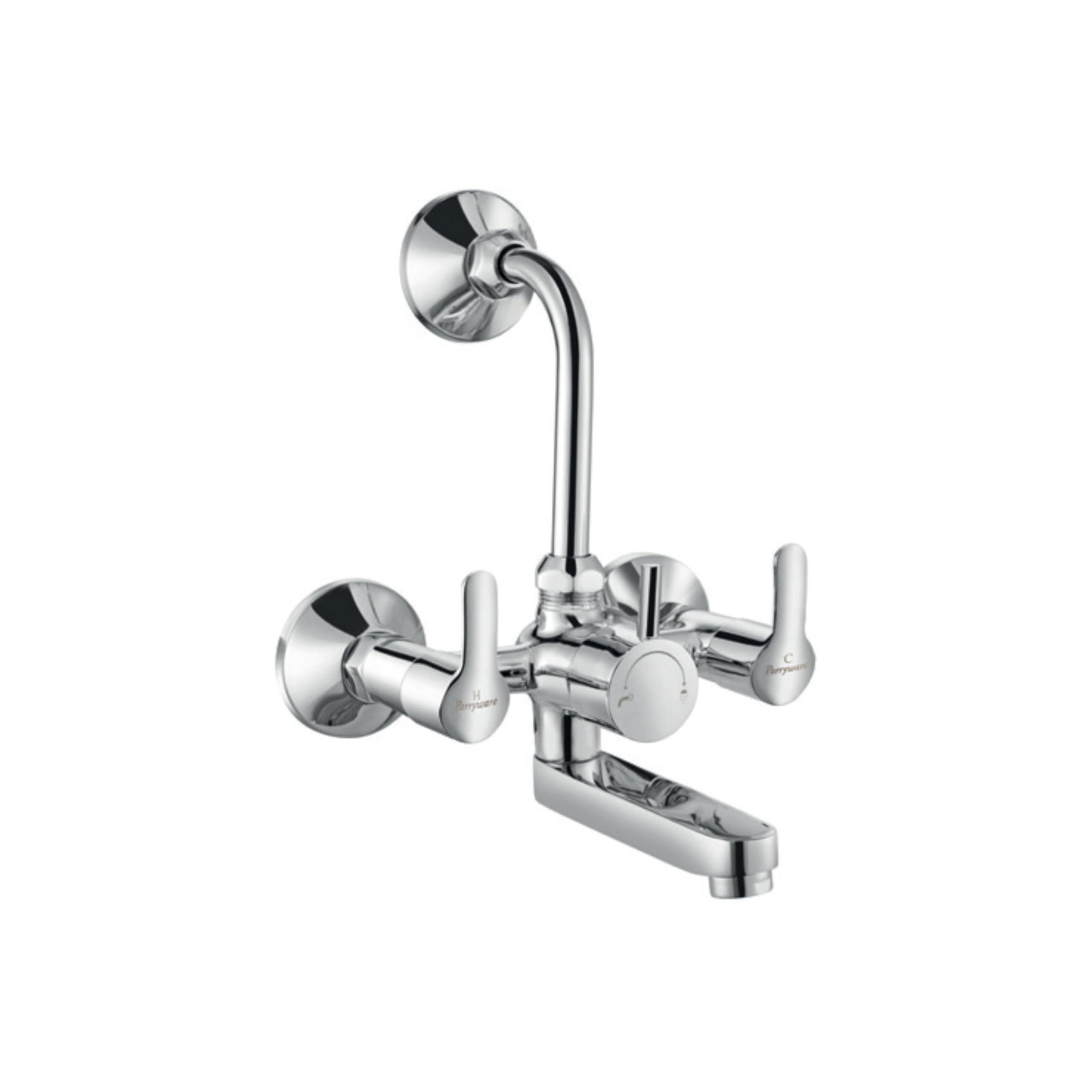

Image 1: Parryware PRUNO Wall Mixer 2-in-1 (Model T5816A1) in a typical wall-mounted installation. This image illustrates the mixer's design with two control handles and a central spout, ready for connection to a shower hose or direct use as a sink faucet.
Installation Steps:
- Prepare Wall: Ensure the wall is prepared with hot and cold water supply lines at the correct spacing for the mixer.
- Turn Off Water: Locate and turn off the main water supply to the installation area.
- Connect Water Lines: Attach the hot and cold water supply lines to the corresponding inlets on the mixer. Use appropriate sealants (e.g., PTFE tape) to ensure watertight connections.
- Mount Mixer: Securely mount the mixer to the wall using the provided installation hardware. Ensure it is level and firmly attached.
- Connect Outlet: If connecting a hand shower, attach the shower hose to the mixer's outlet. If using as a sink faucet, ensure the spout is correctly positioned.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Tighten any leaking connections carefully.
- Flush System: Allow water to run through the mixer for a few minutes to flush out any debris from the new installation.
Note: Specific installation requirements may vary based on your plumbing system. Consult a qualified plumber if you are unsure about any step.
Operating Instructions
The PRUNO Wall Mixer features two handles for controlling water flow and temperature, and a diverter for selecting between the spout and a connected hand shower (if applicable).
- Water Flow Control: Turn the handles to open or close the water flow. Typically, one handle controls hot water and the other controls cold water.
- Temperature Adjustment: Mix hot and cold water by adjusting both handles simultaneously to achieve the desired water temperature.
- Diverter Function (if applicable): If your model includes a diverter, rotate or pull the diverter knob/lever to switch water flow between the main spout and a connected hand shower.
- Water Efficiency: The integrated aerator helps conserve water without compromising flow rate.
Maintenance
Regular cleaning and simple maintenance will ensure the longevity and appearance of your Parryware PRUNO Wall Mixer.
- Cleaning the Finish: Clean the chrome finish regularly with a soft, damp cloth and mild soap. Rinse thoroughly with clean water and dry immediately to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any products containing bleach, acids, or alcohol, as these can damage the chrome finish.
- Aerator Cleaning: Periodically unscrew and clean the aerator (located at the tip of the spout) to remove any mineral deposits or debris that may affect water flow.
- Leak Checks: Periodically inspect all connections for any signs of leaks. Address any leaks promptly to prevent water damage.
Troubleshooting
This section addresses common issues you might encounter with your wall mixer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed stopcock; debris in water lines. | Clean the aerator. Ensure stopcocks are fully open. Flush water lines. |
| Leaking from Spout/Handles | Loose connections; worn washers/cartridges. | Check and tighten connections. Replace worn internal components (professional assistance recommended). |
| Inconsistent Water Temperature | Uneven water pressure; issue with water heater. | Check household water pressure. Consult a plumber or water heater technician. |
If the problem persists after attempting these solutions, contact a qualified plumber or Parryware customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Parryware |
| Model Name | T5816A1 |
| Recommended Uses | Bathroom (Shower/Sink) |
| Mounting Type | Wall Mount |
| Finish Type | Chrome |
| Material | Brass |
| Colour | Chrome |
| Number of Handles | 2 |
| Hole Count | 1 (for mixer body) |
| Style | Modern |
| Product Dimensions | 18D x 16W x 22H Centimeters |
| Item Weight | 900 Grams |
| Spout Reach | 2 Inches |
| Included Components | Wall mixer 2 in 1 |
Warranty & Support
Your Parryware PRUNO Wall Mixer 2-in-1 comes with a limited warranty.
- Warranty Type: Limited Warranty. Please refer to the official Parryware warranty documentation for specific terms and conditions.
- Manufacturer: Roca Bathroom Products Private Limited.
- Customer Support: For technical assistance, warranty claims, or spare parts, please contact Parryware customer service. Visit the official Parryware website (www.parryware.in) for contact details and further information.
