Introduction
Thank you for choosing the ERGOMAKER 63-inch Electric Standing Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read these instructions carefully before use and retain them for future reference.
Important Safety Information
Please read all safety warnings and instructions carefully to avoid injury or damage.
- This desk is electrically height adjustable. Ensure all cables are properly managed to prevent entanglement during height adjustments.
- The maximum weight capacity for this desk is 65 kg (143 lbs). Do not exceed this limit.
- Assembly is required. Follow the provided assembly instructions precisely.
- The desk features a lifting mechanism with safety features. Avoid placing hands or objects in the path of moving parts during operation.
- The desk is constructed from wood and steel. Handle with care during assembly and use to prevent potential injury.
- Always ensure the desk is on a level surface before operation.
Setup and Assembly
The ERGOMAKER Electric Standing Desk requires assembly. All necessary tools and detailed instructions are included in the package. It is recommended that one person performs the assembly.
Assembly Overview
The package contains the sit-stand desk components, an instruction manual, and all required installation tools, including a screwdriver. Follow the step-by-step guide provided in the included manual for proper assembly.
Figure 1: Assembled ERGOMAKER Electric Standing Desk.
Figure 2: Product dimensions and weight capacity of the ERGOMAKER Electric Standing Desk.
Operating Instructions
Your ERGOMAKER Electric Standing Desk is designed for easy height adjustment and comfortable use.
Height Adjustment
The desk's height can be adjusted electrically between 73 cm (28.7 inches) and 118 cm (46.5 inches). Use the up and down buttons on the control panel to achieve your desired height.
Figure 3: Desk height adjustment from sitting to standing positions.
Memory Presets
The control panel features two memory buttons (1 and 2) to store your preferred sitting and standing heights. To set a memory position:
- Adjust the desk to your desired height using the up/down buttons.
- Press and hold one of the memory buttons (1 or 2) until the display flashes or beeps, indicating the height has been saved.
To recall a saved height, simply press the corresponding memory button (1 or 2).
Figure 4: Memory control panel with height display and preset buttons.
Quiet and Smooth Operation
The desk's motor provides a soft start/stop function, ensuring smooth and quiet height transitions, typically below 50dB.
Figure 5: Illustration of the desk's quiet operation.
Work Area and Features
The desktop measures 160 cm (63 inches) by 70 cm (27.5 inches), offering ample space for multiple monitors and other office essentials. The desk also includes two side hooks for convenient storage of bags or headphones.

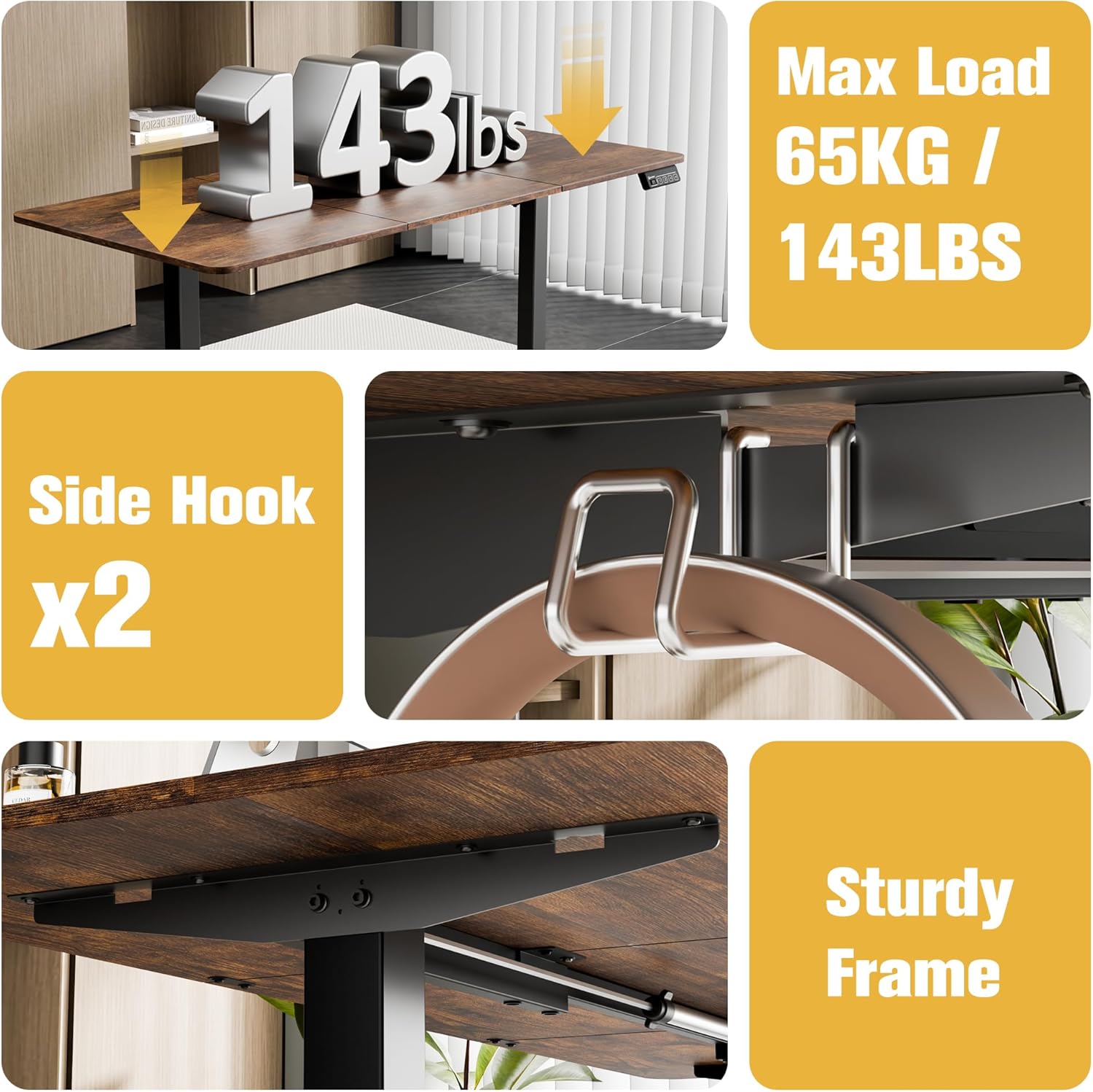

Figure 6: Side hooks and maximum load capacity.
Rounded Edges
The desktop features rounded edges for enhanced safety and an anti-crash design.

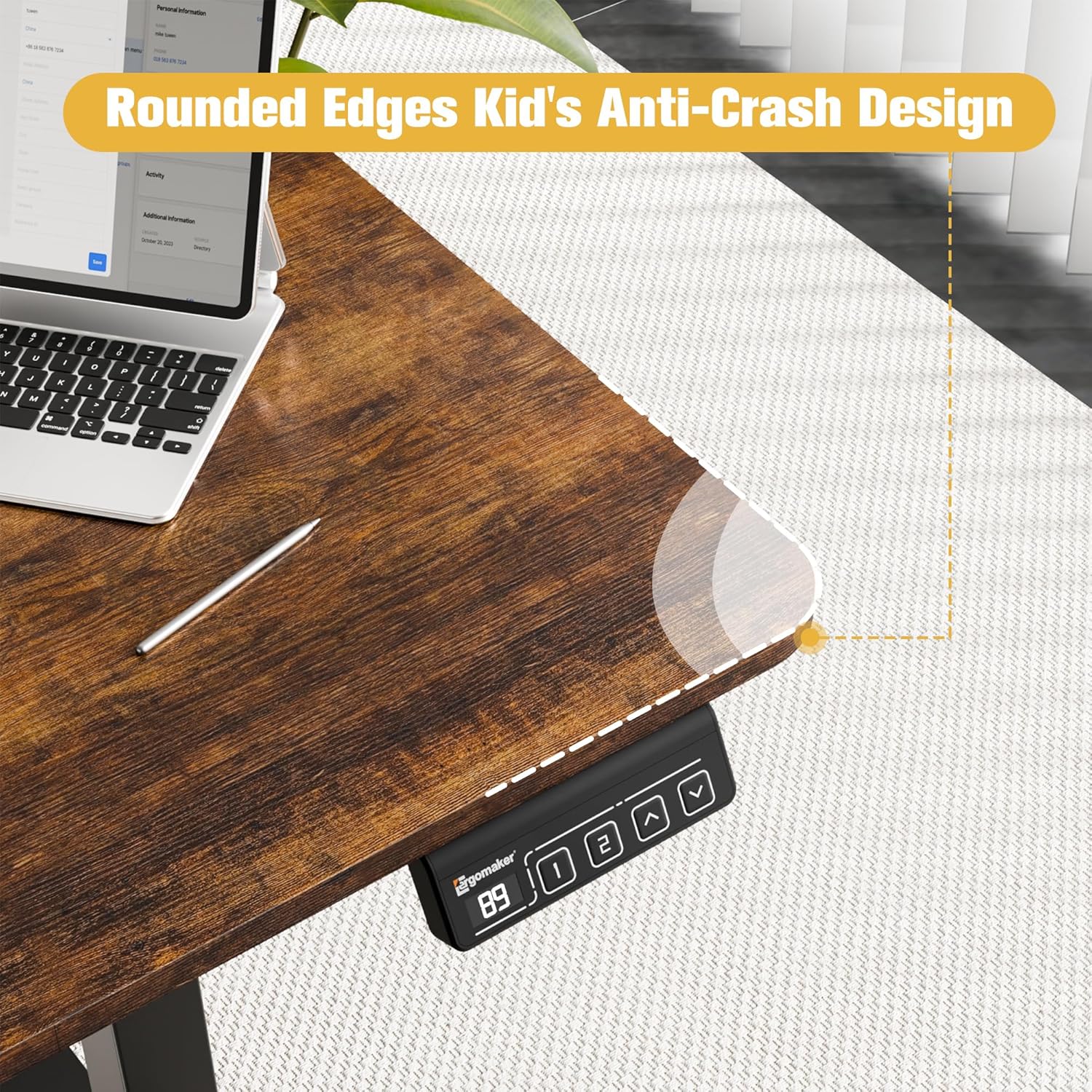

Figure 7: Close-up of the desk's rounded edges.
Maintenance
To maintain the appearance and functionality of your ERGOMAKER Electric Standing Desk, simply wipe it with a dry cloth. Avoid using harsh chemicals or abrasive cleaners.
Troubleshooting
This manual does not include specific troubleshooting steps. If you encounter any issues with your desk, please refer to the warranty and support section for contact information.
Specifications
| Feature | Detail |
|---|---|
| Brand | ERGOMAKER |
| Model Name | SM203 |
| Shape | Rectangular |
| Desk Design | Standing Desk |
| Product Dimensions (D x W x H) | 160D x 70W x 118H Centimetres |
| Colour | Rustic Brown |
| Style | Modern |
| Base Material | Alloy Steel |
| Top Material Type | Wood |
| Finish Type | Painted, Powder Coated |
| Special Features | Adjustable Height, with Splice Board, Ergonomic, Electric |
| Item Weight | 23.4 Kilograms |
| Size | 63 inch/160 cm |
| Tabletop Thickness | 2 Centimeters |
| Minimum Height | 73 Centimeters |
| Maximum Height | 118 Centimeters |
| Maximum Weight Recommendation | 65 Kilograms (143 lbs) |
| Lifting Mechanism | Electric |
| Room Type | Office |
| Recommended Uses | Gaming, Working |
| Included Components | Headphone Hook |
Warranty and Support
ERGOMAKER provides comprehensive warranty coverage and technical support for your electric standing desk:
- Desk Frame: 5-year warranty
- Motor, Handset, and Power Adapter: 2-year warranty
- Technical Support: Free lifetime support
If you experience any issues such as damaged or missing parts, or other product quality or assembly problems, please contact ERGOMAKER customer service. Our team is committed to responding within 24 hours to provide effective solutions.
