1. Introduction
The Deeper Connect Mini is a state-of-the-art decentralized VPN (dVPN) Gigabit Router designed to provide enhanced online privacy, security, and freedom. It integrates advanced features such as a lifetime free dVPN, universal ad blocking, and enterprise-class cybersecurity, all while maintaining high network speeds. This manual provides essential information for setting up, operating, and maintaining your Deeper Connect Mini.
2. What's in the Box
Please verify that all items are present in your package:
- Deeper Connect Mini Device
- Power Adapter
- Ethernet Cable
- Wi-Fi Adapter (if included in your specific set)
- Carrying Bag

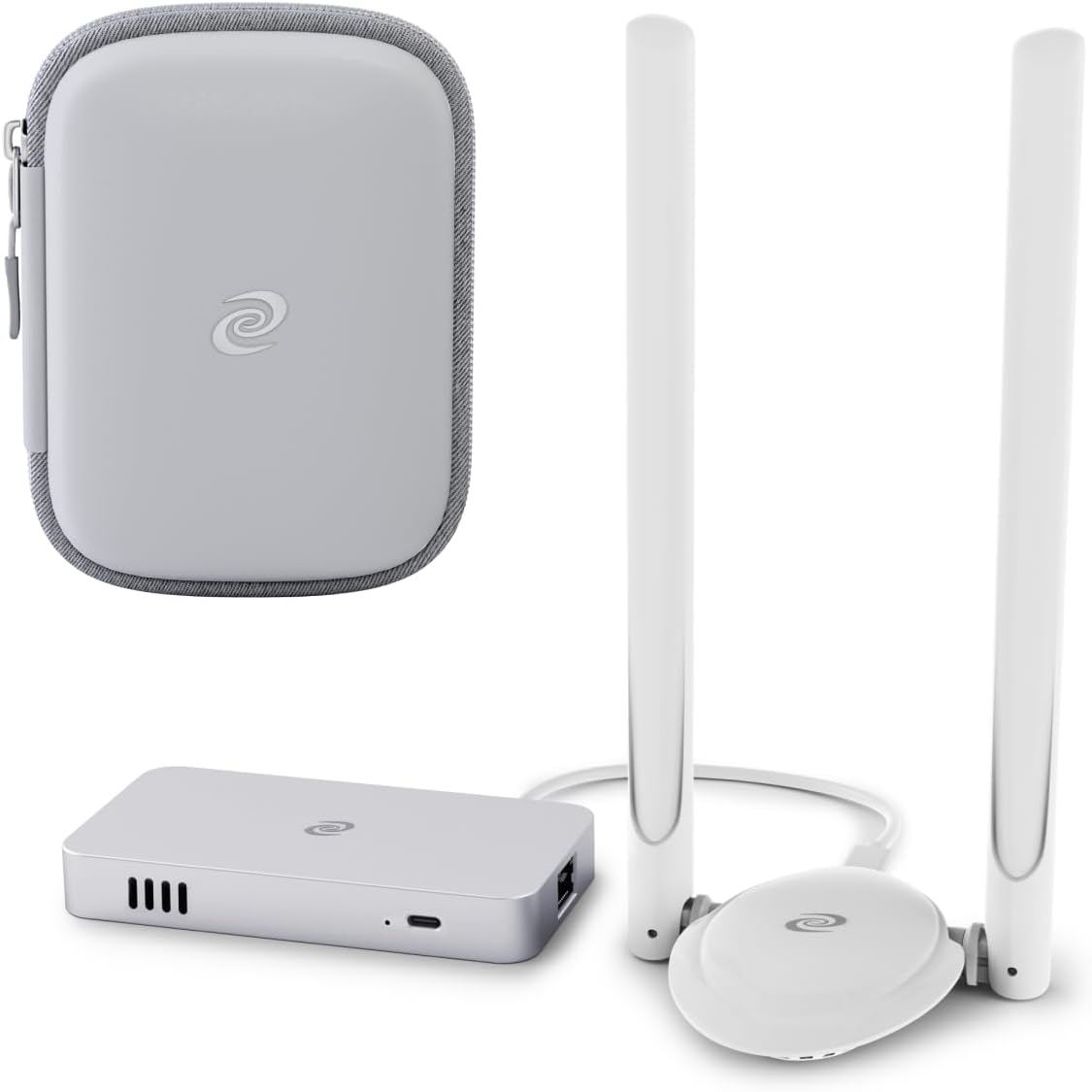

Image: The Deeper Connect Mini device, its two antennas, and the included grey carrying bag.
3. Product Overview
The Deeper Connect Mini is a compact yet powerful device designed for seamless integration into your home or office network. It features a 4-Core CPU and 2GB memory, enabling 1Gbps speeds for secure and private internet access.
3.1 Key Features
- Decentralized VPN (dVPN): Provides a lifetime free dVPN service, offering enhanced privacy and bypassing censorship without compromising speed.
- Universal Ad Blocker: Blocks pop-up ads, banner ads, and even YouTube ads across all devices connected to the network.
- Enterprise-Class Cybersecurity: Features a 7-layer firewall with anti-tracking and intrusion prevention capabilities.
- APP-Relocator: Intelligently switches to fast tunnels for optimized streaming experiences globally.
- Geo-Unblocking: Overcomes geo-restrictions for unrestricted global access using DPN technology.
Image: The Deeper Connect Mini effectively blocks various types of ads, including those on streaming platforms like YouTube and Hulu.
Image: Overview of privacy features including decentralized IPs, tracker prevention, hacker scanning prevention, phishing website blocking, and geo-unblocking capabilities.
4. Setup Guide
Follow these steps to set up your Deeper Connect Mini:
- Connect Power: Plug the power adapter into the Deeper Connect Mini's Power Adapter port and then into a power outlet.
- Connect to Modem/Router: Connect one end of an Ethernet cable to your existing modem or router's LAN port and the other end to the Deeper Connect Mini's Modem Network Port.
- Connect to Your Device/Router: Connect another Ethernet cable from the Deeper Connect Mini's Router Network Port to your computer or to the WAN port of your existing Wi-Fi router.
- Connect Wi-Fi Adapter (Optional): If using a Wi-Fi adapter, plug it into the designated Wi-Fi Adapter Port on the Deeper Connect Mini.
- Power On: The device will power on automatically once connected to power. Wait for the indicator lights to stabilize.
- Access Setup Interface: Open a web browser on a device connected to the Deeper Connect Mini network and navigate to the default setup address (usually 11.22.33.44 or a similar IP provided in the quick start guide). Follow the on-screen instructions to complete the initial configuration.
Image: Port layout of the Deeper Connect Mini, indicating connections for power, Wi-Fi adapter, and network cables.
5. Operating Your Deeper Connect Mini
Once set up, the Deeper Connect Mini operates largely in the background, providing continuous protection and enhanced internet access. You can manage its features through its web interface or a dedicated mobile application.
5.1 Decentralized VPN (dVPN)
The dVPN feature is active by default, routing your internet traffic through a global network of Deeper Connect devices. This decentralization enhances privacy and makes it difficult for third parties to track your online activities. You can customize dVPN settings, such as routing preferences, through the device's management interface.
5.2 Ad Blocking
The universal ad blocker automatically filters out unwanted advertisements, including pop-ups, banner ads, and video ads on platforms like YouTube. This feature improves browsing speed and reduces data consumption. No configuration is typically required for basic ad blocking functionality.
5.3 Geo-Unblocking and APP-Relocator
The Deeper Connect Mini's DPN technology allows you to bypass geo-restrictions, enabling access to content and services that might be unavailable in your region. The APP-Relocator feature intelligently optimizes connections for streaming services, ensuring smooth and uninterrupted viewing experiences.
Image: The Deeper Connect Mini supports multiple devices simultaneously, offering 1Gbps speed and 4K video streaming capabilities.
6. Maintenance
To ensure optimal performance and longevity of your Deeper Connect Mini, consider the following maintenance tips:
- Placement: Place the device in a well-ventilated area, away from direct sunlight, heat sources, and moisture.
- Cleaning: Gently wipe the device with a soft, dry cloth to remove dust. Do not use liquid cleaners or abrasive materials.
- Firmware Updates: Regularly check for and install firmware updates through the device's web interface. Updates often include performance improvements, security patches, and new features.
- Cable Connections: Periodically check that all Ethernet and power cables are securely connected.
7. Troubleshooting
If you encounter issues with your Deeper Connect Mini, try the following troubleshooting steps:
- No Internet Connection:
- Check if the power adapter is securely connected and the device is powered on.
- Verify that Ethernet cables are correctly plugged into the Modem Network Port and Router Network Port.
- Restart your modem/router and the Deeper Connect Mini.
- Ensure your internet service provider (ISP) connection is active.
- Slow Internet Speed:
- Ensure your ISP plan supports the speeds you expect.
- Check for any ongoing large downloads or multiple devices consuming bandwidth.
- Temporarily disable the dVPN feature in the device's interface to see if speeds improve.
- Ad Blocker Not Working:
- Ensure the ad blocking feature is enabled in the device's settings.
- Clear your browser's cache and cookies.
- Some websites use advanced ad delivery methods that may occasionally bypass the blocker.
- Cannot Access Web Interface:
- Ensure your device is connected to the Deeper Connect Mini's network.
- Verify the correct IP address for the interface (e.g., 11.22.33.44).
- Try a different web browser.
If problems persist, refer to the official Deeper Network support resources or contact customer service.
8. Specifications
| Feature | Specification |
|---|---|
| Model Name | Deeper Connect Mini |
| Item Model Number | DPR-M01 |
| Brand | Deeper Network |
| Connectivity Technology | Ethernet |
| Operating System | Proprietary Operating System |
| Number of Ports | 1 (Ethernet, plus dedicated power and Wi-Fi adapter ports) |
| Compatible Devices | Personal Computer, Routers, Modems |
| Recommended Uses | Business, Home |
| Special Feature | WPS, dVPN, Ad Blocking, Cybersecurity |
| Included Components | Bag, Ad Blocking Functionality |
| Control Method | App / Web Interface |
9. Warranty and Support
The Deeper Connect Mini comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official Deeper Network website for detailed warranty terms and conditions.
For technical support, frequently asked questions (FAQs), and additional resources, please visit the Deeper Network support portal or contact their customer service team. Contact information can typically be found on the official website or in the product's quick start guide.
