NUGRIART 13x20 FT Metal Carport Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your NUGRIART 13x20 FT Metal Carport. Please read all instructions carefully before beginning assembly to ensure safe and correct installation. Retain this manual for future reference.

Image: The NUGRIART 13x20 FT Metal Carport providing shelter for a vehicle in an outdoor setting.

Important Safety Information

Always ensure that all fasteners are securely tightened and the carport is properly anchored to the ground. Follow the included instructions for safe installation and maintenance. Do not use the carport in high winds or heavy snow without proper securing measures. Failure to follow these instructions may result in property damage or personal injury.

• Always wear appropriate safety gear during assembly.
• Ensure the installation area is level and clear of obstructions.
• Periodically check all connections and anchors for tightness.
• Consult local building codes and regulations regarding carport installation.

Package Contents

Your NUGRIART 13x20 FT Metal Carport is shipped in four separate boxes. Please verify that all components and hardware are present before beginning assembly. Refer to the packing list included in one of the boxes for a detailed inventory.

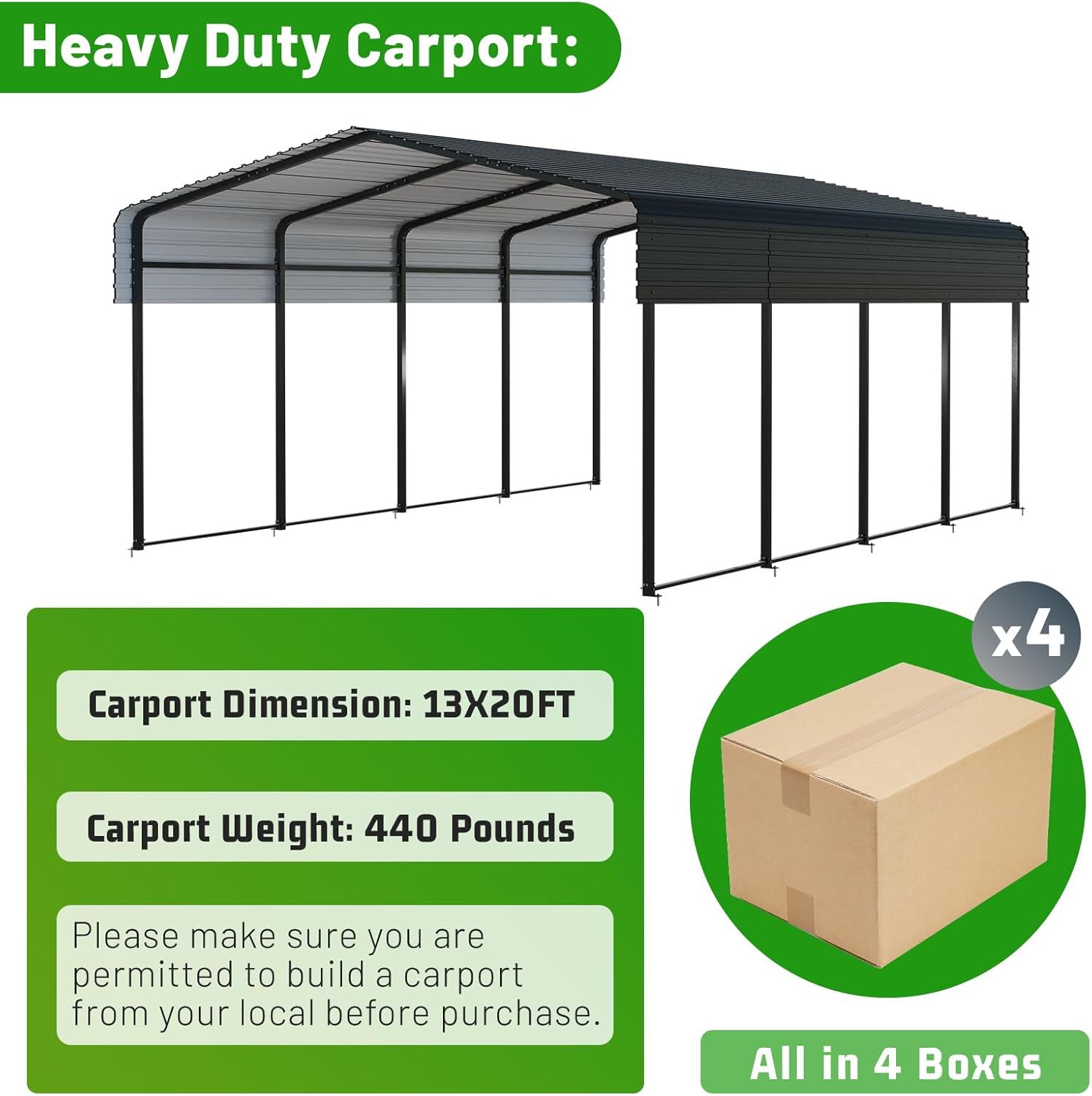

Image: Visual representation of the carport dimensions and the four boxes it ships in, indicating a total weight of 440 pounds.

The package includes all necessary hardware and easy-to-understand instructions for assembly.

Setup and Assembly

Assembly of the NUGRIART Metal Carport requires careful attention to detail. It is recommended to have at least two people for assembly. Ensure you have adequate space and all tools ready.

1. Frame Construction

Begin by assembling the main frame structure. The carport utilizes a 2-inch diameter, 0.05-inch wall thickness square steel tube frame. Connect the vertical and horizontal frame components according to the detailed diagrams in the included instruction booklet. Ensure all bolts are finger-tightened initially.

2. Roof Panel Installation

Once the frame is stable, proceed with installing the galvanized steel roof panels. These panels are designed to interlock and provide a secure, waterproof covering. The addition of soft and abrasion-resistant rubber trim around the edge of the roof enhances safety and protection.

Image: Detailed views of key structural components: abrasion-resistant rubber trim for the roof edges, reinforced frame connections for stability, and heavy-duty ground pegs for secure anchoring.

3. Anchoring the Carport

The carport's base is designed for enhanced stability on diverse surfaces. Secure the carport to the ground using the provided heavy-duty ground pegs. For asphalt or concrete surfaces, additional anchoring hardware (not included) may be required. Ensure all fasteners are tightened securely after the entire structure is assembled and positioned.

Operating and Usage

The NUGRIART 13x20 FT Metal Carport provides reliable shelter for various vehicles and outdoor items.

• Vehicle Protection: Use the carport to protect cars, trucks, SUVs, tractors, and boats from sun, rain, and snow.
• Multi-functional Shelter: This structure can also serve as a temporary shelter for outdoor activities, storage for firewood, agricultural machinery, or crops.

Image: The carport demonstrating its spacious storage capacity by sheltering a tractor, highlighting its versatility beyond just cars.

Weather Resistance

The carport is designed to withstand various weather conditions:

• Wind Resistance: Rated for wind speeds up to 100 mph.
• Snow Capacity: Capable of supporting up to 35 PSF (Pounds per Square Foot) of snow.
• Waterproof: The galvanized steel roof provides excellent waterproof protection.
• UV Protection: The roof material offers basic UV resistance to protect vehicles from sun damage.

Image: The carport effectively sheltering a vehicle during snowy conditions, illustrating its snow load capacity.

Image: The carport protecting a vehicle from direct sunlight, demonstrating its UV-resistant properties and ability to reduce heat buildup.

Maintenance

Regular maintenance will extend the lifespan and ensure the continued performance of your carport.

• Cleaning: Periodically clean the roof and frame with mild soap and water to remove dirt, debris, and prevent buildup. Avoid abrasive cleaners.
• Fastener Check: Annually, or after severe weather, inspect all bolts, screws, and anchors to ensure they remain tight. Re-tighten as necessary.
• Snow Removal: While the carport has a snow capacity, it is advisable to remove excessive snow accumulation to prevent structural stress, especially during prolonged heavy snowfall.
• Rust Prevention: The galvanized steel and powder-coated frame are designed to be rust-resistant. However, if any scratches or damage expose bare metal, touch up with rust-inhibiting paint to prevent corrosion.

Image: Water effectively shedding off the galvanized sheet ceiling, illustrating the waterproof design and ease of cleaning.

Troubleshooting

This section addresses common issues you might encounter.

• Issue: Carport feels unstable.
  Solution: Ensure all frame connections are securely tightened. Verify that the ground anchors are properly installed and holding firm. If on soft ground, consider additional anchoring methods.
• Issue: Water pooling on the roof.
  Solution: Check if the roof panels are correctly aligned and securely fastened. Ensure the carport is installed on a level surface. Clear any debris that might be obstructing water runoff.
• Issue: Difficulty during assembly.
  Solution: Review the instruction manual diagrams carefully. Ensure all parts are correctly oriented before tightening. Do not force components; if parts do not fit, re-check the steps. Contact customer support if a part appears defective or missing.

Specifications

Image: Technical drawing illustrating the overall dimensions of the 13x20 FT carport, including height, width, and length.

Warranty and Support

For information regarding product warranty, please refer to the documentation included with your purchase or contact NUGRIART customer service directly. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please reach out to our support team.

NUGRIART Customer Service:
Please visit the official NUGRIART store on Amazon for contact information or to browse related products: NUGRIART Store
