Parryware E83921C

Parryware Slimline Premium Dual Flush Tank User Manual

Model: E83921C

Brand: Parryware

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of your Parryware Slimline Premium Dual Flush Tank. This exposed cistern features a dual flush system (10-5L) designed for water conservation and is constructed from durable polymer/PVC. It is compatible with both Western (EWC) and Indian commodes.

Image of the Parryware Slimline Premium Dual Flush Tank, a white exposed cistern installed above a toilet.
Figure 1.1: Parryware Slimline Premium Dual Flush Tank.

2. Safety Information

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in property damage or injury.

  • Ensure the water supply is turned off before beginning any installation or maintenance.
  • Wear appropriate personal protective equipment, such as gloves and eye protection.
  • If you are unsure about any step, consult a qualified plumber.
  • Do not use harsh chemicals or abrasive cleaners on the flush tank, as this may damage the finish or internal components.

3. Package Contents

Verify that all components are present before starting installation:

  • Flush Tank (1 unit)
  • Slimline Inlet Assembly
  • Slimline Dual Flush Outlet Assembly
  • Dual Flush Knob
  • Fixing Hardware
  • Washer
  • Outlet Washer & Bung Washer
Diagram showing the internal components of the Parryware Slimline Dual Flush Tank, including the inlet assembly, dual flush outlet assembly, and dual flush knob.
Figure 3.1: Internal Components Diagram. (1) Slimline Inlet Assembly, (2) Slimline Dual Flush Outlet Assembly, (3) Dual Flush Knob.
Image showing the Parryware Slimline Flush Tank with separate boxes indicating Inlet Assembly, Outlet & Dual Flush Assembly, and Outlet Washer & Bung Washer.
Figure 3.2: Included Components. This image displays the main components: Inlet Assembly, Outlet & Dual Flush Assembly, and Outlet Washer & Bung Washer.

4. Setup and Installation

The Parryware Slimline Premium Flush Tank is designed for easy installation and is compatible with most standard Western (EWC) and Indian commodes. It is a floor-mounted exposed cistern.

4.1 Compatibility

This flush tank is suitable for:

  • Standard Western (EWC) commodes
  • Indian commodes
  • Slimline Dual Flush Cistern setups
Diagram showing two toilet setups marked with a green checkmark, indicating suitability for the Parryware Slimline Dual Flush Cistern. One shows a Western commode with the cistern, the other shows a close-up of the dual flush mechanism.
Figure 4.1: Suitable Configurations. This image illustrates the types of toilet setups compatible with the Slimline Dual Flush Cistern.

This flush tank is NOT suitable for:

  • One Piece Toilets
  • Wall Hung Toilets
  • Coupled Closets
  • Dual Flush Wall Hung Toilets
  • Slimline Single Flush Cisterns (as this is a dual flush system)

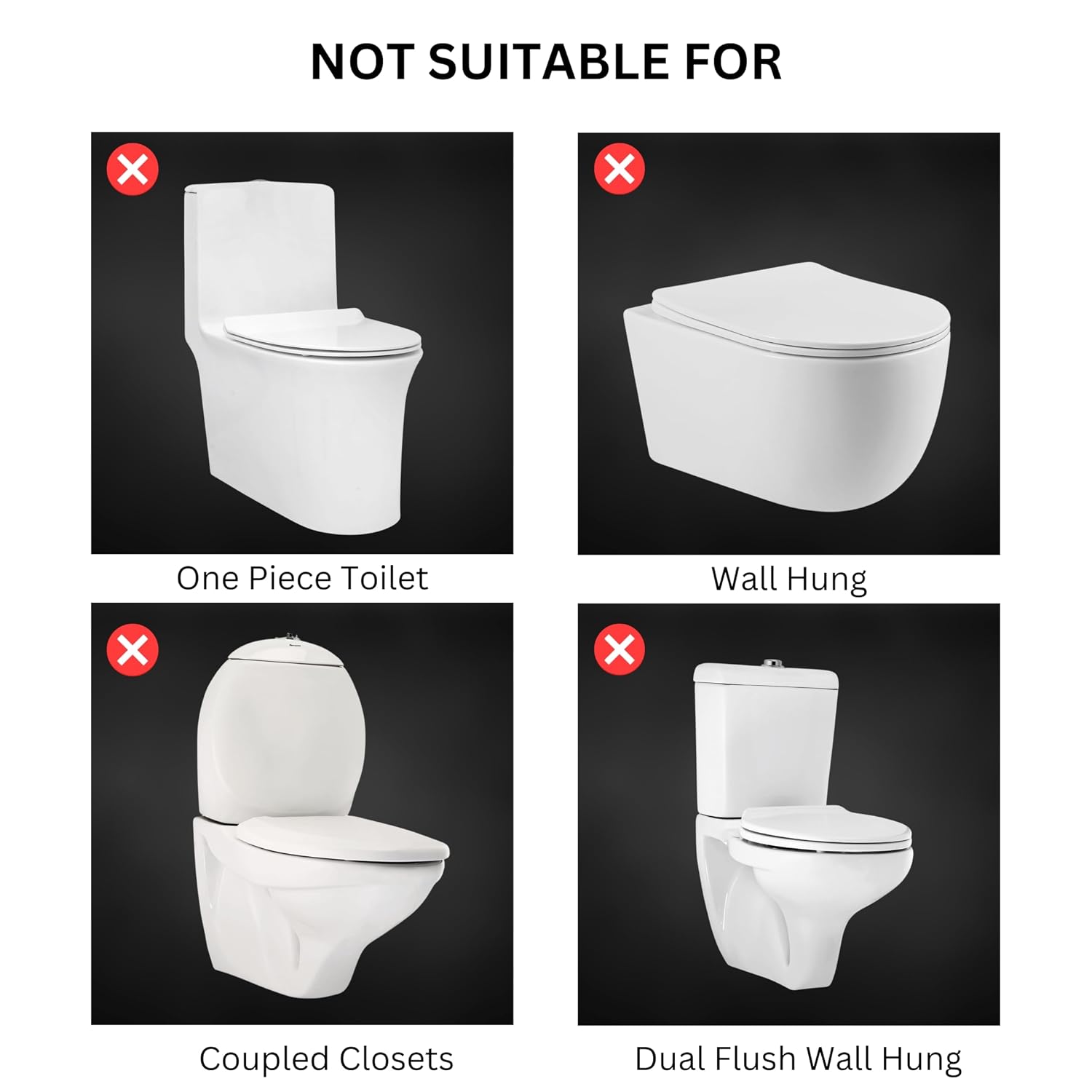

Diagram showing four toilet setups marked with a red cross, indicating unsuitability for the Parryware Slimline Dual Flush Tank. These include One Piece Toilet, Wall Hung, Coupled Closets, and Dual Flush Wall Hung.
Figure 4.2: Unsuitable Configurations. This image shows toilet types that are not compatible with this flush tank.

4.2 Installation Steps (General Guide)

  1. Prepare the Area: Ensure the water supply to the toilet is turned off. Clear the area around the toilet for easy access.
  2. Mount the Tank: Position the flush tank above the commode. Use the provided fixing hardware to securely mount the tank to the wall or appropriate support structure.
  3. Connect Water Inlet: Connect the water supply line to the Slimline Inlet Assembly. Ensure all connections are tight to prevent leaks.
  4. Connect Water Outlet: Connect the Slimline Dual Flush Outlet Assembly to the commode's inlet. Use the provided washers (Outlet Washer & Bung Washer) to ensure a watertight seal.
  5. Install Dual Flush Knob: Insert the dual flush knob into its designated position on the top-center of the tank lid.
  6. Test for Leaks: Slowly turn on the water supply and allow the tank to fill. Check all connections for any signs of leakage. Flush the toilet several times to ensure proper operation and check for leaks again.
Image of the Parryware Slimline Flush Tank installed above a toilet, with dimensions labeled: 48 cm width, 34 cm height, and 14.8 cm depth.
Figure 4.3: Product Dimensions. The flush tank measures approximately 48 cm in width, 34 cm in height, and 14.8 cm in depth.

5. Operating Instructions

Your Parryware Slimline Premium Dual Flush Tank features a dual flush system for efficient water usage.

  • Dual Flush System: The tank offers two flush volumes:
    • Full Flush (10 Liters): Press the larger part of the top-center dual flush knob for solid waste.
    • Partial Flush (5 Liters): Press the smaller part of the top-center dual flush knob for liquid waste. This conserves water.
  • Top-Center Lever: The ergonomically positioned top-center lever allows for easy operation.
Image of a hand pressing the dual flush knob on top of the Parryware Slimline Flush Tank, with text indicating 'Dual Flush Knob to Flush' and '10 L for Solid Wastes & 5 L for Liquid Wastes'.
Figure 5.1: Dual Flush Operation. This image demonstrates how to use the dual flush knob for different water volumes.
Image of the Parryware Slimline Flush Tank with icons for 'Tank Capacity 10 5 L', 'Dual Flush Knob', and 'Durable Polymer'.
Figure 5.2: Key Features. This image highlights the tank's 10-5L capacity, dual flush knob, and durable polymer construction.
Image showing the internal dual flush mechanism of the Parryware Slimline tank, emphasizing its design for efficient water usage.
Figure 5.3: Dual Flush Mechanism. This image illustrates the internal mechanism designed for efficient water usage.
Close-up image of the top-center lever on the Parryware Slimline Flush Tank, highlighting its ergonomic design for easy operation.
Figure 5.4: Top-Center Lever. This image shows the top-center lever designed for easy operation on both Indian and Western commodes.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your flush tank.

  • Cleaning: Clean the exterior of the flush tank regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the polymer finish.
  • Corrosion Resistance: The polymer build of this tank is designed to resist rust and discoloration, making it suitable for wet bathroom conditions.
  • Internal Components: Periodically inspect the internal inlet and outlet valves for any debris or mineral buildup. If necessary, turn off the water supply, drain the tank, and clean the components.
  • Recommended Cleaner: For better maintenance, you may use Parryware Shower Pro cleaner.
Image showing a hand pressing the flush button on the Parryware Slimline Flush Tank, with a bottle of 'Parryware Shower PRO' cleaner in the foreground, and text 'For Better Maintenance Use PARRYWARE SHOWER PRO'.
Figure 6.1: Maintenance with Parryware Shower Pro. This image suggests using Parryware Shower Pro for cleaning and maintenance.

7. Troubleshooting

Refer to the following table for common issues and their solutions:

ProblemPossible CauseSolution
Tank not filling or filling slowlyWater supply turned off; inlet valve obstructed; low water pressure.Ensure water supply is on; check and clear any obstructions in the inlet valve; verify household water pressure.
Continuous water flow into the commodeOutlet valve (flapper/seal) not seating properly; debris under the seal.Inspect the outlet valve and seal for debris or wear; clean or replace if necessary.
Flush is weak or incompleteInsufficient water level in tank; obstruction in the outlet.Adjust the water level in the tank if possible; check for blockages in the outlet assembly.
Leakage from tank connectionsLoose connections; worn or improperly seated washers.Tighten all connections; inspect and replace any damaged washers.
Dual flush knob not functioning correctlyKnob mechanism jammed or disconnected from the flush assembly.Remove the tank lid and inspect the connection between the knob and the flush assembly; re-align or repair as needed.

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

FeatureDetail
Model NumberE83921C
ColourWhite
MaterialPlastic (Polymer/PVC)
Product Dimensions (D x W x H)14.8D x 14W x 34H Centimeters
Item Weight800 Grams
Installation TypeFloor Mounted, Exposed Cistern
Flush SystemDual Flush (10-5L)
CompatibilityWestern (EWC) or Indian Commodes

9. Warranty Information

The Parryware Slimline Premium Dual Flush Tank comes with a 2-year manufacturer's warranty.

Standard manufacturer warranty terms apply. For detailed information regarding warranty coverage, terms, and conditions, please refer to the official Parryware website or contact customer support.

10. Customer Support

For any queries, assistance, or troubleshooting not covered in this manual, please contact Parryware customer support:

  • Customer Care Number: 7301 274 274
  • Manufacturer: Roca Bathroom Products Private Limited
  • Address: The Heritance, 41, Haddows Road, Nungambakkam, Chennai - 600006, India
  • Website: www.parryware.in

© 2026 Parryware. All rights reserved.
