Replacement Chainsaw Carburetor Instruction Manual

Product Overview

This document provides essential information for the Replacement Tool Part for Chainsaw Carburetor, designed for various engines including Kohler M20, John Deere, Bolens, Sears, Craftsman, Bobcat, Toro, and SCAG. This is a high-quality replacement component engineered for durability and optimal performance in garden tool applications.

Please note that this is a replacement part and not a genuine OEM component. Its design focuses on direct compatibility and ease of installation to restore the functionality of your equipment.

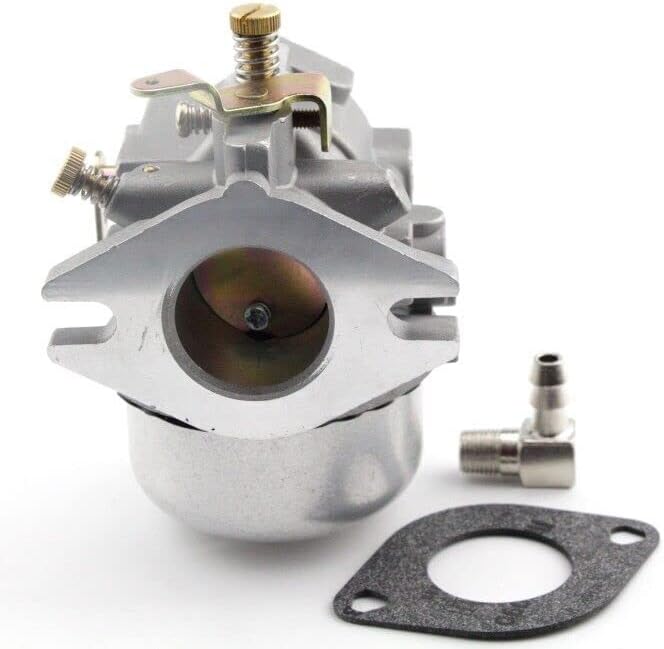

Figure 1: Front view of the replacement carburetor, showing the main body, air intake, and fuel bowl, alongside a gasket and a small metal fitting.

Setup and Installation

Installation of this replacement carburetor is designed to be a direct process. However, it is crucial to verify compatibility before proceeding with the installation.

Compatibility Check:

• Model Number: Compare the model number of your existing carburetor or equipment with the provided model number (DIE_NT_SP_12072024-0996) and the list of compatible brands (Kohler M20, John Deere, Bolens, Sears, Craftsman, Bobcat, Toro, SCAG).
• Appearance: Carefully examine the appearance of the replacement part against your original part. Pay close attention to mounting points, fuel line connections, and throttle linkage.
• Part Number: If available, cross-reference the part number of your original component with the specifications of this replacement part.

Once compatibility is confirmed, proceed with the removal of the old carburetor and installation of the new one. Refer to your equipment's specific service manual for detailed instructions on carburetor replacement procedures, including fuel line disconnection, air filter housing removal, and throttle linkage adjustments.

Figure 2: Side view of the carburetor, highlighting the throttle mechanism and various ports.

Operating Instructions

This carburetor is a component that enables the proper operation of your petrol/gas-powered garden tool. Once correctly installed, the carburetor will regulate the air-fuel mixture for the engine. The operational procedures for your equipment (e.g., starting, running, stopping) remain unchanged and should be followed according to the original equipment manufacturer's manual.

Ensure that the fuel used is appropriate for your equipment and that the fuel lines are securely connected and free of leaks after installation.

Maintenance

To ensure the longevity and optimal performance of your replacement carburetor, consider the following general maintenance guidelines:

• Fuel Quality: Always use fresh, clean fuel appropriate for your engine. Stale or contaminated fuel can lead to carburetor issues.
• Fuel Filter: Regularly check and replace the fuel filter in your equipment to prevent debris from entering the carburetor.
• Air Filter: Maintain a clean air filter to ensure proper air intake and prevent dirt from entering the carburetor.
• Storage: If storing the equipment for an extended period, drain the fuel from the carburetor or use a fuel stabilizer to prevent gumming and varnish buildup.

The carburetor is constructed from high-quality, durable materials designed for long life under normal operating conditions.

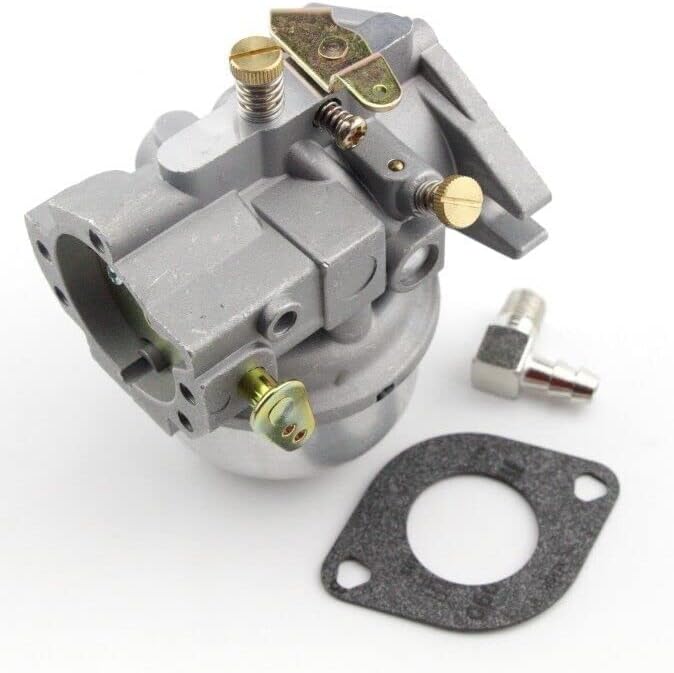

Figure 3: Angled top view of the carburetor, illustrating the various components and potential adjustment points.

Troubleshooting

If your equipment experiences issues after carburetor replacement, consider the following:

• Engine Not Starting/Running Poorly:
  • Verify all fuel lines are correctly connected and not kinked.
  • Check for proper throttle and choke linkage connection and operation.
  • Ensure the fuel tank contains fresh fuel.
  • Inspect the spark plug and air filter.
• Fuel Leaks:
  • Ensure all gaskets are properly seated and mounting bolts are tightened to the manufacturer's specifications.
  • Check fuel line connections for tightness.
• Incorrect Part: If issues persist, re-verify that the replacement carburetor is indeed the correct part for your specific model and engine. Refer back to the compatibility check section.

For complex issues, it is recommended to consult a qualified service technician or the original equipment manufacturer's service manual.

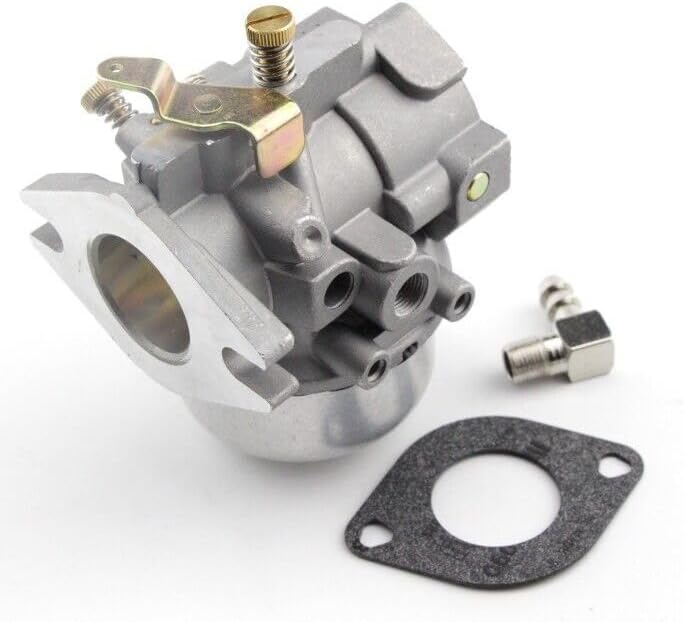

Figure 4: Rear view of the carburetor, displaying the intake manifold connection and fuel inlet.

Specifications

Warranty and Support

Specific warranty terms and conditions for this replacement part are provided by the seller at the time of purchase. Please refer to your purchase documentation or contact the seller directly for details regarding warranty coverage, returns, or technical support.

For support related to the operation or maintenance of the equipment in which this part is installed, please consult the original equipment manufacturer's manual or their customer service.
