1. Introduction and Product Overview
The INTEX 26601EG C330 Cartridge Filter Pump is designed to maintain clean and clear water in your above ground pool. This pump features a 330 GPH (Gallons Per Hour) flow rate, ensuring efficient circulation and filtration. It incorporates Hydro Aeration Technology to improve water clarity and quality. The system is engineered for easy installation and straightforward maintenance, utilizing Type H filter cartridges.
- Improved Circulation and Filtration: Enhances water movement and debris removal.
- Enhanced Water Clarity: Hydro Aeration Technology increases negative ions at the water surface.
- Simple Installation: Designed for quick setup with minimal effort.
- Easy Maintenance: Filter cartridges are simple to clean and replace.
2. Important Safety Information
Please read and understand all instructions carefully before installing and operating this product. Failure to follow these instructions could result in electric shock, fire, or serious injury.
- Electrical Safety: Always connect the pump to a grounded outlet protected by a Ground Fault Circuit Interrupter (GFCI). Do not use extension cords. Ensure hands are dry when handling electrical components.
- Water and Electricity: Never operate the pump when people are in the pool. Keep the pump away from the pool edge to prevent accidental submersion.
- Maintenance Safety: Always unplug the pump from the power source before performing any maintenance, cleaning, or filter cartridge replacement.
- Children: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not proceed with assembly and contact Intex customer service.
- Filter Pump Unit (INTEX 26601EG C330)
- Filter Cartridge (Type H, Item #29007E)
- Hoses (typically two)
- Hose Clamps
- Inlet and Outlet Fittings for Pool Wall
- Instruction Manual
4. Setup and Installation
The INTEX C330 Filter Pump is designed for easy setup. Follow these steps for proper installation:
- Position the Pump: Place the filter pump on a firm, level surface at least 8 feet (2.4 meters) away from the pool. Ensure the pump is lower than the pool's water level for optimal priming.
- Connect Hoses to Pool: Attach the two hoses to the inlet and outlet fittings on your pool wall. The inlet fitting typically has a strainer, and the outlet fitting directs filtered water back into the pool. Secure with hose clamps.
- Connect Hoses to Pump: Connect one hose from the pool's inlet fitting to the pump's inlet connection (usually marked "IN" or with an arrow pointing towards the pump). Connect the second hose from the pump's outlet connection (usually marked "OUT" or with an arrow pointing away from the pump) to the pool's outlet fitting. Secure all hose connections tightly with the provided clamps.
- Install Filter Cartridge: Unscrew the filter housing cap and insert the Type H filter cartridge. Ensure it is seated correctly. Replace the cap and tighten securely.
- Prime the Pump: Open the air release valve on top of the filter housing. Water will begin to fill the pump. Once a steady stream of water flows from the air release valve, close it. This indicates the pump is primed.
- Connect to Power: Plug the pump into a properly grounded 120-volt GFCI protected electrical outlet.
Image 1: The INTEX 26601EG C330 Cartridge Filter Pump with its connected hoses, ready for installation.

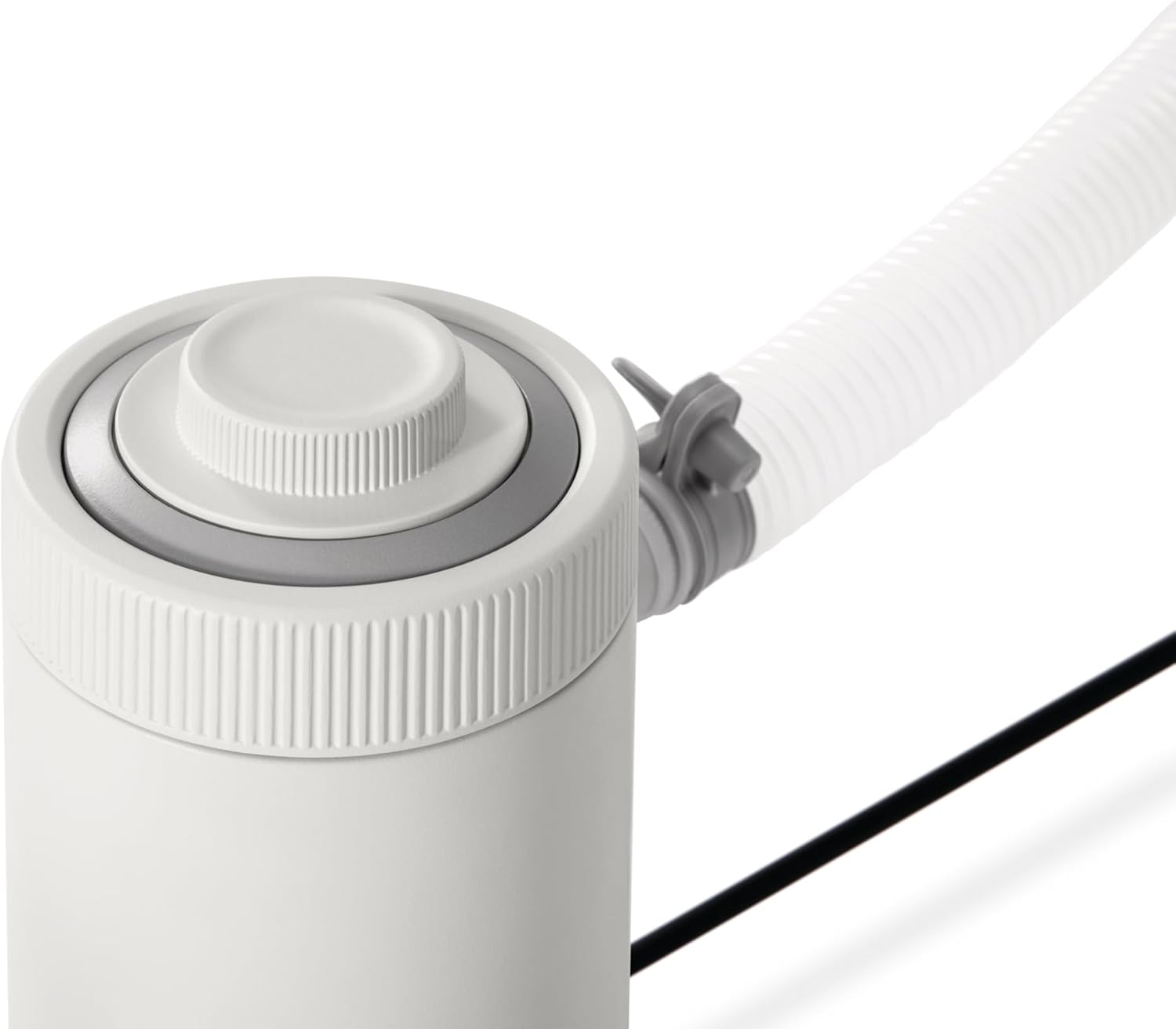

Image 2: A close-up view of the top of the INTEX 26601EG C330 pump, showing the filter housing cap and a hose connection point.
5. Operating Instructions
Once installed and primed, operating the INTEX C330 Filter Pump is straightforward.
- Turning On/Off: The pump typically has an integrated timer or a simple on/off switch. Refer to the specific controls on your pump for operation.
- Filtration Cycle: Run the pump for several hours each day to ensure proper water circulation and filtration. The duration depends on pool size, usage, and water condition. For optimal clarity, it is recommended to run the pump for at least 4-6 hours daily.
- Flow Rate: The pump operates at a flow rate of 330 GPH (1,250 lph) at the pump, with a system flow rate of 300 GPH (1,136 lph) in the pool. This ensures efficient water turnover for pools up to 2,400 gallons.
6. Maintenance
Regular maintenance of your filter pump is crucial for its longevity and for maintaining clean pool water.
- Filter Cartridge Cleaning: The Type H filter cartridge should be rinsed with a garden hose every few days, or more frequently depending on pool usage and debris levels.
- Filter Cartridge Replacement: For optimal filtration, the Type H filter cartridge (Item #29007E) should be replaced every two weeks.
- Winterization: Before freezing temperatures, disconnect and drain the pump and hoses. Store all components in a dry, protected area.
- General Cleaning: Keep the exterior of the pump clean and free from debris. Ensure the air release valve is clear.
7. Troubleshooting
If you encounter issues with your INTEX C330 Filter Pump, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not turning on | No power, tripped GFCI, faulty switch/timer. | Check power connection. Reset GFCI. Ensure switch is in "ON" position. If problem persists, contact support. |
| Low water flow | Clogged filter cartridge, air in system, kinked hoses, blocked inlet/outlet. | Clean or replace filter cartridge. Re-prime the pump by opening air release valve. Check hoses for kinks. Clear any blockages in pool fittings. |
| Pump making unusual noise | Air in system, debris in impeller, pump not level. | Re-prime the pump. Disconnect power and inspect impeller for debris (refer to manual for safe access). Ensure pump is on a stable, level surface. |
| Water not clear | Dirty filter, insufficient run time, chemical imbalance. | Clean or replace filter cartridge. Increase pump run time. Test pool water chemistry and adjust as needed. |
If troubleshooting steps do not resolve the issue, please contact Intex customer support for further assistance.
8. Specifications
Key technical specifications for the INTEX 26601EG C330 Cartridge Filter Pump:
| Feature | Specification |
|---|---|
| Brand | Intex |
| Model Number | 26601EG |
| Pump Flow Rate (Pump Capacity) | 330 GPH (1,250 lph) |
| System Flow Rate (In Pool) | 300 GPH (1,136 lph) |
| Compatible Pool Size | Up to 2,400 gallons |
| Hose Fitting Diameter | 1.25 inches (32mm) |
| Filter Cartridge Type | Type H (Item #29007E) |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Product Dimensions (L x W x H) | 9.63" x 9.63" x 11" |
| Item Weight | 4.69 Pounds |
| Material | Plastic |
9. Warranty and Customer Support
Intex products are manufactured with the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. While specific warranty details may vary, Intex typically provides a limited warranty against manufacturing defects.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Intex customer service. Keep your proof of purchase and product model number readily available when contacting support.
You can find more information and contact details by visiting the official Intex website or the Intex Store on Amazon.
