YDuupxe Clear QB60 Regenerative Water Pump User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your YDuupxe Clear QB60 Regenerative Water Pump. The QB60 is a robust electric pump designed for various applications including garden watering, high-rise water supply, and the removal of accumulated water in industrial settings such as factories, mines, and ships. It features a powerful motor, low operating noise, and high displacement capabilities.

Figure 1.1: Overview of the QB60 Regenerative Water Pump.

2. Safety Information

Please read all safety instructions carefully before operating the pump to prevent injury or damage to the equipment. Keep this manual for future reference.

• Electrical Safety: Ensure the voltage of your power supply is consistent with the pump's requirements (AC110V). Given that the pump operates in a humid environment, it is mandatory to install a leakage switch before the main power switch to prevent electrical hazards.
• Operational Safety: Do not attempt to move the pump while it is in operation. Ensure the pump is placed on a stable, level surface during use.
• Suction Pipe Placement: The bottom valve of the suction pipe must be vertically submerged into the water at a depth of approximately 0.4 meters (1.3 feet) for optimal performance and to prevent air intake.
• Water Quality: If the water quality is poor or contains debris, a filter must be installed on the suction pipe to prevent foreign particles from entering the pump. This protects the pump's internal components and maintains its efficiency.

3. Setup and Installation

Proper installation is crucial for the pump's performance and longevity.

1. Unpacking: Carefully remove the pump and all accessories from the packaging. Inspect for any signs of damage during transit.
2. Placement: Position the pump on a firm, level, and dry surface. Ensure there is adequate ventilation around the motor.
3. Pipe Connections: Connect the inlet and outlet pipes (approximately 1 inch in size) securely to the pump's ports. Use appropriate sealing tape or compounds to prevent leaks.
4. Suction Pipe Submersion: Lower the suction pipe into the water source, ensuring the bottom valve is submerged vertically to a depth of at least 0.4 meters (1.3 feet).
5. Filter Installation (Optional but Recommended): If pumping water with suspended particles or debris, install a suitable filter on the suction pipe to protect the pump.
6. Electrical Connection: Before plugging in, confirm your power supply is AC110V. Connect the pump to a grounded outlet equipped with a leakage switch as per safety guidelines.

Figure 3.1: Side view of the pump, highlighting connection points.

4. Operating Instructions

Follow these steps for safe and effective operation of your QB60 pump.

1. Priming (if necessary): For initial use or after extended periods of inactivity, ensure the pump casing is filled with water before starting to prevent dry running.
2. Power On: Once all connections are secure and the suction pipe is correctly submerged, switch on the power supply. The pump will begin operating with low working noise and large displacement.
3. Monitoring: Observe the pump during operation. Ensure there are no unusual noises, vibrations, or leaks. The pump is designed for high-efficiency operation, capable of achieving a maximum head of 35 meters.
4. Power Off: To stop the pump, simply switch off the power supply.
5. Important Note: Never move the pump while it is running.

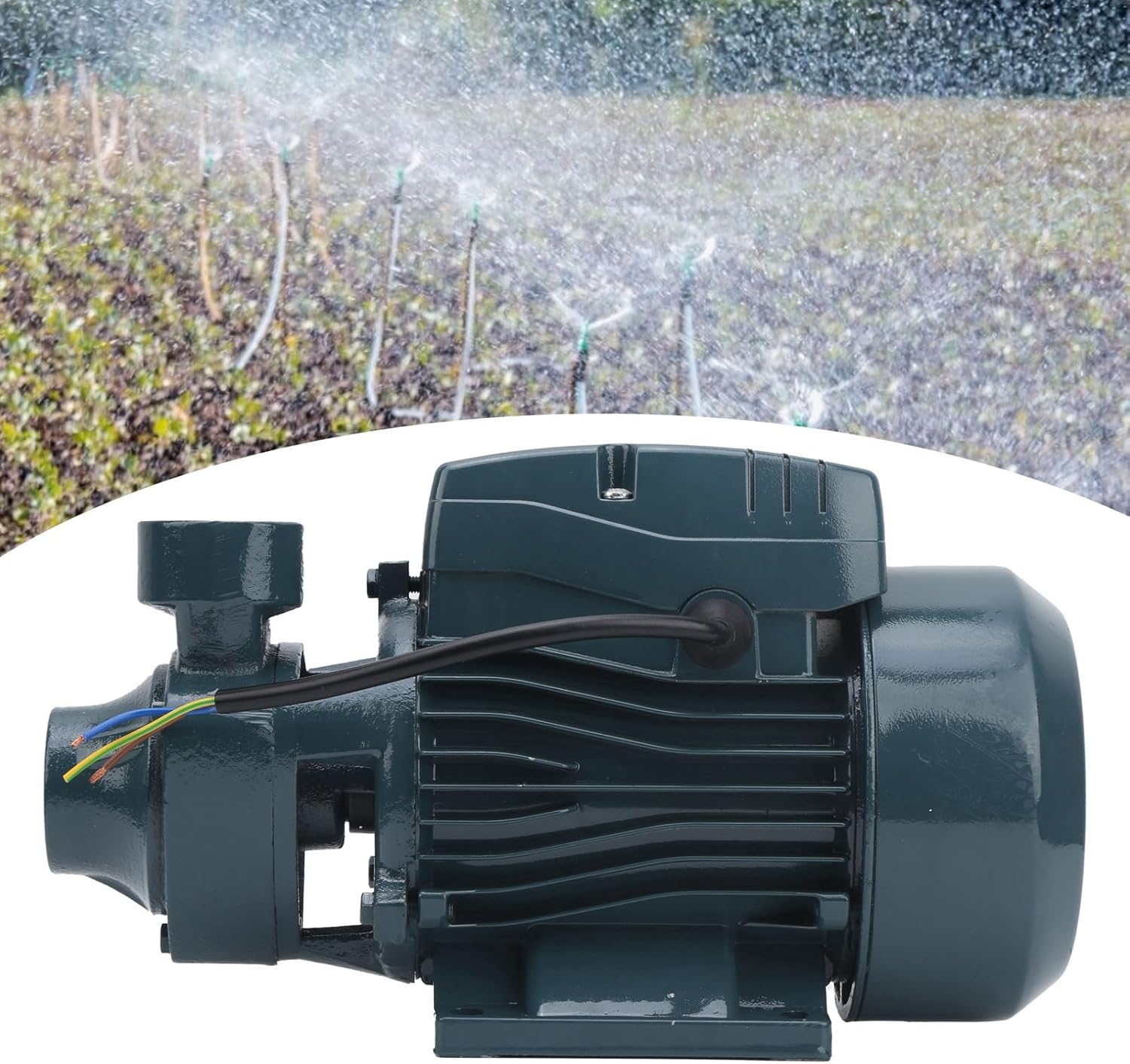

Figure 4.1: The QB60 pump effectively used for garden watering.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pump.

• Regular Inspection: Periodically check all connections for leaks and ensure the power cord is undamaged.
• Cleaning: If a filter is used, clean it regularly to prevent blockages and maintain flow rate. For the pump exterior, wipe with a damp cloth. Do not use harsh chemicals.
• Winterization (if applicable): If operating in freezing conditions, drain the pump completely and store it in a dry, frost-free environment to prevent damage from ice expansion.
• IP44 Rating: The pump has an IP44 rating, indicating protection against solid objects larger than 1mm and splashing water from any direction. While protected, avoid direct high-pressure water jets.

Figure 5.1: Close-up of the motor section, showing cooling fins for efficient operation.

6. Troubleshooting

Refer to this section for common issues and their solutions.

• Pump Does Not Start:
  • Check if the pump is properly plugged into a live AC110V outlet.
  • Verify the leakage switch has not tripped.
  • Ensure there is no power outage.
• Low Flow or No Water Output:
  • Check if the suction pipe is fully submerged (at least 0.4m).
  • Inspect the suction pipe and filter for blockages or debris.
  • Ensure there are no air leaks in the suction line connections.
  • Verify the pump is properly primed.
• Unusual Noise or Vibration:
  • Check for foreign objects or debris inside the pump casing (disconnect power first).
  • Ensure the pump is placed on a stable and level surface.
  • Verify all pipe connections are tight.

7. Specifications

Technical specifications for the YDuupxe Clear QB60 Regenerative Water Pump.

Figure 7.1: Product label displaying key specifications.

8. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact the seller/manufacturer directly. Keep your purchase receipt as proof of purchase.
