Introduction
Thank you for choosing the Kenneth Cole New York Men's Automatic Watch, Model KCWGZ0046102. This timepiece features a sophisticated automatic movement, eliminating the need for a battery. Its distinctive skeleton dial showcases the intricate internal mechanisms, combining contemporary style with traditional watchmaking. This manual provides essential information for the proper setup, operation, and care of your watch.

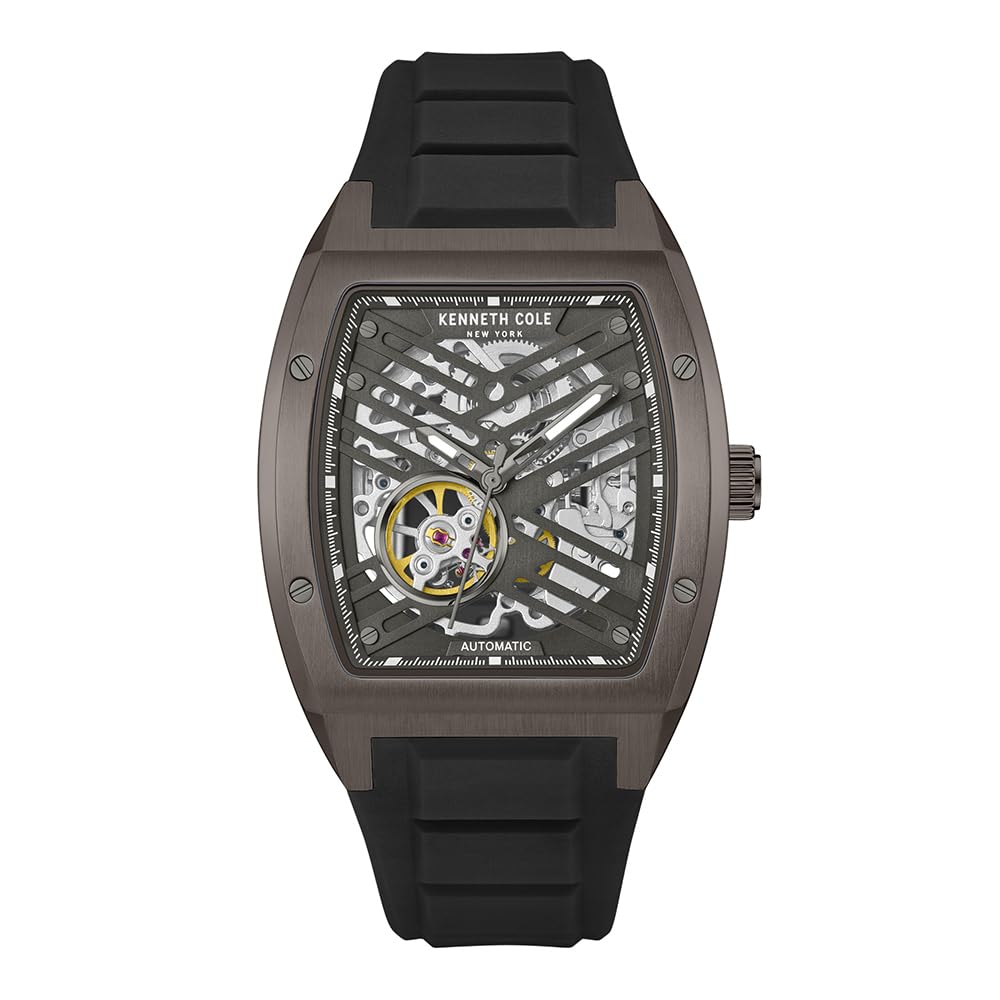

Figure 1: Front view of the Kenneth Cole New York Automatic Watch, showcasing the skeleton dial and black silicone strap.
Setup
1. Initial Winding
Your automatic watch is powered by the motion of your wrist. However, for the first use or after a period of inactivity, manual winding is recommended to ensure sufficient power reserve.
- Locate the crown on the side of the watch case.
- Ensure the crown is in its fully pushed-in position (Position 0).
- Turn the crown clockwise approximately 20-30 times. This will initiate the movement and build up a power reserve.
2. Setting the Time
- Gently pull the crown out to Position 1 (the outermost position).
- Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the correct time.
- Once the time is set, push the crown back into Position 0.
3. Adjusting the Strap
The watch features a silicone strap with a buckle clasp. To adjust the fit, simply move the buckle pin to the desired hole on the strap. Ensure the watch is snug but comfortable on your wrist to allow for proper automatic winding.
Operating Your Automatic Watch
Automatic Movement
This watch is equipped with an automatic self-winding mechanical movement. It does not require a battery. The movement is powered by the natural motion of your arm and wrist. When worn regularly, the watch will remain wound. If the watch is not worn for an extended period (typically 36-40 hours), it may stop. In such cases, manually wind the watch as described in the "Initial Winding" section before wearing it again.
Figure 2: Rear view of the watch, highlighting the transparent case back that reveals the automatic movement.
Water Resistance (30 Meters / 3 ATM)
Your watch is water-resistant up to 30 meters (3 ATM). This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is not suitable for swimming, showering, diving, or any water sports. Always ensure the crown is fully pushed in before any contact with water. Water resistance is not a permanent condition and may diminish over time due to wear and tear or accidental impact.
Maintenance and Care
Cleaning
- Wipe the watch case and crystal with a soft, dry, lint-free cloth.
- For the silicone strap, you can use a mild soap solution and a soft brush, then rinse thoroughly with clean water and dry completely.
- Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the watch's finish or seals.
Environmental Considerations
- Temperature: Avoid exposing your watch to extreme temperatures (above 60°C / 140°F or below 0°C / 32°F) or sudden temperature changes.
- Magnetic Fields: Keep your watch away from strong magnetic fields (e.g., speakers, refrigerators, mobile phones, airport security scanners), as these can affect the accuracy of the mechanical movement.
- Shocks: While designed for durability, avoid severe impacts or drops, which can damage the delicate internal components.
Water Resistance Longevity
To maintain the water resistance of your watch, it is recommended to have the seals checked periodically by an authorized service center, especially if the watch has been subjected to impacts or extreme conditions.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch has stopped or is running slowly. | Insufficient power reserve. | Manually wind the watch by turning the crown 20-30 times clockwise. Wear the watch regularly to keep it wound. |
| Time is inaccurate. | Exposure to strong magnetic fields or impact. | Demagnetize the watch at an authorized service center. Avoid strong magnetic fields. If accuracy issues persist, professional inspection may be required. |
| Condensation under the crystal. | Water ingress due to compromised seals or improper crown closure. | Immediately take the watch to an authorized service center. Do not attempt to dry it yourself. Ensure the crown is always fully pushed in. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | KCWGZ0046102 |
| Movement Type | Automatic Self-Wind |
| Case Material | Stainless Steel |
| Case Diameter | 40 mm |
| Case Thickness | 13.2 mm |
| Crystal Material | Mineral Glass (Anti-Glare) |
| Display Type | Analog, Skeleton Dial |
| Band Material | Silicone |
| Band Width | 25 mm |
| Band Length | 8 Inches (240 mm) |
| Clasp Type | Buckle |
| Water Resistance Depth | 30 Meters (3 ATM) |
| Item Weight | 227 g (0.5 Pounds) |
| Manufacturer | Geneva Watch Group |
Warranty and Support
Warranty Information
This Kenneth Cole New York watch is backed by a 2-year limited warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover:
- Damage resulting from improper handling, lack of care, accidents, or normal wear and tear.
- Water damage if the watch was not used according to its water resistance guidelines.
- Damage to the strap, crystal, or case due to impact or misuse.
- Unauthorized repairs or modifications.
For warranty service, please retain your proof of purchase. The warranty is void if the watch has been opened or serviced by unauthorized personnel.
Customer Support
For any questions, service requests, or warranty claims, please contact Kenneth Cole New York customer support. Refer to the official Kenneth Cole New York website or your purchase documentation for the most current contact information.
