XINDA HPU03 Micro Pulley Instruction Manual

1. Important Safety Information

This instruction manual provides essential information for the safe and proper use of the XINDA HPU03 Micro Pulley. Read and understand all instructions before using this product. Failure to follow these instructions can result in serious injury or death.

• This product is intended for use by competent individuals or under the direct supervision of a competent person.
• Always inspect the pulley and all associated equipment before each use. Discard if any damage or excessive wear is found.
• Understand the limitations of the equipment, including its Maximum Breaking Load (MBS) and Working Load Limit (WLL).
• Ensure all components are compatible and correctly assembled.
• This pulley is certified to CE EN 12278:2007 and UIAA 121 standards.

Certification Details:

2. Product Overview

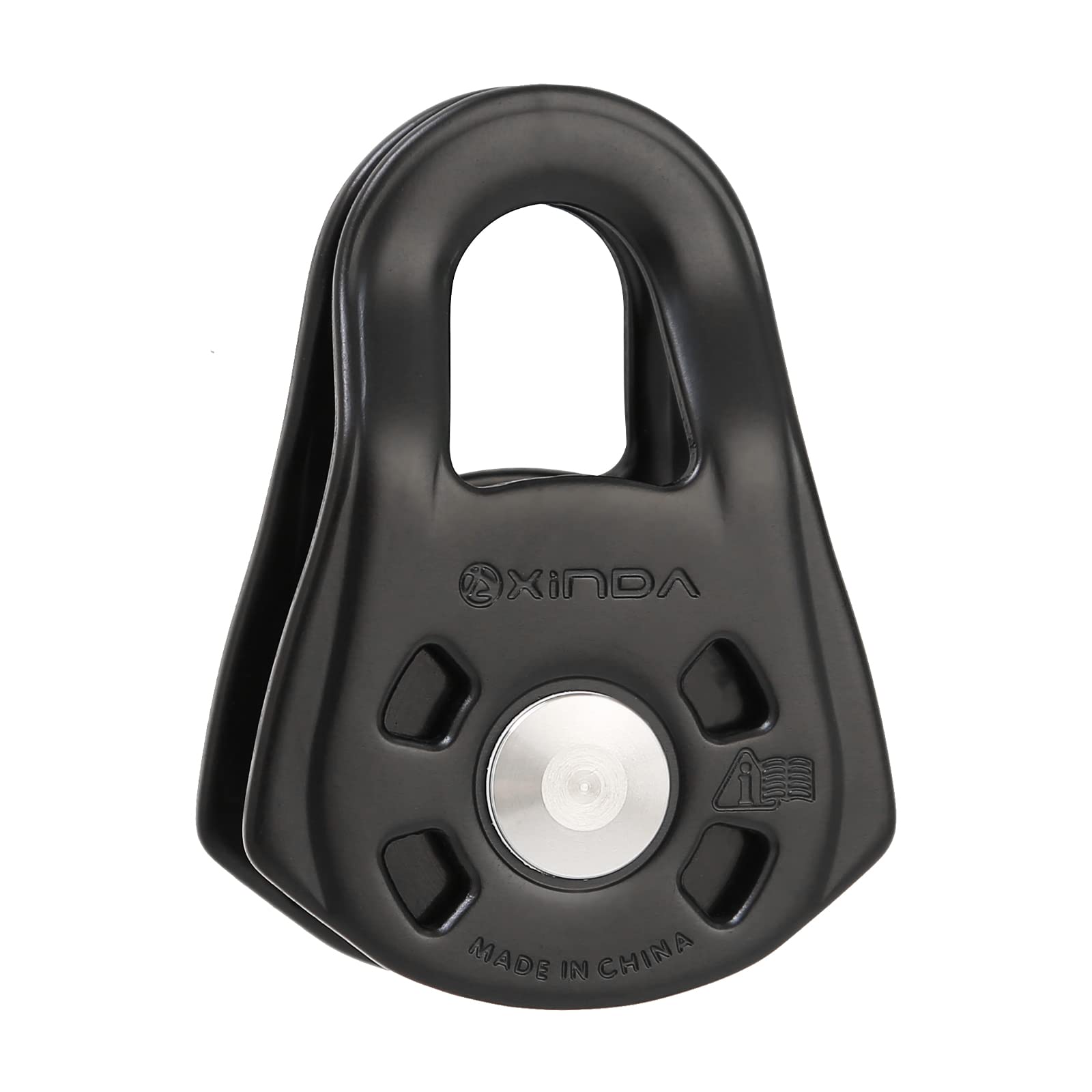

The XINDA HPU03 is a lightweight, high-efficiency micro pulley designed for various applications including climbing, rescue, lifting, hitch tending, and zipline systems. It features anodized aircraft-grade aluminum side plates that swing open for easy rope installation and a stainless steel axle with sealed ball bearings for smooth operation.

Key Features:

• Material: Aluminum alloy body, stainless steel axle
• Sheaves: Large sheaves for higher efficiency
• Bearings: Sealed ball bearings for smooth rotation
• Side Plates: Swing-open design for easy rope insertion; prusik knot compatible
• Rope Compatibility: For ropes with diameters between 7mm and 11mm
• Certifications: CE EN 12278:2007, UIAA 121

3. Setup and Installation

Proper setup is crucial for the safe operation of the pulley. Always ensure the pulley is correctly integrated into your system.

Pre-Use Inspection:

• Check the pulley for any cracks, deformation, sharp edges, or corrosion on the body, sheaves, and axle.
• Ensure the side plates swing freely and securely close.
• Verify that the ball bearings allow the sheave to rotate smoothly without excessive play or grinding.
• Inspect the rope you intend to use for any damage or wear.

Rope Installation:

1. Open the swing side plates of the pulley.
2. Insert the rope into the sheave, ensuring it sits correctly within the groove.
3. Close the side plates securely. Verify they are fully closed and locked into position.
4. Ensure the rope diameter is within the specified range of 7mm to 11mm.

Connecting to Other Equipment:

• Use appropriate CE/UIAA certified carabiners or connectors to attach the pulley to anchors, harnesses, or other system components.
• Ensure the carabiner is properly oriented and locked.

4. Operating Instructions

The XINDA HPU03 Micro Pulley is designed for various rope-based systems. Always operate within the specified load limits and ensure proper technique.

Load Limits:

• Maximum Breaking Load (MBS): 23 kN (kilonewtons)
• Working Load Limit (WLL): 2.5 kN x 2 = 5 kN (for systems with two strands of rope)
• Never exceed the stated load limits. Dynamic loads can significantly increase forces on the system.

General Use:

• Haul Systems: Integrate the pulley into mechanical advantage systems for lifting or hauling loads. The ball bearings reduce friction, improving efficiency.
• Rescue Operations: Use in rescue systems for lowering or raising individuals or equipment.
• Ziplines: Suitable for light-duty zipline applications, ensuring proper tensioning and safety backups.
• Climbing: Can be used in various climbing scenarios, such as setting up redirects or light hauling.
• Hitch Tending: The design allows for prusik knots to be installed on either side, making it suitable for prusik minding applications.

Always ensure the rope runs smoothly through the sheave and is not rubbing against the side plates or other obstructions. Avoid situations where the pulley could be subjected to sharp edges or abrasive surfaces.

5. Maintenance and Storage

Regular maintenance and proper storage will extend the lifespan of your XINDA HPU03 Micro Pulley and ensure its continued safe operation.

Cleaning:

• Clean the pulley with clean water and a mild soap solution.
• Rinse thoroughly to remove all soap residue.
• Allow the pulley to air dry completely in a shaded, well-ventilated area before storage. Do not use direct heat.

Inspection:

• After each use, perform a thorough inspection for any signs of wear, damage, or deformation.
• Pay close attention to the sheave, axle, and side plates for cracks, deep scratches, or corrosion.
• Check for smooth rotation of the sheave. Any grinding, stiffness, or excessive play indicates potential bearing damage.
• If any damage is found, or if you have any doubts about the pulley's integrity, retire it immediately.

Storage:

• Store the pulley in a cool, dry, dark place, away from direct sunlight, chemicals, and extreme temperatures.
• Avoid storing with sharp objects or other equipment that could cause damage.

6. Troubleshooting

This section addresses common issues you might encounter with your pulley.

Issue: Sheave does not rotate smoothly or makes noise.

• Possible Cause: Dirt or debris in the bearings.
• Solution: Clean the pulley thoroughly as described in the Maintenance section.
• Possible Cause: Damaged bearings or axle.
• Solution: If cleaning does not resolve the issue, or if there is significant play, the pulley should be retired.

Issue: Rope is rubbing against side plates.

• Possible Cause: Incorrect rope diameter.
• Solution: Ensure the rope diameter is between 7mm and 11mm.
• Possible Cause: Side plates are bent or deformed.
• Solution: Retire the pulley immediately if side plates are damaged.

If you encounter any issues not listed here, or if you are unsure about the safety of your pulley, discontinue use and contact the manufacturer or a qualified expert.

7. Specifications

8. Warranty and Support

For warranty information and customer support regarding your XINDA HPU03 Micro Pulley, please contact the manufacturer directly. Details are typically provided with the product packaging or on the official XINDA website.

Always retain your proof of purchase for warranty claims.
