WOLTU BS161sz Ergonomic Office Chair User Manual

1. Introduction

Thank you for choosing the WOLTU BS161sz Ergonomic Office Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your new office chair. Please read these instructions carefully before use and retain them for future reference.

Figure 1: WOLTU BS161sz Ergonomic Office Chairs in an office environment.

2. Safety Information

• Ensure all components are securely fastened before using the chair.
• Do not stand on the chair or use it as a step stool.
• Do not exceed the maximum weight capacity of 150 kg (330 lbs).
• Keep children and pets away from the chair during assembly.
• Avoid exposing the chair to direct sunlight or extreme temperatures.
• Regularly check all screws and bolts to ensure they remain tight.

3. Package Contents

Before assembly, please verify that all parts listed below are present in your package:

• Office Chair x1 (disassembled components)
• Accessory Kit x1 (includes screws, bolts, and tools)
• Assembly Manual x1

Figure 2: Front view of the WOLTU BS161sz chair, showing the mesh back, lumbar support, and seat.

4. Setup and Assembly

Your WOLTU BS161sz office chair requires assembly. A detailed assembly manual with illustrated instructions and labeled accessories is included in the package. Please follow the steps outlined in the separate assembly manual for quick and easy setup.

Key Assembly Tips:

• Lay out all components on a clean, flat surface before starting.
• Identify each part using the diagrams in the assembly manual.
• Do not overtighten screws during initial assembly; tighten them fully once all parts are aligned.
• Ensure the gas lift is correctly inserted into the base and seat mechanism.

5. Operating Instructions

The WOLTU BS161sz office chair is designed with multiple adjustments to provide ergonomic support and comfort.

5.1 Ergonomic Design and Lumbar Support

The chair features a mesh high back and curved lumbar support designed to conform to the natural curve of your spine, promoting correct posture. The breathable mesh fabric enhances air circulation, reducing discomfort during long sitting periods. The 8cm thick high-density foam cushion provides additional comfort.

Figure 3: Ergonomic design highlights, showing support for head, neck, waist, and hips.

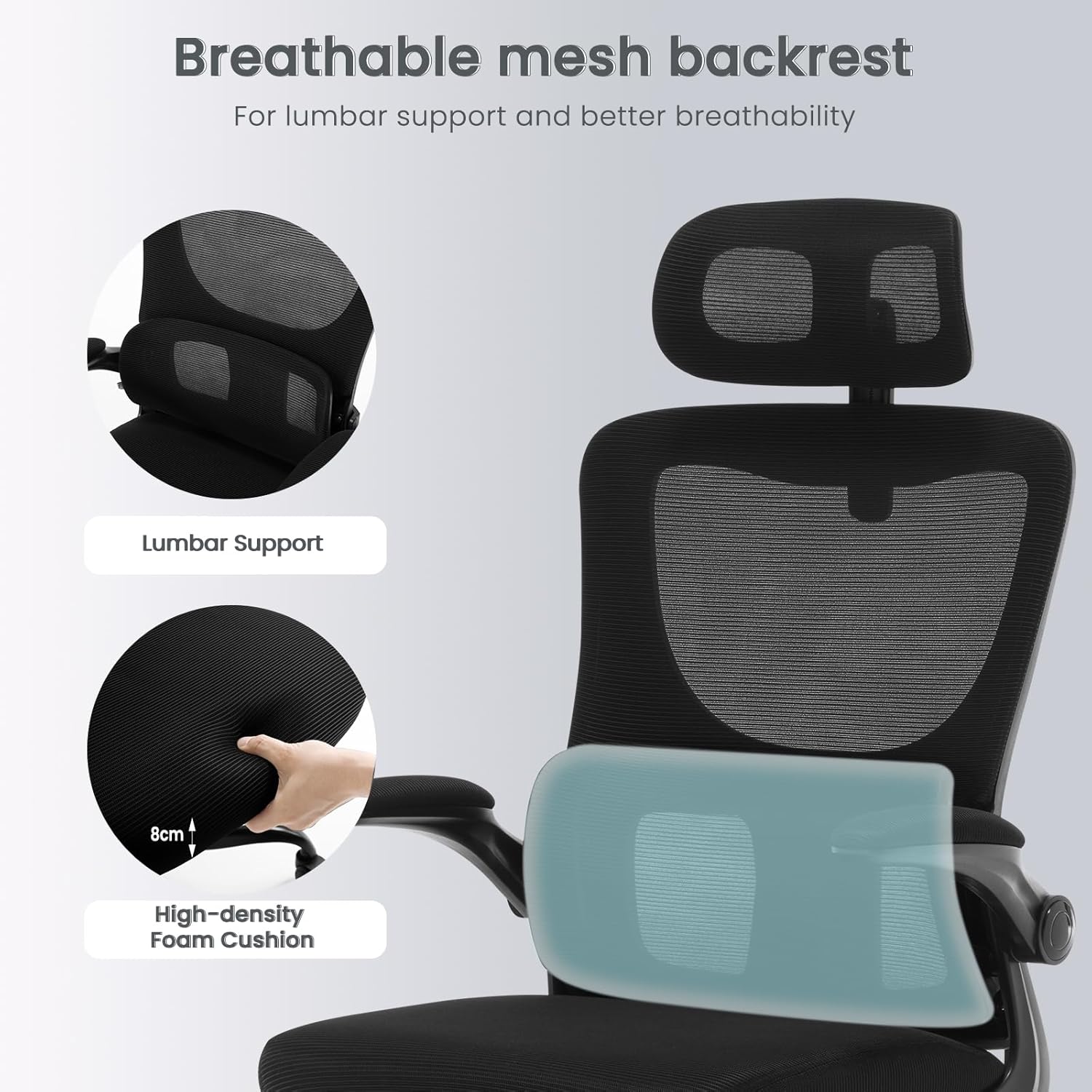

Figure 4: Details of the breathable mesh backrest, adjustable lumbar support, and high-density foam cushion.

5.2 Multi-Adjustment Functions

• Seat Height Adjustment: Use the lever located under the seat on the right side to adjust the seat height. Pull the lever up to raise the seat; release it at the desired height. To lower, sit on the chair and pull the lever up. The seat height is adjustable by 8 cm (46-54 cm).
• Rocking Function: The chair features a rocking function with a backrest tilt range from 90° to 110°. Use the lever under the seat to engage or disengage the rocking mechanism. The tension of the rocking function can be adjusted by turning the knob located under the seat.
• Adjustable Headrest: The headrest can be flipped 30° for angle adjustment and moved vertically by 8 cm to accommodate different user heights and preferences.
• Folding Armrests: The armrests can be folded up, allowing the chair to be pushed closer to your desk for space-saving storage. They also feature padded cushions for comfort.

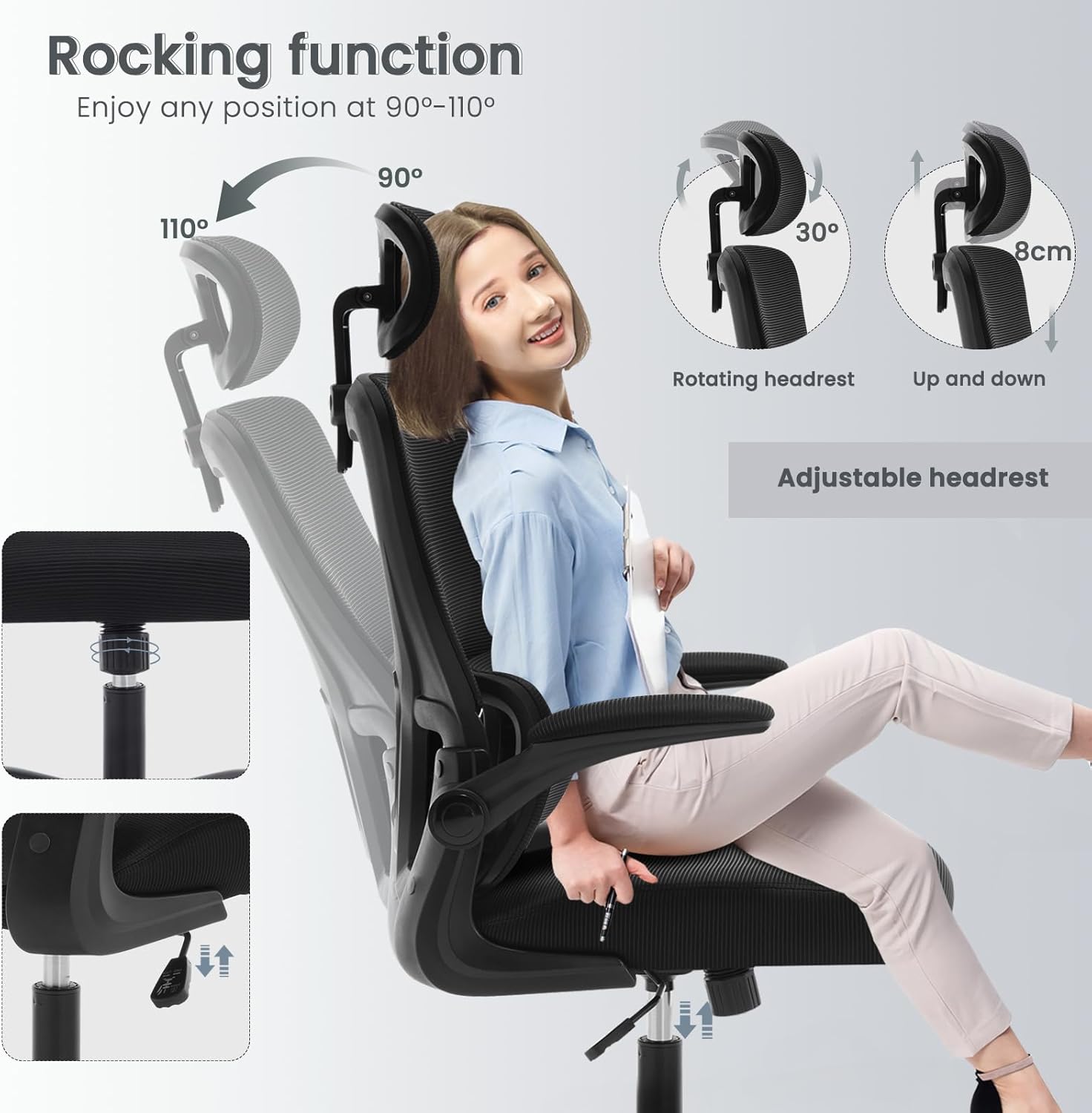

Figure 5: Demonstrations of the rocking function and adjustable headrest features.

Figure 6: The chair's space-saving design with folding armrests, enabling it to be stored compactly under a desk.

6. Maintenance

To ensure the longevity and optimal performance of your WOLTU BS161sz office chair, follow these maintenance guidelines:

• Cleaning: Wipe clean with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, which can damage the mesh fabric or metal components.
• Inspection: Periodically check all screws, bolts, and moving parts for tightness. Retighten any loose fasteners to prevent instability.
• Wheels: Keep the PU wheels clean from dust and debris to ensure smooth movement and prevent damage to floor surfaces.

7. Troubleshooting

If you encounter any issues with your WOLTU BS161sz office chair, please refer to the following common solutions:

• Chair is wobbly: Check all assembly screws and bolts. Ensure they are fully tightened. Verify that the base and gas lift are correctly assembled.
• Gas lift not adjusting: Ensure the height adjustment lever is fully engaged or disengaged. If the issue persists, the gas lift may need replacement.
• Wheels not rolling smoothly: Clean any hair or debris from the wheel casters. Ensure the wheels are properly inserted into the base.
• Rocking function not working: Check the rocking tension knob under the seat. Adjust it to your preference. Ensure the rocking lever is in the correct position.

For problems not listed here or if troubleshooting steps do not resolve the issue, please contact WOLTU customer support.

8. Specifications

Figure 7: Detailed dimensions of the WOLTU BS161sz ergonomic office chair.

9. Warranty and Support

WOLTU is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

For technical support, missing parts, or any other inquiries, please contact WOLTU customer service through the retailer where you purchased the product or visit the official WOLTU website for contact information.
