1. Product Overview
The Loom Solar Fusion 5kW 1-Phase On-Grid Solar Inverter is designed for residential and small commercial solar power systems. It converts direct current (DC) electricity generated by solar panels into alternating current (AC) electricity for use in your home or to feed back into the utility grid. This inverter is engineered for high efficiency and reliable performance.
Image: Front view of the Loom Solar Fusion 5kW 1-Phase On-Grid Solar Inverter.
Key Features:
- High Efficiency: Converts DC from solar panels to AC with efficiency rates often exceeding 98%, maximizing energy usage.
- Robust Design: Designed to handle up to 5000 Watts of solar power, suitable for residential and small commercial applications.
- Safety Features: Includes over-voltage, short circuit, and reverse polarity protection to ensure safe operation.
- AC/DC Lightening Protection: Integrated protection against lightning strikes for both AC and DC circuits.
- Reliable Heat Dissipation: Advanced cooling mechanisms ensure stable operation and longevity.
- Anti-Corrosion Alloy: Constructed with materials resistant to corrosion, enhancing durability in various environments.
Image: Visual representation of key features including 98.1% efficiency, AC/DC lightning protection, reliable heat dissipation, and anti-corrosion alloy.
2. Setup and Installation
Installation of the Loom Solar Fusion 5kW inverter requires electrical expertise. It is highly recommended that installation be performed by a certified solar professional to ensure safety, compliance with local electrical codes, and optimal system performance.
General Installation Steps:
- Site Selection: Choose a well-ventilated location, protected from direct sunlight and extreme weather, with sufficient space for maintenance. The inverter has an IP65 rating for dust and water resistance, but optimal placement enhances lifespan.
- Mounting: Securely mount the inverter to a sturdy wall or frame using appropriate hardware. Ensure proper clearance around the unit for airflow.
- DC Wiring: Connect the DC input cables from the solar panels to the designated DC input terminals on the inverter. Observe correct polarity (+ and -).
- AC Wiring: Connect the AC output cables from the inverter to your home's electrical panel and the utility grid connection point.
- Grounding: Ensure the inverter is properly grounded according to local electrical codes.
- System Check: Before powering on, perform a thorough visual inspection and electrical checks to confirm all connections are secure and correct.
Refer to the detailed installation guide provided with the product packaging for specific wiring diagrams and safety instructions.
3. Operating Instructions
Once installed, the Loom Solar Fusion 5kW inverter operates largely automatically. It will begin converting solar energy into usable electricity when sufficient sunlight is available.
Starting the Inverter:
- Ensure all DC and AC circuit breakers are in the OFF position.
- Turn on the DC isolator switch located near the solar panels.
- Turn on the AC circuit breaker in your electrical panel.
- Turn on the DC switch on the inverter itself.
- The inverter will perform a self-test and then begin operation, indicated by status lights on the front panel.
Monitoring Performance:
The Fusion 5kW inverter offers multiple ways to monitor its performance and your solar energy generation:
- LED Display: The inverter features an integrated LED display that shows real-time operational data, including power output, voltage, and status.
- Mobile Application: Utilize the dedicated mobile app for remote monitoring. This app connects via GPRS/Wifi Kit, WLAN, Ethernet, or 5G modes, providing detailed insights into your system's performance from anywhere.
Image: A smartphone displaying the online monitoring system for the solar inverter, showing energy generation data.
Image: Close-up view of the inverter's display panel and status indicators.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Loom Solar Fusion 5kW inverter. While the inverter is designed for durability with IP65 protection, periodic checks are beneficial.
Recommended Maintenance:
- Visual Inspection (Monthly): Check the inverter and surrounding area for any signs of damage, loose connections, or obstructions to airflow. Ensure ventilation openings are clear.
- Cleaning (Annually or as needed): Gently clean the exterior of the inverter with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the unit is powered off before cleaning.
- Connection Checks (Annually): Have a qualified technician inspect all electrical connections (DC and AC) to ensure they are tight and free from corrosion.
- Performance Monitoring: Regularly check the inverter's performance data via the LED display or mobile app. Significant drops in output or frequent error messages may indicate an issue.
For any internal maintenance or repairs, always contact authorized service personnel.
5. Troubleshooting
This section provides guidance for common issues you might encounter with your Loom Solar Fusion 5kW inverter. For complex problems, contact customer support.
Common Issues and Solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Inverter not producing power | No sunlight, DC switch off, AC breaker tripped, grid outage. | Check for sufficient sunlight. Ensure DC switch and AC breaker are ON. Verify grid status. |
| Low power output | Partial shading on panels, dirty panels, system fault. | Check for shading. Clean solar panels. Monitor for error codes. |
| Error code displayed | Internal fault, over-voltage, over-current, grid issue. | Note the error code and consult the detailed manual or contact customer support. Do not attempt to repair. |
| Inverter making unusual noise | Loose components, fan malfunction. | Power off the inverter and contact customer support immediately. |
Always prioritize safety. Before performing any checks, ensure the inverter is completely disconnected from both DC and AC power sources.
6. Specifications
The following table details the technical specifications for the Loom Solar Fusion 5kW 1-Phase On-Grid Solar Inverter.

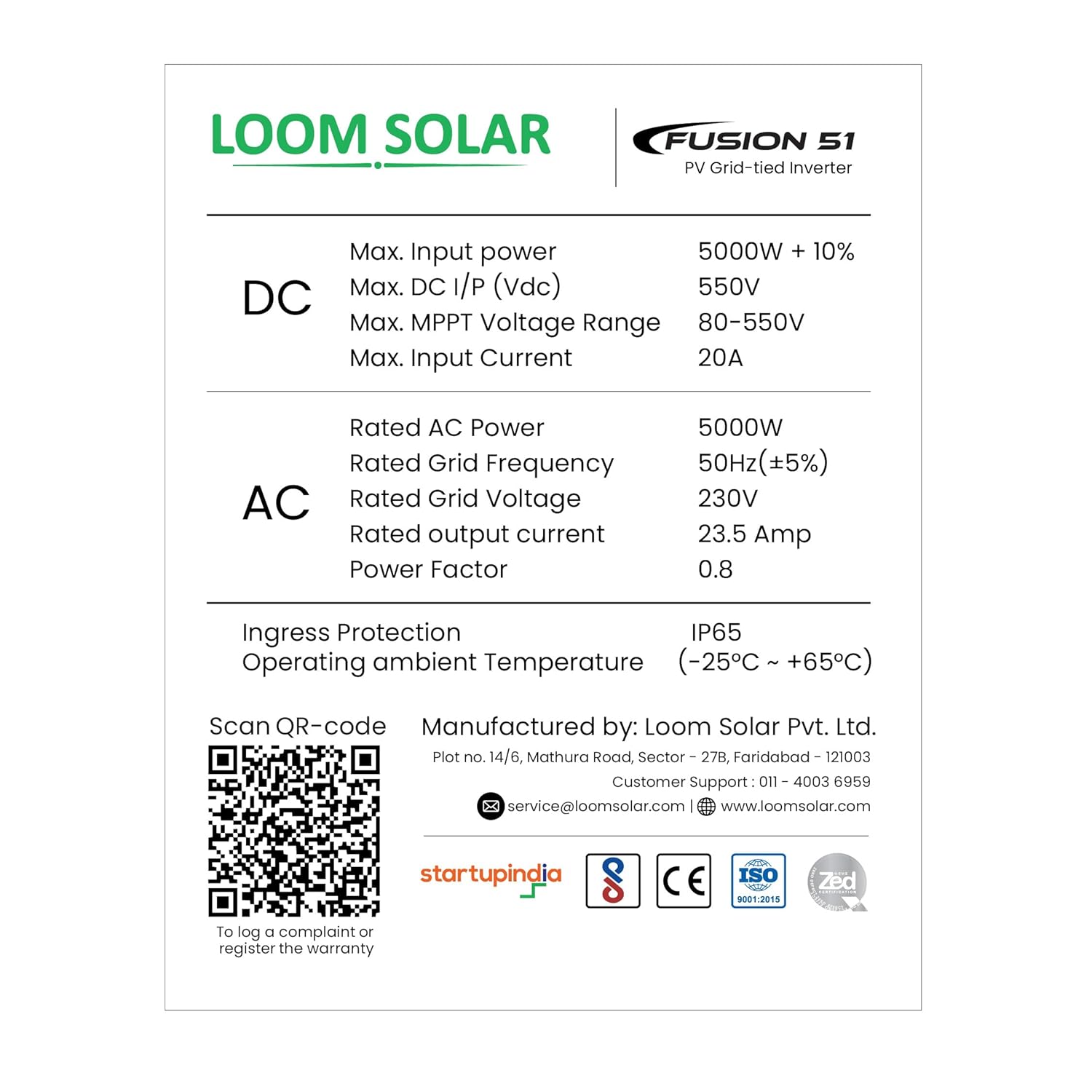

Image: Detailed technical specifications for the Loom Solar Fusion 5kW inverter, including DC and AC parameters.
| Specification | Value |
|---|---|
| Brand | Loom Solar |
| Model Name | Fusion 51 (Fusion 5kW) |
| Recommended Uses | Home, Office |
| Power Source | Solar Powered |
| Wattage | 5000 Watts |
| Voltage | 290 Volts |
| Output Power | 5000 Watts |
| Standby Power Shutoff / Efficiency | 98% |
| Electrical Output Waveform | Pure Sine Wave |
| Frequency | 50 Hz |
| Item Dimensions (L x W x H) | 33L x 47.2W x 20.2H Centimeters |
| Item Weight | 15 Kilograms |
| Ingress Protection (IP) Rating | IP65 |
| Operating Ambient Temperature | -25°C ~ +65°C |
| Max. Input Power (DC) | 5000W + 10% |
| Max. DC Input Voltage (Vdc) | 550V |
| Max. MPPT Voltage Range | 80-550V |
| Max. Input Current (DC) | 20A |
| Rated AC Power | 5000W |
| Rated Grid Frequency | 50Hz (±5%) |
| Rated Grid Voltage | 230V |
| Rated Output Current (AC) | 23.5 Amp |
| Power Factor | 0.8 |
| Country of Origin | India |
7. Warranty and Support
The Loom Solar Fusion 5kW 1-Phase On-Grid Solar Inverter comes with a comprehensive warranty and dedicated customer support.
Warranty Information:
- Standard Warranty: This product includes a 5-year warranty from the date of purchase.
- Extended Warranty: Additional extended warranty plans are available for purchase (e.g., 1-Year or 2-Year Extended Warranty Plans by Onsitego).
To log a complaint or register your warranty, please visit the official warranty registration page: Loom Solar Product Warranty Registration.
Customer Support:
For technical assistance, service requests, or any inquiries, please contact Loom Solar customer support:
- Manufacturer Contact: Loom Solar Private Limited
- Email (Sales): sales@loomsolar.com
- Email (E-commerce): ecommerce@loomsolar.com
- Contact Number: 8447921124, 8800264805
- Customer Support (General): 011 - 4003 6959
Please have your product model number (Fusion 5kW) and purchase details ready when contacting support.
