Rivers Edge Landmark™ 550 Hunting Blind (LM550B) User Manual

1. Product Overview

The Rivers Edge Landmark™ 550 Blind is engineered for durability and comfort in hunting environments. It features a robust steel frame and marine-grade reinforced synthetic tarpaulin, designed to withstand various weather conditions. The interior provides a spacious 6' x 4.5' area, accommodating multiple users and their gear.

Key features include:

• Constructed of marine-grade reinforced synthetic tarpaulin for fade resistance.
• 7' height allows for standing shots.
• Adjustable windows for rifle, crossbow, or vertical bow hunting.
• Each window features an adjustable height shooting rail.
• Hinged door for easy entry and exit.
• Two gear shelves with accessory hooks and gun rest.
• Rigid, steel frame for stability.
• Roomy 6' x 4.5' interior space.

Important: This blind is compatible only with the LM550T Tower (sold separately).

Image 1.1: The Rivers Edge Landmark 550 Hunting Blind (LM550B) mounted on its compatible tower, situated in a natural outdoor setting.

2. Safety Information

Read and understand all safety warnings and instructions before assembly and use. Failure to follow these instructions may result in serious injury or property damage.

• Always secure the blind to the ground using the provided stakes and guy lines.
• Do not use near open flames or heat sources.
• Keep away from power lines.
• Always follow local regulations and safety guidelines when setting up and using the blind.
• Ensure the blind is stable and level before entry.
• Do not exceed the recommended occupancy or weight capacity.

3. What's in the Box

The package for the Rivers Edge Landmark™ 550 Hunting Blind (LM550B) includes:

• Blind structure components
• Marine-grade reinforced synthetic tarpaulin fabric
• Assembly hardware
• Instruction manual

Note: The LM550T Tower is not included and must be purchased separately.

4. Setup Instructions

Assembly of the Landmark™ 550 Blind requires careful attention to detail. It is recommended to have at least two people for assembly. Ensure you have the LM550T Tower assembled and securely placed before mounting the blind.

4.1. Pre-Assembly Checklist

• Verify all parts are present according to the packing list.
• Gather necessary tools (e.g., wrenches, screwdrivers, level).
• Choose a level and stable location for the LM550T Tower.

4.2. Frame Assembly

1. Assemble the steel frame components according to the detailed diagrams in the included manual. Ensure all bolts are tightened securely.
2. Attach the assembled blind frame to the top of the LM550T Tower, following the tower's specific mounting instructions.
3. Confirm the blind is level and stable on the tower.

4.3. Fabric Installation

1. Drape the marine-grade fabric over the assembled steel frame, aligning the openings for windows and the door.
2. Secure the fabric to the frame using the provided fasteners, ensuring a snug fit to prevent flapping in wind.

4.4. Window and Door Installation

1. Install the adjustable windows into their designated openings.
2. Attach the hinged door, ensuring it opens and closes smoothly and seals tightly.
3. Install the interior gear shelves and accessory hooks.

Image 4.1: An aerial perspective of the Landmark 550 Hunting Blind, demonstrating its presence in an open field environment.

5. Operating Instructions

5.1. Entry and Exit

The blind features a hinged door for easy access. Ensure the door is securely latched when closed to maintain concealment and protect against elements.

5.2. Adjusting Windows and Shooting Rails

The Landmark™ 550 Blind offers customizable shooting windows with adjustable sliding shooting rails. These can be set to your desired height for various hunting methods (rifle, crossbow, vertical bow).

1. To open a window, slide the window panel to the desired position.
2. To adjust the shooting rail, loosen the locking mechanism, slide the rail to the preferred height, and re-secure the mechanism.

Image 5.1: A user demonstrating the adjustment of the sliding shooting rail within the blind's window opening.

Image 5.2: A rifle positioned on the adjustable shooting rail, illustrating its use for stable aiming.

5.3. Utilizing Interior Space

The blind's interior is designed to comfortably accommodate two people and gear. Use the integrated gear shelves and accessory hooks to organize your equipment.

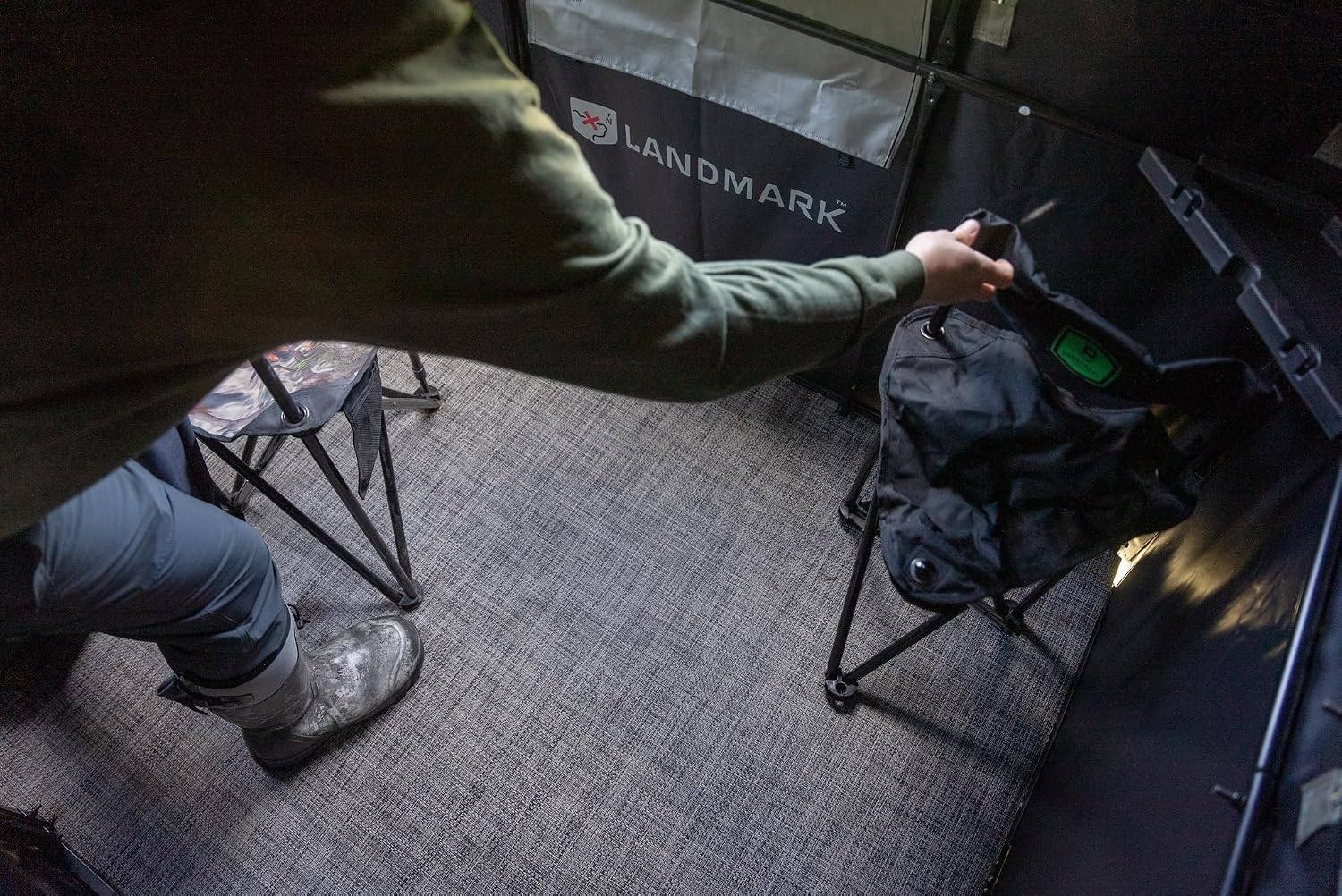

Image 5.3: The spacious interior of the blind, highlighting the gear shelves and hooks for organizing equipment.

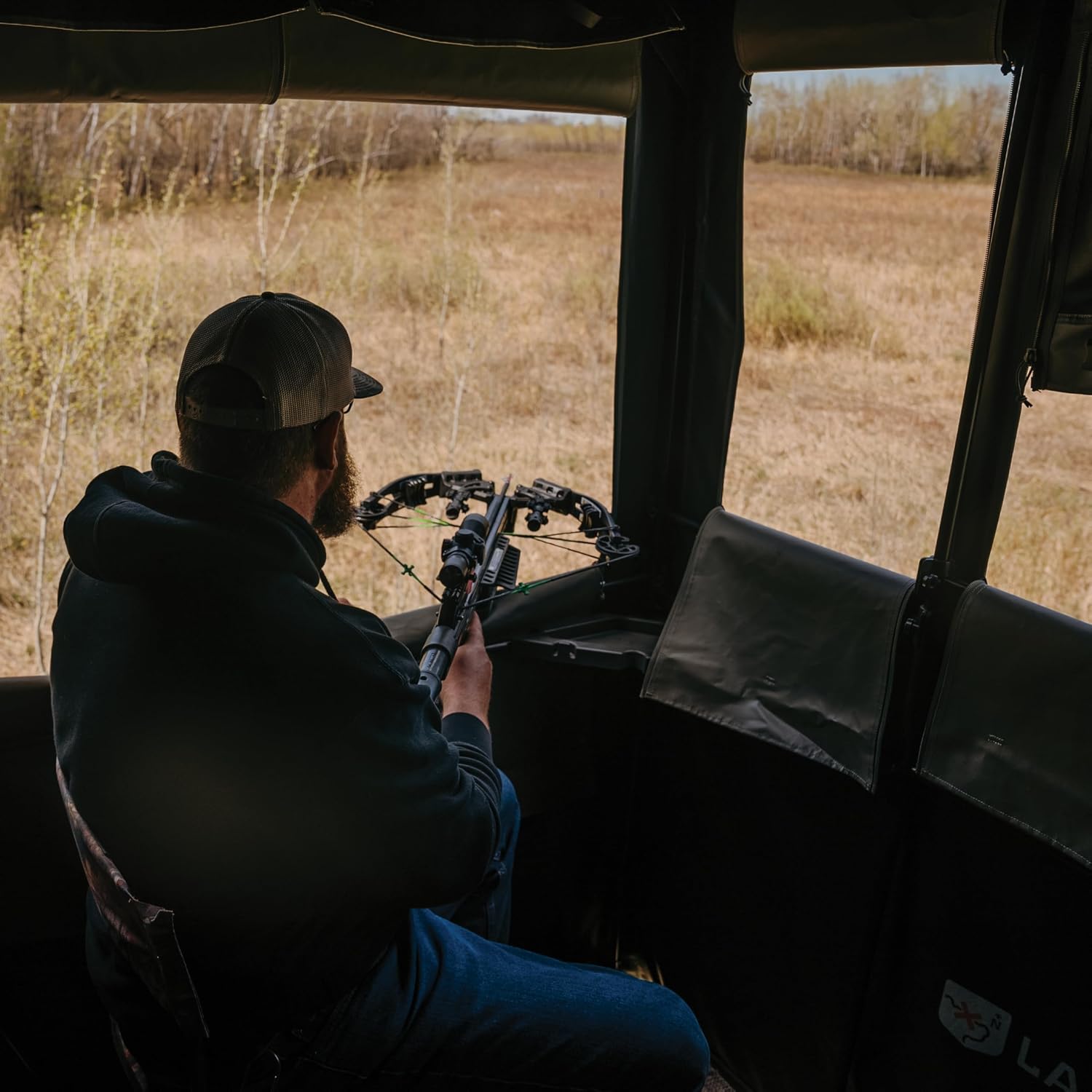

Image 5.4: A hunter seated inside the blind, aiming a crossbow through an open window, demonstrating the functional interior space.

6. Maintenance

6.1. Fabric Care

• Clean the marine-grade fabric with mild soap and water. Avoid harsh chemicals or abrasive cleaners.
• Ensure the fabric is completely dry before storing to prevent mildew.
• Inspect the fabric periodically for any tears or damage and repair as needed to maintain its integrity.

6.2. Frame Inspection

• Regularly check all steel frame connections and hardware for tightness. Tighten any loose bolts.
• Inspect the steel frame for any signs of rust or damage. Apply rust-inhibiting paint if necessary.

6.3. Storage

When not in use for extended periods, disassemble the blind and store it in a dry, protected area to prolong its lifespan.

7. Troubleshooting

7.1. Blind Instability

• Issue: Blind feels wobbly or unstable.
• Solution: Ensure the LM550T Tower is properly assembled and anchored. Verify all blind frame bolts are tightened. Check that the ground beneath the tower is level and firm.

7.2. Fabric Damage

• Issue: Small tears or punctures in the fabric.
• Solution: Use a marine-grade fabric repair kit to patch small damages. For larger tears, contact customer support for replacement options.

7.3. Sticking Windows/Door

• Issue: Windows or door are difficult to slide or open.
• Solution: Clean any debris from the tracks or hinges. Apply a silicone-based lubricant if necessary. Ensure the fabric is not obstructing movement.

8. Specifications

9. Warranty Information

The Rivers Edge Landmark™ 550 Hunting Blind (LM550B) comes with a 1-Year Limited Warranty. This warranty covers manufacturing defects under normal use. For specific terms and conditions, please refer to the warranty documentation included with your product or contact customer support.

10. Customer Support

For assistance with assembly, parts, warranty claims, or any other inquiries, please contact Rivers Edge Ardisam customer support. Refer to the contact information provided in your product packaging or visit the official Rivers Edge Ardisam website.
