Introduction
This manual provides detailed instructions for the installation, maintenance, and general use of your ANAKEL HOME Replacement Refrigerator Handle, model 743843200. This handle is designed as a compatible replacement for various Liebherr refrigerator and freezer combinations. Please read these instructions carefully before proceeding with installation to ensure proper fit and function.
Product Overview
The ANAKEL HOME Replacement Refrigerator Handle is constructed from high-quality stainless steel with a chrome finish, ensuring durability and a modern aesthetic. It is designed for easy installation and provides a secure grip for opening and closing refrigerator and freezer doors.
Image: The ANAKEL HOME replacement refrigerator handle, made of stainless steel, shown with the included Allen key for installation.
Image: A clear view of the stainless steel refrigerator handle, highlighting its 45.8 centimeter length and chrome finish.
Compatibility
This handle is a direct replacement for Liebherr part number 743843200. It is compatible with various Liebherr refrigerator and freezer models. Please verify your appliance's part number before installation.

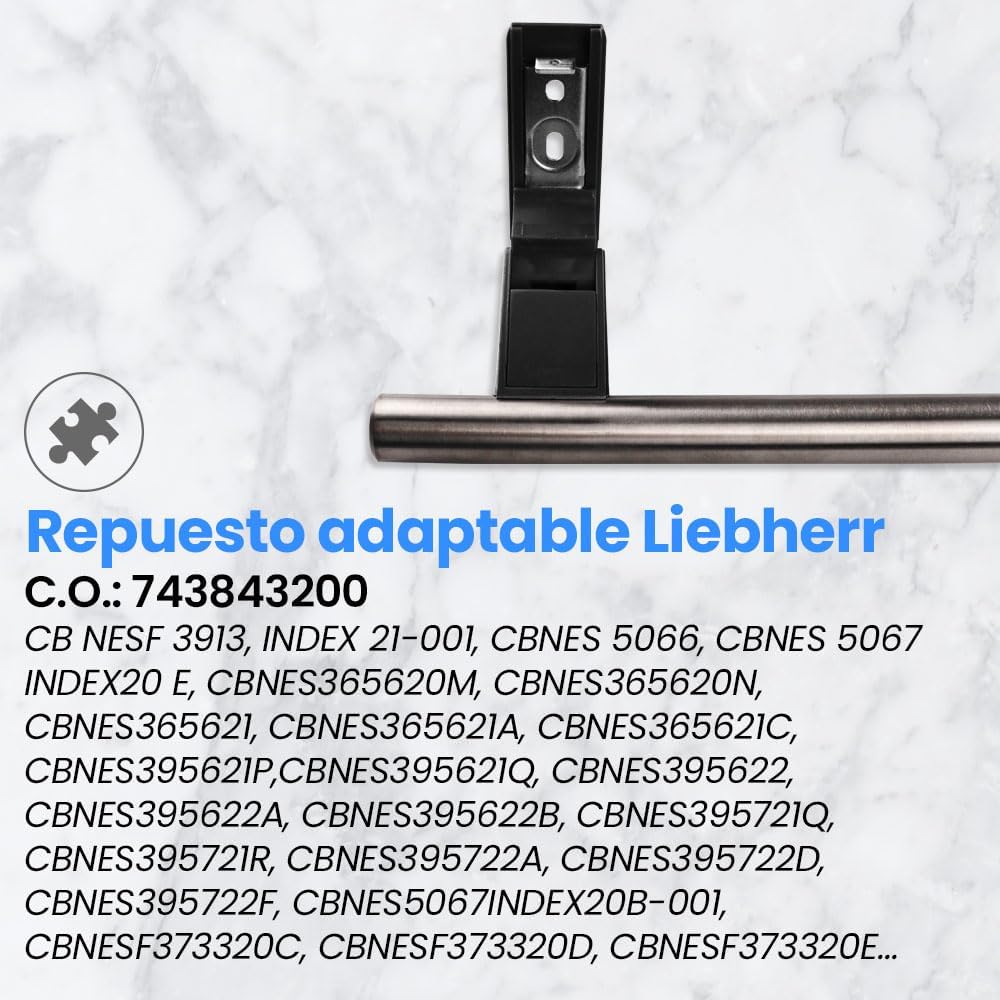

Image: List of compatible Liebherr refrigerator and freezer models for replacement part C.O.: 743843200.
Specifications
| Feature | Detail |
|---|---|
| Part Number | 743843200 |
| Material | Stainless Steel (Edelstahl) |
| Color/Finish | Chrome (Chrom), Polished |
| Overall Length | 45.8 cm (18 inches) |
| Distance between screw holes (center to center) | 36.5 cm |
| Width | 7 cm |
| Depth | 11 cm |
| Item Weight | 420 g |
| Included Components | 1 Handle, 1 Allen Key (Schlüssel) |
Image: Diagram showing the key dimensions of the handle, including the 45.8 cm total length and 36.5 cm screw hole distance. An Allen key is also depicted as included.
Setup and Installation
Installation of the ANAKEL HOME replacement handle is designed to be straightforward. Please follow these steps carefully.

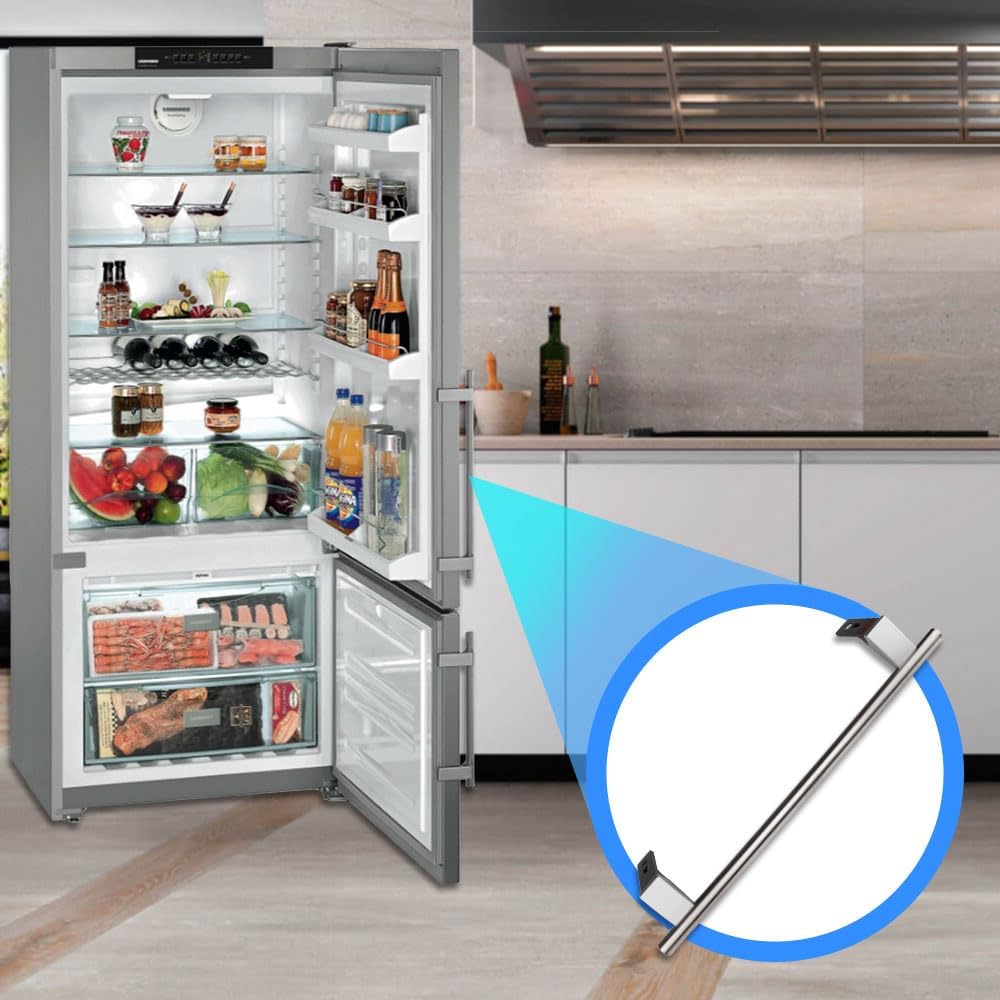

Image: A refrigerator with the ANAKEL HOME replacement handle installed, demonstrating its appearance and position on the appliance door.
- Safety First: Ensure the refrigerator or freezer door is stable and will not swing unexpectedly during the installation process.
- Remove Old Handle: If replacing an existing handle, carefully remove the old handle. This typically involves unscrewing it from the door using an appropriate tool. Note the position and orientation of the old handle's mounting brackets.
- Prepare New Handle: The ANAKEL HOME handle comes with an Allen key. Identify the screw points on the handle's mounting brackets.
- Align and Attach: Position the new handle's mounting brackets over the existing screw holes on the refrigerator door. Ensure the handle is level and properly aligned.
- Secure the Handle: Use the provided Allen key to tighten the screws that secure the handle to the door. Tighten firmly but do not overtighten, as this could damage the door or the handle.
- Test Functionality: Gently pull the handle to ensure it is securely attached and functions correctly for opening and closing the door.
Image: A close-up view of the handle's mounting bracket, showing the attachment points for secure installation.
Maintenance
To ensure the longevity and appearance of your ANAKEL HOME refrigerator handle, follow these simple maintenance guidelines:
- Cleaning: Wipe the handle regularly with a soft, damp cloth. For stubborn marks, a mild soap solution can be used. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the chrome finish.
- Inspection: Periodically check the handle's attachment screws to ensure they remain tight. If any looseness is detected, gently retighten with the Allen key.
- Avoid Impact: Protect the handle from strong impacts or heavy loads, which could cause bending or damage.
Troubleshooting
If you encounter any issues with your ANAKEL HOME replacement handle, consider the following common solutions:
- Handle is Loose: If the handle feels loose, check the mounting screws. Use the provided Allen key to gently tighten them. Do not overtighten.
- Handle Does Not Align: Ensure the handle was correctly aligned with the screw holes during installation. If not, loosen the screws, realign, and retighten.
- Scratches or Damage: The handle is made of durable stainless steel, but surface scratches can occur from sharp objects. Minor scratches may sometimes be buffed out with a stainless steel polish, but deep scratches are permanent.
Warranty and Support
For information regarding warranty coverage or to obtain support for your ANAKEL HOME Replacement Refrigerator Handle, please refer to the purchase documentation or contact ANAKEL HOME customer service directly through the retailer where the product was purchased. Please have your model number (743843200) and purchase date available when contacting support.
