1. Introduction
Thank you for choosing the STARRYBOT Portable Carpet Cleaner Machine with Steam Technology. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before first use and retain it for future reference.
Image 1.1: The STARRYBOT Portable Carpet Cleaner Machine, showcasing its compact design and cleaning nozzle.
2. Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions when using an electrical appliance. This includes:
- Read all instructions before using the appliance.
- Do not immerse the machine in water or other liquids.
- Use only as described in this manual. Use only manufacturer's recommended attachments.
- Do not use with a damaged cord or plug. If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
- Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
- Do not handle plug or appliance with wet hands.
- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
- Turn off all controls before unplugging.
- Use extra care when cleaning on stairs.
- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
- Do not use without tanks in place.
- Connect to a properly grounded outlet only. See grounding instructions.
- This appliance is for household use only.
3. Package Contents
Please check the package contents upon unboxing to ensure all items are present and undamaged:
- STARRYBOT Portable Carpet Cleaner Machine (Main Unit)
- Cleaning Nozzle/Hand Tool
- Flexible Hose
- User Manual (This Document)
- Power Cord (Integrated)
4. Product Overview
Familiarize yourself with the components of your STARRYBOT Portable Carpet Cleaner.
Image 4.1: Overview of the STARRYBOT cleaner, highlighting the separate clean water tank (60 oz) and dirty water tank (40 oz).

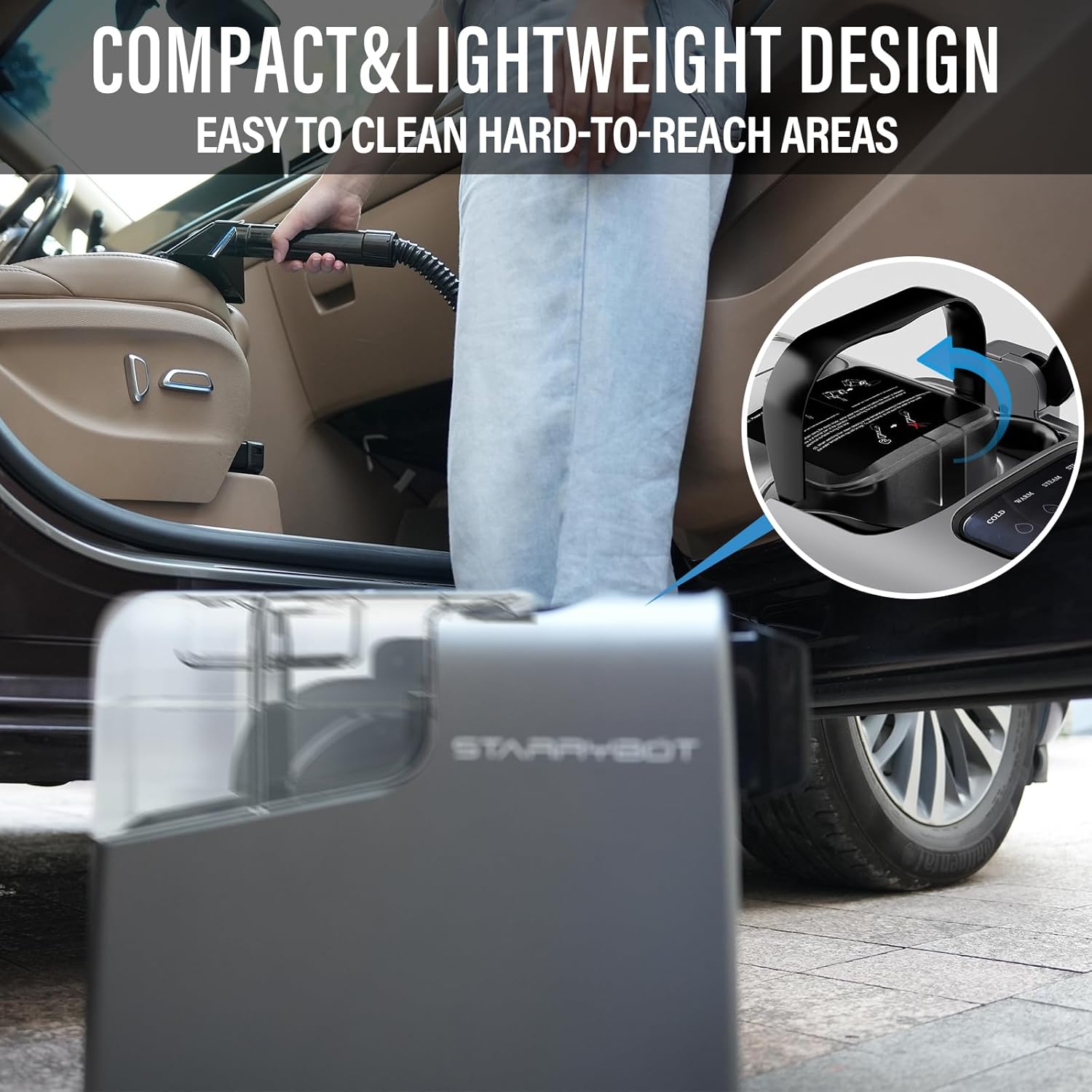

Image 4.2: The compact and lightweight design of the STARRYBOT cleaner, shown being used to clean a car interior.
- Clean Water Tank: Holds fresh water and cleaning solution. Capacity: 60 oz (approximately 1.7 liters).
- Dirty Water Tank: Collects extracted dirty water. Capacity: 40 oz.
- Main Unit: Houses the motor, heating element, and controls.
- Flexible Hose: Connects the main unit to the cleaning nozzle.
- Cleaning Nozzle/Hand Tool: Used for applying solution, scrubbing, and suction.
- Control Panel: Located on the main unit, features various cleaning mode selections.
- Handle: For easy portability.
5. Setup
Follow these steps to prepare your carpet cleaner for use:
- Unpack the Unit: Carefully remove all components from the packaging.
- Fill the Clean Water Tank:
- Remove the clean water tank from the main unit.
- Unscrew the cap and fill the tank with warm tap water (not exceeding 140°F / 60°C). For enhanced cleaning, add a recommended carpet cleaning solution according to the solution's instructions. Do not overfill.
- Securely replace the cap and reinsert the tank into the main unit until it clicks into place.
- Connect the Hose and Nozzle:
- Attach the flexible hose securely to the designated port on the main unit.
- Connect the cleaning nozzle/hand tool to the end of the flexible hose. Ensure both connections are firm to prevent leaks and maintain suction.
- Power Connection: Plug the power cord into a grounded electrical outlet.
6. Operating Instructions
The STARRYBOT cleaner offers multiple cleaning modes for various needs.

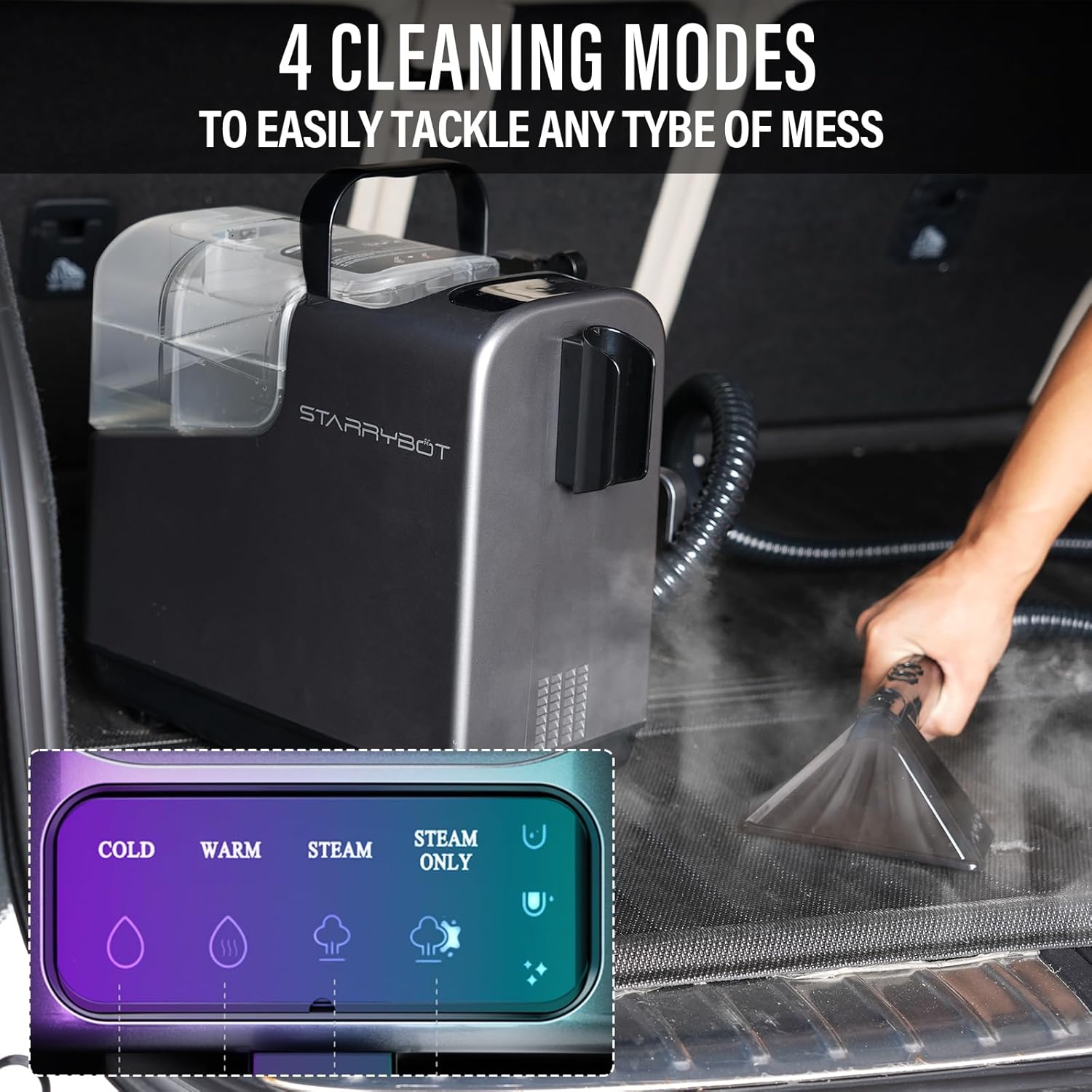

Image 6.1: The control panel displaying the four available cleaning modes: Cold, Warm, Steam, and Steam Only.
6.1 Selecting a Cleaning Mode
Press the power button to turn on the machine. Use the mode selection buttons on the control panel to choose your desired cleaning setting:
- Cold Mode: For general cleaning and delicate fabrics where heat is not desired.
- Warm Mode: Uses warm water for effective cleaning of common stains.
- Steam Mode: Combines steam with water and solution for deep cleaning and sanitization. Allow a few minutes for the machine to generate steam.
- Steam Only Mode: Delivers steam without water or solution for sanitizing or refreshing surfaces.
6.2 Cleaning Procedure
- Pre-test: Before cleaning, test a small, inconspicuous area of the carpet or upholstery for colorfastness.
- Pre-treat (Optional): For heavily soiled areas or stubborn stains, pre-treat with a suitable cleaning solution as recommended by the solution manufacturer.
- Apply Solution: Hold the cleaning nozzle over the area to be cleaned. Press the trigger on the nozzle handle to spray cleaning solution onto the surface.
- Scrub and Extract: Move the nozzle slowly over the wet area, applying gentle pressure. Release the trigger and pull the nozzle back over the same area to extract the dirty solution. Repeat as necessary until the area is clean.
- Steam Cleaning (Steam Mode): When using Steam Mode, the machine will heat water to produce steam. Apply steam directly to the stain, then use the suction to remove moisture and loosened dirt.
Image 6.2: The cleaning nozzle applying steam to a carpet surface, demonstrating the steam-based cleaning process.
- Cleaning Pet Messes: The powerful suction and steam technology are effective for removing pet stains and odors.
Image 6.3: The cleaning nozzle effectively removing pet paw print stains from a carpeted surface.
- Fast Drying: The machine is designed for efficient extraction, contributing to faster drying times, typically around 25 minutes when compared to cold washing mode.

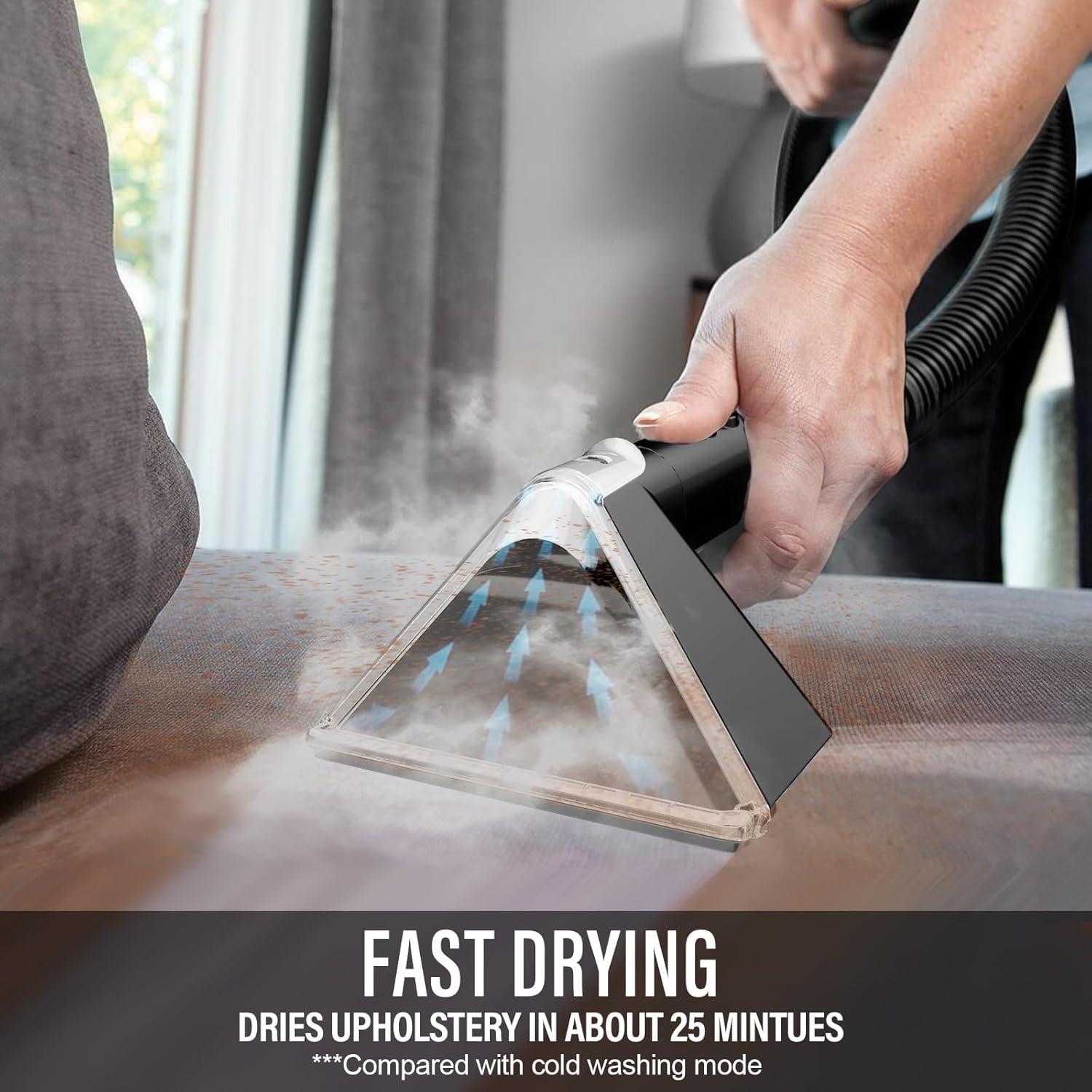

Image 6.4: The cleaning nozzle in action, demonstrating the extraction process for fast drying of upholstery.
- Empty Dirty Water Tank: Monitor the dirty water tank. Empty it when it reaches the "MAX" fill line or when cleaning is complete.
6.3 Powerful Suction
The STARRYBOT cleaner features 12,000 PA of suction power, designed to effectively remove stubborn pet stains and spots from various surfaces.
Image 6.5: Visual representation of the 12,000 PA suction power, illustrating its ability to penetrate carpet fibers and extract dirt and particles.
7. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the life of your cleaner.
- Empty and Rinse Dirty Water Tank: After each use, remove the dirty water tank, empty its contents, and rinse thoroughly with clean water. Allow it to air dry before reassembling.
- Rinse Clean Water Tank: If using cleaning solutions, rinse the clean water tank after each use to prevent residue buildup.
- Clean Nozzle/Hand Tool: Remove any debris or hair from the nozzle. Rinse it under running water.
- Check Hose for Blockages: Periodically inspect the flexible hose for any blockages. Clear any obstructions carefully.
- Wipe Down Exterior: Use a soft, damp cloth to wipe the exterior of the main unit. Do not use harsh chemicals.
- Storage: Store the cleaner in a dry, cool place. Ensure all tanks are empty and dry before storage.
8. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Not plugged in; power outlet not working; circuit breaker tripped. | Ensure power cord is securely plugged into a working, grounded outlet. Check circuit breaker. |
| No suction or weak suction. | Dirty water tank full; hose or nozzle clogged; tank not seated properly; lid not sealed. | Empty dirty water tank. Check hose and nozzle for blockages and clear them. Ensure tanks are securely seated and lids are properly sealed. |
| No spray or inconsistent spray. | Clean water tank empty; tank not seated properly; spray nozzle clogged. | Refill clean water tank. Ensure tank is securely seated. Clean spray nozzle if clogged. |
| Steam function not working. | Insufficient water in clean tank; machine not heated up; steam nozzle blocked. | Ensure clean water tank has sufficient water. Allow machine adequate time to heat up (several minutes). Check and clear any blockages in the steam nozzle. |
| Water leaking. | Tanks not properly sealed; hose connections loose; damaged tank. | Ensure both clean and dirty water tanks are correctly seated and their caps/lids are tightly closed. Check hose connections for tightness. If a tank is damaged, contact customer support. |
9. Specifications
Technical details for the STARRYBOT Portable Carpet Cleaner Machine, Model ET2314.
- Model Name: ET2314
- Brand: STARRYBOT
- Suction Power: 12,000 PA
- Clean Water Tank Capacity: 1.7 Liters (approx. 60 oz)
- Dirty Water Tank Capacity: 40 oz
- Power Source: Corded Electric (Hand-Operated application)
- Color: White, Grey
- Item Weight: 15.67 pounds
- Package Dimensions: 16.6 x 14.6 x 12.7 inches
- ASIN: B0D945PW2G
10. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official STARRYBOT website. Please have your model number (ET2314) and ASIN (B0D945PW2G) ready when contacting support.
Note: The manufacturer strives to provide comprehensive support. If you encounter issues not covered in this manual, please reach out to customer service.
