GarveeHome Queen Size Bed Frame with Headboard and LED Lights User Manual

Product Overview

The GarveeHome Queen Size Bed Frame is designed to provide a modern and elegant foundation for your mattress. It features a unique floating appearance, a wingback frame with a crystal button headboard, and integrated RGB LED lighting. The headboard also offers practical storage space. This bed frame is constructed with sturdy metal legs and wooden slats, engineered for stability and noise reduction, and does not require a box spring.

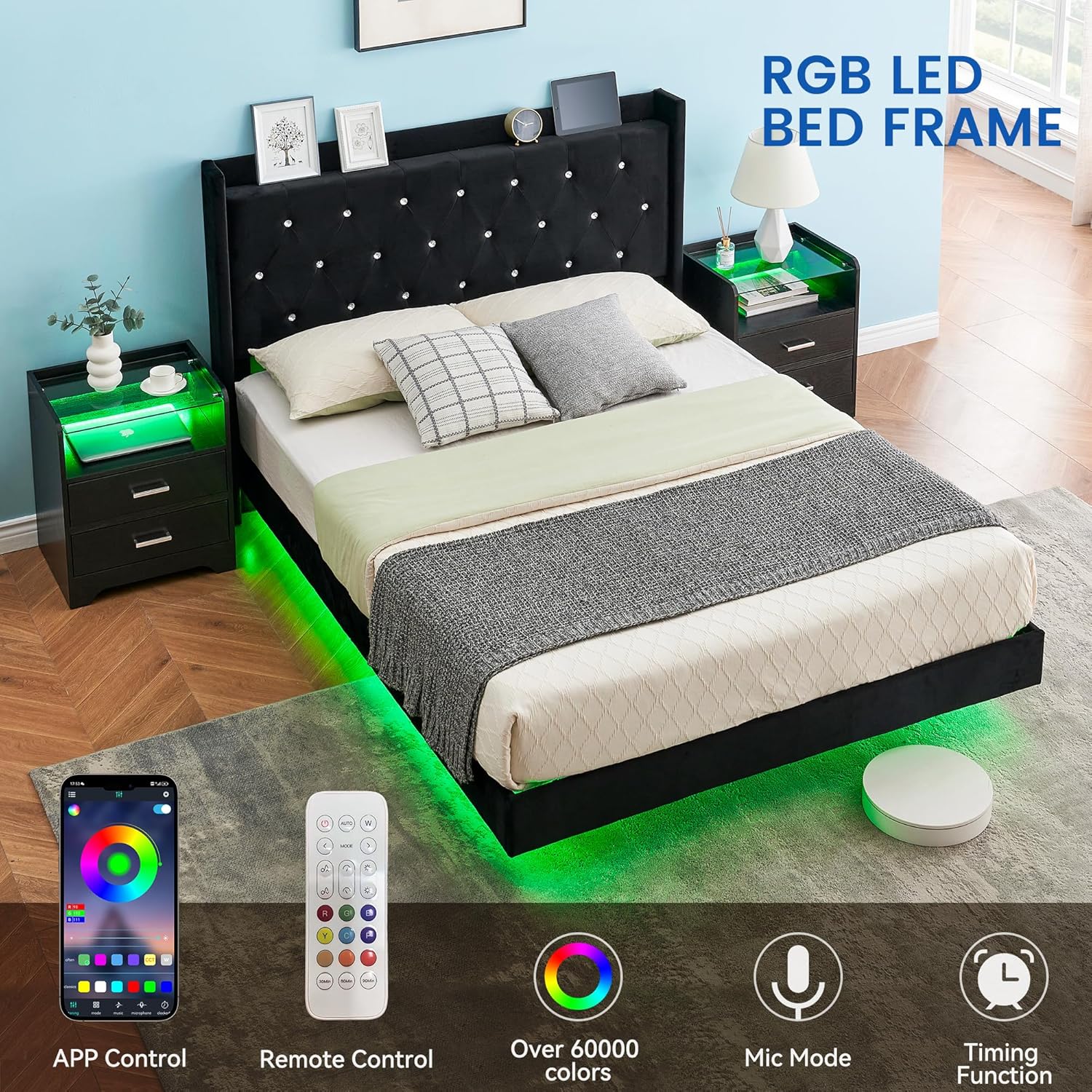

Figure 1: GarveeHome Queen Size Bed Frame with integrated LED lighting and storage headboard.

Safety Information

Please read and understand all safety warnings before assembly and use of the bed frame.

• Do not use this bed frame with a mattress that requires a box spring. This frame is designed for use without a box spring.
• Exercise caution around sharp edges and metal bars during assembly and use to prevent injury.
• Ensure all wooden slats are securely attached and properly spaced during assembly to provide adequate mattress support.
• Do not leave the under-bed LED lights unattended for extended periods, and ensure they do not come into contact with flammable materials.
• Keep small parts and packaging materials away from children to prevent choking hazards.

Setup and Assembly

Assembly of the GarveeHome Queen Size Bed Frame is designed to be straightforward. All necessary parts are clearly labeled and numbered, and tools are included in the package. It is recommended to assemble the bed frame with at least two people.

Package Contents

Before beginning assembly, verify that all components listed in the included installation manual are present and undamaged. The package typically includes:

• Headboard components
• Side rails and footboard
• Center support beams and legs
• Wooden slats
• Hardware pack (screws, bolts, washers, Allen wrench)
• LED light strip and controller
• Installation Manual

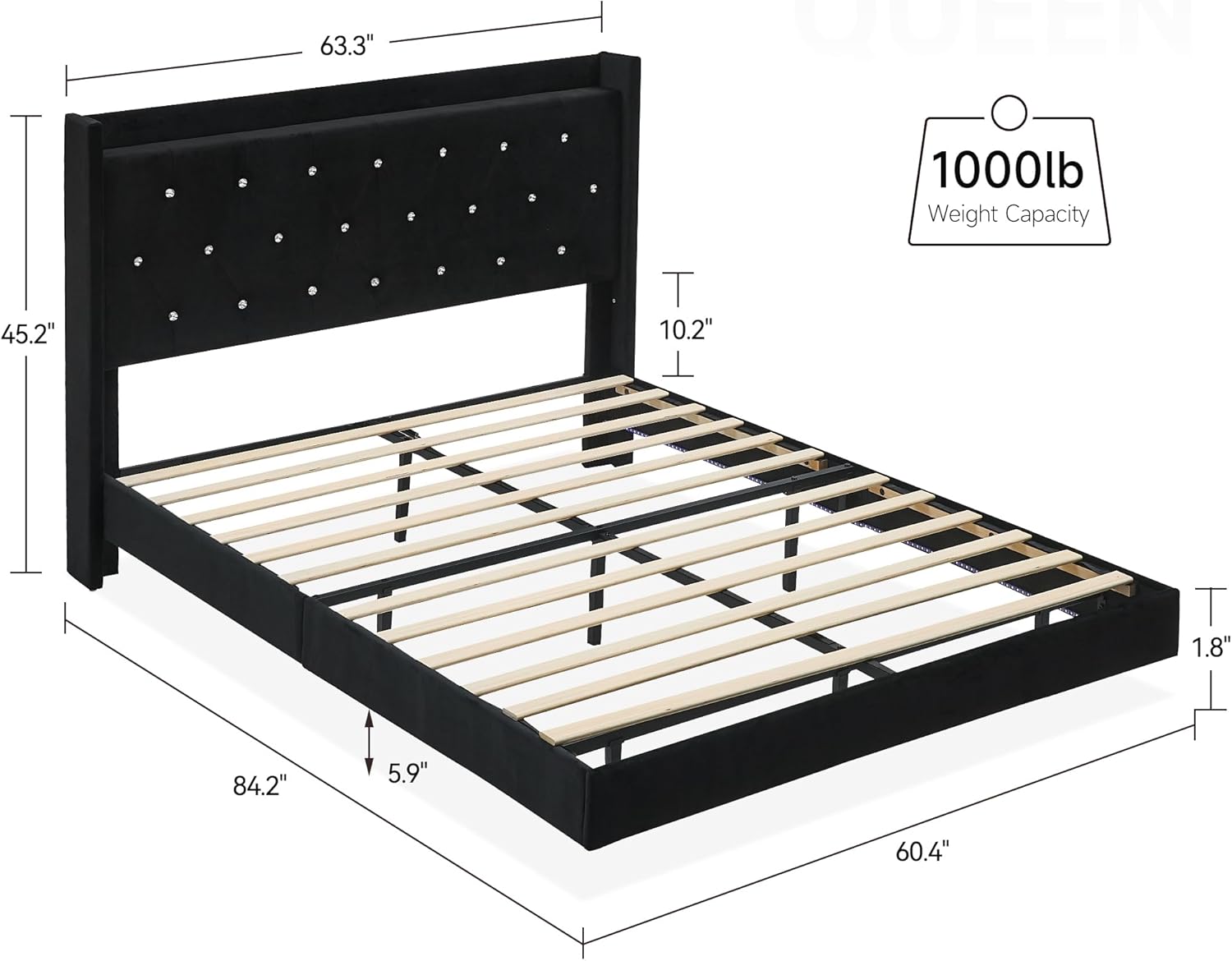

Figure 2: Key dimensions of the GarveeHome Queen Size Bed Frame, including headboard height and frame length/width.

Assembly Steps

1. Unpack and Organize: Lay out all components on a clean, soft surface to prevent scratches. Group similar parts and hardware.
2. Assemble the Headboard: Attach the side wings to the main headboard panel. Ensure all connections are secure. The headboard features a storage shelf at the top.
3. Construct the Frame: Connect the side rails to the headboard and footboard. Insert the center support beams and attach the support legs.
4. Install Wooden Slats: Place the wooden slats across the frame. The slats are designed to be closely spaced and may include soundproof foam to reduce noise. Secure them according to the manual's instructions.
5. Attach LED Lights: Adhere the RGB LED light strip to the designated areas on the underside of the bed frame. Connect the light strip to the controller and power source.
6. Final Checks: Double-check all bolts and screws to ensure they are tightened securely. Place your mattress directly on the slats.

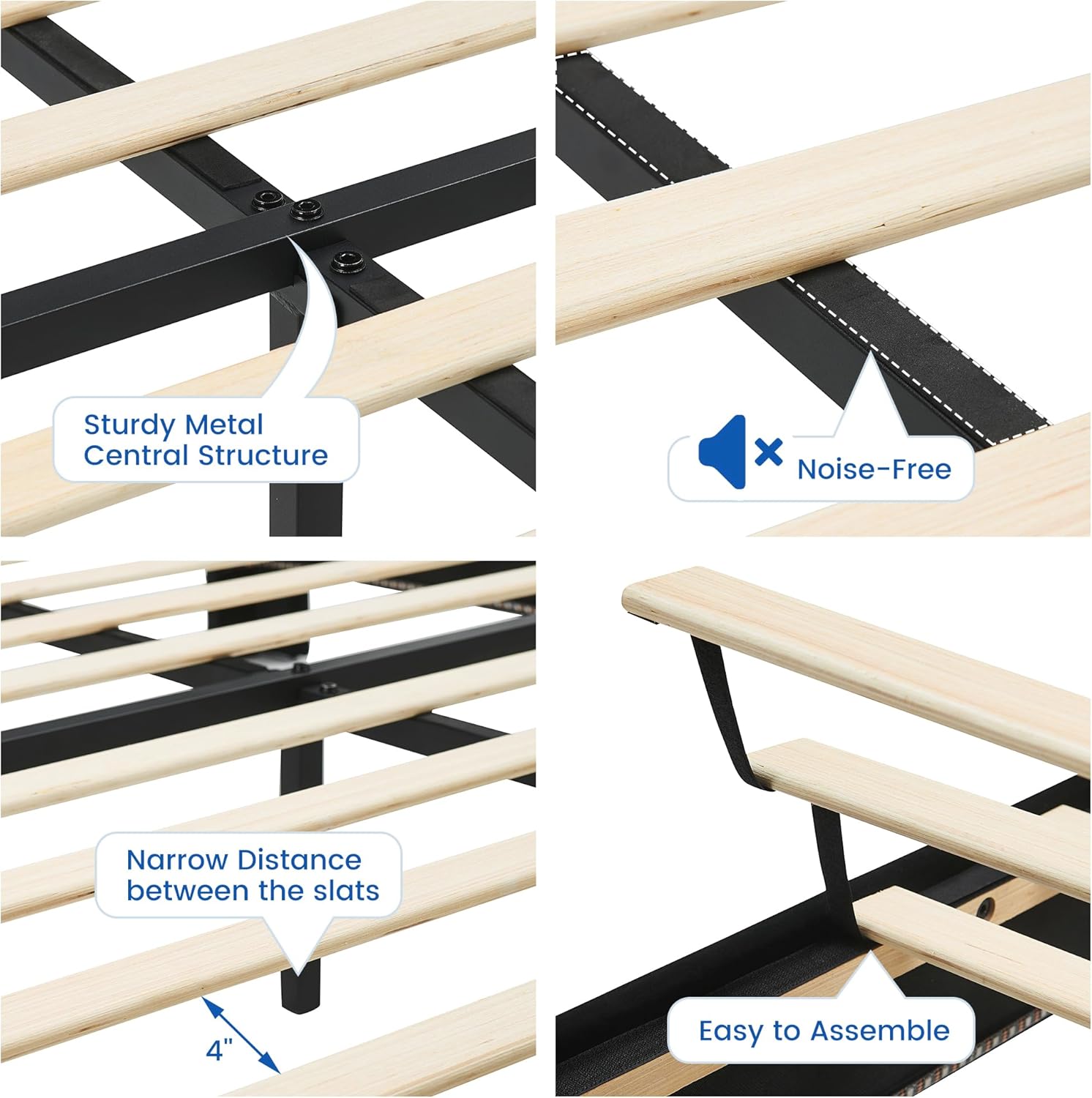

Figure 3: Details of the bed frame's construction, highlighting the sturdy metal central structure, noise-reducing features, and slat spacing for mattress support.

Operating Instructions

LED Light Control

The integrated RGB LED lights can be controlled via a remote control or a dedicated mobile application. These lights offer a wide range of colors, brightness levels, and dynamic settings, including a music synchronization mode.

• Remote Control: Use the provided remote to power the lights on/off, change colors, adjust brightness, select preset modes, and activate music mode. Refer to the remote control's specific instructions for detailed button functions.
• Mobile Application: Download the compatible application (details in the LED light manual) to your smartphone. Pair your device with the LED lights via Bluetooth. The app provides advanced control over color customization, scene modes, timing functions, and music synchronization.

Figure 4: Overview of the RGB LED light features, including control options and color capabilities.

Figure 5: The bed frame illuminated with blue LED lighting, showcasing the floating effect.

Maintenance

Proper maintenance will extend the life and appearance of your GarveeHome bed frame.

• Cleaning: Wipe the bed frame surfaces with a dry cloth to remove dust and debris. For upholstered areas, use a soft, damp cloth with mild soap if necessary, and blot dry immediately. Avoid harsh chemicals or abrasive cleaners.
• Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if any looseness is detected to maintain stability and prevent squeaking.
• LED Lights: Ensure the LED light strip remains securely attached. If any part becomes loose, re-adhere it carefully. Keep the light strip free from dust and moisture.

Troubleshooting

This section addresses common issues you might encounter with your bed frame.

Specifications

Note: Product specifications are subject to change without prior notice.

Warranty and Support

For specific warranty information regarding your GarveeHome Queen Size Bed Frame, please refer to the documentation included with your purchase or contact GarveeHome directly. Standard return policies may apply as per the retailer's terms.

If you require technical assistance, have questions about assembly, or need to report a missing or damaged part, please contact GarveeHome customer support through their official website or the contact information provided in your product packaging.
