KOMHTOM Triple Bunk Bed Instruction Manual

1. Introduction and Overview

Thank you for choosing the KOMHTOM Triple Bunk Bed. This innovative metal bed is designed to maximize space and provide comfortable sleeping arrangements for up to three individuals. It features a unique convertible design, allowing it to function as a triple bunk bed or be separated into three individual beds. Integrated storage drawers offer practical solutions for keeping your space tidy. Please read this manual carefully before assembly and use to ensure safe and proper operation.

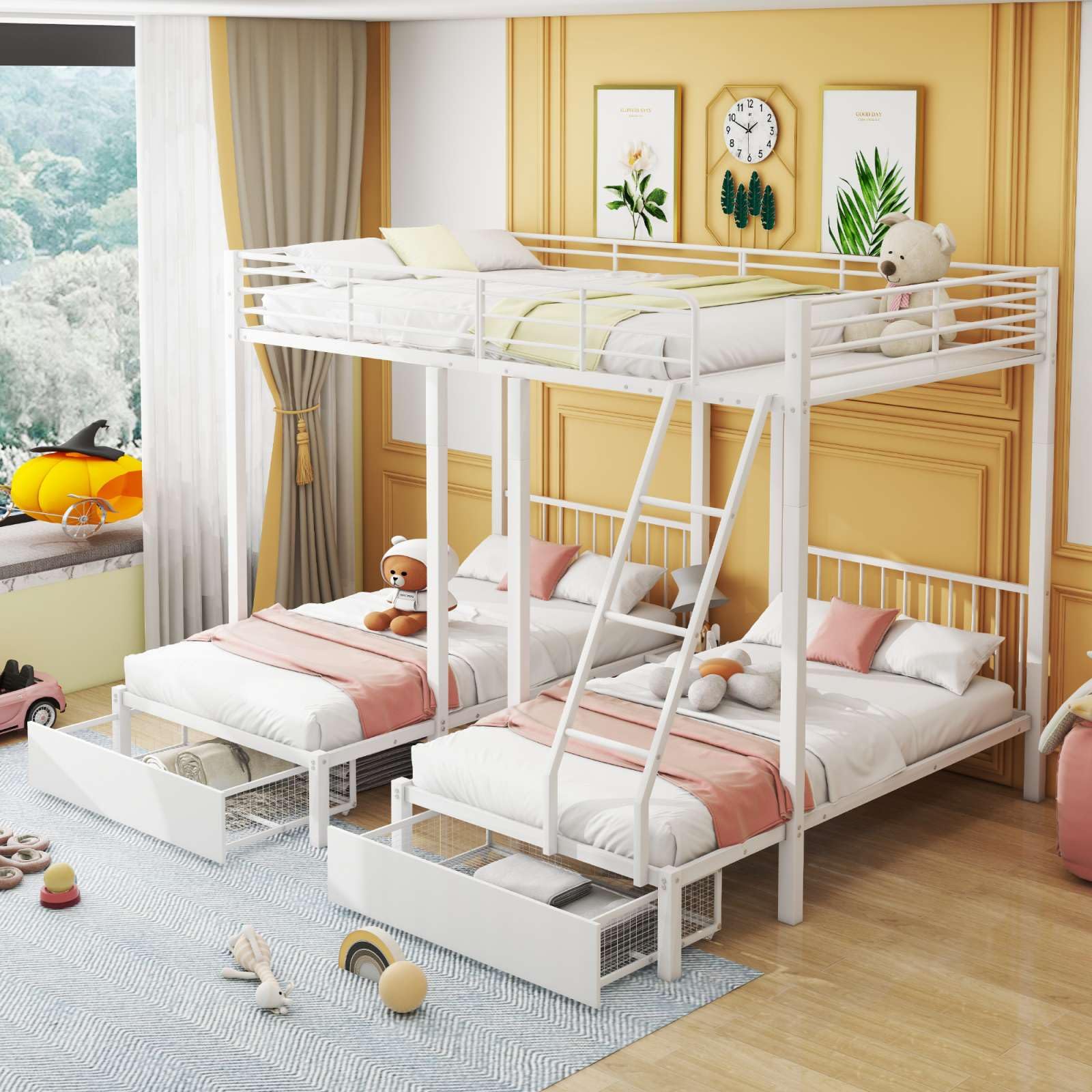

Image 1.1: The KOMHTOM Triple Bunk Bed in its assembled configuration, featuring a top double bed and two lower single beds, complete with storage drawers.

2. Safety Information

Your safety is paramount. Please adhere to the following safety guidelines:

• Guardrail Use: Always use the full-length guardrail on the upper bed to prevent falls. Ensure it is securely installed before use.
• Weight Capacity: Do not exceed the maximum load capacity. The upper bed supports up to 120 kg (264.55 lbs), and the lower beds each support up to 160 kg (352.74 lbs). Overloading can compromise stability and safety.
• Assembly: Ensure all components are correctly assembled and tightened according to the provided instructions. Regularly check all bolts and connections to ensure they remain secure.
• Mattress Size: Use only mattresses of the appropriate size for each bed to ensure proper fit and safety.
• Children: Children should be supervised when using the bunk bed, especially on the upper level and when using the ladder.
• Ventilation: Ensure adequate ventilation around the bed.

3. Product Features

The KOMHTOM Triple Bunk Bed is designed with several key features to enhance functionality and convenience:

• Optimized Design: This triple bunk bed efficiently utilizes vertical space, featuring a 140x200 cm double bed on the upper level and two standard 90x200 cm single beds on the lower level. This configuration is ideal for accommodating family members or guests while saving space without sacrificing comfort.
• Flexible Storage Solutions: The metal bed includes specially designed sliding drawers for the lower level. These drawers make efficient use of the under-bed space, providing practical storage options for personal items and helping to keep the room neat and organized.
• Multifunctional Conversion System: This bunk bed can be easily separated into three individual beds as needed. This adaptability allows it to suit various room layouts and changing occupancy requirements, offering significant flexibility and practicality for diverse living situations over time.
• Safety Details: The design incorporates a full-length guardrail on the upper bed to ensure safety during sleep and effectively prevent accidental falls during the night. Additionally, the side space of the upper bed is reserved for convenient storage of books, dolls, and other items, combining safety with practicality.
• Stable Material and Load Capacity: Constructed from high-quality, robust, and durable metal, the bed frame ensures stability and safety for long-term use. The upper bed has a load capacity of 120 kg, and the lower beds each support 160 kg.

Image 3.1: Detailed views of the bed's components, including the sturdy ladder, the protective guardrail on the upper bunk, and one of the integrated storage drawers.

Image 3.2: This illustration demonstrates the bed's versatile design, showing how it can be used as a triple bunk bed or easily converted into three separate single beds.

4. Specifications

Detailed specifications for the KOMHTOM Triple Bunk Bed:

Image 4.1: Dimensional drawing of the KOMHTOM Triple Bunk Bed, showing all key measurements in centimeters.

5. Setup and Assembly

The KOMHTOM Triple Bunk Bed requires assembly. A detailed installation manual and all necessary assembly tools are included in the packaging. Please follow these general steps:

1. Unpack Components: Carefully unpack all boxes and lay out all parts on a clean, soft surface to prevent scratches. Verify that all components listed in the parts list are present. Note that multiple packages may arrive at different times.
2. Review Instructions: Read the entire assembly manual thoroughly before beginning. Identify each part and understand the assembly sequence.
3. Assemble Frame: Begin by assembling the main frame components for the lower beds, followed by the upper bed frame. Ensure all bolts are finger-tightened initially.
4. Attach Ladder and Guardrails: Securely attach the ladder and the full-length guardrails to the upper bunk. Double-check all connections for stability.
5. Install Drawers: Assemble and install the two storage drawers into their designated positions under the lower beds.
6. Final Tightening: Once all components are in place, systematically tighten all bolts and screws using the provided tools. Do not overtighten.
7. Safety Check: Before first use, perform a thorough safety check to ensure all parts are secure and the bed is stable.

For detailed, step-by-step instructions, refer to the dedicated assembly manual provided with your product.

Image 5.1: The assembled triple bunk bed in a room, demonstrating its space-saving configuration.

6. Operating Instructions

This bunk bed offers versatile usage options:

• Bunk Bed Configuration: In its primary configuration, the bed provides a double sleeping area on the upper level and two single sleeping areas on the lower level. Access the upper bed using the integrated ladder.
• Converting to Separate Beds: The metal frame is designed for easy conversion. To separate the bunk bed into three individual beds, carefully follow the disassembly steps in reverse order as outlined in the assembly manual, then reassemble the individual bed frames. This allows for flexible room arrangements.
• Storage Drawers: The two integrated drawers slide smoothly on wheels, providing convenient access to stored items. Pull them out gently to open and push them in to close. Avoid placing excessively heavy items in the drawers.

Image 6.1: The bed converted into three separate single beds, demonstrating its adaptability.

7. Maintenance

To ensure the longevity and safety of your KOMHTOM Triple Bunk Bed, regular maintenance is recommended:

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they are tight. Retighten any loose hardware to maintain structural integrity.
• Drawer Maintenance: Keep the drawer runners clean and free of debris to ensure smooth operation. If drawers become stiff, a small amount of silicone lubricant can be applied to the runners.
• Guardrail Inspection: Regularly check the guardrails for any signs of damage or looseness. Ensure they are always securely attached.
• Avoid Excessive Moisture: Protect the bed from prolonged exposure to moisture, which can lead to rust or damage.

8. Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common problems and solutions:

• Bed Feels Unstable/Wobbly:
  • Solution: Check all bolts and screws. Ensure they are fully tightened. Make sure the bed is on a level surface.
• Squeaking Noises:
  • Solution: Squeaking often indicates loose connections. Retighten all hardware. Applying a small amount of lubricant to connection points can also help.
• Drawers Not Sliding Smoothly:
  • Solution: Check for any obstructions in the drawer runners. Clean the runners and apply a silicone-based lubricant if necessary. Ensure drawers are not overloaded.
• Missing Parts During Assembly:
  • Solution: Verify all packages have arrived. If parts are still missing, contact KOMHTOM customer support with your model number and a description of the missing parts.

9. Warranty and Support

The KOMHTOM Triple Bunk Bed comes with a Limited Warranty. Please refer to the warranty documentation included in your packaging for specific terms and conditions regarding coverage and duration.

For any questions, concerns, or assistance with assembly, missing parts, or product issues, please contact KOMHTOM customer support. Have your model number (CDLDT00065AAB) and purchase information ready when contacting support to facilitate a quicker resolution.

We are committed to providing high-quality products and support to ensure your satisfaction.
