Introduction
Thank you for choosing the DANCINGBOAR Foam Cannon. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your foam cannon. Please read these instructions thoroughly before first use and retain them for future reference.
Safety Information
Always observe the following safety precautions:
- Always wear appropriate protective clothing, eye protection, and ear protection when operating the pressure washer and foam cannon.
- Keep the nozzle pointed away from people, pets, and electrical outlets.
- Do not use the foam cannon with chemicals that are not compatible with its materials or intended for pressure washing applications.
- Always follow the manufacturer's instructions for proper use, maintenance, and disposal of cleaning solutions.
- Ensure all connections are secure before operating the unit.
Package Contents
Verify that all components are present in the package:
- 1 x DANCINGBOAR Foam Cannon (1L Bottle, Brass Unit, Spray Nozzle)
- 1 x M22 Connector
- 1 x 1/4 Inch Quick Connector
- 1 x 1.25mm Orifice (pre-installed)
- 1 x 1.1mm Orifice (spare)
- 1 x Cleaning Needle
- 1 x Mesh Filter
Setup Instructions
- Assemble the Foam Cannon:
Attach the brass foam cannon unit to the 1-liter bottle by screwing it clockwise until secure. Ensure the suction tube is properly inserted into the bottle and connected to the brass unit.
Image 2: Structural diagram illustrating the foam cannon's parts and assembly points. - Fill the Bottle:
Unscrew the bottle from the brass unit. Fill the wide-mouth bottle with your desired car wash soap or cleaning solution and water mixture according to the solution's instructions. The wide opening facilitates easy filling and reduces spills.

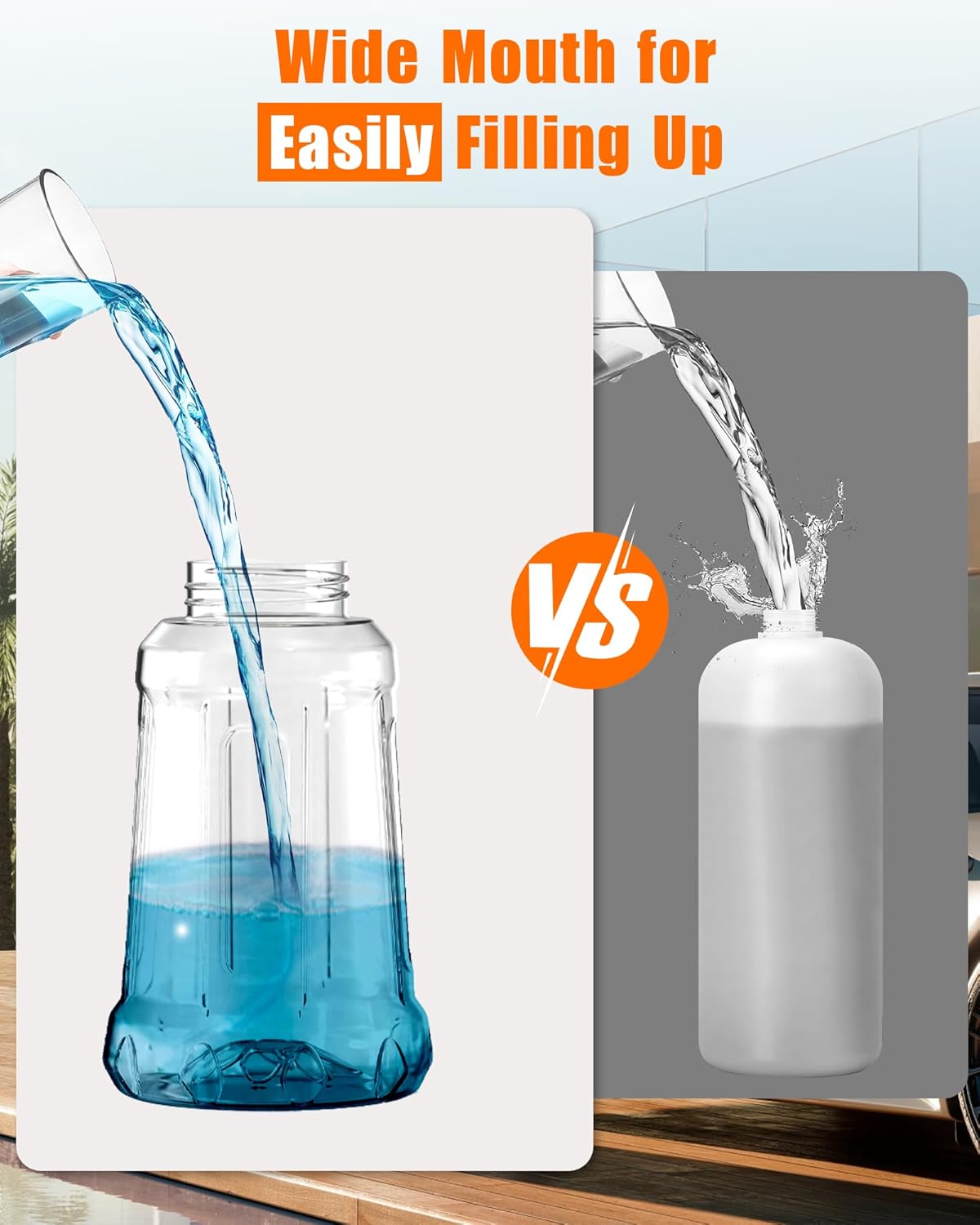

Image 3: Demonstrating the ease of filling the wide-mouth bottle. - Connect to Pressure Washer:
Choose the appropriate connector (M22 or 1/4 Inch Quick Connector) for your pressure washer. Attach the chosen connector to the foam cannon's inlet. Then, connect the foam cannon assembly to your pressure washer gun. Ensure a tight and leak-free connection.
Operating Instructions
- Adjust Spray Pattern:
Rotate the front nozzle of the foam cannon to adjust the spray pattern. You can switch between a wide fan spray for covering large areas and a narrow stream for targeted cleaning. The nozzle allows for 360-degree adjustment.
Image 4: Illustration of the adjustable spray angles and patterns (conical and cylindrical). - Adjust Foam Thickness:
Use the top control knob to regulate the foam thickness. Turning the knob clockwise generally increases foam density, while turning it counter-clockwise reduces it. Experiment to find the desired foam consistency for your cleaning task.
Image 5: Visual guide for adjusting foam thickness using the control knob. - Apply Foam:
Once connected and adjusted, activate your pressure washer. Point the foam cannon at the surface to be cleaned and spray an even layer of thick foam. Allow the foam to dwell for a few minutes to loosen dirt and grime, as recommended by your cleaning solution's instructions.
Image 6: Foam cannon applying thick foam to a vehicle for effective cleaning. - Rinse:
After the foam has worked, rinse the surface thoroughly with clean water using your pressure washer (without the foam cannon attached) or a standard hose.
- Multiple Usages:
The DANCINGBOAR Foam Cannon is suitable for various cleaning tasks, including vehicle washing, motorcycle cleaning, driveway cleaning, patio cleaning, and siding cleaning.
Image 7: Examples of various applications for the foam cannon.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your foam cannon:
- After Each Use:
After each cleaning session, empty any remaining solution from the bottle. Fill the bottle with clean water and spray for 15-20 seconds to flush out any soap residue from the internal components. This prevents clogging and corrosion.
- Clean the Filter:
The foam cannon includes a mesh filter at the end of the suction tube to prevent impurities from entering the system. Regularly inspect and clean this filter to ensure unobstructed flow.
Image 8: Illustration of the filtration mechanism within the foam cannon. - Check Orifice:
If foam production decreases or becomes inconsistent, the orifice may be partially clogged. Use the provided cleaning needle to clear any blockages. A spare 1.1mm orifice is included for finer foam production or as a replacement.
- Storage:
Store the foam cannon in a clean, dry place, away from direct sunlight and extreme temperatures. Ensure it is thoroughly cleaned and dry before storage.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No foam or very thin foam | Incorrect soap-to-water ratio; Clogged orifice; Clogged mesh filter; Air leak in connections. | Adjust soap concentration; Clean or replace orifice; Clean mesh filter; Tighten all connections. |
| Foam cannon not drawing soap | Suction tube blocked or not fully submerged; Clogged mesh filter. | Ensure suction tube is clear and reaches the bottom of the bottle; Clean mesh filter. |
| Leaking connections | Loose connections; Worn O-rings. | Tighten all connections; Inspect and replace O-rings if damaged. |
| Difficulty adjusting spray pattern or foam knob | Residue buildup. | Clean the nozzle and knob thoroughly. |
Specifications
| Feature | Specification |
|---|---|
| Brand | DANCINGBOAR |
| Model Name | Foam Cannon P2GFC41T |
| Tank Volume | 1 Liter |
| Maximum Pressure | 3600 PSI |
| Material | Plastic, Brass |
| Connectors | M22 14mm, 1/4 Inch Quick Connector |
| Product Dimensions | 6.9 x 4.51 x 7.2 inches |
| Item Weight | 1.04 pounds |
Warranty Information
This DANCINGBOAR Foam Cannon comes with a 1-Year Warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage resulting from misuse, neglect, accidents, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
Support
For technical assistance, warranty claims, or any questions regarding your DANCINGBOAR Foam Cannon, please contact our customer support team. You can find contact information on the official DANCINGBOAR website or through your purchase platform.
