Generic Commercial Donut Making Machine

1. Safety Instructions

Please read all safety instructions carefully before operating the machine to prevent injury or damage. Keep this manual for future reference.

• Electrical Safety: Ensure the machine is connected to a grounded power outlet with the correct voltage (220V/110V) and frequency (50HZ/60HZ) as specified. Do not operate with wet hands.
• Hot Surfaces: The machine's frying components and oil will become extremely hot during operation. Avoid direct contact with hot surfaces. Use heat-resistant gloves if necessary.
• Oil Handling: Exercise extreme caution when handling hot oil. Never move the machine when it contains hot oil. Allow oil to cool completely before draining or cleaning.
• Supervision: Do not leave the machine unattended during operation. Keep children and unauthorized personnel away from the machine.
• Ventilation: Operate the machine in a well-ventilated area to dissipate heat and steam.
• Cleaning: Always unplug the machine and allow it to cool down completely before cleaning or maintenance.
• Overheating Protection: The machine is equipped with overheating protection. If the machine overheats, it will automatically shut down. Allow it to cool before restarting.

2. Package Contents

Verify that all items are present and in good condition upon unpacking.

• 1 x Automatic Donut Maker
• 1 x Donut Molds
• 1 x Food Clips
• 1 x Trays

3. Product Overview

The Generic Commercial Donut Making Machine is designed for efficient and automatic production of mini donuts. It features a robust stainless steel construction and an intelligent control panel for precise operation.

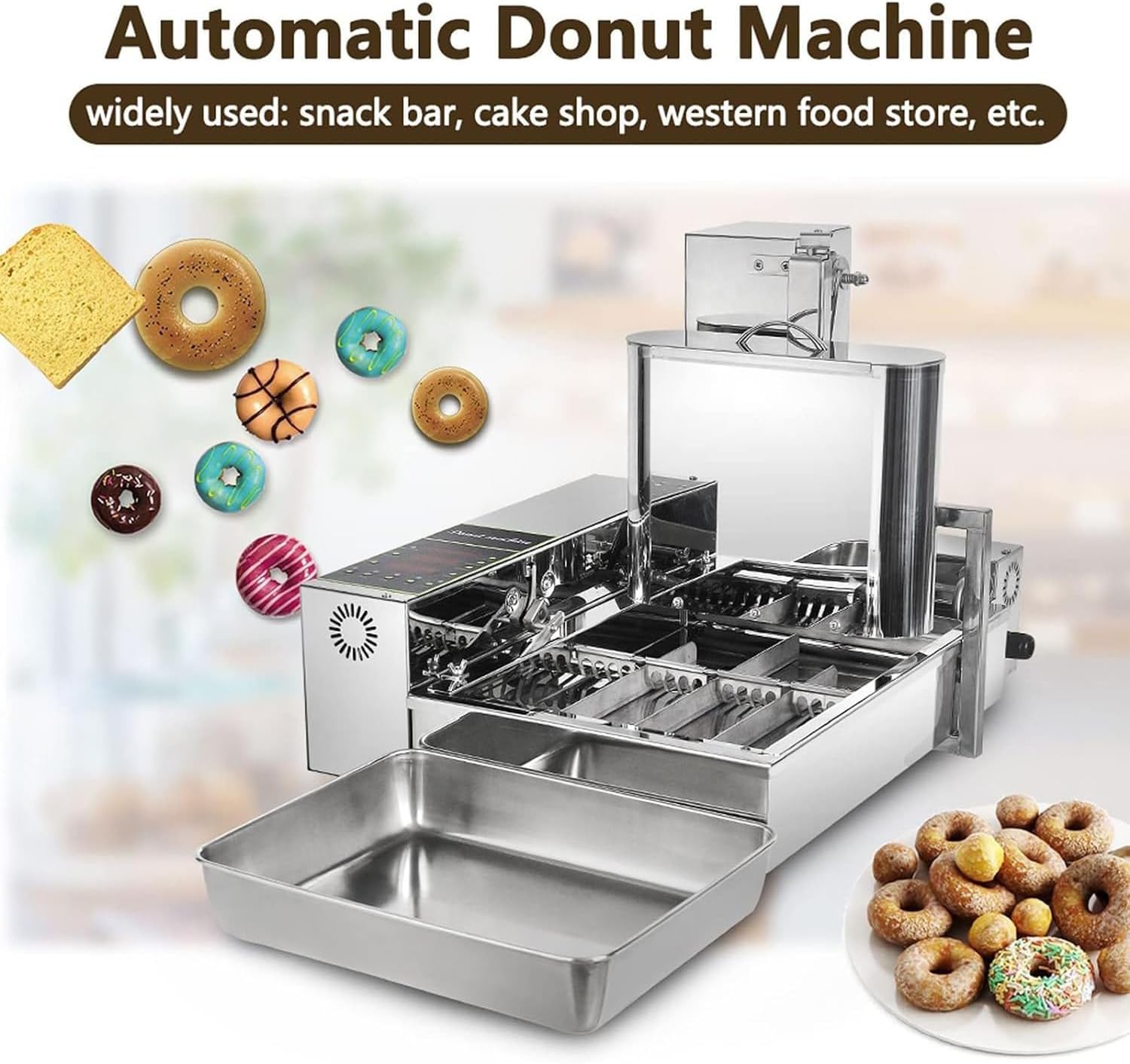

This image displays the complete Generic Commercial Donut Making Machine, showcasing its stainless steel construction and various components. Several finished donuts are shown alongside the machine, illustrating its purpose.

Key Features:

• High Efficiency: 2000W motor capable of producing up to 360 donuts per hour.
• Automatic Operation: Combines all steps of donut production, including an auto-turning function for even frying.
• Intelligent Control Panel: LED display for setting and monitoring frying time and temperature (50~220℃).
• Durable Construction: Made with food-grade 304# stainless steel for longevity and hygiene.
• Adjustable Thickness: Features a mechanism to adjust donut thickness with five gear settings.

This image provides a detailed view of the intelligent LED control panel, highlighting the digital display for time and temperature settings, and buttons for manual/auto operation, heat, drop, and flip functions.

4. Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging materials for future transport or storage.
2. Placement: Place the donut machine on a stable, level, and heat-resistant surface. Ensure there is adequate space around the machine for ventilation and safe operation. Avoid placing it near flammable materials.
3. Initial Cleaning: Before first use, clean all food-contact surfaces, including the donut molds, trays, and oil reservoir, with warm soapy water. Rinse thoroughly and dry completely.
4. Power Connection: Connect the power cord to a suitable grounded electrical outlet. Ensure the voltage and frequency match the machine's specifications.
5. Oil Filling: Fill the oil reservoir with appropriate cooking oil to the indicated fill line. Do not overfill or underfill.

5. Operating Instructions

Follow these steps for efficient donut production.

1. Power On: Turn on the main power switch. The LED control panel will illuminate.
2. Set Temperature: Use the 'TEMP Set+' and 'TEMP Set-' buttons on the control panel to set the desired frying temperature. The recommended temperature range is 50~220℃. Allow the oil to pre-heat until the set temperature is reached.
3. Set Frying Time: Use the 'Time+' and 'Time-' buttons to set the desired frying duration for each donut.
4. Prepare Batter: Ensure your donut batter is prepared according to your recipe and is of a consistent, pourable consistency.
5. Adjust Donut Thickness: If desired, adjust the donut thickness using the mechanism shown below. There are five gear settings to control the size of the donuts.


   This image shows the adjustment mechanism for donut thickness, indicating different gear settings to control the size of the donuts produced.

6. Start Production: Pour the batter into the designated dispenser. Press the 'Auto' button to begin automatic donut production. The machine will drop batter, fry, and automatically flip the donuts.
7. Monitor Process: Observe the frying process. The machine's auto-turning feature ensures even cooking.
8. Donut Removal: Once fried, the donuts will be automatically moved to the collection tray. Use the provided food clips to remove the finished donuts.
9. Power Off: After use, turn off the 'Heat' function, then the main power switch. Allow the machine to cool completely before cleaning.

6. Cleaning and Maintenance

Regular cleaning and maintenance ensure the longevity and hygienic operation of your donut machine.

1. Disconnect Power: Always unplug the machine from the power outlet before cleaning.
2. Cool Down: Allow the machine and oil to cool down completely to a safe temperature.
3. Drain Oil: Carefully drain the cooled oil from the reservoir into a suitable container. Dispose of used oil responsibly.
4. Disassemble Components: Remove the donut molds, trays, and any other removable parts for thorough cleaning.
5. Wash Components: Wash all removable parts with warm water and a mild, food-safe detergent. Use a soft brush or sponge to remove any batter or oil residue. Rinse thoroughly.
6. Clean Main Unit: Wipe down the exterior and interior surfaces of the main unit with a damp cloth. For stubborn grease, use a mild detergent. Avoid getting water into electrical components.
7. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing the machine to prevent rust and bacterial growth.
8. Storage: Store the machine in a clean, dry place when not in use.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

Technical details of the Generic Commercial Donut Making Machine.

9. Warranty and Support

For warranty information or technical support, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
