BELION Clutch Plate User Manual
Model Compatibility: MF 2220, 230, 235, 245, 25, 2500, 255, 265, 285, 30, 35
Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your BELION Clutch Plate. Designed for a range of Massey Ferguson models, this high-quality clutch plate ensures reliable power transmission and optimal performance for your agricultural machinery. Please read this manual thoroughly before installation and use to ensure safety and prolong the lifespan of the product.
Product Overview

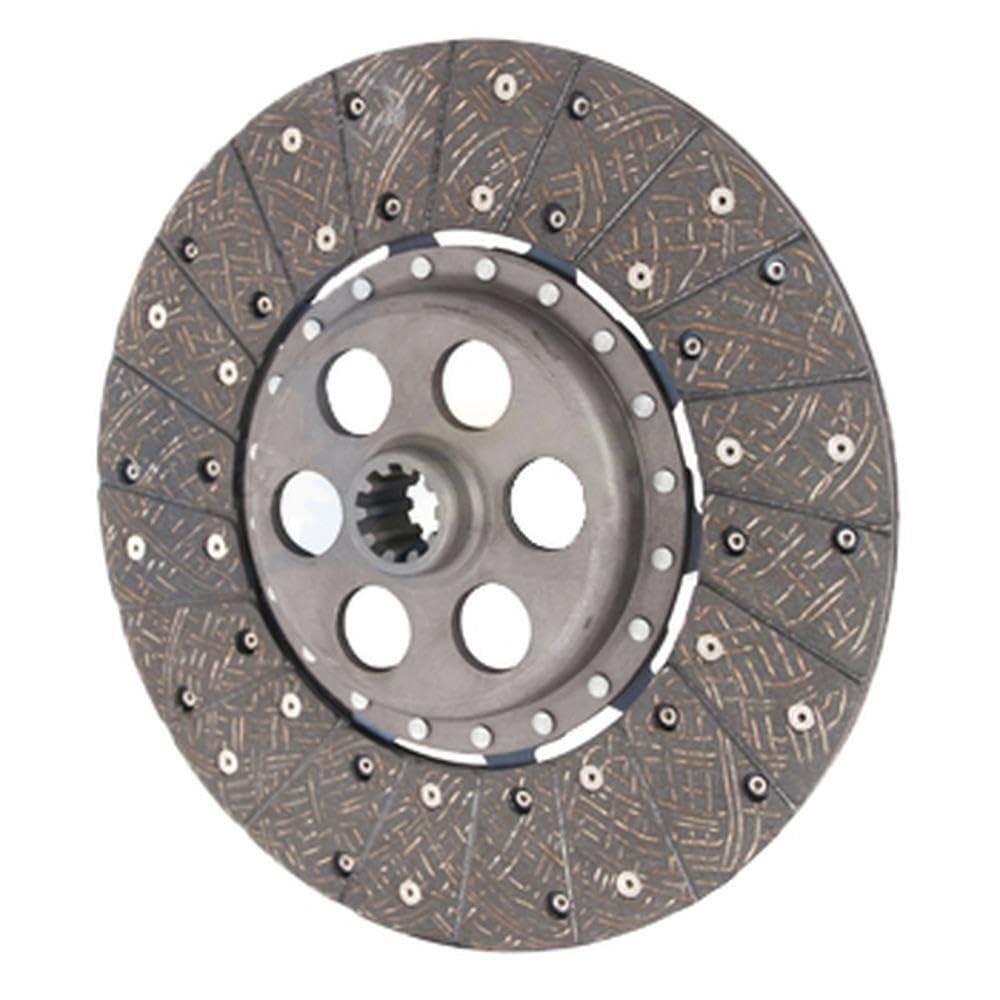

Figure 1: BELION Clutch Plate. This image displays the circular clutch plate with its central hub and splined shaft opening, surrounded by friction material segments secured by rivets. The overall design is robust and engineered for efficient power transfer.
The BELION Clutch Plate is a critical component in the drivetrain of compatible Massey Ferguson tractors. It is responsible for engaging and disengaging power from the engine to the transmission, allowing for smooth gear changes and stopping. Its robust construction and precision engineering ensure durability and consistent performance under demanding agricultural conditions.
Setup and Installation
Proper installation is crucial for the performance and longevity of the clutch plate. It is highly recommended that installation be performed by a qualified mechanic or technician.
Required Tools and Materials:
- Standard mechanic's tool set (wrenches, sockets, screwdrivers)
- Clutch alignment tool
- Torque wrench
- Clean rags and degreaser
- New pilot bearing (if necessary)
- New release bearing (if necessary)
- Safety glasses and gloves
Installation Steps:
- Safety First: Ensure the tractor is on a level surface, engine is off, and parking brake is engaged. Disconnect the battery.
- Remove Transmission: Carefully separate the engine from the transmission according to the tractor's service manual. Support both components securely.
- Remove Old Clutch Components: Unbolt and remove the pressure plate assembly and the old clutch plate. Inspect the flywheel for any damage, cracks, or excessive wear. Resurface or replace the flywheel if necessary.
- Inspect Pilot Bearing: Check the pilot bearing (located in the crankshaft) for wear. Replace if it feels rough or has excessive play.
- Install New Clutch Plate: Using a clutch alignment tool, carefully center the new BELION Clutch Plate onto the flywheel. Ensure the correct side of the clutch plate faces the pressure plate (usually marked "Flywheel Side" or similar).
- Install Pressure Plate: Mount the pressure plate assembly over the clutch plate and secure it with bolts. Tighten bolts evenly in a star pattern to the manufacturer's specified torque settings. Remove the alignment tool.
- Install Release Bearing: Install the new release bearing onto the clutch fork.
- Reassemble Transmission: Carefully re-mate the transmission to the engine, ensuring proper alignment. Secure all bolts to specified torque settings.
- Reconnect Components: Reconnect all linkages, wiring, and hydraulic lines.
- Test Operation: After reassembly, start the engine and test the clutch operation in a safe, open area. Ensure smooth engagement and disengagement.
Note: Always refer to your specific Massey Ferguson tractor's service manual for detailed, model-specific instructions and torque specifications.
Operating Considerations
While the clutch plate itself is a passive component, its proper function relies on correct operating habits of the tractor operator.
- Smooth Engagement: Always engage the clutch smoothly and gradually to prevent excessive wear and shock to the drivetrain.
- Avoid Riding the Clutch: Do not keep your foot on the clutch pedal unnecessarily while driving, as this causes premature wear of the clutch plate and release bearing.
- Full Disengagement: Ensure the clutch pedal is fully depressed when shifting gears to prevent grinding and damage to the transmission.
- Proper Gear Selection: Use appropriate gears for the load and terrain to avoid overloading the clutch.
Maintenance
The BELION Clutch Plate is designed for durability, but its lifespan can be extended with proper maintenance of the surrounding clutch system.
- Clutch Pedal Free Play: Regularly check and adjust the clutch pedal free play according to your tractor's service manual. Incorrect free play can lead to incomplete engagement or disengagement, causing wear.
- Hydraulic System (if applicable): For hydraulic clutch systems, check the fluid level and condition regularly. Bleed the system if air is present.
- Linkage Inspection: Inspect mechanical linkages for wear, corrosion, or binding. Lubricate pivot points as recommended by the tractor manufacturer.
- Early Detection of Wear: Pay attention to signs of clutch wear such as slipping, chattering, difficulty shifting, or a burning smell. Addressing these issues promptly can prevent further damage.
Troubleshooting
This section outlines common issues related to clutch operation and potential causes. For complex problems, consult a qualified technician.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Clutch Slipping | Worn clutch plate, oil/grease on friction surface, weak pressure plate, insufficient pedal free play. | Inspect and replace clutch plate/pressure plate. Check for leaks. Adjust pedal free play. |
| Clutch Chattering/Vibration | Warped flywheel, worn clutch plate, loose pressure plate bolts, worn pilot bearing, misaligned components. | Inspect flywheel and clutch components. Ensure proper alignment and torque during installation. Replace worn parts. |
| Difficulty Shifting Gears | Incomplete clutch disengagement, air in hydraulic system, worn release bearing, bent clutch fork. | Adjust pedal free play. Bleed hydraulic system. Inspect and replace release bearing or clutch fork. |
| Clutch Noise (Squealing/Grinding) | Worn release bearing, worn pilot bearing, worn clutch plate rivets contacting flywheel/pressure plate. | Inspect and replace bearings. Replace clutch plate if rivets are exposed. |
Specifications
- Product Type: Clutch Plate
- Brand: BELION
- Compatibility: Massey Ferguson MF 2220, 230, 235, 245, 25, 2500, 255, 265, 285, 30, 35
- Material: High-quality friction material and steel hub
- ASIN: B0D8VBD13R
- Manufacturer: BELION
- Note: Specific dimensions (diameter, spline count) should be verified against your tractor's requirements before purchase and installation.
Warranty and Support
For information regarding warranty coverage, returns, or technical support for your BELION Clutch Plate, please refer to the retailer or distributor from whom the product was purchased. Keep your proof of purchase for any warranty claims.
For general inquiries or to find authorized service centers for your Massey Ferguson tractor, please consult the official Massey Ferguson website or your local dealer.
