1. Product Overview
This manual provides instructions for the assembly, use, and maintenance of your SAMTRA Queen Size Canopy Bed Frame. This bed frame features a vintage-style iron-art metal design with a headboard and footboard, designed for durability and ease of assembly.
The integrated structure ensures stability, supporting up to 800 lbs, and is designed to be noise-free. Its classic design blends with various home decors.
2. Important Safety Information
Please read all instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.
- Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
- Assemble the bed frame on a soft, clean surface (e.g., carpet) to prevent scratching the floor or the product.
- Ensure all bolts, screws, and connectors are securely tightened before use. Periodically check and re-tighten as necessary.
- Do not stand or jump on the bed frame.
- Do not exceed the maximum weight capacity of 800 lbs.
- Use caution when moving the assembled bed frame to avoid injury or damage.
- The bed frame is designed for indoor use only.
3. Package Contents
Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Headboard
- Footboard
- Side Rails
- Canopy Posts and Rails
- Slats (Bed Base)
- Hardware Pack (bolts, screws, washers, Allen wrench)
- Installation Manual (this document)
Figure 3.1: Illustration of main bed frame components.
4. Assembly Instructions
Assembly typically requires two adults. Please follow these steps carefully.
4.1. Prepare the Area
Clear a spacious area for assembly. Lay out all components on a soft, clean surface to prevent damage.
4.2. Attach Side Rails to Headboard and Footboard
- Connect the side rails to the headboard and footboard using the provided bolts and washers. Do not fully tighten the bolts yet.
- Ensure the decorative elements of the headboard and footboard are facing the correct direction.
Figure 4.1: The bed frame structure with headboard, footboard, and side rails connected.
4.3. Install Canopy Posts and Rails
- Attach the four vertical canopy posts to the corners of the bed frame.
- Connect the horizontal canopy rails to the top of the vertical posts to form the canopy structure. Secure with bolts.
4.4. Insert Bed Slats
- Place the metal bed slats onto the designated supports along the side rails.
- Ensure all slats are evenly spaced and securely seated. The anti-noise plastic plugs should fit snugly into the grooves.
Figure 4.2: Details of the Victoria Iron Art design, protective footpad, and anti-noise plastic plug for slat installation.
4.5. Final Tightening
Once all components are in place, go back and fully tighten all bolts and screws. Do not overtighten.
5. Operating and Usage
Your SAMTRA Queen Size Canopy Bed Frame is designed for comfortable and stable sleep. Follow these guidelines for optimal use:
- Mattress Placement: Place your Queen size mattress directly onto the bed slats. A box spring is not required.
- Weight Capacity: The bed frame is designed to support a maximum weight of 800 lbs, including the mattress and occupants.
- Underbed Storage: The frame provides approximately 12.4 inches of clearance underneath, suitable for storage boxes or other items.
Figure 5.1: Illustration of the underbed clearance for storage.
6. Care and Maintenance
Proper care will extend the life and appearance of your bed frame.
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
- Inspection: Periodically check all bolts and connections to ensure they remain tight. Re-tighten if necessary.
- Moving: When moving the bed frame, lift it rather than dragging it to prevent damage to the frame or your flooring.
7. Troubleshooting
If you encounter issues with your bed frame, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or uneven assembly. | Ensure all bolts are fully tightened. Check that the frame is assembled squarely on a level surface. |
| Squeaking noises. | Loose connections or friction between metal parts. | Re-tighten all bolts. Ensure plastic plugs on slats are properly seated. Apply a small amount of silicone lubricant to contact points if necessary. |
| Missing parts. | Packaging error. | Refer to the "Package Contents" section and contact SAMTRA customer support for replacement parts. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | BD001 |
| Size | Queen |
| Material | Metal Frame |
| Product Dimensions (L x W x H) | 83.5"L x 61"W x 76.3"H |
| Item Weight | 105.6 Pounds |
| Maximum Weight Recommendation | 800 Pounds |
| Ground to Item Distance (Underbed Clearance) | 12.4 Inches |
| Color | Black Vintage |
| Assembly Required | Yes |
| Box Spring Required | No |

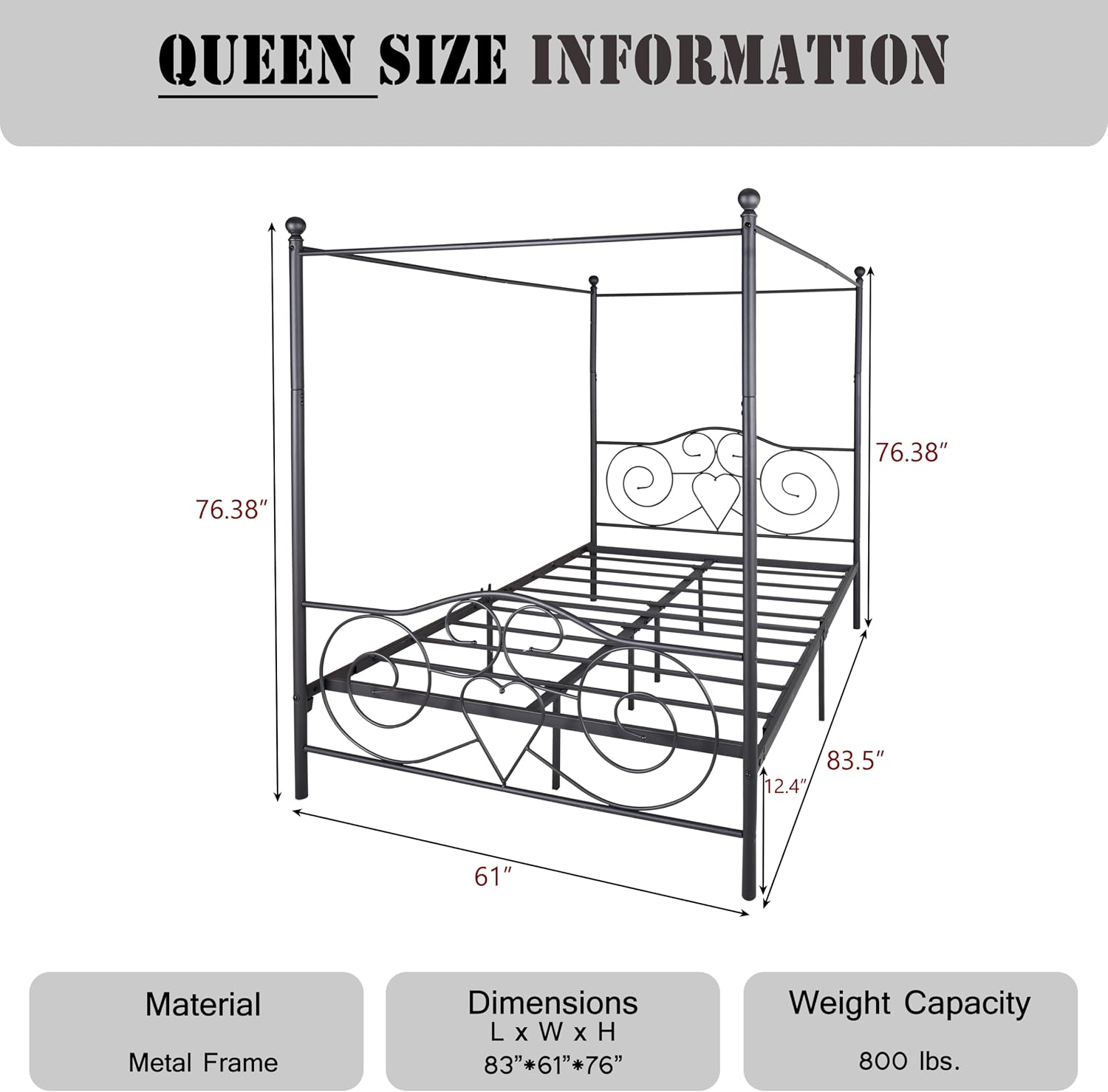

Figure 8.1: Detailed dimensions and key specifications of the Queen Size Canopy Bed Frame.
9. Warranty and Customer Support
For warranty information or assistance with your SAMTRA Queen Size Canopy Bed Frame, please contact the manufacturer directly. Keep your purchase receipt for any warranty claims.
Manufacturer: SAMTRA
For support, please refer to the contact information provided with your purchase or visit the official SAMTRA website.
