BORTT Dancing Wings Hobby E37 Edge 540 EPP 3D Sport Airplane User Manual

1. Introduction

This manual provides essential instructions for the assembly, operation, maintenance, and troubleshooting of your BORTT Dancing Wings Hobby E37 Edge 540 EPP 3D Sport Airplane. Please read this manual thoroughly before operating the aircraft to ensure safe and correct usage. This EPP 3D sport aircraft is designed for both beginners learning to fly and experienced pilots seeking stunt capabilities.

Safety Precautions

• Always operate the aircraft in open areas, away from people, buildings, and obstacles.
• Ensure all components are securely attached and functioning correctly before each flight.
• Do not fly in strong winds or adverse weather conditions.
• Keep hands and loose clothing away from the propeller when the battery is connected.
• Always disconnect the battery after use and during transport.
• Adult supervision is recommended for younger users.

Package Contents (KIT+Motor+Prop+Servo+ESC Version)

The following components are included in the KIT+Motor+Prop+Servo+ESC package:

• 1 x Dancing Wings Hobby E37 EDGE 540 1100mm EPP 3D Sport Airplane KIT
• 1 x MC2216 950KV Motor
• 1 x 11 Inch Propeller
• 1 x 30A Electronic Speed Controller (ESC)
• 4 x 9g Servos

Note: Transmitter, Receiver, Battery (3S/11.1V 1000-1300mAh LiPo), Charger, and Glue are not included and must be purchased separately.

2. Setup and Assembly

The E37 Edge 540 is designed for easy assembly. Follow these steps to prepare your aircraft for flight.

Image 2.1: Overview of the E37 Edge 540 EPP 3D Sport Airplane components. This image shows the main body, wings, and tail sections, highlighting the EPP material construction.

2.1 Wing Assembly

1. Carefully attach the main wings to the fuselage. Ensure they are aligned correctly and secured using the provided fasteners or adhesive (if applicable).
2. Connect the aileron servos to the appropriate channels on your receiver.

2.2 Tail Section Assembly

1. Attach the horizontal and vertical stabilizers to the rear of the fuselage. Verify they are perpendicular and level.
2. Install the elevator and rudder servos, connecting them to the receiver.

2.3 Motor, Propeller, and ESC Installation

1. Mount the MC2216 950KV motor to the motor mount at the front of the aircraft.
2. Install the 11-inch propeller onto the motor shaft, ensuring it is oriented correctly for thrust.
3. Connect the 30A ESC to the motor and then to the throttle channel of your receiver. Ensure proper wiring polarity.

2.4 Landing Gear Installation

Attach the landing gear assembly to the designated points on the fuselage. Ensure the wheels spin freely.

2.5 Radio System and Battery Setup

1. Install your 2.4G 4CH (or above) receiver into the fuselage, ensuring it is secured and antennas are positioned for optimal signal.
2. Connect all servos and the ESC to the correct channels on the receiver.
3. Insert the 3S/11.1V 1000-1300mAh LiPo battery into the battery compartment. Secure it to prevent shifting during flight.
4. Perform a range check with your transmitter and receiver before the first flight.

3. Operating Instructions

This section covers the basic steps for operating your E37 Edge 540 aircraft.

3.1 Pre-Flight Checks

• Battery: Ensure the flight battery is fully charged and securely installed.
• Controls: Verify all control surfaces (ailerons, elevator, rudder) move freely and in the correct direction in response to transmitter inputs.
• Propeller: Check that the propeller is securely attached and free from damage.
• Environment: Choose an open area free from obstacles, people, and strong winds.

3.2 Taking Off

Place the aircraft on a flat surface facing into the wind. Gradually increase throttle while applying slight up-elevator to lift off smoothly. For hand launching, ensure sufficient power and a gentle forward toss.

3.3 Flying and Stunts

The E37 Edge 540 is designed for both sport flying and 3D aerobatics. Start with basic maneuvers to familiarize yourself with its flight characteristics. Its durable EPP material makes it forgiving for learning new stunts.

Image 3.1: The E37 Edge 540 demonstrating its stunt capabilities. This image illustrates the aircraft in a dynamic flight pose, highlighting its agility for aerobatic maneuvers.

Image 3.2: The E37 Edge 540 flying in the sky. This image captures the aircraft in mid-air, showcasing its streamlined design during flight.

3.4 Landing

Reduce throttle and approach the landing area into the wind. Maintain sufficient airspeed for control and gently flare just before touchdown. Cut throttle completely upon landing.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your E37 Edge 540.

4.1 Cleaning

• Wipe down the EPP airframe with a damp cloth after each flight to remove dirt and debris.
• Avoid using harsh chemicals that could damage the EPP material.

4.2 Inspection

• Before each flight, inspect the airframe for any cracks or damage, especially after hard landings. The durable EPP material is resistant to impact, but regular checks are still important.
• Check all control linkages and hinges for looseness or wear.
• Ensure the propeller is free from nicks or cracks. Replace if damaged.
• Verify motor and ESC connections are secure.

Image 4.1: Close-up view highlighting the durable EPP material of the E37 Edge 540. This material provides impact resistance and contributes to the aircraft's longevity.

4.3 Storage

• Store the aircraft in a cool, dry place away from direct sunlight.
• Remove the flight battery before storing for extended periods.
• The compact and lightweight design makes it easy to store and transport.

5. Troubleshooting

This section addresses common issues you might encounter and their potential solutions.

6. Specifications

Detailed technical specifications for the BORTT Dancing Wings Hobby E37 Edge 540 EPP 3D Sport Airplane.

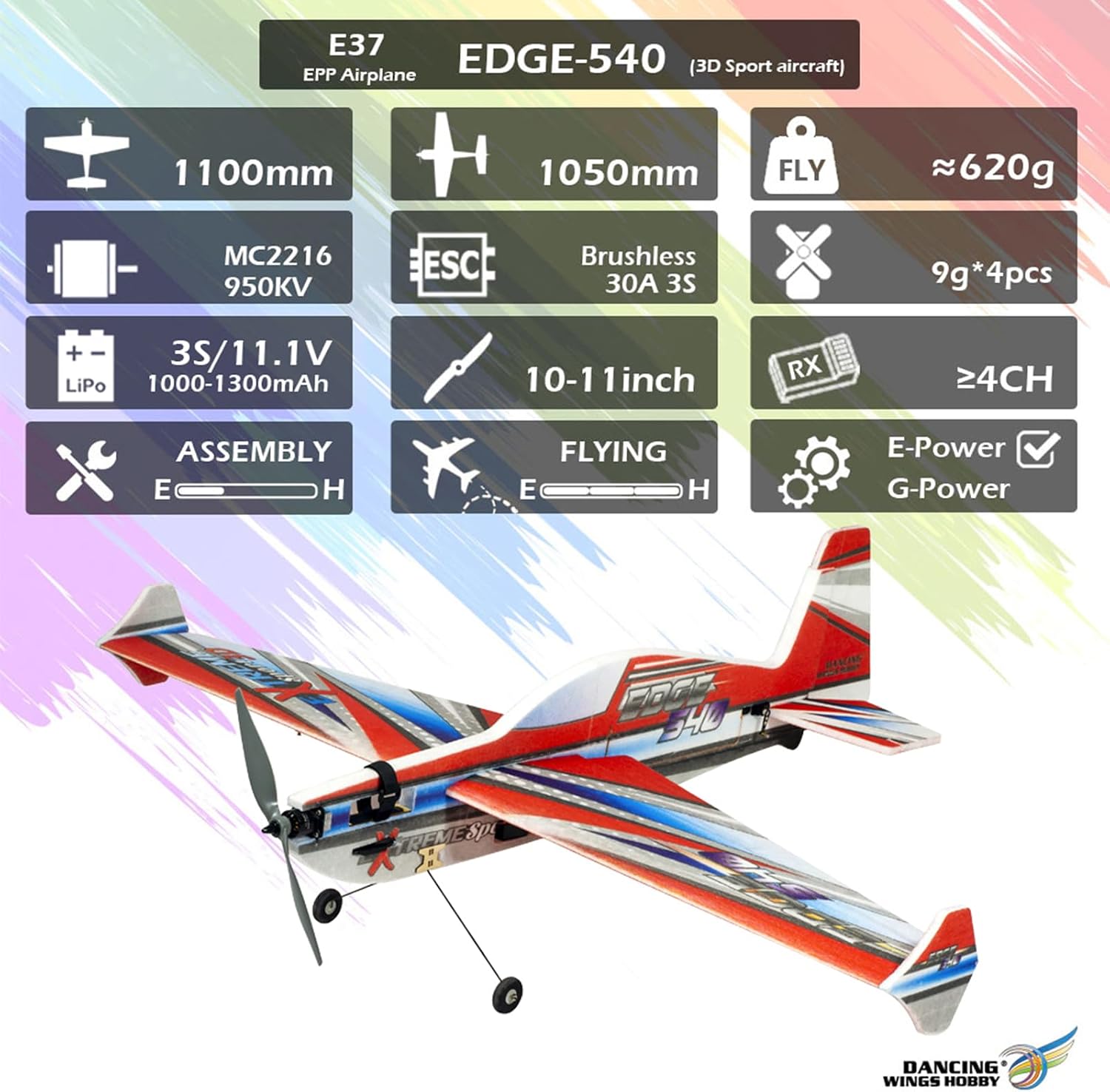

Image 6.1: Visual summary of key specifications for the E37 Edge 540. This graphic highlights dimensions, weight, and power system details.

7. Warranty and Support

For warranty information or technical support, please refer to the retailer or manufacturer's official website where you purchased this product. Keep your proof of purchase for any warranty claims.

If you encounter issues not covered in this manual, please contact customer support for assistance.
