KingChii 27 Bottle Wine Cooler Refrigerator - Model JC-81WS Instruction Manual

1. Safety Information

Please read all instructions carefully before using your KingChii Wine Cooler to ensure safe operation and prevent damage to the appliance or injury to yourself. Keep this manual for future reference.

General Safety Precautions:

• Ensure the appliance is properly grounded.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• This appliance is intended for household use only.

2. Product Overview

The KingChii JC-81WS is a freestanding wine cooler refrigerator designed to store up to 27 standard wine bottles. It features intelligent digital control for precise temperature management and a low-noise compressor for quiet operation.

Image: Front view of the KingChii 27 Bottle Wine Cooler Refrigerator, showcasing its sleek design and glass door.

Key Features:

• Temperature Stability: Digital thermostat and touch panel for easy adjustments between 41°F and 64°F.
• Spacious Storage: 10 adjustable stainless steel shelves accommodate up to 27 bottles.
• Quiet Operation: High-efficiency compressor and air-cooling system keep noise levels below 38 dB.
• UV-Resistant Door: Double-layer tempered glass door provides insulation and UV protection.
• Flexible Installation: Designed for freestanding use with adjustable legs.
• Smart Temperature Memory: Retains settings after power interruptions.
• LED Lighting: Interior LED lighting for easy visibility.

3. Setup and Installation

Unpacking and Placement:

• Remove all packaging materials, including the foam base and any adhesive tape.
• Place the wine cooler on a flat, stable surface away from direct sunlight and heat sources (e.g., oven, radiator).
• Ensure adequate ventilation around the unit. Maintain at least 5 inches (12.7 cm) of space at the back and sides for proper air circulation.
• Allow the appliance to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant fluids to settle.

Leveling the Appliance:

The wine cooler is equipped with adjustable leveling legs. To level the unit:

1. Turn the leveling legs clockwise to raise the unit or counter-clockwise to lower it.
2. Ensure the unit is level to prevent vibrations and ensure proper door sealing.

Image: Close-up of the adjustable foot pads on the wine cooler, illustrating how to adjust them for stable placement.

Electrical Connection:

• Plug the appliance into a dedicated, grounded electrical outlet (115V, 60Hz).
• Do not use extension cords or ungrounded adapters.

4. Operating Instructions

Control Panel:

The wine cooler features an intelligent digital control panel located on the top of the door for easy access and temperature adjustments.

Image: Close-up of the digital control panel with touch buttons for power, light, unit conversion, temperature adjustment (up/down), and temperature lock.

Temperature Adjustment:

• Press the 'Up' or 'Down' arrows on the touch panel to set your desired temperature. The temperature range is 41°F to 64°F (5°C to 18°C).
• The display will show the set temperature and then revert to the actual internal temperature.
• The unit features smart temperature memory, retaining your last set temperature even after a power outage.

Internal LED Lighting:

• Press the 'Light' button on the control panel to turn the interior LED light on or off.
• The energy-saving LED lights gently illuminate your wine collection.

Temperature Lock:

• To prevent accidental changes to the temperature settings, press and hold the 'Temperature Lock' button for 3 seconds. The control panel will lock.
• Repeat the process to unlock the control panel.

Loading Wine Bottles:

• The wine cooler has 10 adjustable stainless steel shelves.
• Carefully slide bottles onto the shelves, ensuring they do not touch the back wall or obstruct the door from closing properly.
• For larger bottles, some shelves may need to be removed to create adequate space.

Image: Interior view of the wine cooler showing bottles stored on movable shelves, highlighting the flexibility for different bottle sizes.

5. Maintenance and Care

Cleaning the Interior:

• Unplug the appliance before cleaning.
• Clean the interior with a soft cloth dampened with a solution of mild detergent and warm water.
• Wipe dry thoroughly to prevent mold or mildew.
• The negative ion air purification system helps to purify the air and reduce odors inside the cooler.

Image: Diagram illustrating the negative ion air purification system within the wine cooler, showing air circulation and purification.

Cleaning the Exterior:

• Wipe the exterior with a soft, damp cloth. For stainless steel surfaces, use a stainless steel cleaner.
• Avoid abrasive cleaners or solvents that may damage the finish.

Defrosting:

• The wine cooler features an automatic defrost function to maintain a fresh interior environment.
• Excessive frost buildup is unlikely with normal use. If it occurs, unplug the unit and allow the frost to melt naturally.

Image: Illustration showing the defrost function, with ice melting from the interior of the wine cooler, ensuring a fresh environment.

Power Outage:

• In case of a power outage, the wine cooler will maintain its temperature for a limited time. Avoid opening the door to preserve the internal temperature.
• The smart temperature memory function will restore your previous settings once power is restored.

6. Troubleshooting Guide

Before contacting customer service, please refer to the following troubleshooting tips:

7. Specifications

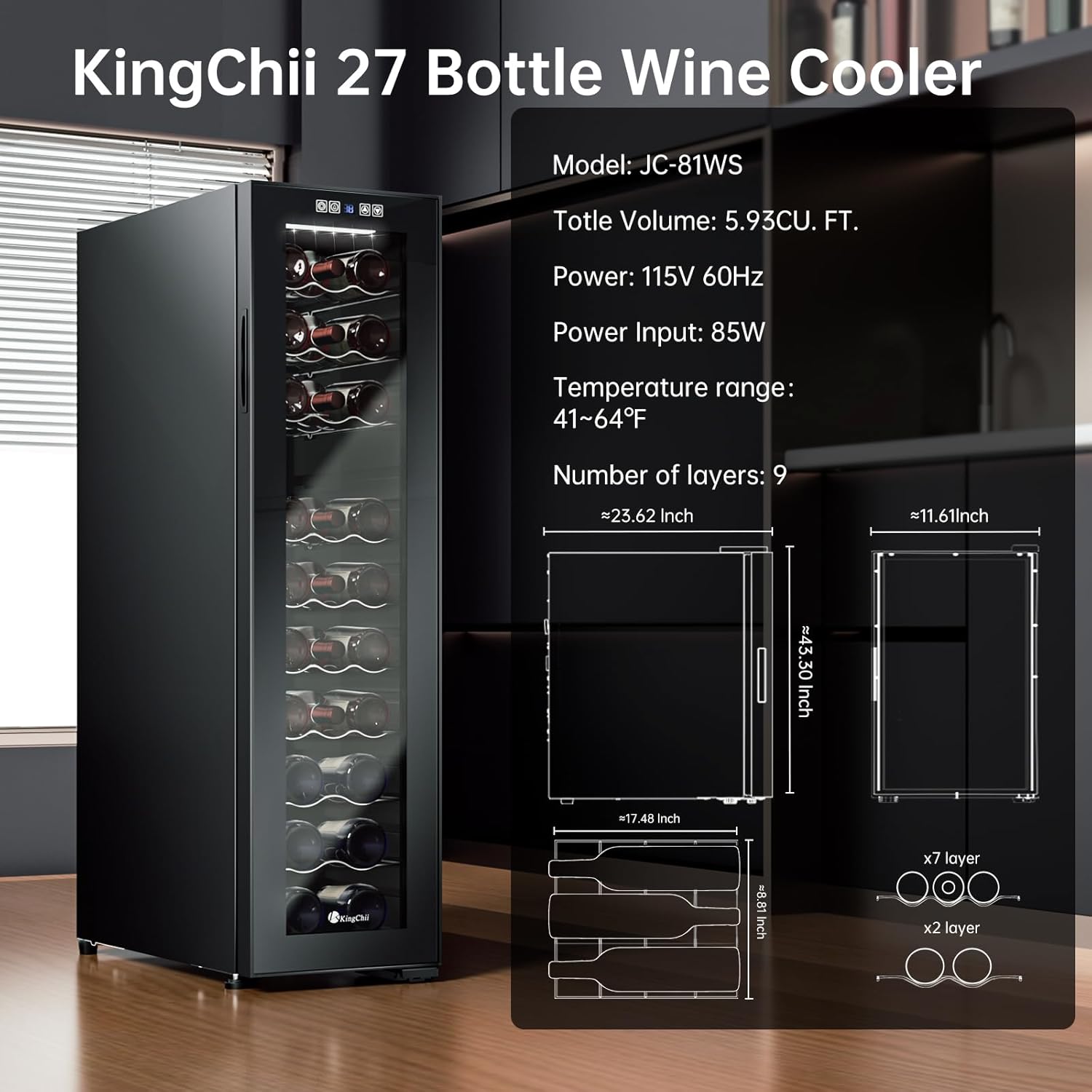

Image: Detailed diagram showing the dimensions of the KingChii 27 Bottle Wine Cooler, including height, width, and depth, along with shelf dimensions and bottle capacity per layer.

8. Warranty and Customer Support

For warranty information or customer support, please refer to the documentation included with your purchase or contact KingChii directly. A 3-Year Protection Plan may be available for purchase separately.

For assistance, please visit the KingChii Store on Amazon or contact their customer service department.
