1. Setup Instructions

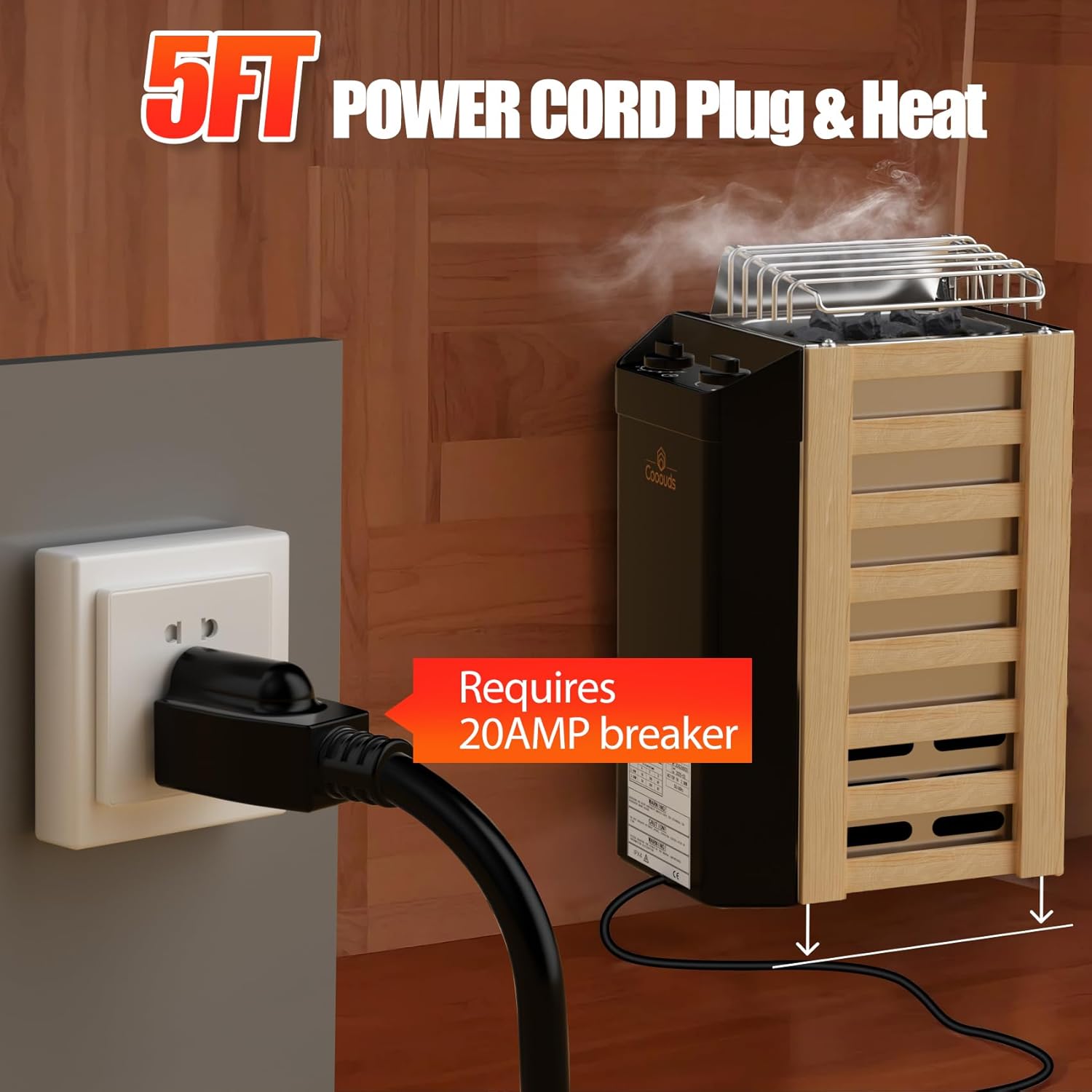

The Cooouds 2KW 110V Sauna Heater is designed for straightforward installation and use. It features a 5-foot power cord, allowing for a 'plug and play' experience without the need for complex professional wiring. This design facilitates easy relocation or rearrangement within your sauna space.
This 2KW sauna heater operates on 110V and requires a dedicated 20 AMP circuit breaker for optimal and safe performance. Ensure your electrical system meets this requirement before installation.
The heater features a wall-mount design with a pre-drilled bracket and reserved turnbuckles for simple and secure installation. For best efficiency and safety, it is recommended to install the heater 7 to 12 inches (approximately 17.8 cm to 30.5 cm) above the ground.
Installation Video
2. Operating Instructions
The 2KW 110V Sauna Heater is designed for ease of use with built-in timer and temperature controls. It is suitable for smaller sauna spaces, approximately 70-100 cu. ft., comfortably accommodating 1 or 2 people.
To operate, simply adjust the timer and temperature knobs located on the unit. The timer can be set from 0 to 180 minutes, and the temperature can be controlled up to a maximum of 210°F (99°C). The heater provides a full sauna experience, efficiently heating the space.
Operation Video
3. Maintenance

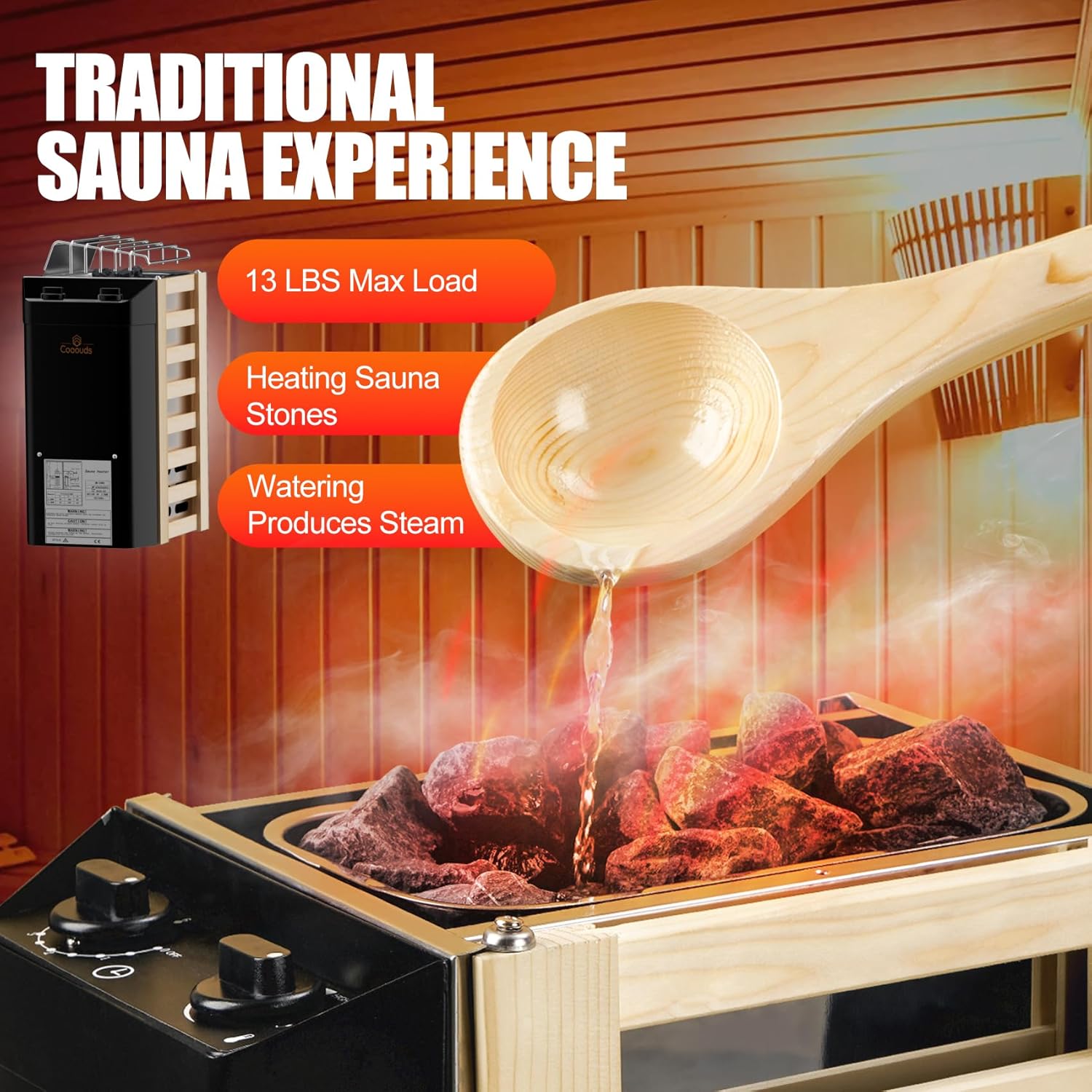

To ensure the longevity and safe operation of your sauna heater, proper maintenance is essential. Always use appropriate sauna stones or volcanic rocks. Do not use ordinary stones like granite, as they have low water absorption and can crack due to uneven thermal expansion, posing a safety risk. Sauna stones are not included with the package and must be purchased separately.
4. Troubleshooting
If you encounter any issues with your Cooouds 2KW 110V Sauna Heater, please review the following general troubleshooting tips:
- Heater not turning on: Ensure the unit is properly plugged into a functioning 20 AMP outlet and the circuit breaker is not tripped. Check that the timer and temperature controls are set correctly.
- Insufficient heat: Verify that the sauna room size is within the recommended 70-100 cu. ft. range. Ensure the temperature setting is appropriate for your desired heat level. Allow sufficient time for the heater to reach the set temperature.
- No steam when water is added: Confirm that the sauna stones are properly heated before adding water. Ensure you are using appropriate sauna stones as specified in the maintenance section.
- Unusual noises or odors: Immediately turn off the heater and unplug it. Inspect for any visible damage or loose components. Contact customer support if the issue persists.
5. Specifications
| Feature | Specification |
|---|---|
| Model Number | 2KW 110V Sauna Heater |
| Power Output | 2KW |
| Voltage | 110V |
| Heated Area | Up to 100 Cu.Ft. (approx. 70 cu. ft. comfortably) |
| Circuit Breaker Requirement | 20 AMP |
| Timer Range | 0-180 minutes |
| Maximum Temperature | 210°F (99°C) |
| Product Dimensions | 12.2 x 8.3 x 21.7 inches (31 x 21 x 55 cm) |
| Item Weight | 27.9 pounds (12.66 kg) |
| Power Cord Length | 5 feet (1.5 meters) |
| Installation Type | Wall-Mount |
| Manufacturer | Cooouds |
6. Warranty & Support
The Cooouds 2KW 110V Sauna Heater comes with a ONE YEAR WARRANTY. We are committed to quality assurance, and each product undergoes thorough inspection to ensure optimal performance and reliability. If you experience any quality issues within one year of purchase, please contact our customer support team for assistance.
For further support or inquiries, please refer to the contact information provided with your product packaging or visit the official Cooouds website.
