Introduction
Thank you for choosing the icVantA Shower Faucet Set. This manual provides essential information for the safe installation, operation, and maintenance of your new shower system. Please read these instructions thoroughly before installation and retain them for future reference.
Image: The complete icVantA Gold Shower Faucet Set, showcasing the rainfall shower head, handheld shower, and control components.
Safety Information
- Ensure all local plumbing and building codes are followed during installation.
- Turn off the main water supply before beginning any installation or maintenance.
- Use appropriate tools and wear safety glasses during installation.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the product finish.
Package Contents
Verify that all components are present before beginning installation:

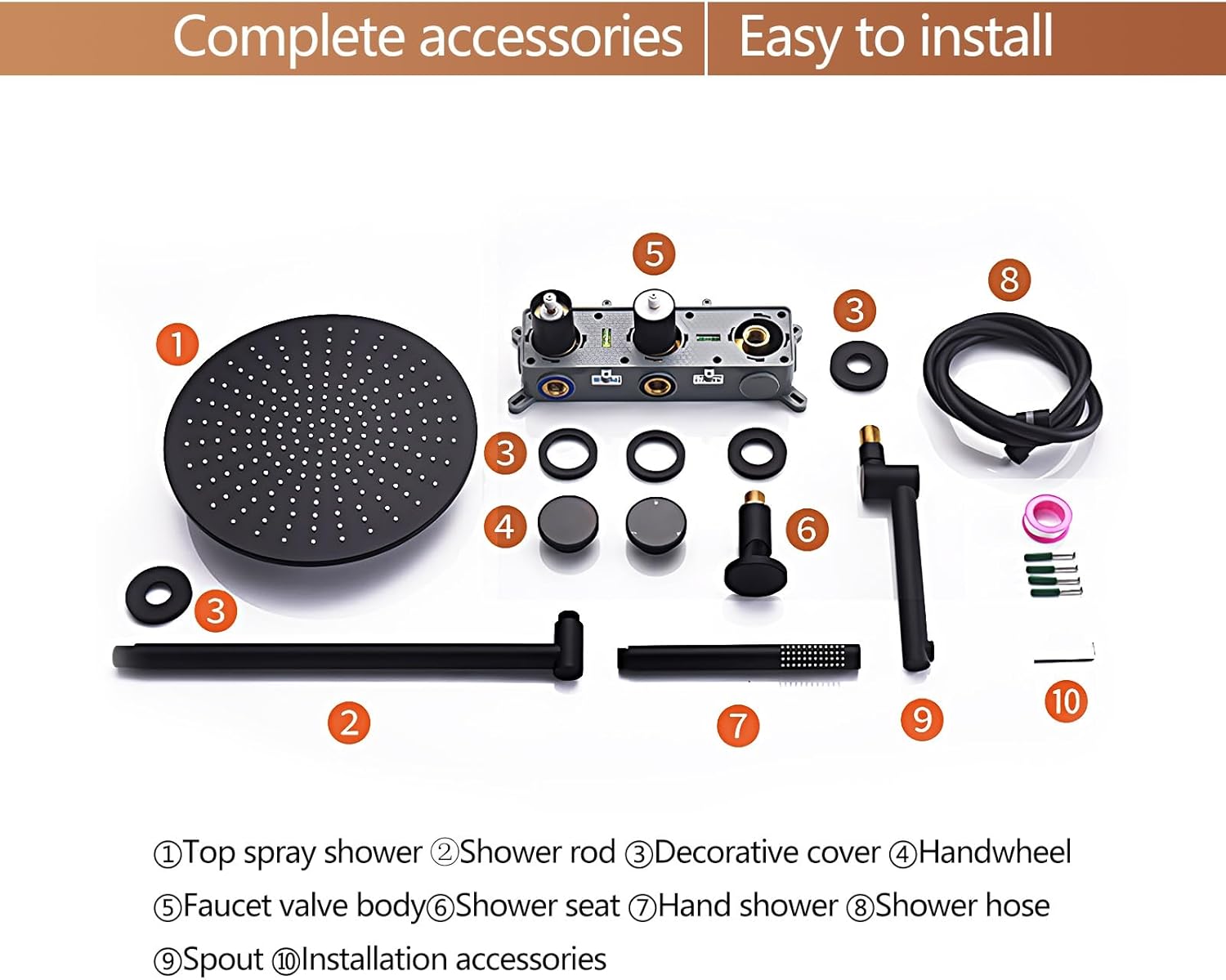

Image: A detailed diagram illustrating all components included in the icVantA Shower Faucet Set package, with each part numbered for easy identification.
- Top Spray Shower Head
- Shower Arm
- Decorative Covers (3 pcs)
- Handwheel/Control Knobs (3 pcs)
- Faucet Valve Body (Rough-in Valve)
- Shower Seat (Handheld Shower Holder)
- Hand Shower
- Shower Hose
- Spout/Tub Filler
- Installation Accessories (screws, anchors, etc.)
Setup and Installation
This icVantA shower system is designed for wall-mounted installation with a rough-in valve. Professional installation is recommended.

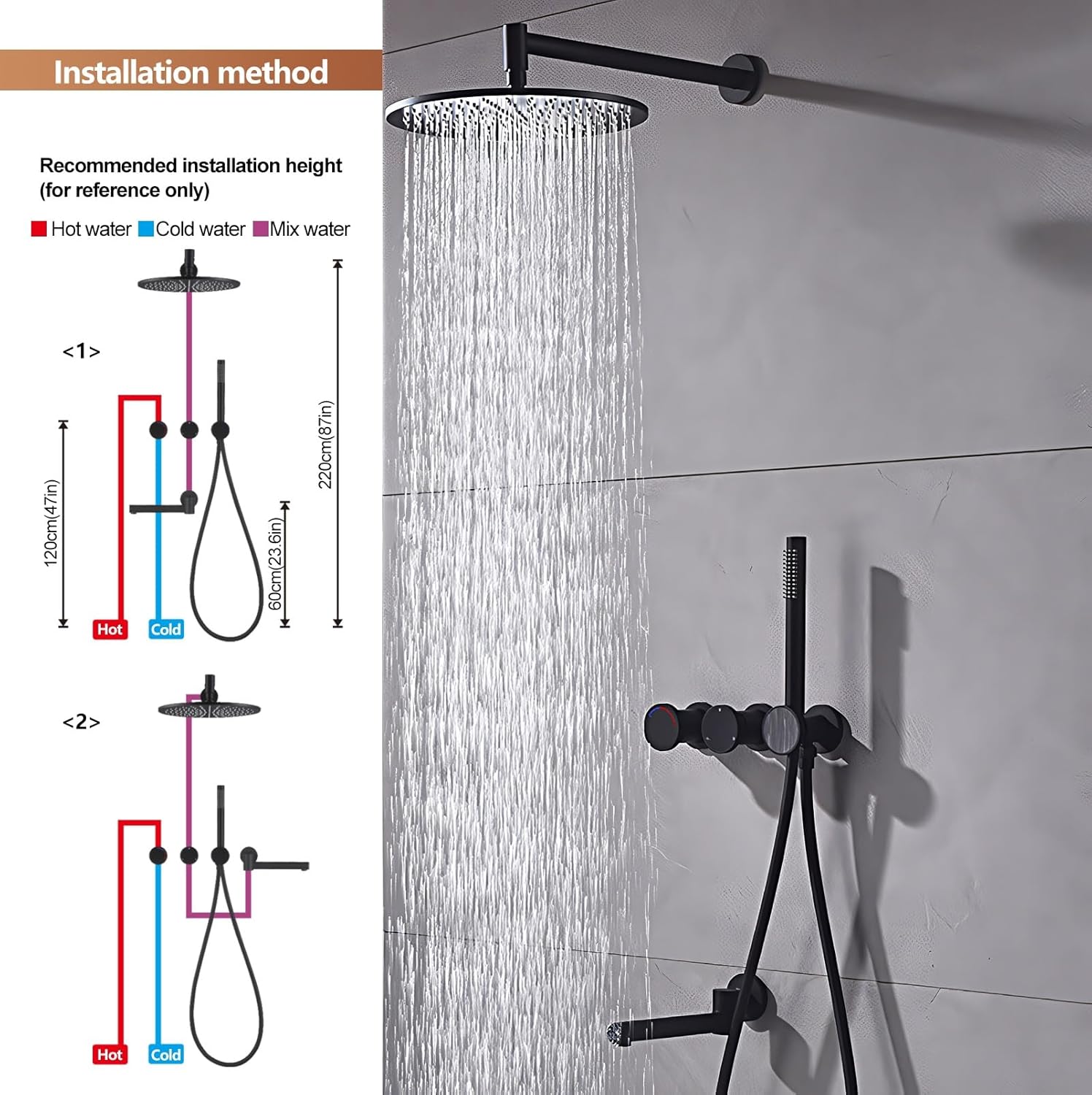

Image: An installation diagram illustrating the recommended height for the shower components and the proper connection points for hot and cold water lines to the rough-in valve.
Installation Steps (General Guide):
- Prepare Wall: Ensure the wall is prepared for the rough-in valve and plumbing connections. Mark the desired locations for the shower head, handheld shower, and control unit. Refer to the installation diagram for recommended heights (e.g., 220cm/87in for shower head, 120cm/47in for controls).
- Install Rough-in Valve: Securely mount the faucet valve body (rough-in valve) within the wall, ensuring it is level and at the correct depth. Connect the hot and cold water supply lines to the designated inlets on the valve.
- Connect Outlets: Connect the water outlets from the rough-in valve to the shower arm, handheld shower hose connection, and tub spout connection.
- Install Shower Arm and Head: Attach the shower arm to its wall connection. Secure the 8-inch rainfall shower head to the shower arm. Ensure all connections are sealed properly.
- Install Handheld Shower and Holder: Mount the shower seat (holder) to the wall. Connect the shower hose to the rough-in valve outlet and to the handheld shower. Place the handheld shower in its holder.
- Install Spout: Attach the tub spout to its wall connection.
- Install Trim: Once the rough-in work is complete and the wall is finished, install the decorative covers and handwheel/control knobs onto the rough-in valve.
- Test System: Turn on the main water supply and carefully check for any leaks. Test the functionality of all components.
Operating Instructions
Your icVantA Shower Faucet Set features a single-handle design for effortless flow and temperature control, along with a three-control knob system for selecting water outlets.
Image: A close-up view of the three control knobs, demonstrating the anti-slip grid design, hot and cold dual temperature control, and selectors for shower, top spray (rainfall head), and water mouth (tub spout).
- Water Flow and Temperature Control: Use the main single handle (typically the largest knob) to turn the water on/off and adjust the temperature. Rotate it left for hot water and right for cold water.
- Function Selection: The other two knobs allow you to select the desired water outlet. These typically include:
- Shower: Activates the handheld shower.
- Top Spray: Activates the 8-inch rainfall shower head.
- Water Mouth: Activates the tub spout.
- Adjusting Rainfall Head: The 8-inch rainfall shower head is angle-adjustable and can swing left and right 360 degrees for optimal positioning.
- Swingable Faucet: The tub spout features a swing design, allowing it to be moved to different angles to save space when not in use.
Features
- Air Jet Technology: The rainfall shower head incorporates innovative air jet technology, mixing water with air to increase water pressure and simulate a natural rain shower effect.
- 8-Inch Rainfall Shower Head: An ultra-thin square overhead shower head provides broad coverage. It is angle-adjustable and can swing 360 degrees.
- Handheld Shower: Features an anti-clogging design with easy-to-clean silicone water outlets, connected via a 59-inch PVC hose.
- Swingable Tub Spout: The tub spout includes a honeycomb aerator and a 180-degree swing design for flexibility and space-saving.
- Durable Materials: Constructed with a high-quality stainless steel 304 rainfall shower head and solid brass shower mixer valve, ensuring durability and dependability.
- Finish: Features a matte black/gold finish that is anti-corrosion and anti-rust.
Image: A black 8-inch rainfall shower head in operation, demonstrating its wide spray pattern and indicating its 20cm (8in) diameter and adjustable angle.
Image: A black handheld shower unit spraying water, highlighting its anti-clogging features and the included 59-inch PVC hose.
Image: A black tub spout with a honeycomb aerator, demonstrating its ability to swing 180 degrees for versatile use and space optimization.
Maintenance
Regular cleaning and proper care will help maintain the appearance and functionality of your shower system.
- Cleaning the Finish: Clean the surface with a soft cloth and mild soap or a non-abrasive cleaner. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, ammonia, bleach, or other harsh chemicals, as these can damage the finish.
- Cleaning Shower Head Nozzles: The silicone nozzles on the rainfall and handheld shower heads are designed to be easy to clean. Gently rub the nozzles with your finger or a soft brush to dislodge any mineral buildup.
- Aerator Maintenance: Periodically unscrew and clean the honeycomb aerator on the tub spout to remove any debris or mineral deposits that may affect water flow.
Troubleshooting
If you encounter any issues, refer to the following common troubleshooting steps:
- Low Water Pressure: Check if the main water supply is fully open. Inspect shower head nozzles and aerators for mineral buildup and clean them if necessary. Ensure no kinks in the shower hose.
- Leaks: Check all connections for tightness. Ensure O-rings and gaskets are properly seated. If leaks persist from within the wall, consult a professional plumber.
- Temperature Fluctuations: Verify that both hot and cold water supplies are adequately connected and functioning. If the issue persists, the rough-in valve cartridge may need inspection by a professional.
- Difficulty Switching Functions: Ensure the control knobs are properly installed and not obstructed. If a knob is stiff, it may indicate internal debris or a need for professional inspection of the valve.
Specifications
| Brand | icVantA |
| Model Number | B0D8KT1YF7 |
| Color | Gold |
| Shower Head Size | 8 Inch (20cm) Square Rainfall |
| Shower Head Connection | 1/2" NPT Male Thread |
| Handheld Hose Length | 59 inches (PVC) |
| Material | Stainless Steel 304 (Shower Head), Solid Brass (Valve Body) |
| Finish | Matte Gold |
| Installation Type | Wall Mounted with Rough-in Valve |
Warranty and Support
icVantA is committed to providing high-quality products. For specific warranty information or technical support, please refer to the product packaging or contact icVantA customer service directly. Keep your purchase receipt as proof of purchase.
