CLLOMAGY 10A20281K1 MaxxAir Vent Fan Lid Lift Gear Operator Mechanism Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation and maintenance of the CLLOMAGY 10A20281K1 Roof Vent Lid Lift Gear Operator Mechanism. This component is designed as a direct replacement part for specific MaxxAir MaxxFan Plus or Deluxe roof vents with a powered lift function.

2. Compatibility

This operator mechanism is compatible with the following MaxxAir vent fan models, replacing part number 10-20281K-1AF / 10A20281K-1AF:

• 4500K, 4501K, 4541K, 4700K, 4700N, 4700CN, 4700G, 4700D, 4751KS, 4761KS
• 4800K, 4801K, 4900K, 4900N, 4900G, 4900D, 4951KS, 4951KSC
• 7000K, 7001K, 74751KS, 74951KS, 7500K, 7501K
• 8000K, 8001K, 8500K, 8501K, 8700K, 8751K, 8700N, 8700G, 8700D, 8751K
• 8900K, 8900N, 8900G, 8900D, 8951K

Image: Illustration showing the compatibility of the replacement mechanism with different MaxxFan models, including MaxxFan Plus and Deluxe versions.

3. Product Overview

The CLLOMAGY 10A20281K1 mechanism is constructed from aluminum alloy, providing enhanced durability, corrosion resistance, heat resistance, and wear resistance compared to standard plastic components. It includes 304 stainless steel screws for secure and rust-resistant fastening.

Image: The CLLOMAGY 10A20281K1 MaxxAir Vent Fan Lid Lift Gear Operator Mechanism, shown with included screws and washers.

Image: Visual representation emphasizing the wear resistance, heat resistance, corrosion resistance, and oxidation resistance of the aluminum alloy and stainless steel construction.

4. Specifications

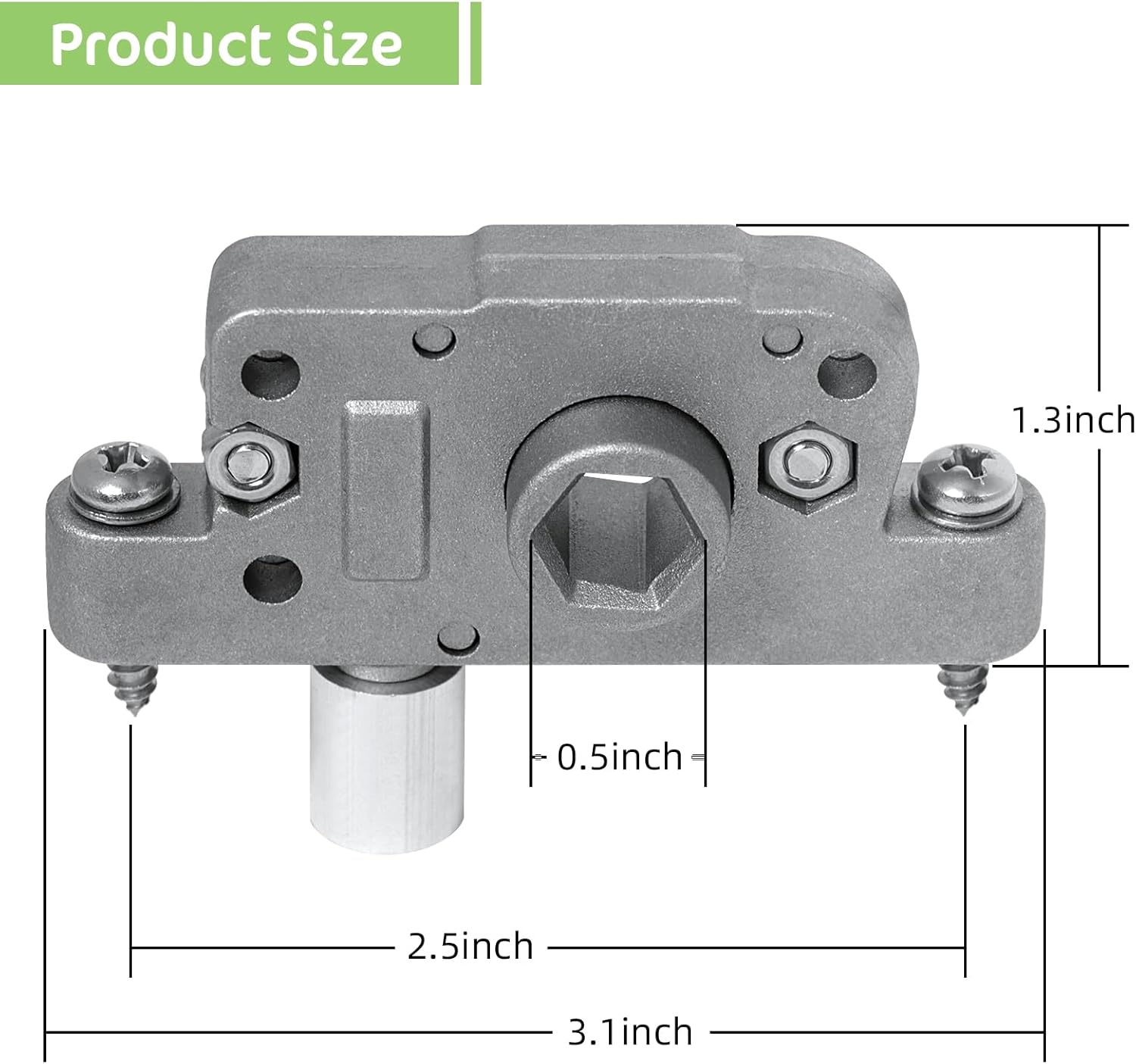

Image: Diagram illustrating the key dimensions of the operator mechanism: 3.1 inches in length, 1.3 inches in width, and 0.5 inches for the central hexagonal drive shaft.

5. Installation Instructions

This replacement mechanism is designed for straightforward installation from the RV rooftop, eliminating the need to disassemble the entire vent unit from the interior. It is recommended to have basic tools such as a screwdriver for this procedure.

1. Preparation: Ensure the RV vent fan is turned off and any power supply to the fan is disconnected for safety.
2. Access the Mechanism: Carefully open the vent lid to access the existing operator mechanism.
3. Remove Old Mechanism: Unscrew and remove the broken or old lift gear operator mechanism. Note the orientation and connection points for the new part.
4. Install New Mechanism: Position the new CLLOMAGY 10A20281K1 mechanism in place. Align the hexagonal drive shaft with the corresponding part of the fan's lift arm.
5. Secure the Mechanism: Use the provided 304 stainless steel screws to securely fasten the new mechanism to the vent frame. Ensure all screws are tightened appropriately.
6. Test Functionality: Once installed, carefully test the lift and close function of the vent lid to ensure the mechanism operates smoothly and correctly.

Warm Tip:

During installation, especially when working with screws, it is recommended to cover the RV roof vent opening with a towel or cardboard. This precaution helps to catch any falling screws or small components, preventing them from entering the RV interior or becoming lost.

Image: A visual comparison showing a broken vent operator mechanism (Before) and the newly installed CLLOMAGY replacement mechanism (After), demonstrating how it fixes the lift arm function.

Image: The operator mechanism correctly installed on a MaxxAir vent fan, showing its position relative to the fan blades and vent lid.

6. Maintenance

The CLLOMAGY 10A20281K1 mechanism is designed for durability with its aluminum alloy construction and stainless steel screws. Regular maintenance is minimal but can extend its lifespan:

• Inspection: Periodically inspect the mechanism for any signs of wear, damage, or loose screws.
• Cleaning: Keep the mechanism free from dirt, dust, and debris. A soft cloth can be used for cleaning. Avoid harsh chemicals that may damage the material.
• Lubrication: If the mechanism's movement becomes stiff over time, a small amount of silicone-based lubricant can be applied to the moving parts, avoiding electrical components.

7. Troubleshooting

If you encounter issues with your MaxxAir vent fan's lift function after installing the CLLOMAGY 10A20281K1 mechanism, consider the following:

• Vent Lid Not Lifting/Closing:
  • Check Power: Ensure the RV vent fan has power and the lift motor is receiving electricity.
  • Mechanism Alignment: Verify that the hexagonal drive shaft of the new mechanism is correctly engaged with the fan's lift arm.
  • Obstructions: Inspect for any physical obstructions preventing the lid from moving freely.
  • Loose Connections: Check if all screws securing the mechanism are tight.
• Unusual Noises:
  • Lubrication: Apply a small amount of silicone lubricant to the moving parts of the mechanism.
  • Debris: Check for any foreign objects caught in the gears or moving parts.

If problems persist after performing these checks, it may indicate an issue with the fan's motor or other components, and professional assistance may be required.

8. Support

For further assistance or inquiries regarding the CLLOMAGY 10A20281K1 MaxxAir Vent Fan Lid Lift Gear Operator Mechanism, please refer to the seller's contact information or the original MaxxAir fan manual for broader system troubleshooting.
