VINATO Electric Food Chopper Model GMC006 User Manual

1. Introduction

Thank you for choosing the VINATO Electric Food Chopper. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read it thoroughly before first use and keep it for future reference.

Important Safety Instructions

• Read all instructions before use.
• Keep hands and utensils out of the container while chopping to prevent severe injury to persons or damage to the chopper. A scraper may be used but only when the chopper is not running.
• Blades are sharp. Handle with care.
• Do not immerse the motor unit in water or other liquids.
• Ensure the lid is securely locked before operating.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Product Components

Familiarize yourself with the parts of your VINATO Electric Food Chopper:

• Motor Unit (Base)
• Chopping Bowl (1.5 cups / 12 oz capacity)
• Stainless Steel Blade Assembly
• Lid with Safety Lock

Image: All components of the VINATO Electric Food Chopper, including the motor unit, transparent chopping bowl, stainless steel blade, and clear lid.

Image: A close-up of the sharp stainless steel S-blade, designed for efficient chopping.

3. Setup and Assembly

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Before first use, wash the chopping bowl, blade assembly, and lid in warm, soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth.
3. Assemble:
   • Place the motor unit on a stable, flat surface.
   • Carefully place the stainless steel blade assembly onto the central shaft inside the chopping bowl. Ensure it sits securely.
   • Place the chopping bowl onto the motor unit, aligning the tabs.
   • Add your ingredients to the chopping bowl. Do not overfill beyond the 1.5 cup / 12 oz mark.
   • Place the lid onto the chopping bowl, aligning the lid's tab with the slot on the motor unit. Twist or press down until the lid is securely locked into place. The appliance will not operate if the lid is not correctly locked due to the safety mechanism.

Image: The VINATO Electric Food Chopper assembled with the chopping bowl, blade, and lid in place on the motor unit.

4. Operation

The VINATO Electric Food Chopper features simple one-touch operation for efficient chopping.

1. Prepare Ingredients: Cut larger ingredients into smaller, uniform pieces (approximately 1-inch cubes) to ensure even chopping.
2. Load Ingredients: Place prepared ingredients into the chopping bowl. Do not exceed the maximum fill line (1.5 cups / 12 oz).
3. Secure Lid: Ensure the lid is properly aligned and locked onto the chopping bowl and motor unit.
4. Plug In: Connect the power cord to a standard 230V electrical outlet.
5. Chop: Press and hold the pulse button on the motor unit to begin chopping. Release the button to stop. Use short pulses for coarse chopping and longer pulses for finer results. Monitor the consistency through the transparent bowl.
6. Unplug and Unload: Once desired consistency is achieved, release the button, unplug the appliance, and carefully remove the lid. Remove the blade assembly before emptying the chopped ingredients.

Tips for Best Results:

• For best results, process small quantities at a time.
• Do not continuously operate the chopper for more than 30 seconds. Allow a short break between cycles.
• For harder ingredients like nuts or carrots, use shorter, more frequent pulses.
• To chop herbs, ensure they are dry before processing.

Image: Demonstrates the one-touch pulse control button being pressed, with chopped ingredients visible in the bowl.

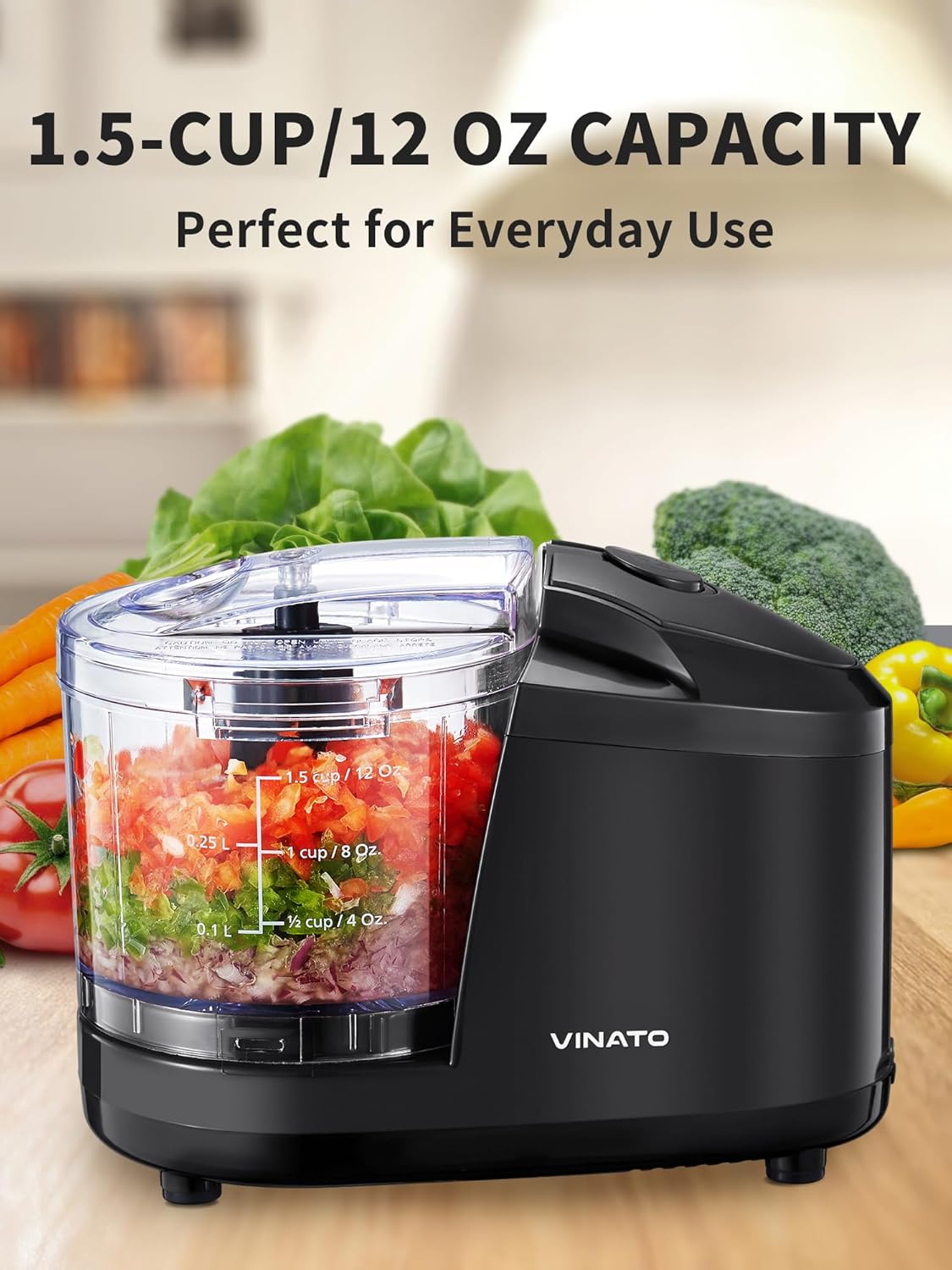

Image: The VINATO Electric Food Chopper filled with chopped vegetables, illustrating its 1.5-cup capacity.

5. Cleaning and Maintenance

Proper cleaning ensures the longevity and hygiene of your food chopper.

1. Unplug: Always unplug the appliance from the power outlet before cleaning.
2. Disassemble: Carefully remove the lid, then the blade assembly, and finally the chopping bowl from the motor unit.
3. Wash Parts: The chopping bowl, blade assembly, and lid are dishwasher safe (top rack recommended) or can be washed by hand in warm, soapy water. Use caution when handling the sharp blades.
4. Clean Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water or any other liquid.
5. Dry: Ensure all parts are thoroughly dry before reassembling or storing.

Image: Dishwasher-safe parts of the VINATO Electric Food Chopper, including the bowl, blade, and lid, inside a dishwasher.

6. Troubleshooting

If you encounter issues with your VINATO Electric Food Chopper, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

VINATO products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation included with your purchase or contact VINATO customer service through the retailer where the product was purchased.

Please retain your proof of purchase for any warranty claims.
