CoYlBod Butane Torch Lighter Instruction Manual

1. Introduction

Thank you for choosing the CoYlBod Butane Torch Lighter. This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your new torch. Please read this manual thoroughly before first use and retain it for future reference.

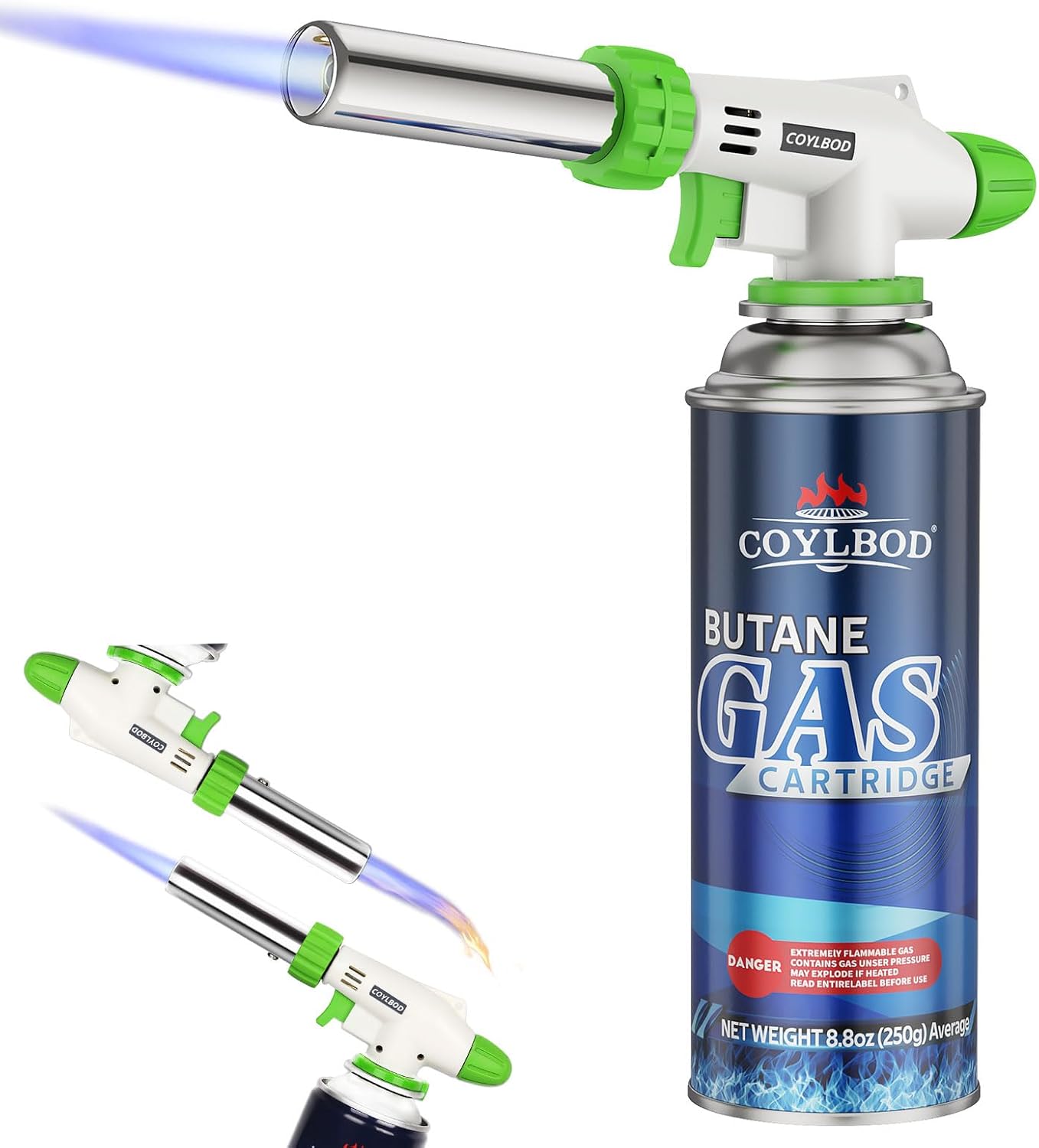

Image 1.1: CoYlBod Butane Torch Lighter connected to a butane gas cartridge, emitting a steady blue flame. The torch head is white and green, and the butane canister is blue and silver.

2. Safety Information

WARNING: This product contains extremely flammable gas under pressure. Failure to follow these instructions may result in fire, explosion, property damage, or personal injury.

• Keep out of reach of children.
• Use only in well-ventilated areas.
• Do not expose to heat or store at temperatures above 120°F (49°C).
• Do not puncture or incinerate the butane canister.
• Keep away from open flames, pilot lights, and any source of ignition.
• Do not use near combustible materials.
• Always ensure the torch is turned off and cooled before storing.
• Avoid direct contact with the flame and hot parts of the torch.
• Wear appropriate safety gear, such as gloves and eye protection, when performing tasks that may generate sparks or heat.

3. Package Contents

Verify that all items are present in your package:

• 1 x CoYlBod Butane Torch Head
• 1 x Butane Canister (Short Nozzle, Snap Joint Type)

4. Product Features

The CoYlBod Butane Torch Lighter is designed for versatility and ease of use, featuring:

• Piezo Ignition Technology: For safe and reliable startup.
• Adjustable Flame: Control flame intensity and pattern for various applications.
• 360° Rotatable Use: Allows for operation at any angle, including inverted.
• High-Temperature Nozzle: Constructed from aluminum alloy for durability and high heat resistance.
• Maximum Temperature: Reaches up to 2500°F (1371°C).

Image 4.1: Detailed diagram highlighting the various parts of the CoYlBod Butane Torch Lighter, including the flame outlet, flame pattern adjustment knob, gas valve, ignition switch button, torch tube, and the connector to the butane gas cartridge.

5. Setup

Follow these steps to prepare your CoYlBod Butane Torch Lighter for use:

1. Ensure Compatibility: Verify that your butane gas canister has a short nozzle and a snap joint connection. The torch head is designed exclusively for this type of canister.
2. Attach Torch Head: Align the torch head connector with the top of the butane gas canister. Press down firmly and twist clockwise until it securely locks into place. Do not overtighten.
3. Check for Leaks: After attachment, listen for any hissing sounds or smell gas. If a leak is detected, immediately disconnect the torch head in a well-ventilated area and ensure the connection is correct. If the leak persists, do not use the product.

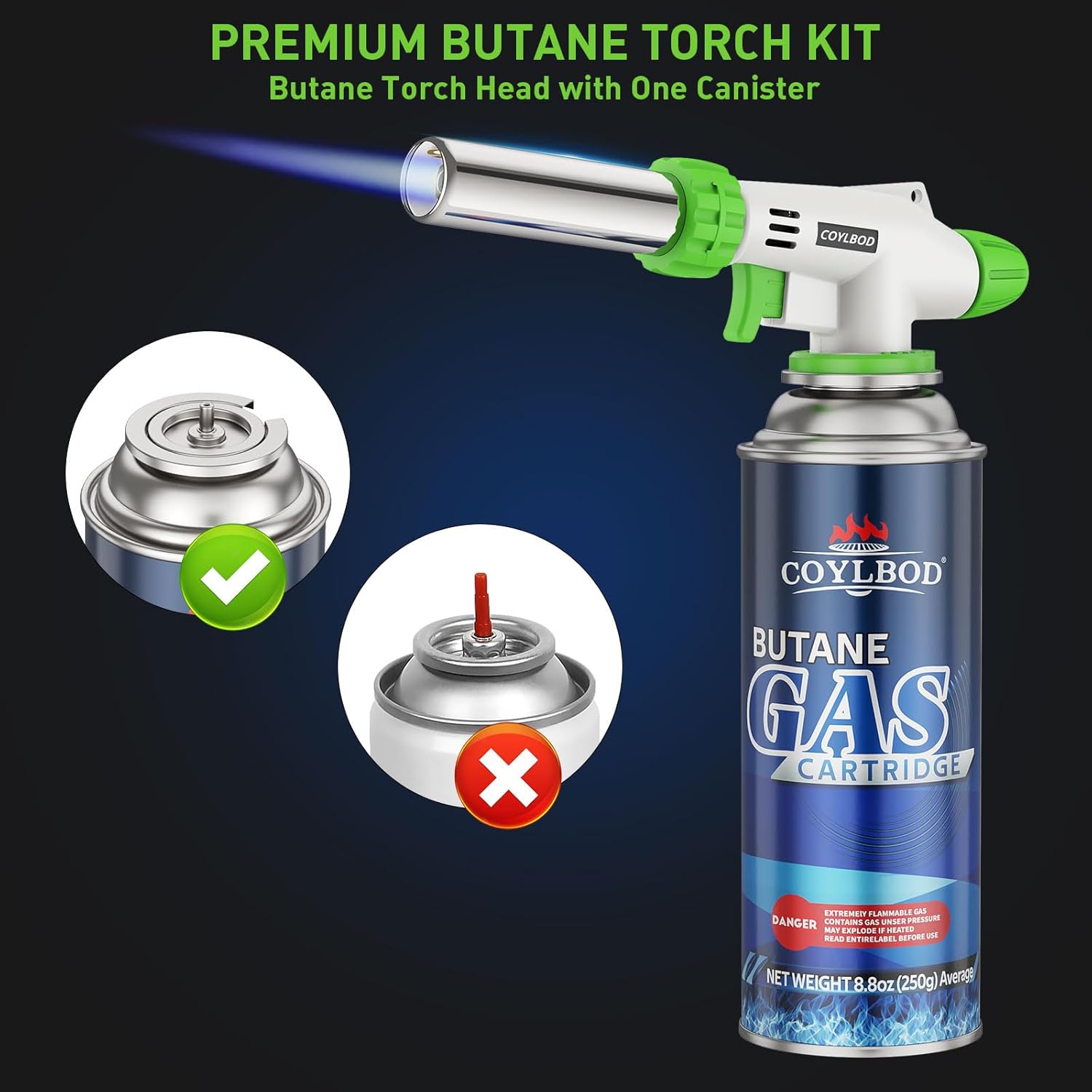

Image 5.1: This image clarifies the compatible butane canister type for the CoYlBod Butane Torch Lighter. It shows a green checkmark next to a canister with a snap joint connection and a red 'X' next to a canister with a threaded valve, emphasizing that only snap joint canisters are compatible.

6. Operating Instructions

Operate your CoYlBod Butane Torch Lighter as follows:

1. Ignition: Ensure the gas valve is slightly open. Press the ignition switch button. The piezo ignition will generate a spark to light the flame. If the flame does not ignite, adjust the gas valve and try again.
2. Adjusting Flame Size: Rotate the green knob at the rear of the torch head to increase or decrease the flame size.
3. Adjusting Flame Pattern: Rotate the green ring near the nozzle to adjust the flame pattern from a soft, broad flame to a concentrated, spit fire.
4. 360° Use: The torch can be used at any angle, including inverted, for various applications.
5. Turning Off: To extinguish the flame, fully close the gas valve by rotating the green knob counter-clockwise until the flame disappears. Ensure no gas is escaping.

Image 6.1: A diagram illustrating how to adjust the flame size and pattern on the CoYlBod Butane Torch Lighter. It shows a green knob for adjusting the flame pattern and a slider indicating flame intensity levels, from soft to spit fire.

Image 6.2: An illustration showing the CoYlBod Butane Torch Lighter in two orientations, demonstrating its 360-degree rotatable capability for use at various angles, including inverted.

7. Maintenance

Proper maintenance ensures the longevity and safe operation of your torch:

• Cleaning: After each use, allow the torch to cool completely. Wipe the torch head with a clean, damp cloth to remove any residue. Do not use abrasive cleaners or solvents.
• Storage: Store the torch in a cool, dry place, away from direct sunlight and heat sources. Ensure the gas valve is fully closed before storage. Disconnect the torch head from the butane canister if storing for extended periods.
• Inspection: Periodically inspect the torch head and canister connection for any signs of damage, wear, or leaks. Do not use if damaged.

8. Troubleshooting

If you encounter issues with your CoYlBod Butane Torch Lighter, refer to the following table:

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact CoYlBod customer service through the retailer where the product was purchased. You may also visit the official CoYlBod store for more information: CoYlBod Store.
