HOP EV Electric Scooter Leo V3 User Manual

Introduction

Welcome to the user manual for your new HOP EV Electric Scooter Leo V3. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before operating the vehicle.

The HOP EV Electric Scooter Leo V3 is designed for urban commuting, offering a blend of performance and efficiency. It features a powerful 2500W motor, a 72V lithium-ion battery, and a top speed of 70 kmph, with a range of 110 km.

Safety Information

Always prioritize safety when operating your electric scooter. Failure to follow safety guidelines can result in serious injury or damage to the scooter.

• Always wear a helmet and appropriate safety gear.
• Familiarize yourself with local traffic laws and regulations.
• Perform a pre-ride inspection before each use.
• Do not operate the scooter under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions (heavy rain, snow, ice).
• Ensure the battery is securely in place before riding.
• Do not exceed the maximum weight capacity.

Product Components

The HOP EV Electric Scooter Leo V3 consists of several key components:

• Motor: 2500 Watts peak power motor.
• Battery: 72V Lithium-ion battery, removable and located in the boot area.
• Charger: 850W, 10A off-board smart charger.
• Braking System: Regenerative braking.
• Frame: Aluminium frame.
• Handlebar: Fixed handlebar with ergonomic grips.
• Wheels: Solid wheels.
• Suspension: Front suspension.

Image: Side view of the HOP EV Electric Scooter Leo V3, showcasing its overall design and proportions.

Image: Front view of the HOP EV Electric Scooter Leo V3, highlighting the headlight and front wheel assembly.

Image: Close-up of the handlebar and controls of the HOP EV Electric Scooter Leo V3, showing the ergonomic grips and various switches.

Image: Detailed view of the rear wheel and motor assembly of the HOP EV Electric Scooter Leo V3, including the "LEO V3" branding.

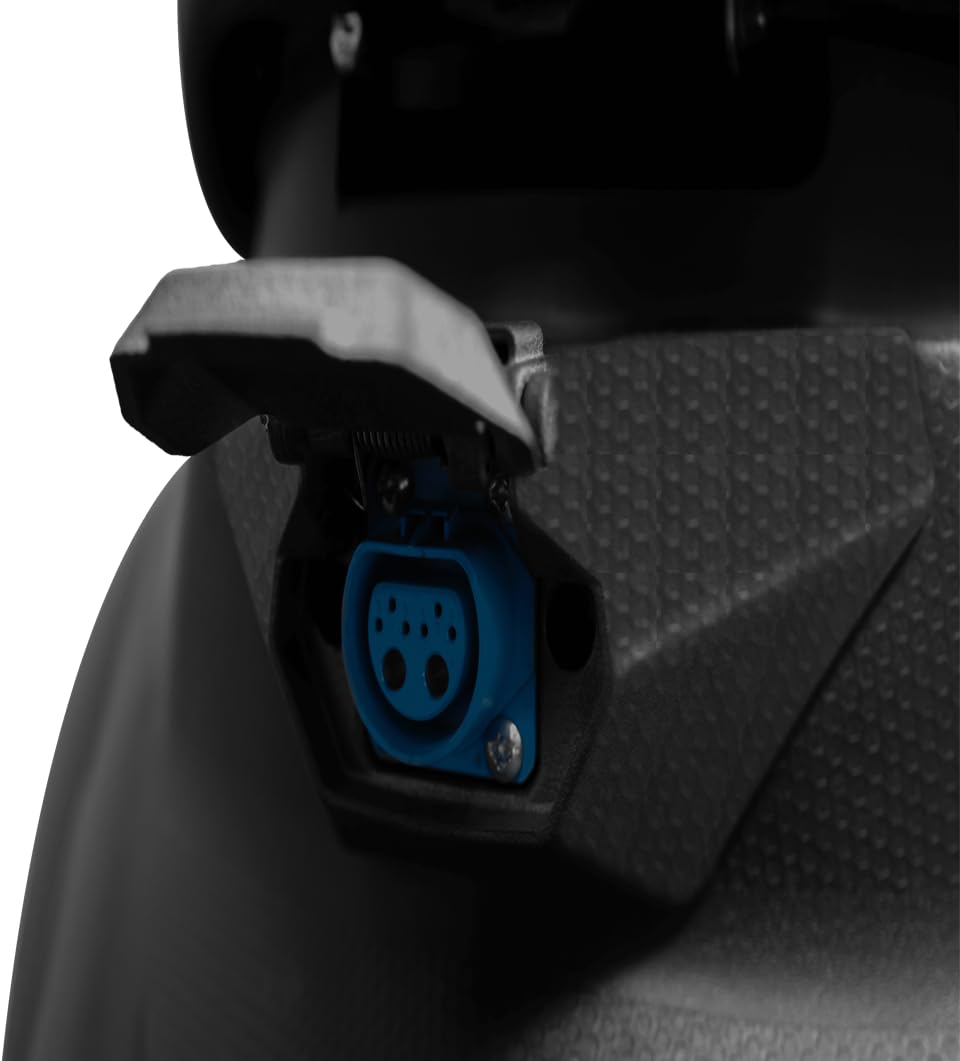

Image: Close-up of the charging port on the HOP EV Electric Scooter Leo V3, showing the blue connector and protective cover.

Setup and First Use

Unpacking

Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Retain packaging for future transport or storage.

Battery Installation and Initial Charge

1. Locate the battery compartment in the boot area of the scooter.
2. Carefully insert the 72V Lithium-ion battery, ensuring it is securely seated.
3. Connect the battery to the scooter's internal power connector.
4. Before first use, fully charge the battery using the provided 850W, 10A off-board smart charger.
5. Connect the charger to the scooter's charging port (refer to "Charging Port" image in Product Components section).
6. Plug the charger into a standard electrical outlet.
7. The charging indicator on the charger will show the charging status. A full charge from 0% takes approximately 3 hours and 15 minutes. An 80% charge takes about 2 hours and 45 minutes.
8. Once fully charged, disconnect the charger from the scooter and then from the power outlet.

Pre-Ride Inspection

Before each ride, perform the following checks:

• Check tire pressure (if applicable, though specifications mention solid wheels, a general check for wear is good).
• Verify brake functionality (front and rear).
• Ensure all lights (headlight, taillight, turn signals) are working.
• Check that the handlebar is secure and not loose.
• Confirm the battery is fully charged and securely installed.

Operating Instructions

Starting the Scooter

1. Ensure the kickstand is up.
2. Turn the key in the ignition to the "ON" position.
3. The display panel will illuminate, indicating the scooter is ready.

Riding

• Gently twist the throttle to accelerate.
• Maintain a balanced posture.
• Use the brakes smoothly and progressively. The scooter features regenerative braking.
• Utilize turn signals when changing direction.
• Adhere to speed limits and traffic laws. The scooter has a top speed of 70 Kmph.

Stopping and Parking

1. Gradually release the throttle and apply brakes to slow down.
2. Once stopped, turn the key to the "OFF" position to power down the scooter.
3. Engage the kickstand to park the scooter securely.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your HOP EV Electric Scooter Leo V3.

Battery Care

• Charge the battery regularly, even if not in frequent use, to maintain its health.
• Avoid completely draining the battery before recharging.
• Store the battery in a cool, dry place if removed from the scooter for extended periods.
• Use only the official HOP EV charger provided with the scooter.

General Cleaning

• Clean the scooter regularly with a damp cloth. Avoid using high-pressure water jets directly on electrical components.
• Do not use abrasive cleaners or solvents.

Brake System

• Periodically check brake pads for wear and replace them if necessary.
• Ensure brake levers operate smoothly and provide adequate stopping power.

Tires and Wheels

• Inspect solid wheels for any signs of damage or excessive wear.
• Ensure wheel nuts are tightened securely.

Troubleshooting

This section provides solutions to common issues you might encounter.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.

Specifications

Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or visit the official HOP EV website. Keep your purchase receipt as proof of purchase.

Customer Support

If you require technical assistance, have questions about operation, or need to report a defect, please contact HOP EV customer support. Contact details can typically be found on the manufacturer's website or on your purchase documentation.

Manufacturer: rp ventures

Model Number: ou765
