GSPUSA Washer Bearing 12001562 / CKD001562X Instruction Manual

1. Product Overview

This manual provides instructions for the GSPUSA Washer Bearing, identified by part numbers 12001562 and CKD001562X. This component is a replacement part designed to restore smooth operation to your washing machine's tub. The CKD001562X is an updated part number that replaces the older 12001562, ensuring compatibility with both older and newer appliance serials.

Image 1.1: The GSPUSA Washer Bearing (12001562 / CKD001562X). This is a crucial component for the smooth rotation of your washing machine's drum.

2. Important Safety Information

• Always disconnect power to the appliance before attempting any repairs or maintenance.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• If you are unsure about any step, consult a qualified appliance repair technician.
• Keep children and pets away from the work area.
• Ensure all tools are in good working condition.

3. Package Contents

Your package should contain the following item:

• 1 x GSPUSA Washer Bearing (12001562 / CKD001562X)

4. Compatibility

This GSPUSA Washer Bearing (12001562 / CKD001562X) is compatible with various washing machine models from the following brands:

• Maytag
• Admiral
• Crosley

It is designed to fit both old and new serials of compatible appliances. Specific compatible models include, but are not limited to:

• NAV3200AWW, PAV2200AAW, PAV3200AGW, W206KW, AAV2200AGW, AW20K3A
• MAV6601AWW, MAV7257AWQ, MAV7260AWW
• MAV7504EWW, MAV7657EWW, MAV7757AWQ, PAV3100AWW, W226LV
• AAV2000AWW, CAV4004AWW, CW20P6W, CW20T5W, JW1000W
• LNC6762A71, MAV3350AGW, MAV5960AWW, MAV6257AWQ, MAV9501EWQ

Important: This bearing is not universal. Always compare your old part or model number to ensure correct fitment before ordering and installation. Incorrect parts may lead to additional costs and appliance damage.

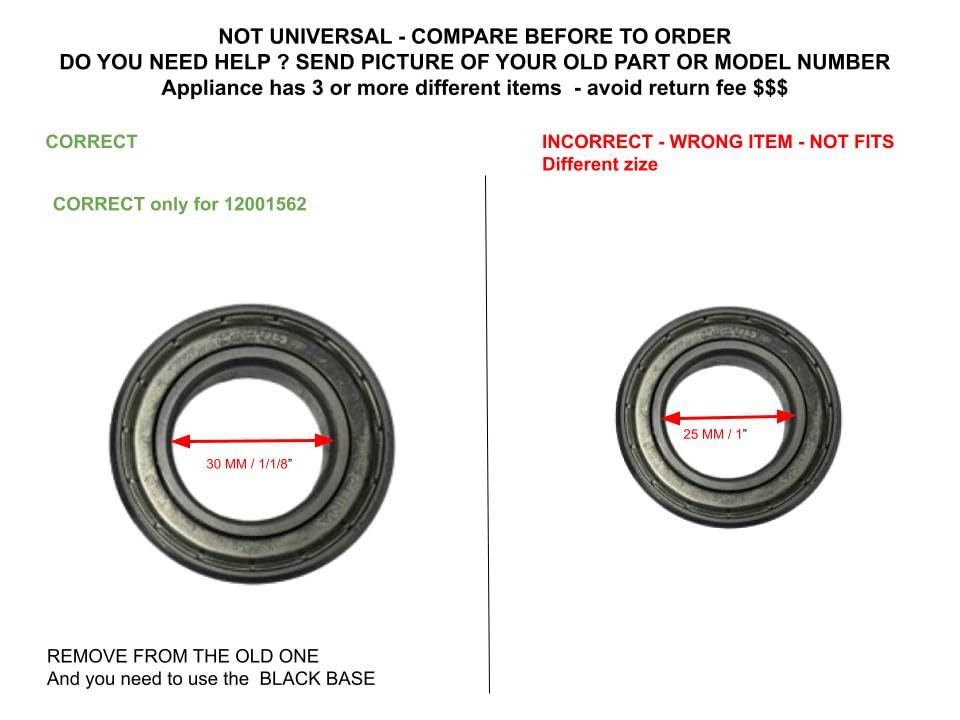

Image 4.1: Visual guide for comparing bearing sizes. The correct bearing for 12001562 has a 30mm (1 1/8") inner diameter. Ensure your replacement matches these dimensions to avoid fitment issues.

5. Installation (Setup)

Replacing a washer bearing typically involves disassembling a significant portion of the washing machine. Professional installation is recommended if you are not experienced with appliance repair.

General Installation Steps:

1. Disconnect Power: Ensure the washing machine is unplugged from the electrical outlet.
2. Access the Tub Assembly: Follow your specific washing machine model's service manual to access the outer tub and bearing housing. This often involves removing the top, control panel, and agitator/inner tub.
3. Remove Old Bearing: Carefully remove the old, worn-out bearing from its housing.
4. Utilize Existing Base: The new GSPUSA bearing is designed to be installed into the existing black base from your old appliance. Do not discard the black base.

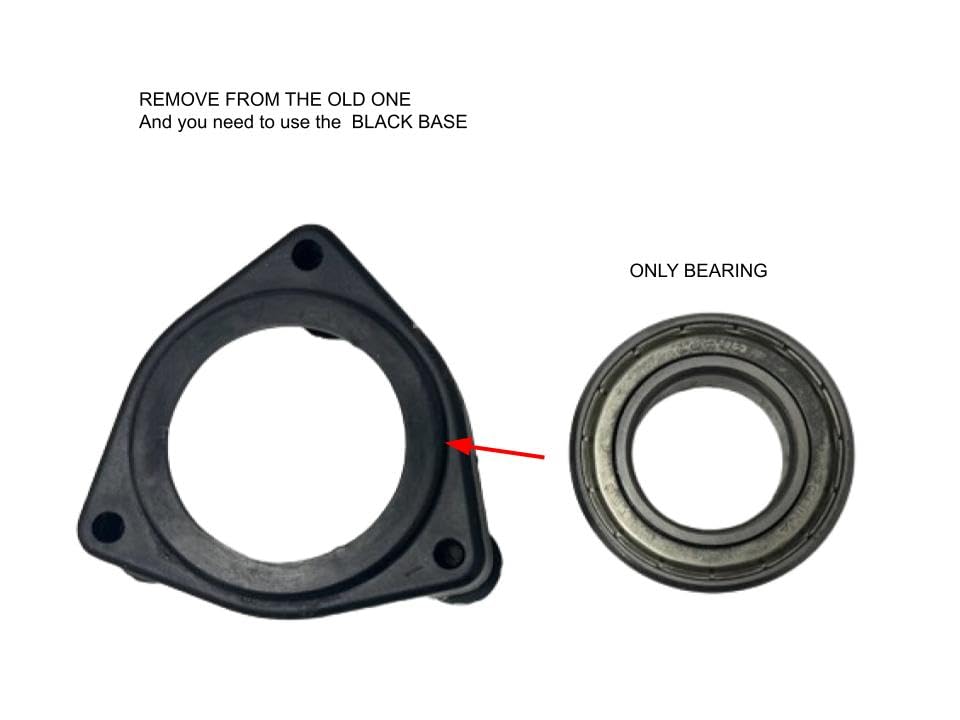

Image 5.1: Illustration showing the washer bearing and the black base. The new bearing should be installed into the existing black base from your appliance.

5. Install New Bearing: Carefully press or tap the new GSPUSA bearing into the black base and then into the bearing housing. Ensure it is seated correctly and securely.
6. Reassemble: Reassemble the washing machine by reversing the disassembly steps. Ensure all connections are secure and no parts are left loose.
7. Test: Once fully reassembled, reconnect power and perform a test cycle to ensure proper operation and absence of unusual noises or vibrations.

6. Operation

Once correctly installed, the GSPUSA Washer Bearing operates silently within the washing machine's tub assembly. Its function is to provide a smooth, low-friction pivot point for the rotating tub, allowing for efficient and quiet wash cycles. No direct user interaction is required with the bearing after installation.

7. Maintenance

The GSPUSA Washer Bearing is a sealed unit designed for long-term performance without requiring user maintenance. It is pre-lubricated and does not need additional lubrication. Any attempt to open or service the bearing will void its warranty and may lead to premature failure.

8. Troubleshooting

Common Issues and Solutions:

• Washer still noisy or vibrating after bearing replacement:
  • Double-check that the correct bearing was installed for your specific model. Refer to Section 4: Compatibility.
  • Ensure the bearing is fully seated and secured in its housing.
  • Verify that all other components (e.g., tub support, motor mounts) are correctly reassembled and tightened.
  • Other components, such as the transmission or motor, might also be failing. Consult a professional technician for further diagnosis.
• Bearing does not fit:
  • Confirm that you ordered the correct part number (12001562 / CKD001562X) and that it matches the dimensions of your original bearing. Refer to Image 4.1 and Section 9: Specifications.
  • Contact GSPUSA customer support for assistance if you believe there is a manufacturing defect or incorrect part was received.

9. Specifications

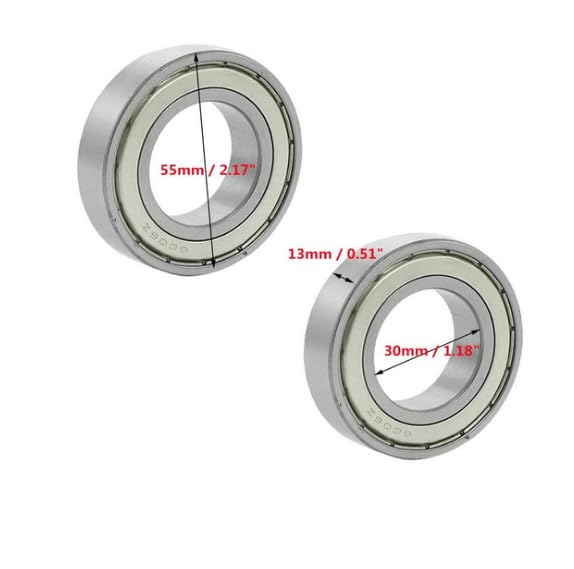

Image 9.1: Detailed dimensions of the GSPUSA Washer Bearing, showing outer diameter (55mm / 2.17"), inner diameter (30mm / 1.18"), and width (13mm / 0.51").

10. Warranty and Support

Each GSPUSA Washer Bearing undergoes rigorous testing before shipment to ensure quality and performance. The item is tested in real appliances for 100 cycles or more. A warranty seal is applied after factory testing.

Image 10.1: Overview of GSPUSA's quality control, including appliance testing, warranty seal application, and certified weight/size for shipping. Do not remove the seal.

Do not remove the warranty seal on the item. Removal of this seal may void your warranty.

For support, questions, or warranty claims, please contact GSPUSA customer service through the retailer where the product was purchased. When contacting support, please have your purchase details and the product's model number (12001562-DD) ready.

Image 10.2: Example of a unique serial warranty tag. The tag design and serial number may vary per item.
