ACCOHOHO 7-Drawer Farmhouse Dresser User Manual

Introduction

Thank you for choosing the ACCOHOHO 7-Drawer Farmhouse Dresser. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Designed with a timeless farmhouse aesthetic and modern functionality, this dresser offers ample storage and enhances any bedroom, living room, or hallway. Please read these instructions carefully before beginning assembly and retain them for future reference.

Image: The ACCOHOHO 7-Drawer Farmhouse Dresser in a grey finish, featuring seven drawers with black metal handles and a sturdy base.

Safety Information

To prevent serious or fatal injuries from furniture tip-over, this product must be permanently attached to the wall with the anti-tipping device provided. Always use the anti-tipping device. Never allow children to climb or hang on drawers, doors, or shelves. Place the heaviest items in the lowest drawers. Do not open more than one drawer at a time. Always follow assembly instructions carefully.

Image: Diagram illustrating the anti-tipping device installation, showing a dresser secured to the wall versus an unsecured dresser tipping over, emphasizing child safety.

Product Specifications

Image: Detailed diagram showing the overall dimensions of the dresser (52"W x 16"D x 28"H) and individual drawer dimensions and weight capacities.

Assembly Instructions

Assembly is required for this dresser. It is recommended that two adults assemble the unit. All components are labeled with serial numbers for easy identification. Please ensure you have all parts and hardware before beginning. A typical assembly time is 40-50 minutes.

Before You Begin:

• Clear a spacious area for assembly.
• Identify all parts by their labels and compare them with the parts list in your included manual.
• Separate and organize all hardware.
• Use a soft, clean surface (like the packaging cardboard) to protect furniture pieces during assembly.

General Assembly Steps (Refer to your included manual for detailed, step-by-step instructions):

1. Prepare Side Panels: Attach cam locks and dowels to the main side panels.
2. Assemble Base: Connect the bottom support rails to the side panels.
3. Install Back Panel: Secure the back panel to the frame.
4. Attach Top Panel: Fasten the top surface to the assembled frame.
5. Assemble Drawers: For each of the seven drawers:
   • Connect front, back, and side panels using dowels and cam locks.
   • Slide the bottom panel into the grooves.
   • Attach the metal drawer slides to the sides of the drawer box.
   • Secure the metal handles to the drawer fronts.
6. Install Drawer Slides: Attach the corresponding metal drawer slides to the inside of the dresser frame.
7. Insert Drawers: Carefully slide each assembled drawer into its designated slot.
8. Install Anti-Tipping Device: Securely attach the anti-tipping device to the back of the dresser and to a wall stud, following the specific instructions provided with the device. This step is critical for safety.

Image: Close-up views highlighting key features: smooth metal drawer glides, large metal handles for easy grip, and the thickened beveled base for enhanced stability.

Operating Instructions

The ACCOHOHO 7-Drawer Dresser is designed for easy and smooth operation.

• Drawer Usage: To open a drawer, gently pull the metal handle. To close, push the drawer firmly until it is flush with the dresser frame. The ball-bearing slides ensure quiet and smooth operation.
• Weight Capacity: Each drawer is designed to hold up to 30 lbs. The top surface can support lamps, decor, or a TV up to 60 inches, provided the total weight does not exceed the dresser's structural limits.
• Organization: Utilize the varying drawer sizes for optimal organization. The three smaller top drawers are ideal for smaller items like socks, underwear, or accessories, while the four larger bottom drawers are suitable for clothing such as t-shirts (20-25 per drawer) or jeans (15-20 per drawer).

Image: Top-down view of the dresser with several drawers open, showcasing organized contents like folded clothes, boxes, and accessories, demonstrating its storage versatility.

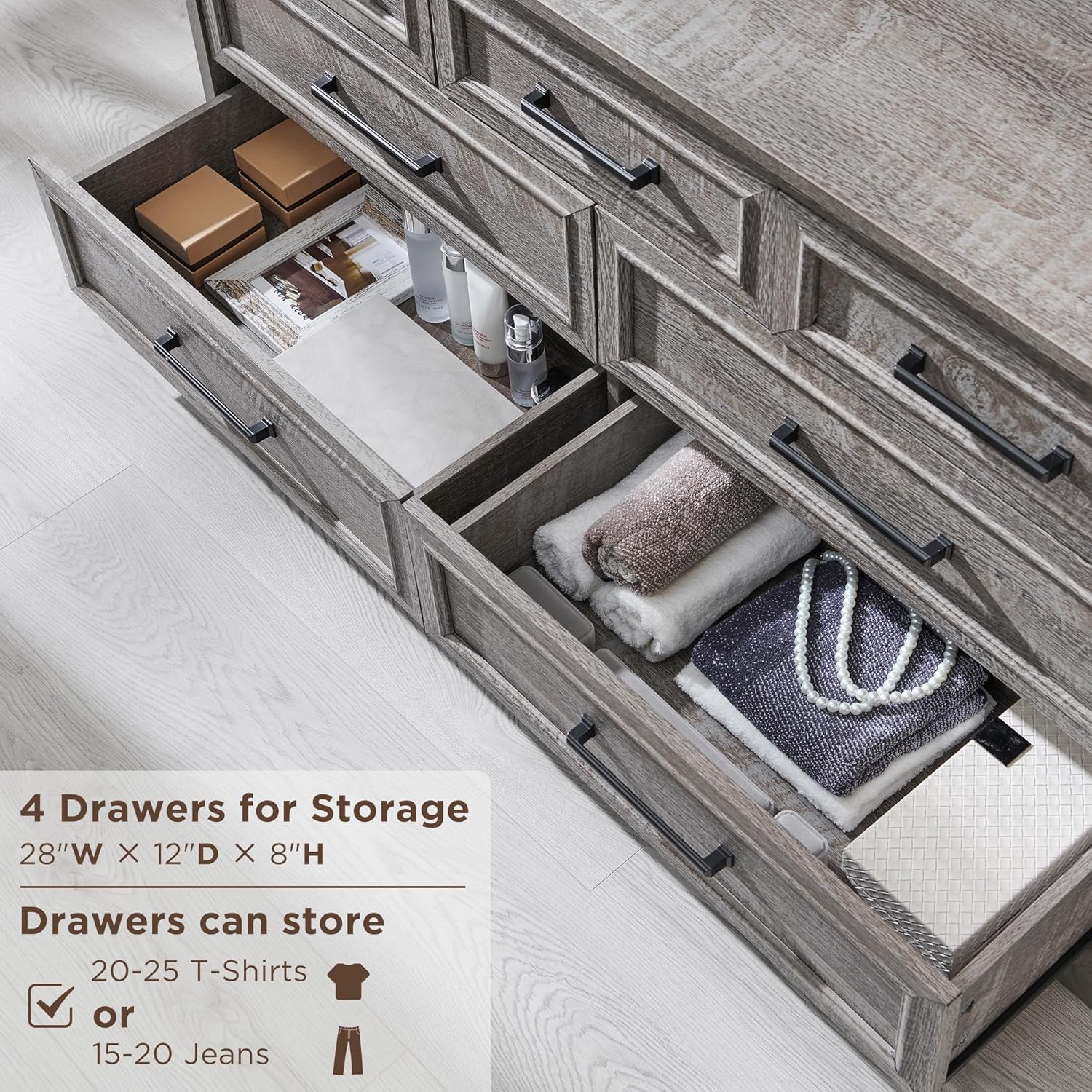

Image: Close-up view of an open large drawer, illustrating its capacity for folded clothing such as t-shirts or jeans, with dimensions provided.

Maintenance

Proper care will ensure the longevity and appearance of your dresser.

• Cleaning: Wipe the dresser surfaces with a dry, soft cloth. For stubborn marks, a slightly damp cloth followed immediately by a dry cloth can be used. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the finish.
• Spills: Blot spills immediately with a clean, dry cloth.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration.
• Heat and Moisture: Keep the dresser away from direct heat sources and areas of high humidity to prevent warping or damage.
• Hardware: Periodically check and tighten all screws and fasteners to ensure stability.

Troubleshooting

Here are solutions to common issues you might encounter:

• Drawers not closing flush:
  • Ensure the drawer slides are correctly aligned and fully engaged on both sides.
  • Check for any obstructions inside the drawer cavity or on the slides.
  • Verify that the drawer box is assembled squarely and that all fasteners are tight.
• Dresser feels wobbly:
  • Confirm all assembly hardware (cams, dowels, screws) are fully tightened.
  • Ensure the dresser is placed on a level surface. Adjust the leveler pegs on the base if necessary.
  • Verify the anti-tipping device is securely installed to the wall.
• Missing or damaged parts:
  • Before assembly, carefully check all contents against the parts list.
  • Contact ACCOHOHO customer support for replacement parts. Do not attempt to assemble with missing or damaged components.

Warranty and Support

ACCOHOHO is committed to providing quality products. For any issues, questions, or to request replacement parts, please contact ACCOHOHO Customer Support. Refer to your purchase documentation for specific warranty details. This product typically includes a 30-day easy return policy from the date of purchase.

For assistance, please visit the ACCOHOHO Store on Amazon or refer to the contact information provided in your original packaging.
