User Manual: Hydraulic Patient Transfer Lifter

1. Product Overview

The Generic Hydraulic Patient Transfer Lifter is a versatile and essential mobility aid designed to assist seniors, individuals with disabilities, expectant mothers, and those with limited mobility in transferring between various surfaces such as wheelchairs, sofas, beds, toilets, and seats. This multifunctional device integrates five key functions: it can serve as a wheelchair, shower chair, commode chair, walker, and patient lift, providing comprehensive support for daily living.

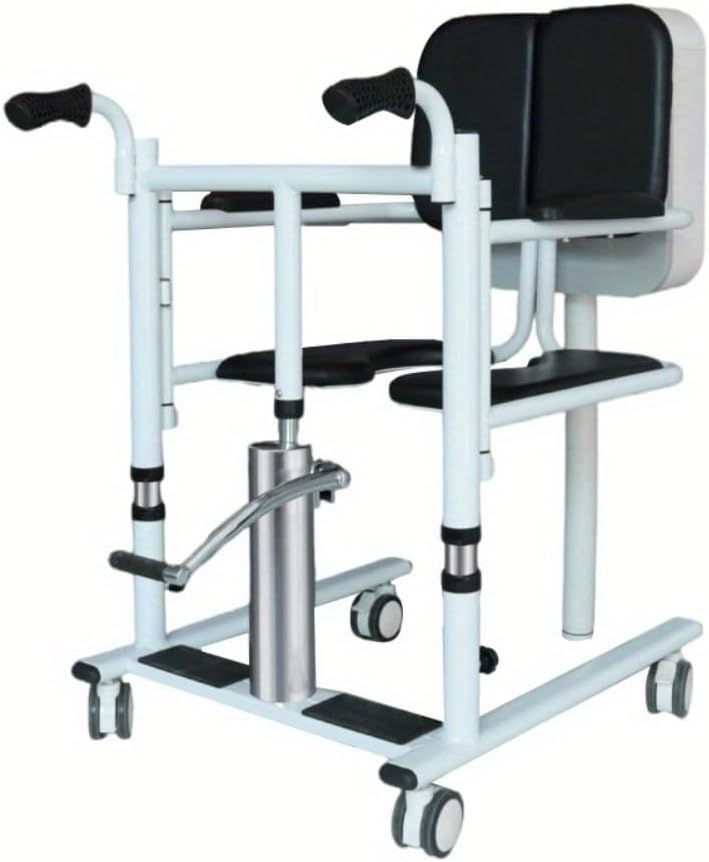

Figure 1: Overall view of the Hydraulic Patient Transfer Lifter.

2. Safety Information

Please read and understand all safety precautions before operating the device. Failure to follow these instructions may result in injury or damage to the product.

• Weight Capacity: Do not exceed the maximum weight capacity of 330 pounds (150 kg).
• Secure Patient: Always ensure the patient is securely positioned and the seat belt is fastened before any transfer. The backrest is equipped with double buckles (seat lock and seat belt) for added security.
• Brake Engagement: Always engage the wheel-brake system on all four medical mute casters before transferring a patient or when the lifter is stationary to prevent unintended movement.
• Stable Surface: Operate the lifter on a flat, stable, and non-slippery surface.
• Supervision: Always have a caregiver present during patient transfer and operation of the device.
• Hydraulic System: Do not attempt to disassemble or repair the hydraulic system. Contact qualified personnel for service.
• Clear Path: Ensure the path is clear of obstacles before moving the lifter.

3. Components and Features

The Hydraulic Patient Transfer Lifter is designed with user comfort and caregiver ease in mind. Key components include:

• Backrest: Made of high-quality PU material, providing comfort and support.
• Pedals: Spacious aluminum alloy pedals for patient foot placement.
• Armrests: Extended armrests offer additional support and comfort.
• Push Handles: Stylish ergonomic textured push handles reduce caregiver effort during movement. Two foldable handles are located at the front, and rear handles are positioned on the exterior of the backrest.
• Split Seat: The seat can be split 180° to enclose the patient from both sides, facilitating easy transfer without requiring the patient to stand.
• Casters: All four medical mute casters are equipped with a wheel-brake system for stability. The two back wheels can move freely in a full circle for enhanced maneuverability.
• Hydraulic Lifting Mechanism: A robust hydraulic system allows for smooth and controlled height adjustment.
• Commode Function: Includes a built-in handle for the toilet bucket, allowing for one-handed operation.
• Infusion Tube Holder: A removable tube for infusion can be attached.

Figure 2: The lifter demonstrating its use for bed transfer, as a bedside table, and as a commode chair.

Figure 3: The 180° split seat mechanism, crucial for easy patient enclosure.

Figure 4: The lifter configured for commode use, showing the removable bucket and optional table attachment.

4. Setup and Pre-Use Checks

The Hydraulic Patient Transfer Lifter is designed for ease of use and typically requires minimal assembly upon arrival. Before first use and prior to each transfer, perform the following checks:

1. Unpacking: Carefully remove all packaging materials.
2. Visual Inspection: Inspect the entire unit for any signs of damage, loose parts, or missing components. Do not use if any damage is observed.
3. Caster Functionality: Ensure all four casters roll freely and the wheel brakes engage and disengage properly.
4. Hydraulic System Check: Test the hydraulic lifting mechanism by operating the lever to raise and lower the seat without a patient. Ensure smooth operation.
5. Seat and Backrest Security: Verify that the seat and backrest components are securely attached and the seat lock mechanism functions correctly.

5. Operating Instructions

This device offers multiple functionalities. Follow these instructions for safe and effective operation:

5.1. Patient Transfer (Bed, Wheelchair, Sofa)

1. Positioning: Roll the lifter close to the patient. Ensure the patient is in a comfortable and accessible position.
2. Engage Brakes: Lock all four wheel brakes to prevent movement.
3. Open Seat: Release the seat lock and split the seat 180° by swinging the two halves outwards.
4. Slide Under Patient: Carefully slide the open seat under the patient from the front or side, ensuring the patient's legs are positioned correctly.
5. Close Seat: Bring the two seat halves together and engage the seat lock securely. Ensure the patient is centered and comfortable.
6. Fasten Seat Belt: Secure the patient with the integrated seat belt.
7. Lift Patient: Use the hydraulic lifting lever to slowly raise the patient to the desired height. Ensure the patient's feet are on the foot pedals.
8. Transfer: Disengage the wheel brakes and carefully roll the lifter to the destination (e.g., toilet, shower, another chair).
9. Lower Patient: Engage the brakes at the destination. Slowly lower the patient using the hydraulic lever until they are safely seated.
10. Release Patient: Unfasten the seat belt, open the seat, and carefully slide the lifter away from the patient.

5.2. Using as a Commode Chair

1. Prepare: Ensure the commode bucket is clean and properly placed under the seat.
2. Transfer Patient: Follow the patient transfer steps (5.1) to position the patient on the lifter.
3. Position: Roll the lifter over a toilet or use it as a standalone commode. Engage all wheel brakes.
4. Use: Assist the patient as needed.
5. Empty: After use, disengage brakes, roll the lifter away, engage brakes, and remove the commode bucket using its built-in handle for disposal and cleaning.

5.3. Using as a Shower Chair

The lifter can be used in a shower area. Ensure the floor is non-slip. Follow patient transfer steps to position the patient. The materials are designed to withstand water exposure, but ensure thorough drying after each use to prevent corrosion.

5.4. Using as a Walker

For patients who require support while walking, the lifter can be used as a walker. Ensure the patient can safely grip the handles and is stable. The caregiver should maintain control of the lifter using the push handles.

6. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your Hydraulic Patient Transfer Lifter.

• Cleaning: Clean the frame, seat, and backrest regularly with a mild detergent and a damp cloth. Avoid abrasive cleaners. Dry thoroughly after cleaning, especially after use in wet environments like showers.
• Caster Maintenance: Periodically check casters for debris (hair, lint) and clean as necessary. Ensure they rotate and swivel freely.
• Hydraulic System: The hydraulic system is sealed and generally maintenance-free. If you notice any issues with lifting or lowering, do not attempt to repair it yourself. Contact customer support.
• Fasteners: Periodically check all bolts, screws, and fasteners to ensure they are tight. Do not overtighten.
• Storage: Store the lifter in a dry, clean environment away from extreme temperatures.

7. Troubleshooting

If you encounter issues with your Hydraulic Patient Transfer Lifter, refer to the following common problems and solutions:

• Lifter does not roll smoothly:
  • Check if wheel brakes are engaged.
  • Inspect casters for debris (hair, lint) and clean if necessary.
• Hydraulic lift not raising/lowering:
  • Ensure the hydraulic lever is fully engaged in the correct position for lifting or lowering.
  • Check if the weight limit has been exceeded.
  • If the issue persists, contact customer support. Do not attempt to force the mechanism.
• Seat does not close/lock properly:
  • Ensure no obstructions are preventing the seat halves from meeting.
  • Verify the seat lock mechanism is free of debris and engaging fully.

For any issues not listed here or if troubleshooting steps do not resolve the problem, please contact customer support.

8. Specifications

Figure 5: Product dimensions (Height: 95-115cm / 37.40-45.27in; Width: 54cm / 21.25in; Length: 83cm / 32.67in; Seat Height: 48-68cm / 18.89-26.77in).

9. Warranty and Support

We are committed to providing high-quality products and excellent customer satisfaction. If you have any questions or concerns regarding your Hydraulic Patient Transfer Lifter, please do not hesitate to contact us. We promise that any questions will be replied to within 24 hours.

If you are not satisfied with your product within 30 days of purchase for any reason, you may apply for a full money-back refund or replacement.
