1. Product Overview
The COMFEE' CDWEF1034BW-UK is a slimline freestanding dishwasher designed for efficient and hygienic dish cleaning. It features a 10 place setting capacity, multiple wash programs, and energy-saving functions.
Figure 1.1: Front view of the COMFEE' CDWEF1034BW-UK Freestanding Dishwasher.
Figure 1.2: Interior view of the dishwasher with the door open, showcasing the racks.
Key Features:
- 10 Place Settings: Slim design accommodating larger plates and pots up to 300mm.
- 30-minute Quick Wash: For fast cleaning when time is limited.
- 72°C Hygiene Wash: Awarded the Golden Virus Hygiene Seal for thorough cleaning and sanitization.
- Half Load Function: Reduces energy consumption by 30% for smaller loads.
- Extra Drying: Ensures dishes are thoroughly dry, reducing the need for towel drying.
- Adjustable Basket: Upper basket can be adjusted for flexible loading.
- Delay Start: Option to delay wash cycle by 3, 6, or 9 hours.
2. Installation and Setup
The COMFEE' CDWEF1034BW-UK dishwasher offers both freestanding and built-in installation options. Ensure proper water and electrical connections are made by a qualified professional.
Dimensions and Placement:
The appliance dimensions are 60 cm (Depth) x 45 cm (Width) x 85 cm (Height). For built-in installation, refer to the detailed measurements below to ensure proper fit within your cabinetry.
Figure 2.1: Installation dimensions for freestanding and built-in configurations.
Initial Use:
- Before first use, ensure all packaging materials are removed from inside the dishwasher.
- Fill the salt dispenser with dishwasher salt (if applicable for your water hardness).
- Add rinse aid to the dispenser.
- Run an empty cycle with detergent to clean the interior.
3. Operating Instructions
This section details how to operate your COMFEE' dishwasher, including program selection and loading tips.
Wash Programs:
The dishwasher offers 6 wash programs to suit various cleaning needs:
Figure 3.1: Overview of available wash programs.
- Intensive Care+: For heavily soiled dishes, pots, and pans.
- ECO: Standard program for normally soiled daily use, optimized for energy and water consumption.
- 90 min: For normally soiled dishes requiring a quicker wash than ECO.
- Rapid (30 min): Quick wash for lightly soiled dishes without drying.
- Glass: Gentle wash for delicate glassware at a lower temperature (45°C).
- Hygiene (72°C): High-temperature wash for sanitization and stubborn stains.
Figure 3.2: The 30-minute Quick Wash cycle for fast cleaning.
Figure 3.3: The 72°C Hygiene Wash in action, providing thorough sanitization.
Figure 3.4: Delicate Glass Care for crystal-clear results.
Figure 3.5: Intensive Care+ for tackling heavily soiled dishes.
Loading the Dishwasher:
Proper loading ensures optimal cleaning performance. The dishwasher is designed to accommodate 10 place settings.
Figure 3.6: Example of a 10 place setting capacity loading.
Utilize the adjustable upper basket, versatile cup shelves, cutlery basket, and foldable flip tines for flexible loading of various dish sizes and shapes.
Figure 3.7: Features for flexible loading: adjustable upper basket, cup shelves, cutlery basket, and foldable tines.
Special Functions:
- Half Load: Use this function for smaller loads to save energy and water. It can be used with Intensive, ECO, 90 min, Glass, and Hygiene programs.
- Extra Drying: Enhances drying performance for most cycles (except Rapid).
- Delay Start: Postpone the start of a wash cycle by 3, 6, or 9 hours to take advantage of off-peak power rates.
Figure 3.8: Half Load function for efficient washing of smaller quantities.
Figure 3.9: Extra Drying function for improved drying results.
Figure 3.10: Delay Start options for flexible scheduling.
4. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
Cleaning the Filters:
The filter system should be checked and cleaned regularly to prevent blockages and ensure efficient washing. Refer to the full manual for detailed instructions on removing and cleaning the coarse, fine, and micro filters.
Adding Salt and Rinse Aid:
Monitor the salt and rinse aid indicators on your dishwasher. Refill as necessary to ensure proper water softening and streak-free drying results.
Exterior and Interior Cleaning:
- Wipe the exterior with a damp cloth.
- Clean the door seal regularly to remove food residue.
- Run a dishwasher cleaner cycle periodically to maintain interior hygiene.
5. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power cord not plugged in; Door not closed properly; Fuse blown. | Ensure power cord is securely plugged in; Close the door firmly; Check household fuse/circuit breaker. |
| Dishes are not clean | Improper loading; Insufficient detergent; Clogged spray arms; Clogged filters. | Reload dishes correctly; Use appropriate amount of detergent; Clean spray arm nozzles; Clean filters. |
| Dishes are not dry | No rinse aid; Program without drying selected; Overloading. | Refill rinse aid dispenser; Select a program with drying or use Extra Drying function; Do not overload. |
| Unpleasant odor | Food residue in filters or drain; Infrequent cleaning. | Clean filters and drain area; Run a self-clean cycle or a hot wash with dishwasher cleaner. |
6. Specifications
Detailed technical specifications for the COMFEE' CDWEF1034BW-UK dishwasher.
| Parameter | Value |
|---|---|
| Model Name | CDWEF1034BW-UK |
| Form Factor | Freestanding |
| Dimensions (H x W x D) | 85 x 45 x 60 cm |
| Item Weight | 37.7 kg |
| Rated Capacity | 10 Place Settings |
| Energy Efficiency Class | E |
| Annual Energy Consumption | 76 kWh per 100 cycles |
| Water Consumption (ECO program) | 9.0 litres per cycle |
| Noise Level | 49 dB |
| Number of Programs | 6 |
| Voltage | 220 Volts |
| Material Type | Stainless Steel |
| Included Components | Machine Body |
Figure 6.1: Energy Efficiency Label for the dishwasher.

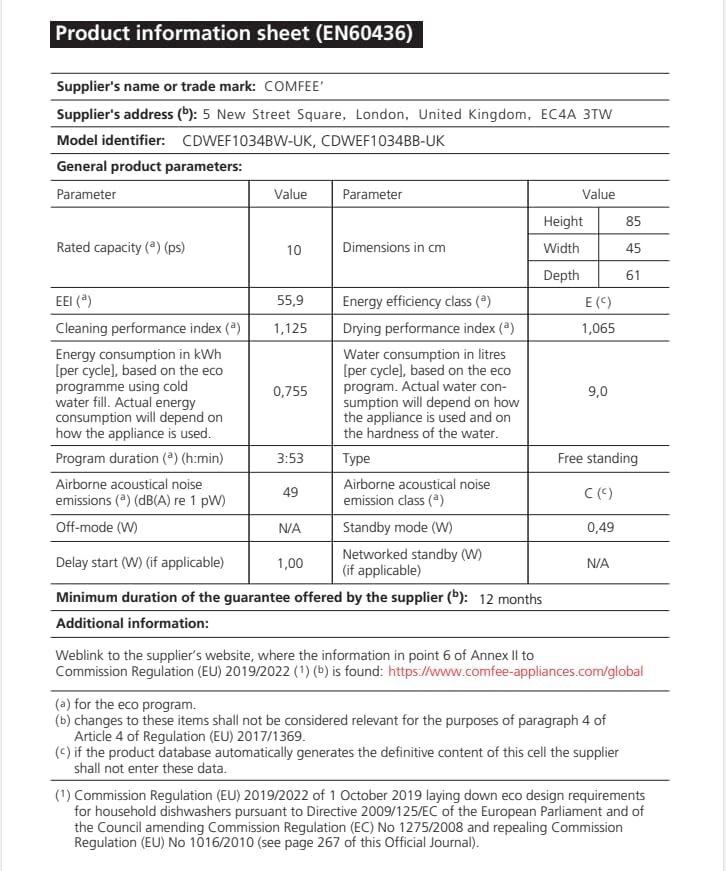

Figure 6.2: Product Information Sheet with detailed technical data.
7. Warranty and Support
Your COMFEE' dishwasher is covered by a manufacturer's guarantee and dedicated customer support.
Warranty Information:
The minimum duration of the guarantee offered by the supplier is 12 months from the date of purchase. Please retain your proof of purchase for warranty claims.
Customer Support:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact COMFEE' specialized customer support. You can find more information and contact details on the official COMFEE' website: www.midea.com/uk.
