Ayovoch UPH210T 1500W PTC Ceramic Space Heater User Manual

1. Introduction

Thank you for purchasing the Ayovoch UPH210T 1500W PTC Ceramic Space Heater. This manual provides important information regarding the safe operation, installation, maintenance, and troubleshooting of your new heater. Please read this manual thoroughly before use and retain it for future reference.

This space heater is designed to provide efficient and comfortable heating for indoor spaces such as bedrooms, offices, and living rooms. It features PTC ceramic heating technology, a thermostat, oscillation, and multiple safety features.

2. Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following safety precautions:

• Read all instructions before using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Always use the heater on a stable, flat, and level surface.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front and sides of the heater.
• Do not use this heater in bathrooms, laundry areas, or similar indoor locations where it may come into contact with water.
• Do not run power cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect the heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• This heater includes an automatic tip-over safety switch that shuts off the heater if it is tilted up to 45 degrees for more than 2 seconds.
• The heater is equipped with an overheat protection system that automatically shuts off the unit if the internal temperature exceeds 122°F (50°C).
• This heater is made of V0 flame-retardant materials.
• Do not use this heater through a power strip. Plug directly into a wall outlet.
• The heater features a 24-hour automatic power-off function if no interaction occurs, enhancing safety.
• A child lock function is included to prevent accidental operation.

Image: Visual representation of the heater's safety features including V-0 flame retardant materials, child lock, tip-over protection, and overheat protection.

3. Package Contents

• Ayovoch UPH210T Space Heater
• Remote Control (requires 1 AAA battery, not included)
• User Manual

4. Product Overview

The Ayovoch UPH210T is a compact and powerful ceramic space heater designed for personal and room heating. It features a digital display, touch control panel, and a remote control for convenient operation.

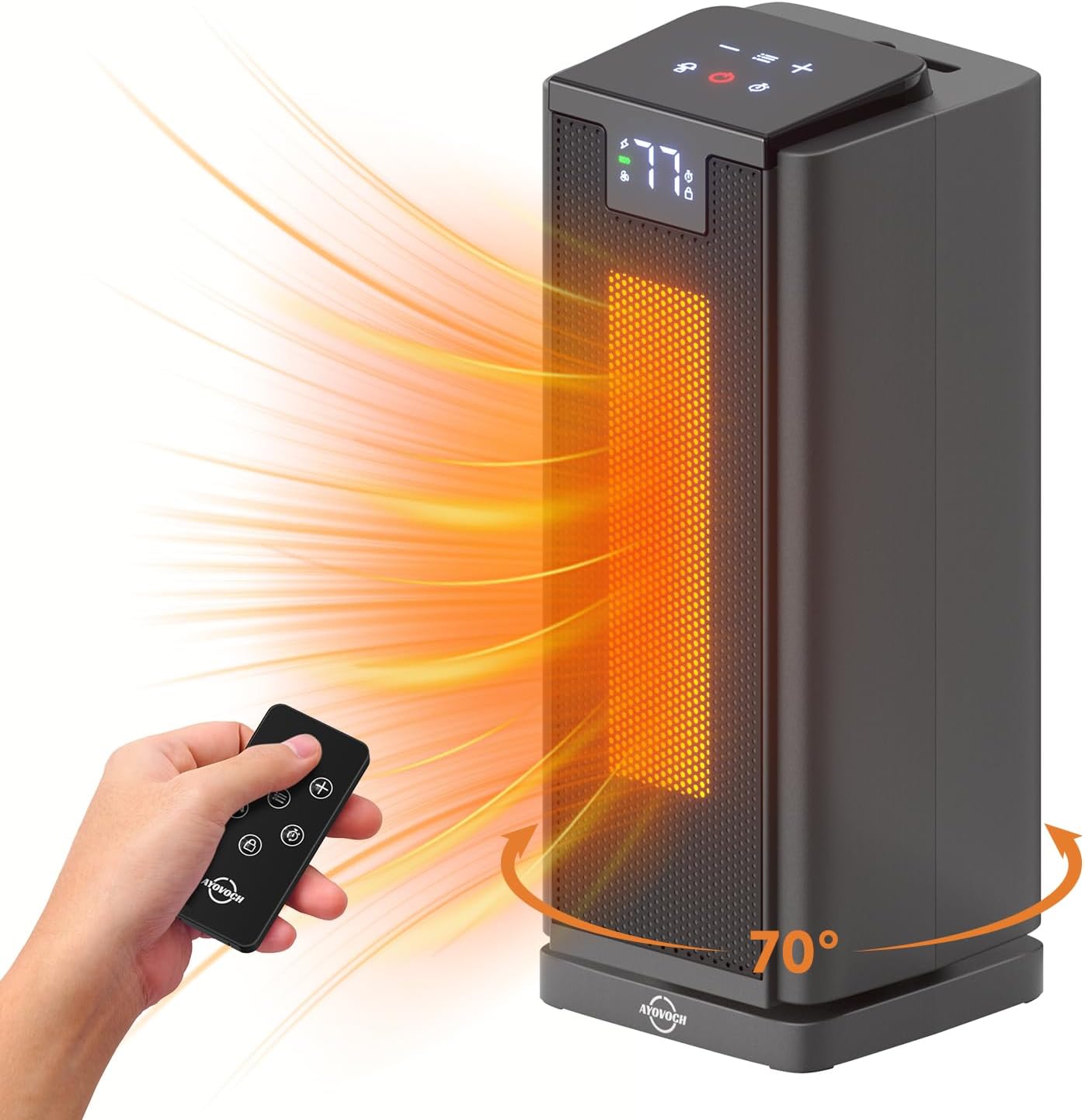

Image: The Ayovoch UPH210T space heater in operation, illustrating heat distribution and its oscillation capability, alongside its remote control.

Control Panel

Image: Detailed view of the heater's touch control panel, showing buttons for modes, power, oscillation, timer, and temperature adjustment.

Remote Control

Image: Diagram of the remote control, labeling each button for functions such as power, heat level, mode, oscillation, timer, and child lock.

5. Setup

1. Unpack: Carefully remove the heater and all accessories from the packaging.
2. Placement: Place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater from walls, furniture, and other objects.
3. Power Connection: Plug the 2-prong power cord directly into a 120V AC, 60Hz wall outlet. Do not use extension cords or power strips.
4. Remote Battery: Install 1 AAA battery (not included) into the remote control, observing polarity.

6. Operating Instructions

The heater can be operated using either the touch control panel on top of the unit or the included remote control.

Image: The heater showcasing its touch panel and remote control, emphasizing the convenience of dual control methods.

6.1 Power On/Off

• Press the Power button () on the control panel or remote to turn the heater ON or OFF.

6.2 Mode Selection

Press the Mode button () to cycle through the following modes:

• Power Heat Mode: Provides 1500W of heating for rapid warmth.
• ECO Mode: Automatically adjusts heating power to maintain a set temperature, optimizing energy consumption.
• Fan Mode: Operates as a fan without heating.

Image: The heater illustrating its fast indoor heating capability, highlighting increased air heating volume and extended heat reach.

6.3 Temperature Adjustment

• In Power Heat or ECO mode, use the + and - buttons on the control panel or remote to set the desired temperature. The display will show the target temperature.
• The heater will maintain the set temperature, turning on and off as needed.

Image: The heater in a bedroom, demonstrating its compact size and ability to maintain a steady temperature within a specified area.

6.4 Oscillation Function

• Press the Oscillation button () on the control panel or remote to activate or deactivate the 70° oscillation function. This distributes heat more evenly across the room.

Image: The heater demonstrating its 70-degree oscillation, providing wide heat coverage in a living room.

Image: A visual representation of the heater's 70-degree wide-angle oscillation, illustrating how it ensures even heat distribution.

6.5 Timer Function

• Press the Timer button () on the control panel or remote to set an automatic shut-off timer from 1 to 24 hours. Each press increases the timer by 1 hour.
• The heater will automatically turn off after the set time expires.
• Additionally, the heater has a built-in 24-hour automatic power-off safety feature that activates if no user interaction occurs within 24 hours.

Image: The heater displaying its 24-hour timer function, suitable for setting automatic shutdown for convenience and safety.

6.6 Child Lock

• Press the Child Lock button () on the remote control to activate or deactivate the child lock. When activated, the control panel buttons will be disabled to prevent accidental changes.

7. Maintenance

Regular cleaning and maintenance will help ensure the longevity and efficient operation of your heater.

• Cleaning: Always unplug the heater and allow it to cool completely before cleaning. Use a soft, damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents.
• Dust Removal: Use a vacuum cleaner with a brush attachment to gently remove dust from the air intake and exhaust grilles.
• Storage: When not in use, store the heater in a cool, dry place. It is recommended to store it in its original packaging to protect it from dust and damage.

8. Troubleshooting

9. Specifications

• Brand: Ayovoch
• Model Number: UPH210T
• Power: 1500W
• Heating Technology: PTC Ceramic
• Special Feature: Adjustable Temperature, 70° Oscillation, 1-24H Timer, Child Lock, Overheat Protection, Tip-Over Protection
• Color: Grey
• Form Factor: Cabinet
• Indoor/Outdoor Usage: Indoor
• Product Dimensions: 6.2"D x 16"W x 6.1"H
• Item Weight: 4.9 pounds
• Heating Coverage: Up to 200 square feet
• Room Type: Bedroom, Home Office, Study Room
• Manufacturer: Jiangmenshi Liansheng Wujindianqi Co.,Ltd

10. Warranty and Support

Ayovoch is committed to providing quality products. For any questions, concerns, or issues regarding your UPH210T space heater, please contact our customer support team. While specific warranty details are not provided in this manual, please refer to the product packaging or your purchase documentation for warranty information. We are always glad to help.
