Ninja AF500EUWH FlexDrawer 7-in-1 Air Fryer Instruction Manual

1. Introduction

Thank you for purchasing the Ninja AF500EUWH FlexDrawer 7-in-1 Air Fryer. This appliance is designed to provide versatile cooking options, including air frying, roasting, baking, and more, with the convenience of a large capacity and flexible cooking zones. Please read this manual thoroughly before use to ensure safe and optimal operation.

Key Features:

• FlexDrawer Design: A single 10.4L MegaZone that can be divided into two independent 5.2L cooking zones with a removable separator.
• Dual Zone Technology: Cook two different foods with different settings, finishing simultaneously using SYNC, or duplicate settings across zones using MATCH.
• 7 Cooking Functions: Max Crisp, Air Fry, Roast, Bake, Reheat, Dehydrate, and Prove.
• Energy Efficient: Designed to cook meals up to 75% faster than fan ovens and use up to 45% less energy.

2. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury.

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or main unit housing in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. What's Included

Your Ninja AF500EUWH FlexDrawer Air Fryer comes with the following components:

• Main Unit with Control Panel
• 10.4L FlexDrawer (non-stick)
• Removable Separator
• 2 x Crisper Plates

Figure 1: The Ninja AF500EUWH FlexDrawer Air Fryer main unit, showcasing its sleek white and silver design with the control panel visible.

4. Setup

1. Unpacking: Remove all packaging materials, promotional labels, and tape from the unit.
2. Initial Cleaning: Wash the FlexDrawer, removable separator, and crisper plates in warm, soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp cloth.
3. Placement: Place the main unit on a clean, dry, level surface. Ensure there is adequate space around the unit for proper ventilation. Do not block the air vents.
4. Power Connection: Plug the power cord into a grounded electrical outlet. The unit will power on and display the default settings.

5. Operating Instructions

Control Panel Overview:

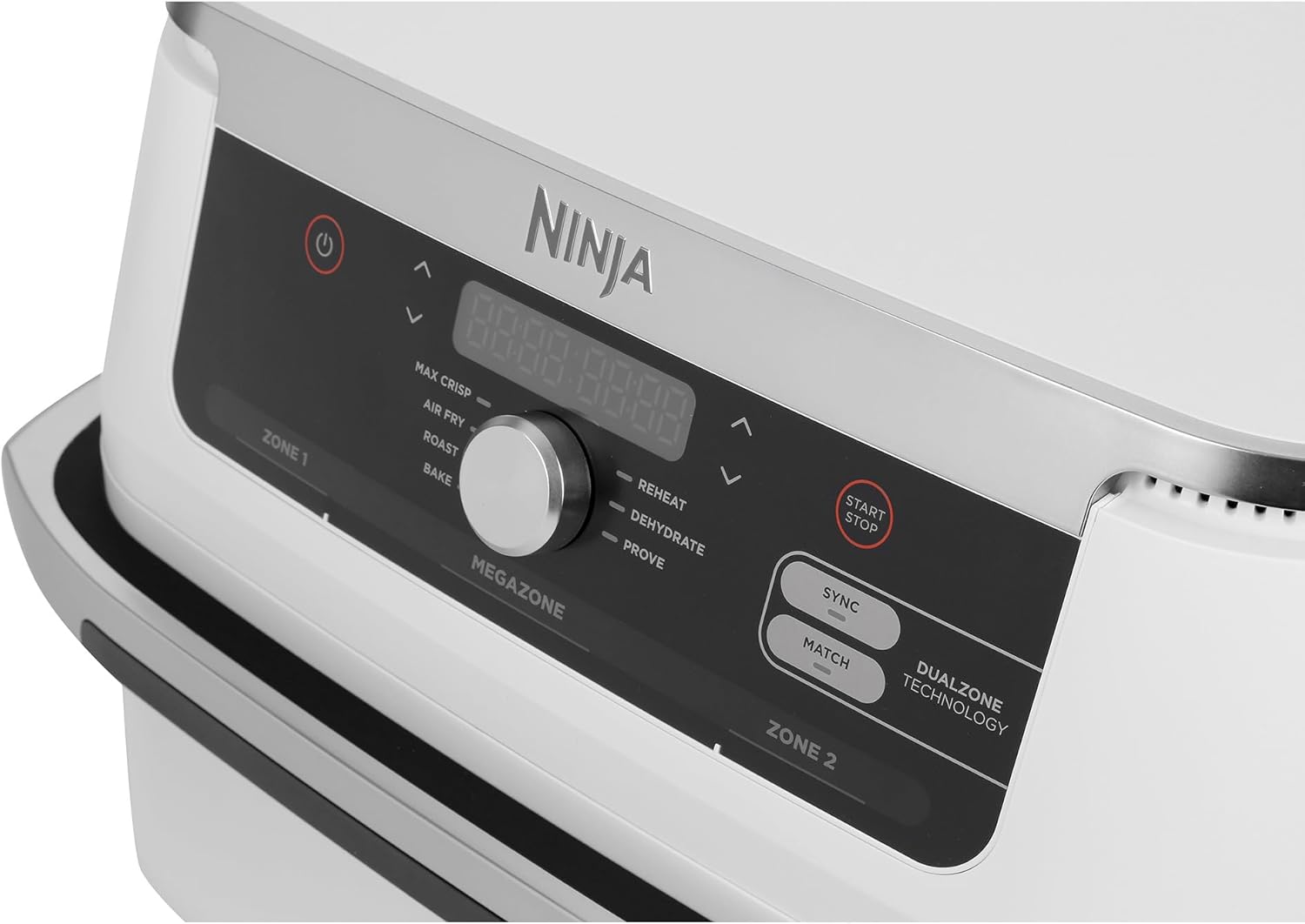

Figure 2: A detailed view of the Ninja AF500EUWH control panel, showing the digital display, function selector dial, temperature/time adjustment buttons, and SYNC/MATCH buttons.

• Power Button: Turns the unit on/off.
• Function Dial: Rotate to select desired cooking function (Max Crisp, Air Fry, Roast, Bake, Reheat, Dehydrate, Prove).
• Temperature/Time Buttons: Use the up/down arrows to adjust cooking temperature and time.
• START/STOP Button: Begins or pauses the cooking cycle.
• ZONE 1 / ZONE 2: Indicators for the individual cooking zones.
• MEGAZONE: Indicator for single, large cooking zone.
• SYNC Button: Synchronizes finish times for two different cooking programs in Zone 1 and Zone 2.
• MATCH Button: Duplicates the settings from Zone 1 to Zone 2.

Using the FlexDrawer:

The FlexDrawer offers flexibility for various meal sizes.

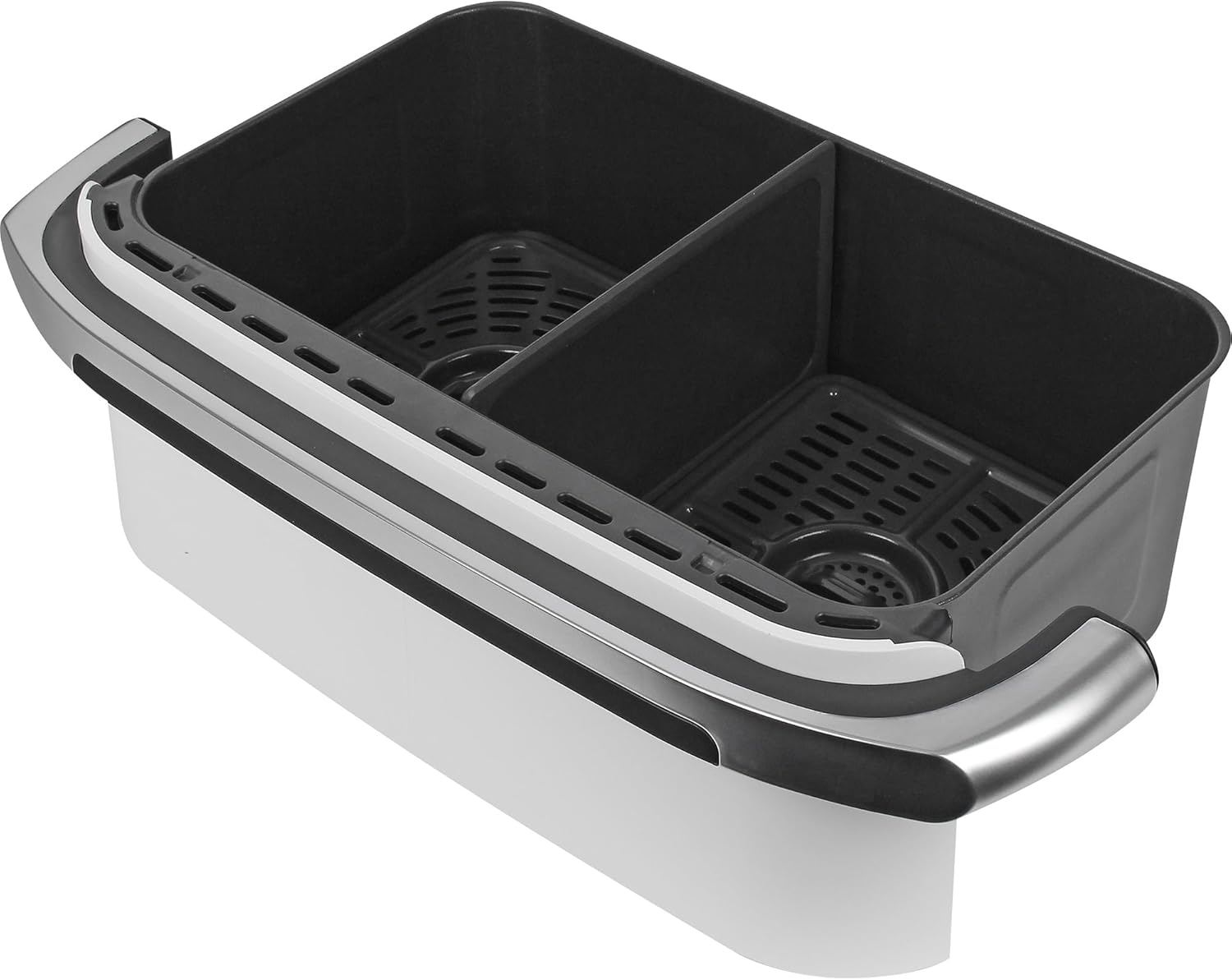

Figure 3: The FlexDrawer with the removable separator inserted, dividing it into two distinct cooking zones, each with a crisper plate.

• Two Independent Zones: Insert the removable separator into the FlexDrawer. Place a crisper plate in each zone. This configuration is ideal for cooking two different items simultaneously.

Figure 4: The FlexDrawer without the removable separator, forming a single large MegaZone, suitable for larger food items or meals.

• Single MegaZone: Remove the separator to create one large 10.4L cooking area. This is suitable for larger items like a whole chicken or tray bakes. Place both crisper plates side-by-side or remove them if not needed for the selected function.

Cooking Functions:

Follow these general steps for each function:

1. Place food in the FlexDrawer, ensuring not to overfill.
2. Insert the FlexDrawer into the main unit.
3. Select the desired cooking function using the dial.
4. Adjust temperature and time using the arrow buttons.
5. Press START/STOP to begin cooking.
6. Shake or flip food halfway through cooking for even results, if necessary.

For specific cooking times and temperatures, refer to a recipe guide or adjust based on food type and quantity.

6. Cleaning and Maintenance

Proper cleaning ensures the longevity and performance of your air fryer.

• Before Cleaning: Always unplug the unit and allow it to cool completely before cleaning.
• Dishwasher Safe Parts: The non-stick 10.4L FlexDrawer, removable separator, and crisper plates are dishwasher safe.
• Hand Washing: For best results and to prolong the life of the non-stick coating, hand wash components with warm, soapy water using a non-abrasive sponge.
• Main Unit: Wipe the main unit and control panel with a clean, damp cloth. Do not immerse the main unit in water or any other liquid.
• Stubborn Residue: For baked-on food, soak the drawer and crisper plates in warm, soapy water before cleaning.

7. Troubleshooting

If you encounter issues with your Ninja AF500EUWH FlexDrawer Air Fryer, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

The Ninja AF500EUWH FlexDrawer Air Fryer comes with a 2-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal household use.

For warranty claims, technical support, or to inquire about replacement parts, please contact Ninja customer service. Keep your proof of purchase for warranty validation.

Note: Information regarding spare parts availability is currently unavailable.
