1. Introduction
The KYORITSU KEW 6516 is a high-quality, multi-function installation tester designed for electrical professionals. This device integrates 12 essential testing functions into a single unit, ensuring comprehensive safety and performance verification of electrical installations. This manual provides detailed instructions for the safe and correct operation of your KEW 6516 tester.
2. Product Overview
The KEW 6516 is engineered for efficiency and accuracy, featuring a large color LCD for clear data display and an intuitive interface. It combines various testing capabilities, making it an indispensable tool for electrical installation and maintenance.
Figure 2.1: Main product view of the KYORITSU KEW 6516 Multi Function Tester, showcasing its robust design and clear display.
2.1 Key Features
- 12-in-1 Testing Functions: Includes Loop, RCD, Earth, Insulation, Continuity, Phase Rotation, Volts, SPD, PAT, PSC, PFC, and Frequency testing.
- Large Color LCD: 3.5-inch dot matrix display for clear visualization of all test data.
- Anti-Trip Technology (ATT): Enables no-trip LOOP L-PE testing on all RCDs, with 2-wire and 3-wire options.
- Hands-Free Testing: Facilitated by a remote probe and lockdown function.
- HELP Function: Provides on-screen connection diagrams for selected functions.
- High Resolution Loop Impedance: 0.001Ω resolution for precise measurements.
Figure 2.2: Diagram illustrating the 12-in-1 testing functions of the KYORITSU KEW 6516, including Insulation, Loop, RCD, PSC, PFC, Earth, ACV, Continuity, Phase Rotation, Frequency, SPD (Varistor), and PAT.
3. Setup
3.1 Battery Installation
The KEW 6516 requires 1 Lithium Polymer battery, which is included. Ensure the battery is correctly inserted into the battery compartment, observing polarity markings. Close the battery cover securely.
3.2 Connecting Test Leads
Connect the appropriate test leads to the input terminals of the KEW 6516 according to the specific test function you intend to perform. Refer to the on-screen HELP function for connection diagrams if unsure.
4. Operating Instructions
The KEW 6516 is designed for straightforward operation. Follow these general steps for most testing functions:
- Set the Rotary Dial: Turn the rotary dial to select your desired testing range or function.
- Connect the Instrument: Connect the test leads to the circuit or installation under test as indicated by the HELP function.
- Press the Test Button: Initiate the measurement by pressing the 'PRESS TO TEST' button.
Figure 4.1: Detailed operational features of the KYORITSU KEW 6516, including "Operation in 3 simple steps," "Hands free testing" with remote probe, "Large LCD" display, "Anti-Trip Technology," "HELP Key," "0.001 resolution" for loop impedance, and examples of "Loop test from a wall socket" and "Continuity check of equipotential bonding."
4.1 Specific Testing Functions
4.1.1 Loop Test
The KEW 6516 performs loop impedance tests with high accuracy, offering a 0.001Ω resolution. It features Anti-Trip Technology (ATT) for L-PE testing on all RCDs without tripping them. This function is available with both 2-wire and 3-wire connections, which is particularly useful in installations without a neutral line (e.g., 3-phase motor lines). The Zs Limit function compares measured values against standard requirements.
Figure 4.2: KYORITSU KEW 6516 Multi Function Tester in use, performing an electrical measurement within a circuit breaker panel.
4.1.2 RCD Test
Test various RCD types including AC, A, F, B (General & Selective), and EV, as well as variable RCDs. The tester supports single and auto test modes, ramp tests, and contact voltage measurements.
4.1.3 Earth Resistance Test
Conduct 2-wire and 3-wire earth resistance tests. All necessary accessories for these tests are included with the instrument.
4.1.4 Insulation Resistance Test
Perform insulation resistance tests at 100V, 250V, 500V, and 1000V. The device features an auto-discharge voltage function for safety.
Figure 4.3: Example of the KYORITSU KEW 6516 performing an insulation test on an electrical appliance.
4.1.5 Continuity Test
Measure continuity at 200mA or 15mA, with a selectable buzzer for quick judgment of results.
4.1.6 Phase Rotation
Clearly indicates the sequence of phases on 3-phase lines directly on the display.
4.1.7 Voltage Measurement (Volts)
Measures TRMS voltage from 2V to 600V, along with mains frequency.
4.1.8 SPD Test
Tests Surge Protection Devices (SPDs) that utilize varistors, determining their tripping voltage without causing damage.
4.1.9 PAT Test
Functions as a Portable Appliance Tester, performing insulation and protective conductor resistance tests for portable appliances.
4.1.10 PSC/PFC Testing
Measures Prospective Short Circuit Current (PSC) and Prospective Fault Current (PFC).
4.1.11 Frequency Testing
Measures the frequency of the mains supply.
4.2 Connectivity
The KEW 6516 allows data transfer via USB to a PC for reporting. The KEW 6516BT model also offers Bluetooth connectivity for data transfer to tablets or smartphones, compatible with the KEW Smart app.

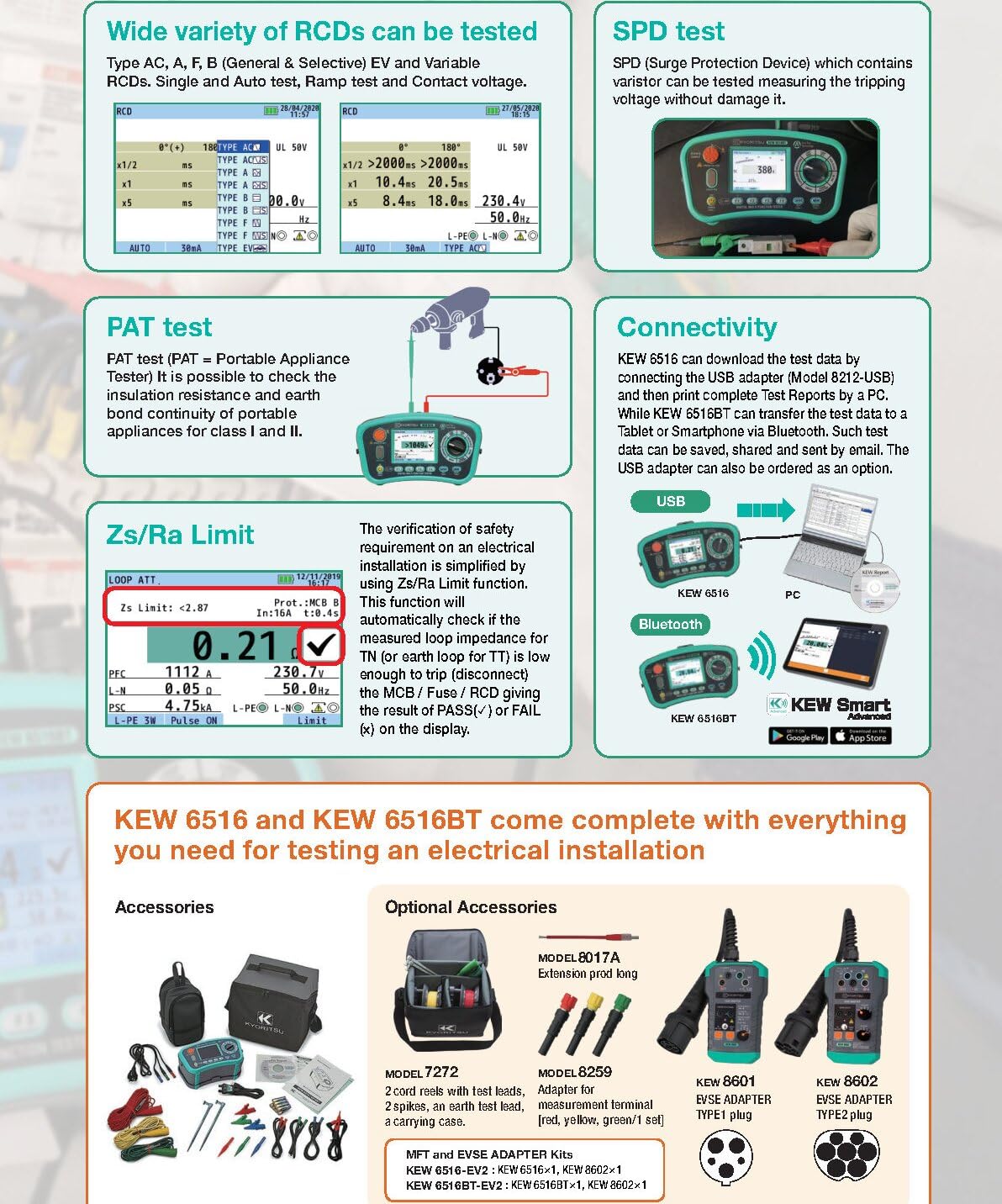

Figure 4.4: Advanced testing capabilities of the KYORITSU KEW 6516, covering "Wide variety of RCDs can be tested," "SPD Test," "PAT Test," "Zs/Ra Limit" verification, and "Connectivity" options via USB and Bluetooth for data transfer.
5. Maintenance
To ensure the longevity and accuracy of your KEW 6516, follow these maintenance guidelines:
- Cleaning: Wipe the instrument with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Storage: Store the tester in a cool, dry place, away from direct sunlight and extreme temperatures.
- Battery Care: Remove the battery if the instrument will not be used for an extended period to prevent leakage.
- Calibration: Regular calibration by authorized service centers is recommended to maintain measurement accuracy.
6. Troubleshooting
If you encounter issues with your KEW 6516, consider the following common troubleshooting steps:
- No Power: Check battery charge and ensure it is correctly installed.
- Incorrect Readings: Verify that test leads are securely connected and not damaged. Ensure the correct function and range are selected on the rotary dial.
- Display Errors: Refer to the HELP function on the device for specific error codes or connection guidance.
- Instrument Not Responding: Try turning the unit off and on again. If the problem persists, contact customer support.
7. Specifications

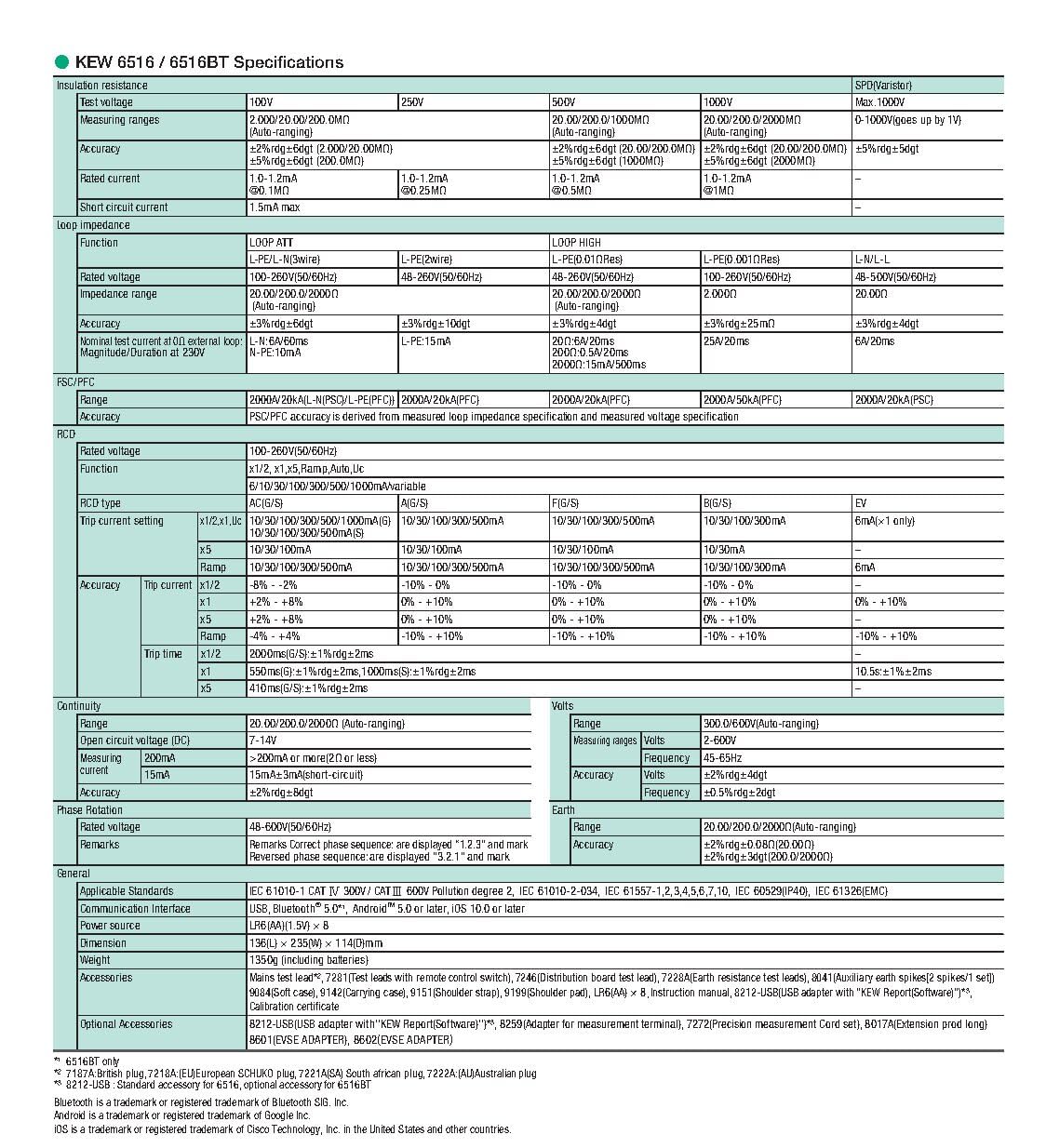

The following table details the technical specifications of the KYORITSU KEW 6516 Multi Function Tester.
| Function | Test Voltage / Range | Measuring Ranges | Accuracy | Remarks |
|---|---|---|---|---|
| Insulation Resistance Test | 100V | 0.000 to 200.0MΩ (Auto-ranging) | ±(2%rdg+6dgt) | |
| 250V | 0.000 to 200.0MΩ (Auto-ranging) | ±(2%rdg+6dgt) | ||
| 500V | 0.000 to 1000MΩ (Auto-ranging) | ±(2%rdg+6dgt) | ||
| 1000V | 0.000 to 2000MΩ (Auto-ranging) | ±(2%rdg+6dgt) | ||
| Rated current | 1.0-1.2mA (at 1MΩ), 1.0-1.2mA (at 2.5MΩ), 1.0-1.2mA (at 5MΩ), 1.0-1.2mA (at 10MΩ) | |||
| Short circuit current | 1.5mA max | |||
| Loop Impedance | Function | LOOP ATT, LOOP HI, LOOP RCD | ||
| Rated voltage | L-PE(3-wire), L-PE(2-wire), L-PE(RCD), L-N/L-L | |||
| Impedance range | 2.00Ω, 20.00Ω, 200.0Ω, 2000Ω | |||
| Accuracy | ±(3%rdg+5dgt) | |||
| Nominal test current at Zs external loop | L-PE:15mA, L-N:20A/500ms | |||
| PSC/PFC | Range | 2000A/20kA (PSC), 2000A/20kA (PFC) | ||
| Accuracy | ±(5%rdg+5dgt) | |||
| Remarks | PSC/PFC accuracy is derived from measured loop impedance specification and measured voltage specification. | |||
| RCD | Rated voltage | 100-250V (50/60Hz) | ||
| Function | x1/2, x1, x5, Ramp, Auto, Uc | |||
| RCD type | AC, A, F, B (General & Selective), EV, Variable | |||
| Trip current setting | 10/30/100/300/500/1000mA | |||
| Accuracy | Trip current: ±(2%rdg+2dgt), Trip time: ±(2%rdg+2ms) | |||
| Continuity | Range | 0.00Ω to 2000Ω (Auto-ranging) | ||
| Measuring current | 200mA or 15mA | |||
| Accuracy | ±(2%rdg+2dgt) | |||
| Volts | Range | 2-600V (TRMS, Auto-ranging) | ||
| Frequency | 45-65Hz | |||
| Accuracy | ±(2%rdg+2dgt) | |||
| Earth | Range | 0.00Ω to 2000Ω (Auto-ranging) | ||
| Accuracy | ±(2%rdg+2dgt) | |||
| Remarks | 2-wire and 3-wire test. | |||
| General Standards | IEC 61010-1 CAT IV 300V / CAT III 600V, Pollution degree 2, IEC 61010-2-034, IEC 61557-1,2,3,4,5,6,7,10, IEC 60529(IP40), IEC 61326(EMC) | |||
| Communication Interface | USB (KEW 6516), Bluetooth (KEW 6516BT) | |||
| Power Source | 1 Lithium Polymer battery (included) | |||
| Dimension | 136(L) × 235(W) × 114(D) mm | |||
| Weight | 1350g (including batteries) | |||
| Accessories | 7246 (Distribution board test lead), 7222A (Earth resistance test leads), 8041 (Auxiliary earth spike), 8042 (Auxiliary earth spike), 9119 (Shoulder strap), 9124 (Carrying case), 8121 (USB adapter with KEW Report software), 8122 (USB adapter with KEW Smart software) | |||
| Optional Accessories | 8212 (USB adapter with KEW Report software), 8259 (Adapter for measurement terminals), 7272 (Precision measurement cord set), 8017A (Extension prod long), 8601 (EVSE Adapter), 8602 (EVSE Adapter) | |||
Figure 7.1: Overview of standard and optional accessories available for the KYORITSU KEW 6516 and KEW 6516BT, including test leads, probes, and adapters.
8. Warranty and Support
KYORITSU products are manufactured to high-quality standards. While specific warranty details may vary by region, general support is available for product inquiries and technical assistance.
Spare Part Availability: EU spare parts are available for a duration of 1 year from the date of purchase.
For technical support, service, or warranty claims, please contact your local KYORITSU distributor or visit the official KYORITSU website for contact information.
