EliteBloom Retractable Table Saw User Manual

Introduction

Thank you for purchasing the EliteBloom Retractable Table Saw. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before operating the saw to ensure proper use and to prevent injury or damage.

Important Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Read All Instructions: Familiarize yourself with the controls and proper use of the tool.
• Wear Eye Protection: Always wear safety goggles or safety glasses with side shields.
• Wear Hearing Protection: Use earplugs or earmuffs during operation.
• Wear Appropriate Clothing: Avoid loose clothing, jewelry, or long hair that can get caught in moving parts.
• Keep Work Area Clean: Cluttered areas invite accidents.
• Do Not Operate in Hazardous Environments: Do not use power tools in damp or wet locations, or expose them to rain.
• Keep Children Away: All visitors should be kept a safe distance from the work area.
• Use Proper Extension Cords: Ensure extension cords are in good condition and suitable for outdoor use if applicable.
• Do Not Force Tool: The tool will do the job better and more safely at the rate for which it was designed.
• Disconnect Power: Always disconnect the saw from the power source before making adjustments, changing accessories, or servicing.
• Maintain Tools With Care: Keep blades sharp and clean for best and safest performance.
• Check for Damaged Parts: Before further use, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function.
• Never Leave Tool Running Unattended: Turn power off. Do not leave the tool until it has come to a complete stop.

Package Contents

Verify that all items listed below are included in your package. If any parts are missing or damaged, please contact EliteBloom customer support.

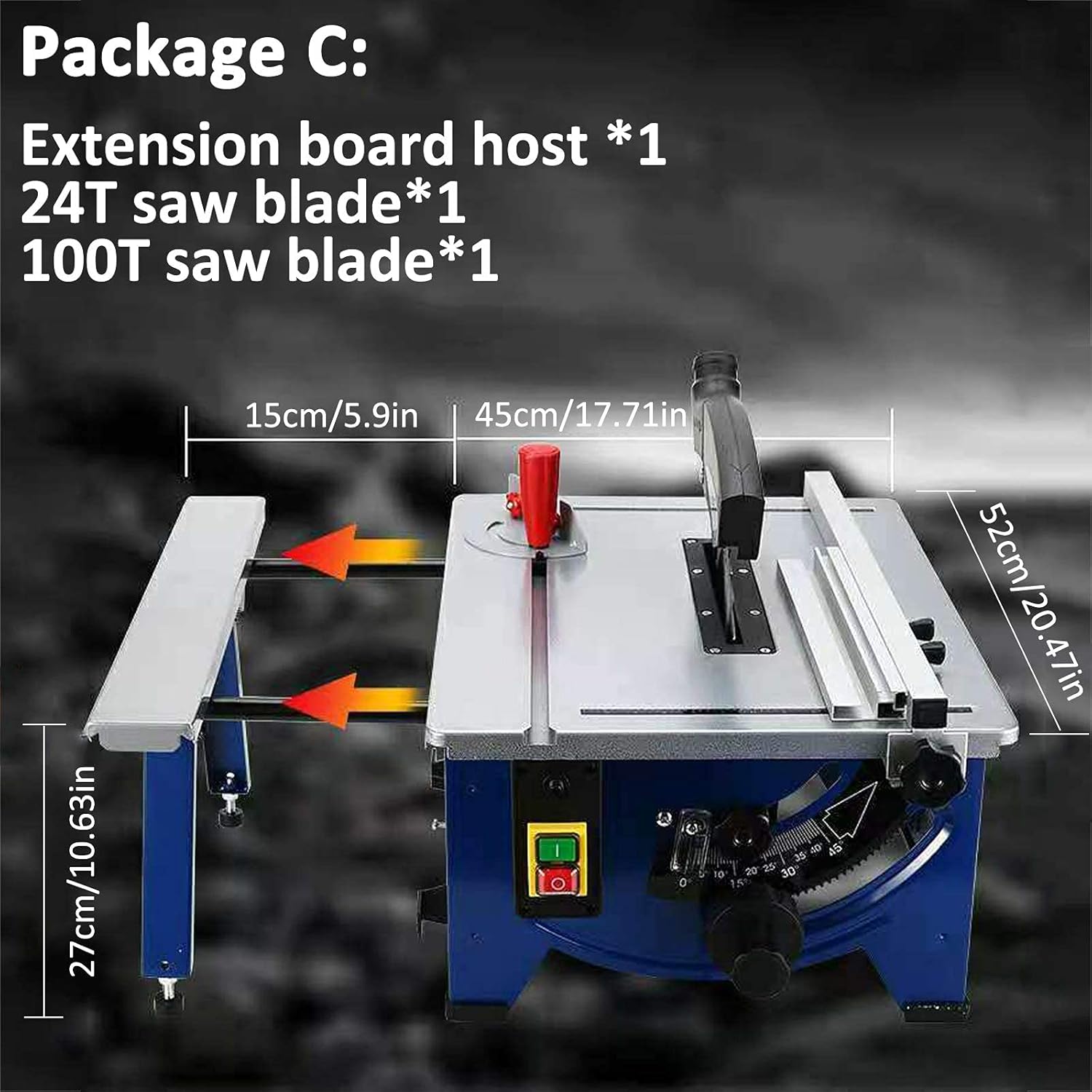

Image: Package C contents showing the main unit with extension board, a 24T saw blade, and a 100T saw blade. Dimensions are also indicated: 15cm/5.9in and 45cm/17.71in for table extension, 52cm/20.47in height, and 27cm/10.63in leg height.

• Extension Board Host (Main Unit) x 1
• 24T Saw Blade x 1
• 100T Saw Blade x 1

Product Overview

The EliteBloom Retractable Table Saw is designed for precision cutting of various materials including wood, aluminum, and PVC. It features a powerful 1800W motor and an adjustable cutting depth and angle.

Key Features:

• 1800W Powerful Motor: Delivers a no-load speed of 5000r/min for efficient cutting.
• Adjustable Cutting Depth: Maximum cutting depth of 45mm.
• 45° Bevel Angle: Allows for angled cuts.
• Extendable Table: Increases working area for larger materials.
• Adjustable Backing Position: For precise material guidance.
• Electromagnetic Switch: For enhanced safety and control.
• Overload Protection: Protects the motor from damage.
• Dust Removal System: Connects to a vacuum cleaner for a cleaner work environment.
• Anti-slip Rubber Feet: Provides stability during operation.

Image: Underside view of the table saw highlighting the 1800W powerful motor, capable of reaching 5000r/min, indicating a hybrid motor design.

Setup Instructions

1. Unpacking and Inspection:

1. Carefully remove all components from the packaging.
2. Inspect all parts for any signs of damage. Do not operate the saw if any part is damaged.
3. Ensure all package contents listed above are present.

2. Assembling the Extendable Table:

1. Locate the extension board components.
2. Attach the extension boards to the main unit as shown in the diagram, ensuring they are securely fastened.
3. Tighten the desktop fixed knobs to secure the extended table in position.

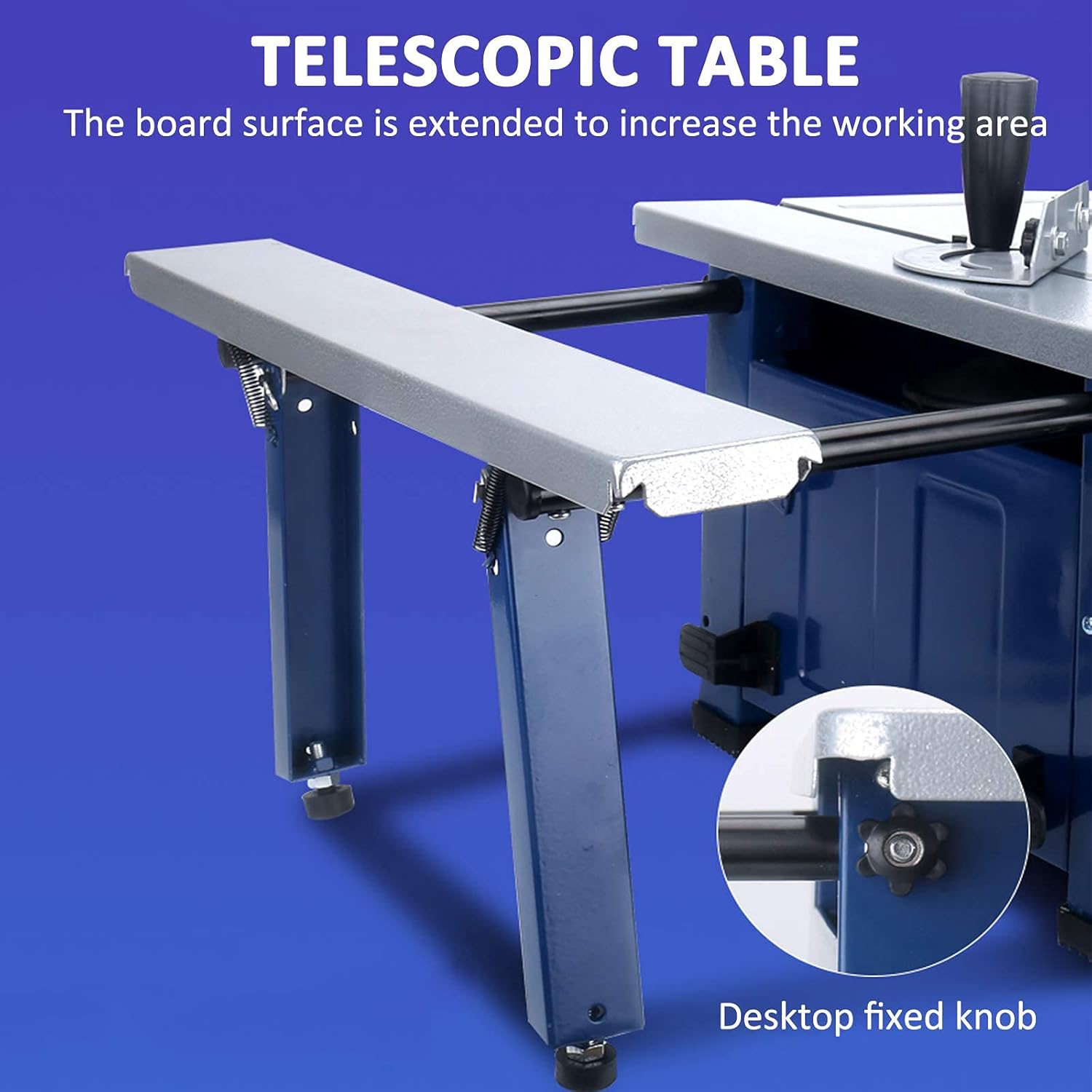

Image: Close-up view of the telescopic table being extended to increase the working area. An inset shows the desktop fixed knob used to secure the extension.

3. Installing the Saw Blade:

1. Ensure the saw is unplugged from the power source.
2. Raise the saw blade to its maximum height using the adjustment knob.
3. Remove the blade guard if necessary, following the instructions in the manual.
4. Place the desired saw blade (24T for general wood, 100T for finer cuts or other materials) onto the arbor, ensuring the teeth are pointing towards the front of the saw. The inner hole diameter for the saw blade is 30mm/24.4mm.
5. Secure the blade with the arbor nut, ensuring it is tightened firmly.
6. Reinstall the blade guard.

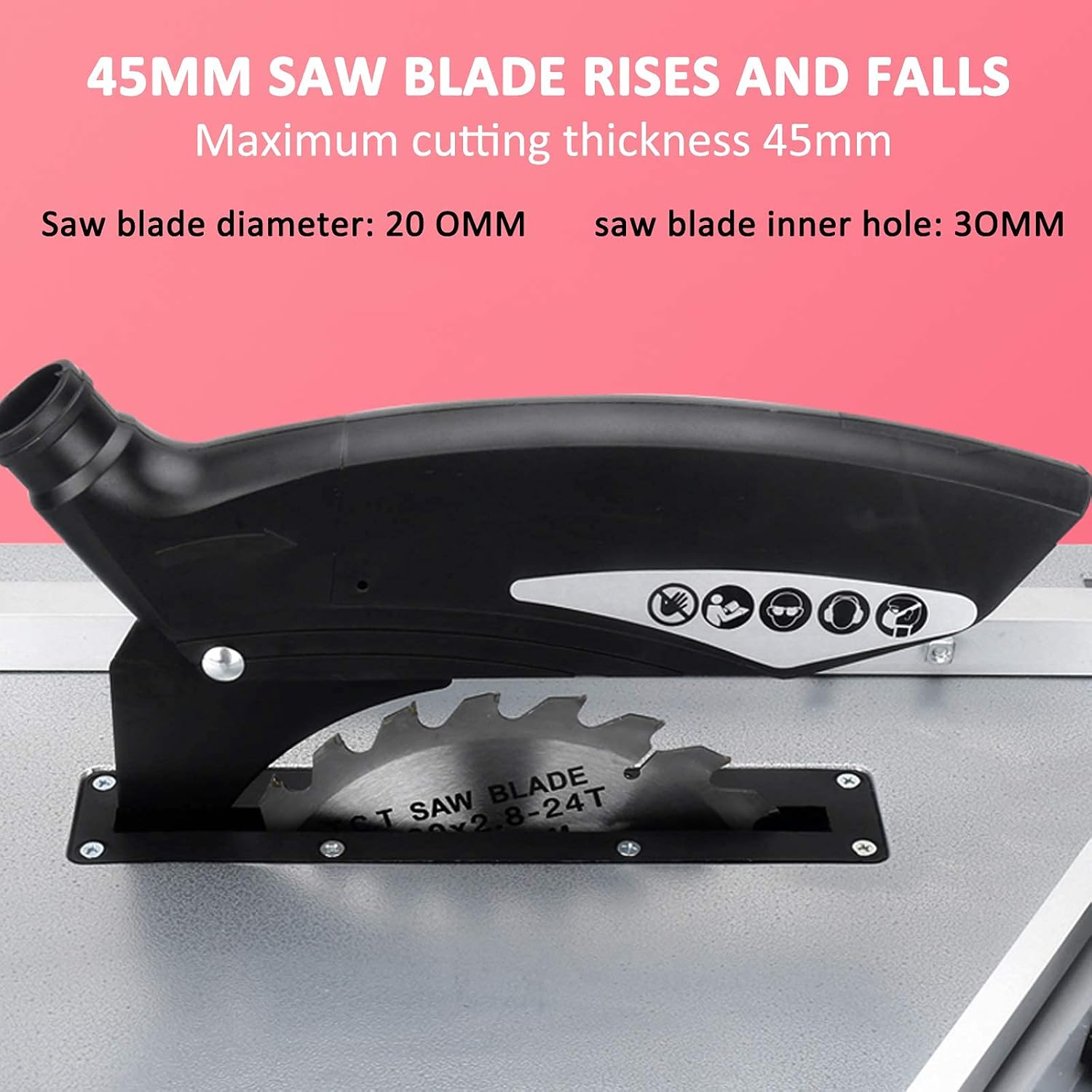

Image: Close-up of the saw blade area, showing the blade rising and falling. It highlights the maximum cutting thickness of 45mm, a saw blade diameter of 200mm, and an inner hole diameter of 30mm.

4. Connecting Dust Removal:

1. Locate the dust port on the saw.
2. Connect a compatible vacuum cleaner hose to the dust port for efficient dust collection during operation.

Operating Instructions

1. Powering On/Off:

• Plug the saw into a suitable power outlet.
• To turn on, press the green
