1. Product Overview
The SUNMAX RT15 is a compact, walk-behind floor scrubber designed for efficient cleaning of various hard floor surfaces in commercial environments. Its battery-powered operation and user-friendly design make it ideal for offices, cafes, boutiques, and other tight spaces. This manual provides detailed instructions for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your machine.
Image 1.1: The SUNMAX RT15 floor scrubber with its included accessories, including the disc brush, burnishing pad, pad holder, and battery charger.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury and damage to the machine:
- Read all instructions before operating the machine.
- Ensure the machine is fully charged before use.
- Do not operate the machine on inclines exceeding 5 degrees.
- Keep hands and feet clear of moving parts, especially the brush and squeegee.
- Use only recommended cleaning solutions and avoid corrosive chemicals.
- Disconnect power before performing any maintenance or assembly.
- Store the machine in a dry, secure location away from extreme temperatures.
3. Components Overview
Familiarize yourself with the main components of the RT15 floor scrubber:
Image 3.1: Key components of the RT15 scrubber, including the handle, display screen, solution tank, sewage tank, brush, and squeegee.
- Handle: Ergonomic handle for steering and control, adjustable up to 170 degrees.
- Display Screen / Operation Panel: Digital LCD screen showing working status and error codes.
- 3-Gal Solution Tank (Detachable): Holds clean water and cleaning solution.
- 4-Gal Sewage Tank (Detachable): Collects dirty water after scrubbing.
- 14" Brush Cleaning Width: The area covered by the rotating brush.
- 17.8" Squeegee Suction Width: The width of the squeegee that collects water.
- Disc Brush: The primary cleaning tool, 14 inches in diameter.
- Burnishing Pad & Pad Holder: Used for polishing and maintaining floor shine.
4. Setup and Assembly
4.1 Initial Assembly
The RT15 comes with most components pre-assembled. Attach the handle by aligning it with the main body and securing it with the provided fasteners. Ensure all connections are firm.
4.2 Attaching the Brush/Pad
To attach the 14" disc brush or burnishing pad, tilt the machine back slightly. Align the brush/pad with the drive hub and twist until it locks securely into place. Ensure it is centered and fully engaged.
4.3 Charging the Battery
Before first use, fully charge the lead-acid battery. The charging process typically takes 6-8 hours. Connect the charger to the machine's charging port and then plug it into a standard electrical outlet. The LCD screen may indicate charging status.
5. Operating Instructions
5.1 Filling the Solution Tank
Open the cap of the 3-gallon solution tank and fill it with clean water. Add an appropriate amount of recommended floor cleaning solution according to the solution manufacturer's instructions. Do not overfill.
5.2 Starting the Machine
Turn the key to the ON position. The digital LCD screen will illuminate, displaying the current working status and battery level. Press the brush activation button to start the brush rotation and the vacuum button to activate the squeegee suction.

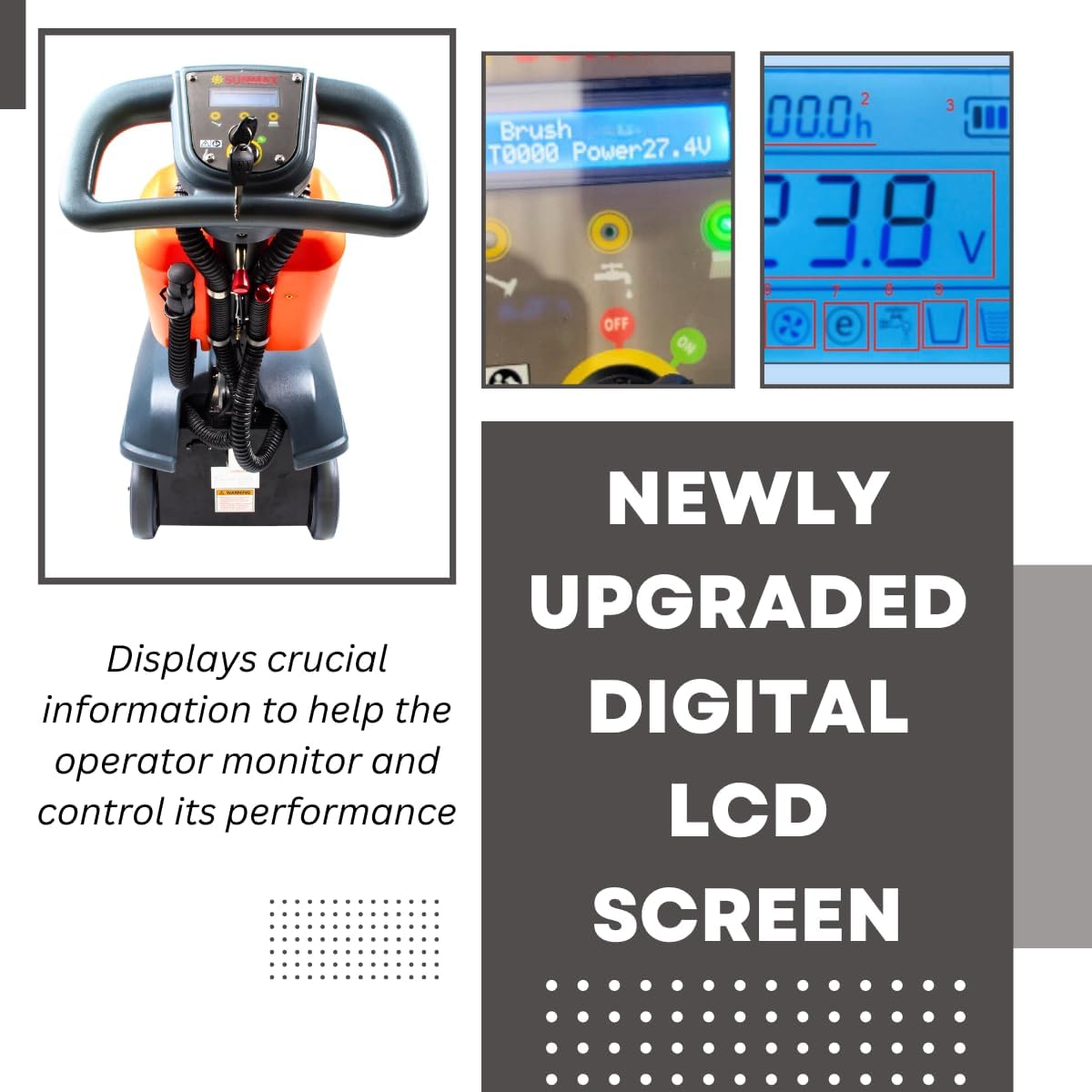

Image 5.1: The newly upgraded digital LCD screen provides crucial information for monitoring and controlling the machine's performance, including brush status, power, and voltage.
5.3 Cleaning Procedure
Push the machine forward at a steady pace. The brush will scrub the floor, and the solution will be dispensed. The squeegee at the rear will then collect the dirty water into the sewage tank. For heavily soiled areas, you may need to make multiple passes or allow the solution to dwell briefly before scrubbing.
5.4 Emptying Tanks
After cleaning, or when the sewage tank is full, turn off the machine. Detach the 4-gallon sewage tank and empty its contents into an appropriate drain. Rinse the tank thoroughly with clean water. The solution tank can also be emptied and rinsed if there is leftover solution.
Video 5.2: Demonstration of the SUNMAX RT15 in operation, showing the process of filling the solution tank, activating the machine, scrubbing a floor with spills, and emptying the dirty water tank.
6. Maintenance
6.1 Daily Maintenance
- Empty and rinse both the solution and sewage tanks after each use to prevent residue buildup and odors.
- Clean the squeegee blades and check for wear. Replace if damaged or worn.
- Wipe down the exterior of the machine with a damp cloth.
6.2 Battery Care
- Recharge the battery after each use, even if not fully depleted, to prolong battery life.
- Do not leave the battery completely discharged for extended periods.
- Store the machine in a cool, dry place when not in use.
6.3 Brush and Squeegee Replacement
The cleaning brush is easy to replace. Simply twist to unlock and remove the old brush, then align and twist the new brush into place. Squeegee blades can be replaced by loosening their retaining clips or screws, removing the old blades, and inserting new ones, ensuring a tight seal for effective water collection.
7. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on | Battery discharged; Power switch off; Loose connection | Charge battery; Turn on power switch; Check all connections |
| Poor scrubbing performance | Worn brush; Insufficient cleaning solution; Incorrect brush type | Replace brush; Refill solution tank; Use appropriate brush for floor type |
| Water not being picked up | Clogged squeegee; Worn squeegee blades; Full sewage tank; Vacuum not on | Clean squeegee; Replace blades; Empty sewage tank; Activate vacuum |
| Machine stops unexpectedly | Low battery; Overload; Motor overheating | Recharge battery; Reduce load; Allow machine to cool down |
8. Technical Specifications
Detailed specifications for the SUNMAX RT15:

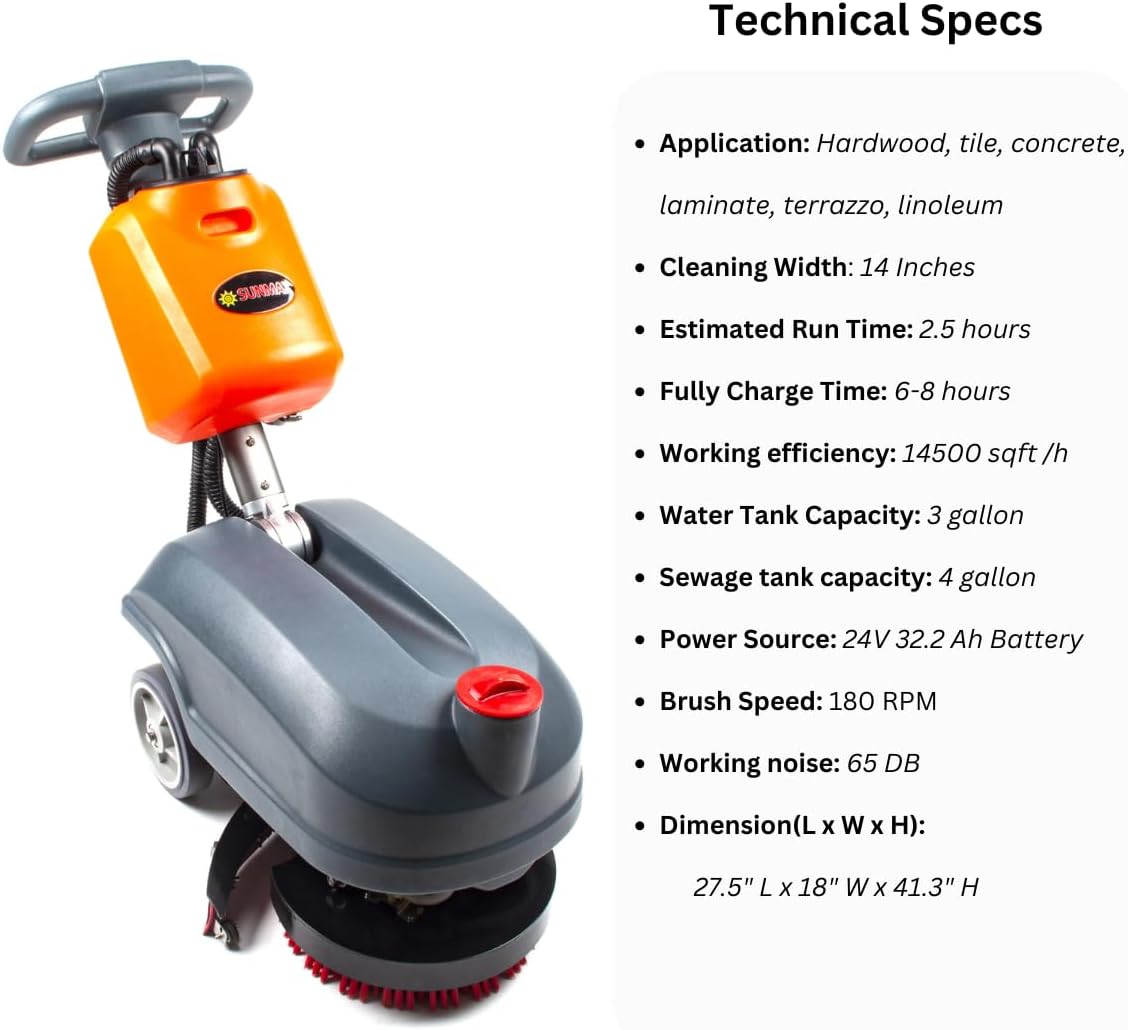

Image 8.1: A visual summary of the RT15's technical specifications.
- Application: Hardwood, tile, concrete, laminate, terrazzo, linoleum, marble, epoxy, PVC, vinyl, sealed hardwood, rubber, stone.
- Cleaning Width: 14 Inches
- Squeegee Width: 17.8 Inches
- Estimated Run Time: Up to 2.5 hours
- Fully Charge Time: 6-8 hours
- Working Efficiency: 14,500 sqft/h
- Water Tank Capacity: 3 gallon (Solution Tank)
- Sewage Tank Capacity: 4 gallon
- Power Source: 24V 32.2 Ah Battery
- Brush Speed: 180 RPM
- Working Noise: 65 DB
- Dimensions (L x W x H): 27.6"D x 18.2"W x 41.4"H
- Item Weight: 138.5 Pounds
- Maximum Power: 500 Watts
- Material: Polypropylene (PP)
9. Applications
The SUNMAX RT15 is versatile and suitable for a wide range of commercial and industrial settings:
Image 9.1: Examples of suitable environments for the RT15, including hotels, schools, repair shops, restaurants, manufacturing plants, retail stores, offices, and pet stores.
It effectively cleans various hard floor types, including:
Image 9.2: The RT15 is suitable for cleaning a variety of hard floor surfaces such as tile, concrete, vinyl, marble, terrazzo, linoleum, rubber, epoxy, laminate, and sealed hardwood.
10. Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact SUNMAX customer service. Refer to your purchase documentation for specific warranty terms and contact details. Always provide your product model (RT15) and serial number when seeking support.
