User Manual for Frideko Rattan Rechargeable Battery Operated Wall Sconces

Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Frideko Rattan Rechargeable Battery Operated Wall Sconces. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Image: The Frideko Rattan Rechargeable Wall Sconces, showing the two sconces, the remote control, two rechargeable LED bulbs, and USB-C charging cables. The image also illustrates the RGB color capabilities of the bulbs.

Package Contents

Before proceeding with installation, please verify that all components are present in the package:

• 2 x Rattan Wall Lamps
• 2 x Rechargeable RGB LED Bulbs
• 2 x Remote Controls
• 2 x USB Charging Cables (Type-C)
• Mounting Screws
• 1 x Installation Instructions (this manual)

Image: A visual representation of the package contents, including the two rattan wall lamps, two rechargeable RGB LED bulbs, two remote controls, two USB Type-C charging cables, and mounting screws.

Setup

Initial Charging

Before first use, ensure both rechargeable LED bulbs are fully charged. Connect the provided Type-C USB cables to the bulbs and a suitable USB power adapter (not included). The charging indicator on the bulb will change once fully charged. Full charging time is approximately 5 hours.

Installation Steps

The Frideko Rattan Wall Sconces are designed for wire-free installation, requiring no electrician or hardwiring.

1. Select Location: Choose a desired wall location for each sconce. Ensure the surface is suitable for mounting.
2. Mark Drilling Points: Hold the sconce base against the wall at the chosen location. Use a pencil to mark the positions for the mounting screws.
3. Drill Holes: Drill pilot holes at the marked positions. Insert wall anchors if necessary for secure mounting.
4. Mount Base: Align the sconce base with the drilled holes and secure it to the wall using the provided mounting screws.
5. Insert Bulb: Screw the charged RGB LED bulb into the lamp socket of the sconce.
6. Adjust Angle: The lamp head can be adjusted 180° vertically to direct light as desired.

Image: A visual comparison highlighting the easy, wire-free installation of the Frideko sconces compared to traditional hardwired options. It emphasizes the rechargeable RGB bulb, remote control, adjustable brightness, and swing arm.

Operating Instructions

Remote Control Functions

The included remote control allows for comprehensive management of your wall sconces. The maximum effective distance for the remote control is approximately 14.76 feet (4.5 meters).

• Power On/Off: Press the ON/OFF button to turn the lights on or off.
• Brightness Adjustment: Use the Brightness Up/Down buttons to cycle through 10 dimmable brightness levels (from 10% to 100%).
• Color Temperature Selection: Choose from 3 daily color temperatures: Warm White (3500K), Natural White (4500K), and Cold White (6500K).
• RGB Color Selection: Select from 12 distinct RGB color options to create various ambiances.
• Lighting Modes:
  • Smooth Mode: Automatically cycles through colors smoothly.
  • Flash Mode: Quickly flashes among the 12 RGB colors.
• Timer Settings: Set the lights to automatically turn off after 30, 60, or 120 minutes using the dedicated timer buttons.

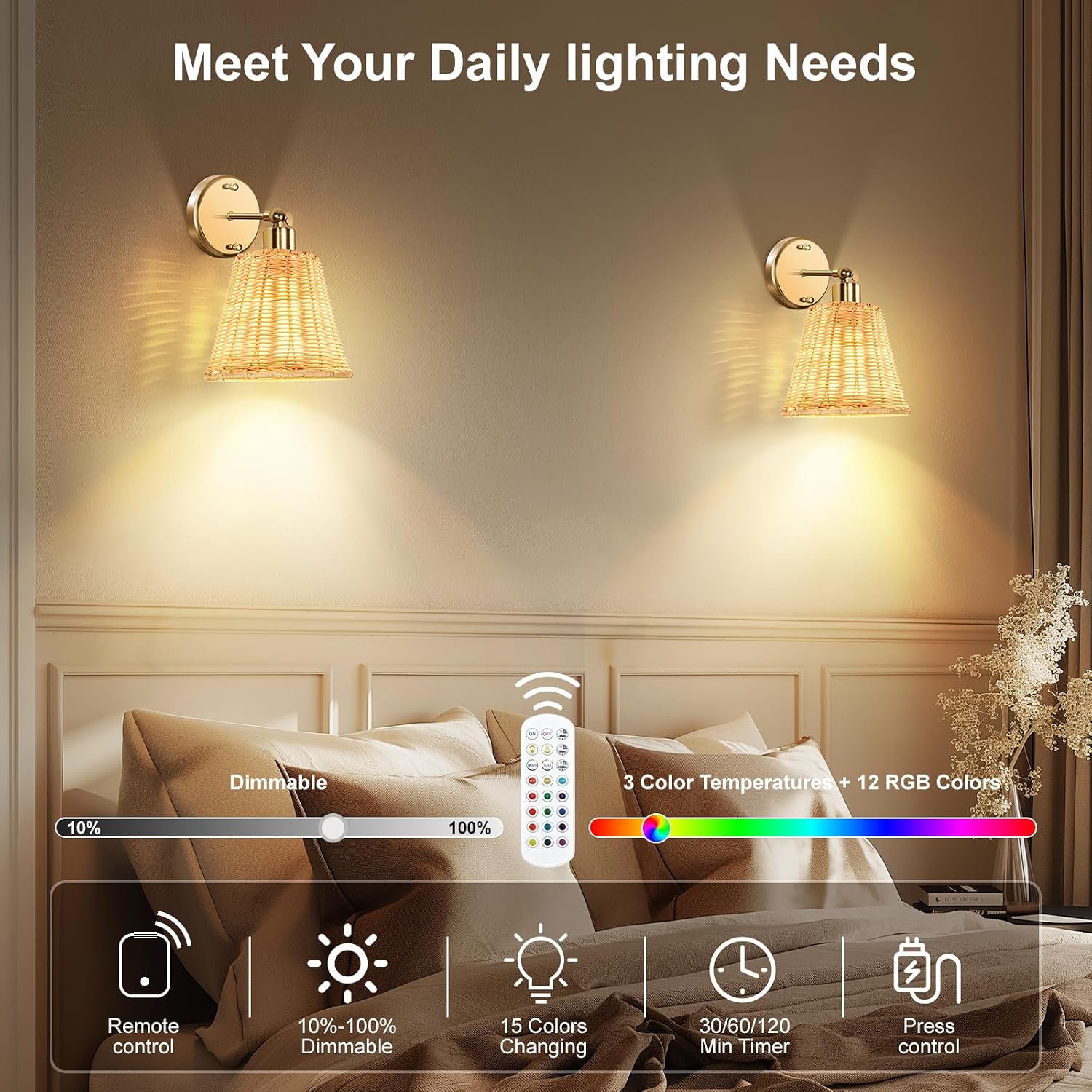

Image: The wall sconces installed in a bedroom, illustrating the various lighting options and control features available via the remote, including dimming, color temperatures, RGB colors, and timer settings.

Image: A close-up of a single wall sconce demonstrating its ability to be adjusted 180 degrees vertically, allowing for flexible light direction.

Image: A wall sconce illuminating a room with various color options, showcasing the 15 selectable colors available to customize lighting effects.

Image: A visual guide showing the 10 dimmable brightness levels of the sconces, from 10% to 100%, and illustrating the "Smoothing" (auto color changing) and "Flashing" (quick color flash) modes.

Image: A wall sconce in a living room setting, indicating the maximum remote control range of 14.76 feet (4.5 meters) for convenient operation.

Battery Life and Recharging

The 5200mAh rechargeable battery offers extended illumination:

• Up to 40 hours in night lighting mode.
• Up to 20 hours at the highest brightness setting.

Recharge the bulbs using the provided Type-C USB cables when the light dims or turns off. A full charge takes approximately 5 hours.

Product Video Demonstration

Maintenance

To ensure optimal performance and appearance of your Frideko Rattan Wall Sconces, follow these simple maintenance guidelines:

• Cleaning: Gently wipe the rattan shade and metal base with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish.
• Bulb Care: Handle the LED bulbs with care. When recharging, ensure the Type-C cable is inserted correctly to prevent damage to the charging port.
• Storage: If storing the sconces for an extended period, ensure the bulbs are fully charged and store them in a cool, dry place.

Troubleshooting

If you encounter any issues with your Frideko Rattan Wall Sconces, please refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact customer support for further assistance.

Specifications

Warranty Information

Specific warranty details for the Frideko Rattan Rechargeable Battery Operated Wall Sconces are not provided in this manual. For information regarding product warranty, please refer to the product packaging, purchase documentation, or contact the manufacturer directly.

Customer Support

For any questions, technical assistance, or support regarding your Frideko Rattan Rechargeable Battery Operated Wall Sconces, please contact the manufacturer or seller through the following channels:

• Manufacturer/Brand: FRIDEKO HOME
• Seller: Easric
• Online Store: Visit the FRIDEKO HOME Store on Amazon for product information and contact options.
• Refer to your purchase platform for direct messaging or contact details for the seller.
