WATER LEVEL FLOAT SWITCH USER MANUAL

Model: 345365 | Brand: JATJ SPACE

1. Product Overview

This manual provides essential information for the installation, operation, and maintenance of the JATJ SPACE Water Level Float Switch, Model 345365. This component is designed for use in various ice maker machines, including models from Simag, Scotsman, and Icematic, to accurately monitor and control water levels.

JATJ SPACE Water Level Float Switch with a white float, metal arm, and black switch body, accompanied by a screw, washer, and nut.

Figure 1: JATJ SPACE Water Level Float Switch (Front View)

JATJ SPACE Water Level Float Switch with a light grey float, metal arm, and black switch body.

Figure 2: JATJ SPACE Water Level Float Switch (Alternate View)

2. Key Features

  • Designed for precise water level detection in ice maker machines.
  • Compatible with various brands including BARLINE, HENDI, HORECAPARTS, ICEMATIC, SCOTSMAN, and SIMAG.
  • Electrical specifications: 250V, 16A, 1CO (Changeover) contact.
  • Features male faston 6.3mm connectors for easy installation.
  • Compact design with a length of 150mm.
  • Operates reliably in ambient temperatures up to 125°C.

3. Technical Specifications

Table showing technical details: voltage 250V, switching capacity 16A, function 1CO, connector male faston 6.3mm, length 150mm, ambient temperature max. 125°C, mounting distance 23mm, actuating force 5g, color black.

Figure 3: Technical Specifications Overview

Detailed Specifications
ParameterValue
Voltage250 V
Switching Capacity16 A
Function1CO (Changeover)
ConnectorMale Faston 6.3mm
Length150 mm
Ambient Temperature Max.125°C
Mounting Distance23 mm
Actuating Force5 g
ColorBlack
Package Dimensions5 x 4 x 3 inches
Country of OriginChina
Item Model Number345365

4. Compatibility

This float switch is compatible with a wide range of ice maker machines. Please verify your appliance's model number or OEM part number against the lists below to ensure compatibility.

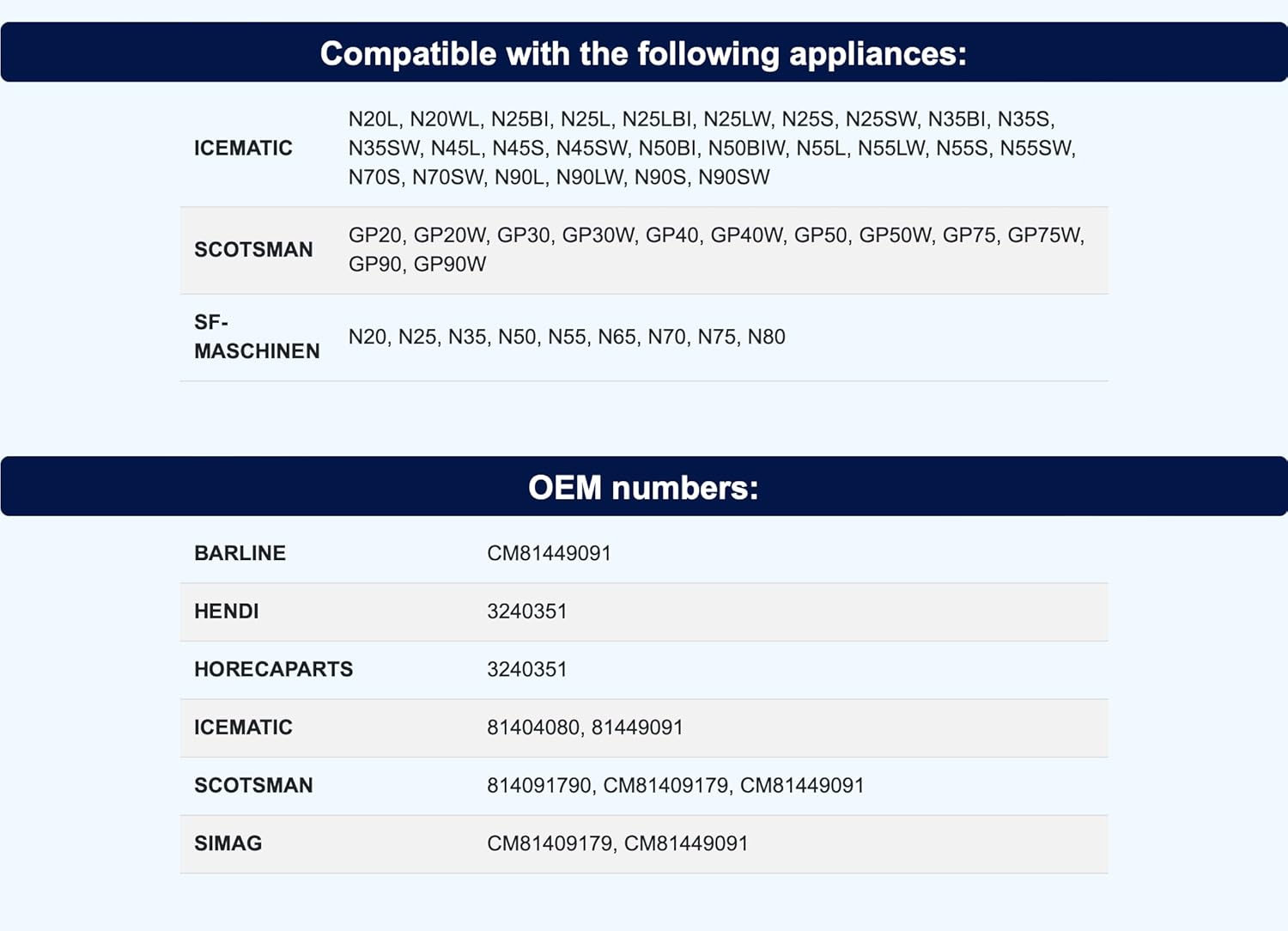

Table showing compatible appliances and OEM numbers. Compatible with Icematic, Scotsman, SF-Maschinen. OEM numbers for Barline, Hendi, Horecaparts, Icematic, Scotsman, Simag.

Figure 4: Compatibility and OEM Numbers

4.1. Compatible Appliances

BrandCompatible Models
ICEMATICN20L, N20WL, N25BI, N25L, N25LBI, N25LW, N25S, N25SW, N35BI, N35S, N35SW, N45L, N45S, N45SW, N50BI, N50BIW, N55L, N55LW, N55S, N55SW, N70S, N70SW, N90L, N90LW, N90S, N90SW
SCOTSMANGP20, GP20W, GP30, GP30W, GP40, GP40W, GP50, GP50W, GP75, GP75W, GP90, GP90W
SF-MASCHINENN20, N25, N35, N50, N55, N65, N70, N75, N80

4.2. OEM Numbers

BrandOEM Part Numbers
BARLINECM81449091
HENDI3240351
HORECAPARTS3240351
ICEMATIC81404080, 81449091
SCOTSMAN814091790, CM81409179, CM81449091
SIMAGCM81409179, CM81449091

5. Installation and Setup

Important: Installation of this float switch should only be performed by a qualified technician or service professional. Incorrect installation can lead to appliance malfunction, damage, or electrical hazards.

5.1. Safety Precautions

  • Always disconnect power to the ice maker machine before beginning any installation or maintenance work.
  • Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
  • Ensure all electrical connections are secure and properly insulated.
  • Refer to the specific service manual for your ice maker machine for detailed wiring diagrams and component locations.

5.2. Installation Steps (General)

  1. Locate the existing float switch or the designated mounting position within the ice maker's water reservoir or collection area.
  2. Carefully disconnect any wiring from the old float switch, noting the connection points.
  3. Remove the old float switch from its mounting bracket or position.
  4. Install the new JATJ SPACE float switch, ensuring it is securely fastened at the correct water level sensing height. The mounting distance is 23mm.
  5. Connect the electrical wiring to the new float switch's male faston 6.3mm terminals, ensuring correct polarity if applicable.
  6. Verify that the float arm moves freely and is not obstructed.
  7. Once installed, restore power to the ice maker and test its operation to confirm the float switch is functioning correctly.

6. Operation

The water level float switch operates automatically to maintain the correct water level within the ice maker machine. When the water level drops below a predetermined point, the float switch activates, signaling the machine to refill the water reservoir. Conversely, when the water level reaches the desired maximum, the float switch deactivates, stopping the water intake.

No user intervention is required for the operation of the float switch itself, as it is an internal component of the ice maker's control system.

7. Maintenance

Regular maintenance of the ice maker machine, including the water reservoir and components like the float switch, is crucial for optimal performance and longevity.

7.1. Cleaning

  • Periodically inspect the float switch and its surrounding area for mineral deposits, scale buildup, or debris.
  • If buildup is present, disconnect power to the machine and carefully clean the float and arm using a soft brush and a mild, food-safe descaling solution or vinegar.
  • Rinse thoroughly with clean water after cleaning to remove any residue.
  • Ensure the float moves freely after cleaning.

7.2. Inspection

  • Check the electrical connections to the float switch for any signs of corrosion or looseness.
  • Examine the float arm for any bends or damage that could impede its movement.
  • Ensure the float itself is not waterlogged or damaged, which could affect its buoyancy.

8. Troubleshooting

If your ice maker machine is experiencing issues related to water level, the float switch may be a contributing factor. Always consult your ice maker's specific service manual for comprehensive troubleshooting steps.

8.1. Common Issues and Solutions

ProblemPossible CauseSolution
Ice maker not filling with water.Float switch stuck in "full" position or faulty.Inspect float for obstructions or damage. Clean if necessary. Test switch continuity with a multimeter. Replace if faulty.
Ice maker overfilling with water.Float switch stuck in "empty" position or faulty.Inspect float for obstructions or damage. Clean if necessary. Test switch continuity. Replace if faulty.
Intermittent water level issues.Loose electrical connections or minor debris.Check and secure all electrical connections. Perform thorough cleaning of the float switch area.

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified service technician.

9. Warranty Information

Specific warranty details for the JATJ SPACE Water Level Float Switch are not provided within this manual. Please refer to the product packaging, purchase documentation, or contact your retailer or the manufacturer directly for warranty terms and conditions.

10. Customer Support

For technical assistance, replacement parts, or further inquiries regarding the JATJ SPACE Water Level Float Switch, please contact your point of purchase or refer to the contact information provided by the manufacturer or distributor.

When contacting support, please have your product model number (345365) and any relevant purchase details ready.
