JATJ SPACE 9000W 230V Heating Element User Manual

1. Product Overview

This document provides essential information for the installation, operation, and maintenance of the JATJ SPACE 9000W 230V Heating Element, Model 415550. This heating element is designed for specific commercial and industrial applications requiring high-power heating.

It is crucial to read and understand all instructions before attempting installation or use to ensure safety and proper function.

Figure 1: Front view of the JATJ SPACE 9000W 230V Heating Element. This image displays the coiled heating tubes and the mounting flange with electrical terminals.

2. Technical Specifications

The following table details the key technical specifications of the heating element.

Figure 2: Detailed technical specifications including power, voltage, dimensions, and connection types.

Additional product details:

• Package Dimensions: 5 x 4 x 3 inches
• ASIN: B0D7C9LQVR
• Date First Available: June 18, 2024

3. Compatibility

This heating element is compatible with various appliances from different manufacturers. Please verify the part numbers below to ensure compatibility with your specific equipment.

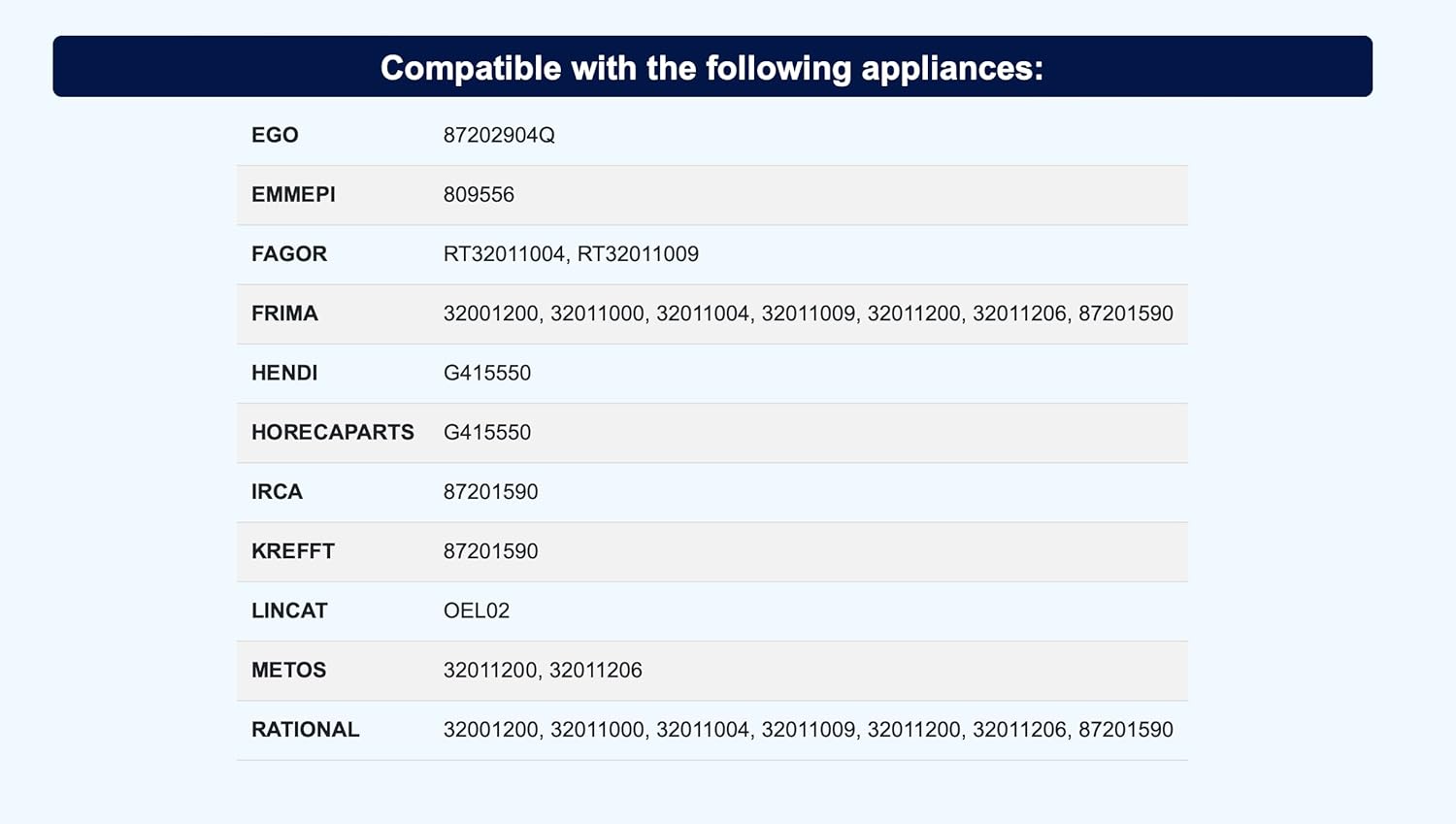

Figure 3: Table listing compatible appliance brands and their corresponding part numbers.

Note: The OEM numbers image also provides similar compatibility information. Always cross-reference with your appliance's specific requirements.

Figure 4: Table displaying OEM numbers for various brands, indicating cross-compatibility.

4. Installation and Setup

WARNING: Installation should only be performed by a qualified technician. Disconnect all power to the appliance before beginning installation. Failure to do so may result in electric shock, injury, or damage to equipment.

This heating element is an electrical component. Proper installation is critical for safety and performance. Due to the specialized nature of this part, detailed step-by-step instructions for every possible appliance are beyond the scope of this general manual. Refer to your appliance's specific service manual for precise installation procedures.

4.1 General Installation Guidelines

1. Safety First: Ensure the appliance is completely disconnected from its power source.
2. Access: Gain access to the existing heating element within the appliance. This may involve removing panels or covers.
3. Disconnection: Carefully disconnect the electrical wiring from the old heating element. Note the wiring configuration for correct re-connection.
4. Removal: Unfasten and remove the old heating element. Be aware of any gaskets or seals that may need replacement.
5. Inspection: Inspect the mounting area for any damage or corrosion. Clean as necessary.
6. New Element Placement: Insert the new JATJ SPACE heating element (Model 415550) into position, ensuring the flange aligns correctly with the mounting holes.
7. Secure Mounting: Secure the element using appropriate fasteners. Ensure a tight seal if applicable to prevent leaks.
8. Electrical Connection: Reconnect the electrical wiring to the new element's terminals (Male Faston 6.3mm) according to the original configuration. Ensure all connections are secure and properly insulated.
9. Thermostat Sleeve: If applicable, ensure the thermostat sleeve is correctly positioned and secured.
10. Reassembly: Reassemble any panels or covers removed during the process.
11. Testing: After reassembly, carefully restore power to the appliance and test the heating function according to the appliance's operational guidelines.

Figure 5: Close-up view of the heating element's flange and electrical terminals, showing the Male Faston 6.3mm connections.

5. Operation

The JATJ SPACE 9000W 230V Heating Element is a component part and does not have independent operational controls. Its function is entirely dependent on the appliance it is installed within. Once correctly installed, the heating element will operate as part of the appliance's heating system.

Refer to your appliance's user manual for instructions on how to operate the appliance and its heating functions. Ensure the appliance is used within its specified voltage and power limits (230V, 9000W for this element).

6. Maintenance

The heating element itself typically requires minimal maintenance. However, regular inspection and proper care of the appliance it is installed in can prolong its lifespan and ensure efficient operation.

6.1 Recommended Maintenance Practices

• Regular Inspection: Periodically inspect the heating element and its connections for signs of wear, corrosion, or damage. This should be done by a qualified technician.
• Cleaning: If the element is exposed to water or other substances, ensure the appliance is regularly descaled or cleaned according to its manufacturer's guidelines to prevent buildup that can reduce heating efficiency or cause damage.
• Electrical Connections: Ensure all electrical connections remain tight and free from corrosion.
• Gaskets/Seals: Check the integrity of any gaskets or seals around the element's mounting flange to prevent leaks.

CAUTION: Always disconnect power to the appliance before performing any inspection or maintenance.

7. Troubleshooting

Troubleshooting issues related to the heating element typically involves diagnosing problems with the appliance's heating function. Since the heating element is a passive component, issues usually stem from its installation, electrical supply, or failure of the element itself.

7.1 Common Issues and Solutions

For complex issues, it is highly recommended to contact a qualified appliance repair technician or the manufacturer of your appliance.

8. Warranty and Support

For information regarding warranty coverage for the JATJ SPACE 9000W 230V Heating Element, please refer to the purchase documentation or contact your retailer. Specific warranty terms may vary depending on the point of purchase.

For technical support or further assistance, please contact the seller or the manufacturer of the appliance in which this heating element is installed.
