NaNaLazy Wearable Breast Pump User Manual

1. Introduction

Thank you for choosing the NaNaLazy Wearable Breast Pump. This device is designed to provide a convenient and efficient breast pumping experience, allowing for hands-free operation. It features multiple modes and suction levels, a long-lasting battery, and a low-noise design for discreet use. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your breast pump.

2. Safety Information

• Always read all instructions before using the breast pump.
• Keep the device out of reach of children.
• Do not immerse the motor unit in water or other liquids.
• Use only the original power adapter and components provided by the manufacturer.
• Inspect all components for damage before each use. Discard and replace any damaged parts.
• Ensure all parts are clean and dry before assembly and use.
• If you experience pain or discomfort during pumping, discontinue use and consult a healthcare professional.
• This product is for personal use only. Do not share with others.

3. Product Overview

3.1 Components

The NaNaLazy Wearable Breast Pump package includes the following main components:

• Breast Pump Motor Unit (with LED Display)
• Milk Collector Cup (6oz/180ml capacity)
• Silicone Flange (24mm)
• Silicone Diaphragm
• Valve
• USB Charging Cable

Figure 1: NaNaLazy Wearable Breast Pump (2-pack shown)

3.2 Key Features

• Hands-Free Design: Allows for discreet and convenient pumping.
• Multiple Modes & Levels: Features 3 distinct modes and 9 adjustable suction levels for personalized comfort and efficiency.
• Long Battery Life: Equipped with a 1200mAh battery, providing approximately 180 minutes (6-8 sessions) of use on a full charge.
• Low Noise Operation: Operates at less than 40 dB, ensuring minimal disturbance.
• Safe Materials: Made from food-grade soft silicone, BPA-free, skin-friendly, and soft to the touch.
• Leak-Proof Design: Features a one-direction silicone valve to prevent milk backflow and an increased container sealing edge to protect against leaks.
• Easy to Clean: All parts are detachable for thorough cleaning.

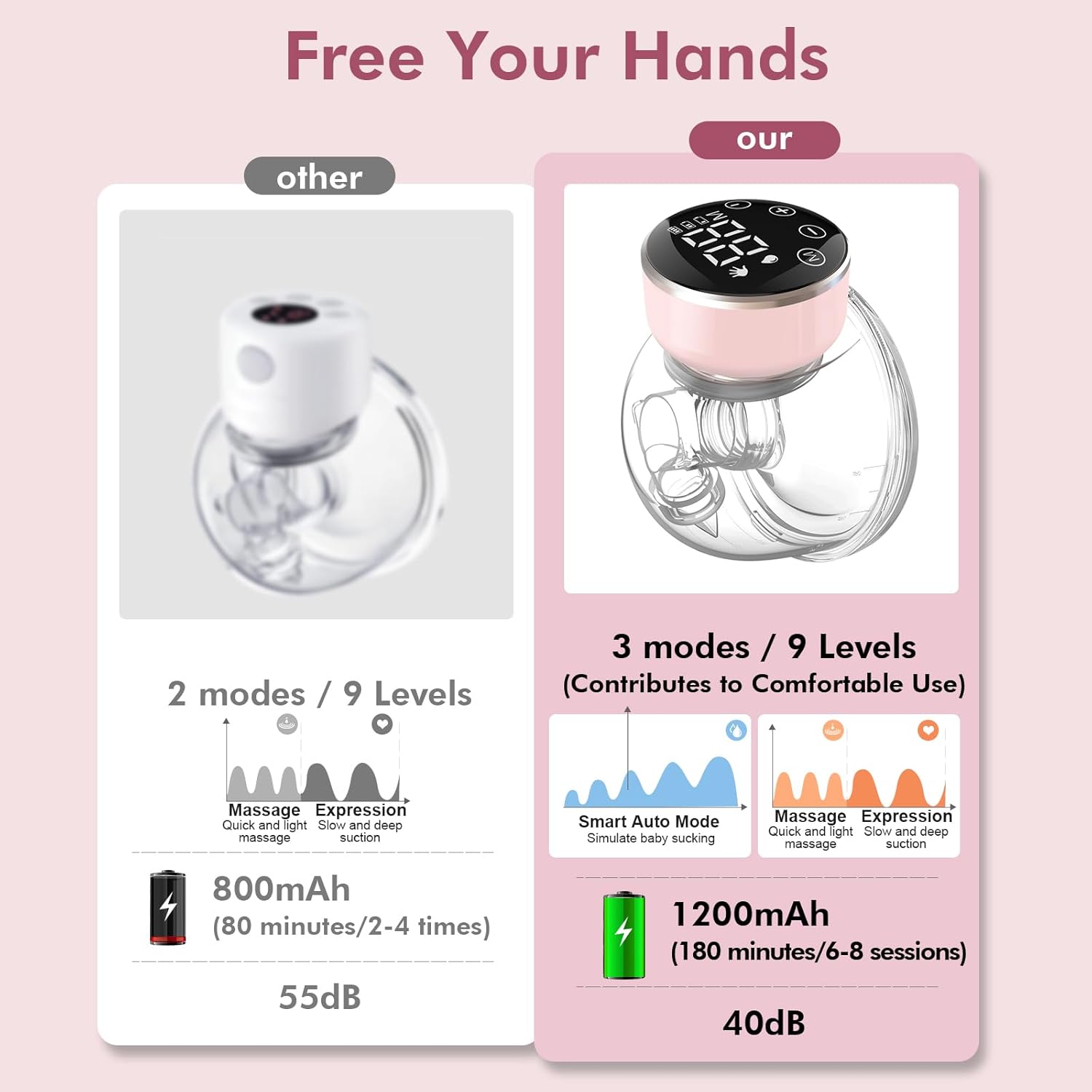

Figure 2: Feature Comparison

4. Setup

4.1 Initial Cleaning

Before first use, disassemble all parts that come into contact with breast milk (milk collector cup, flange, diaphragm, valve) and wash them thoroughly with warm soapy water. Rinse well and sterilize according to your preferred method (boiling, steam sterilizer, or dishwasher safe). Ensure all parts are completely dry before assembly.

4.2 Assembly

1. Insert the valve firmly into the bottom of the milk collector cup.
2. Place the silicone diaphragm onto the top of the milk collector cup, ensuring a tight seal.
3. Attach the silicone flange to the milk collector cup, aligning the edges properly.
4. Finally, connect the motor unit to the assembled milk collector cup, ensuring it clicks securely into place.

4.3 Charging the Battery

Before first use, fully charge the breast pump motor unit. Connect the provided USB charging cable to the charging port on the motor unit and plug the other end into a compatible USB power source (e.g., wall adapter, computer USB port). The LED display will indicate charging status. A full charge provides approximately 180 minutes of operation.

5. Operating Instructions

5.1 Wearing the Pump

Once assembled, position the breast pump with the flange centered over your nipple. Ensure a comfortable and secure fit. The hands-free design allows the pump to be worn inside your nursing bra.

Figure 3: Hands-Free Operation

5.2 Powering On and Mode Selection

1. Press and hold the power button on the motor unit to turn on the pump. The LED display will illuminate.
2. The pump typically starts in a gentle massage mode. Press the 'M' button to cycle through the 3 available modes: Massage, Expression, and Smart Auto Mode.
3. Use the '+' and '-' buttons to adjust the suction intensity within each mode. There are 9 levels of suction.

5.3 Pumping Session

Begin with a comfortable suction level and gradually increase it as needed. The pump is designed to mimic a baby's natural feeding rhythm. The device features an auto shut-off function after 30 minutes of continuous operation to prevent over-pumping and conserve battery life.

Figure 4: Quiet Operation for Peaceful Environments

5.4 After Pumping

1. Press the power button to turn off the pump.
2. Carefully remove the pump from your breast.
3. Detach the motor unit from the milk collector cup.
4. Pour the expressed milk into a sterile storage container.
5. Proceed to clean all parts that came into contact with milk as described in the Maintenance section.

5.5 Flange Sizing

The NaNaLazy wearable breast pump comes with a 24mm flange. This size is suitable for nipple diameters ranging from 13mm to 24mm. Ensure the flange fits comfortably around your nipple without pinching or excessive space. Incorrect flange size can lead to discomfort and reduced milk expression. If a different size is needed, accessories may be purchased separately.

6. Maintenance

6.1 Cleaning

Regular cleaning of your breast pump is crucial for hygiene and optimal performance. All parts that come into contact with breast milk are detachable and easy to clean.

1. Disassembly: Separate all components: motor unit, milk collector cup, flange, diaphragm, and valve.
2. Washing: Wash all milk-contacting parts immediately after each use with warm water and mild dish soap. Use a soft brush to clean crevices.
3. Rinsing: Rinse thoroughly under running water to remove all soap residue.
4. Sterilization: Sterilize parts regularly. They are dishwasher safe (top rack recommended) or can be sterilized by boiling for 5 minutes or using a steam sterilizer.
5. Drying: Air dry all parts on a clean drying rack. Do not use cloth towels as they may leave lint. Ensure parts are completely dry before reassembly or storage to prevent mold or bacterial growth.

Note: The motor unit should never be washed or immersed in water. Wipe it clean with a damp cloth if necessary.

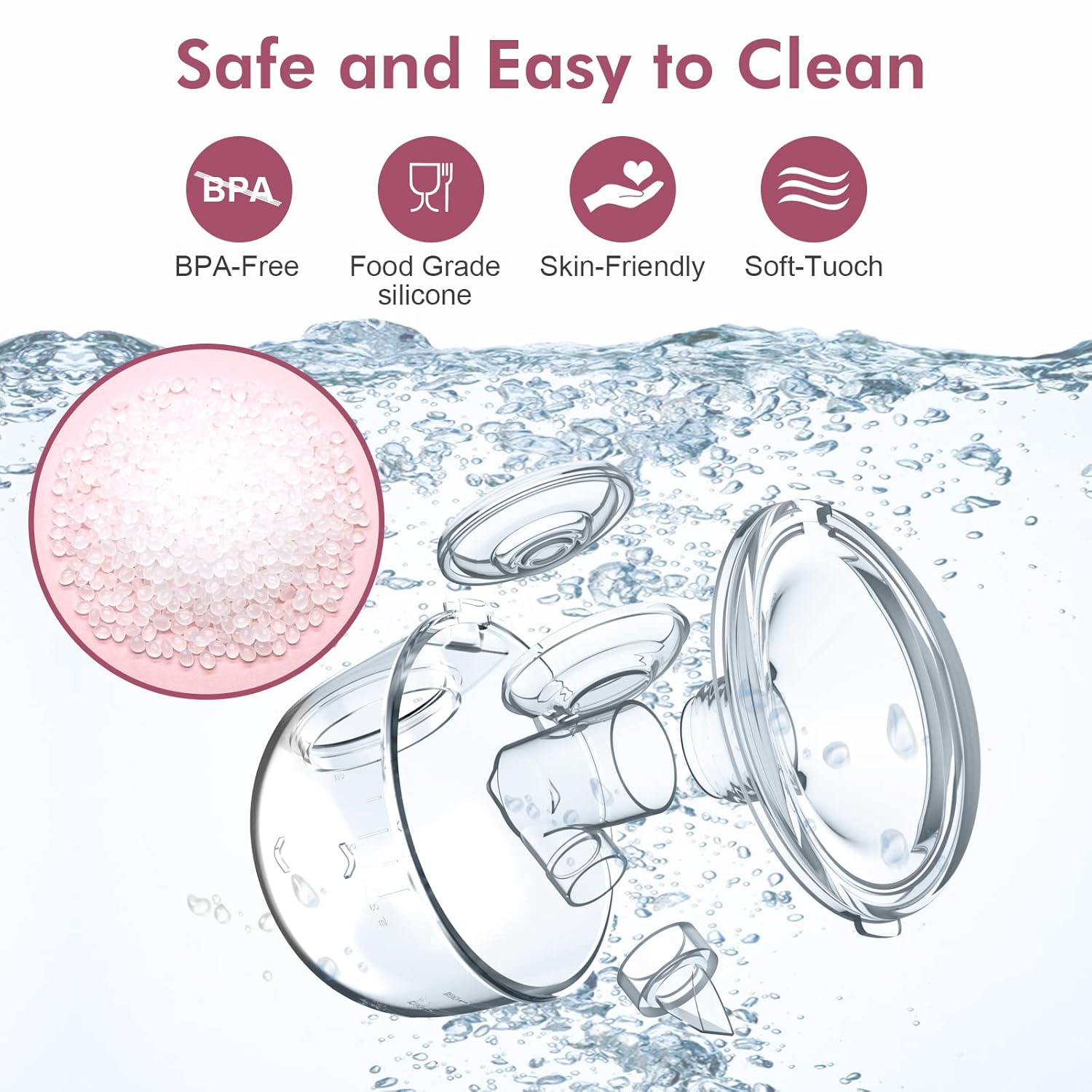

Figure 5: Safe and Easy Cleaning

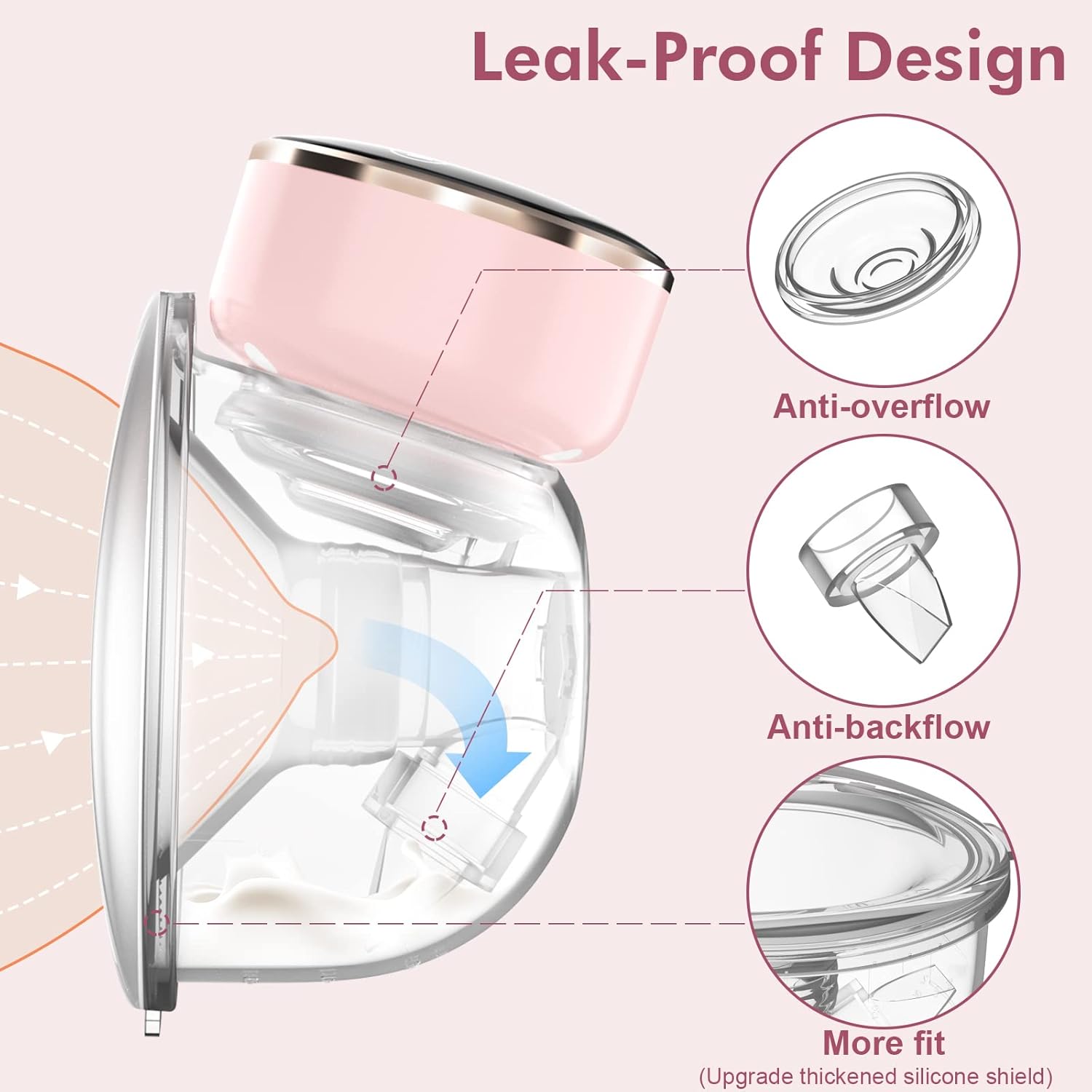

Figure 6: Leak-Proof Design Features

6.2 Storage

Store the clean and dry breast pump components in a clean, dry place away from direct sunlight and extreme temperatures. Keep the motor unit separate from the milk-contacting parts when storing for extended periods.

7. Troubleshooting

If you encounter issues with your NaNaLazy Wearable Breast Pump, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact NaNaLazy customer support.

8. Specifications

• Model Number: QY-102
• Material: Food-grade Silicone
• Battery Capacity: 1200mAh Lithium Ion
• Operating Time: Approximately 180 minutes (6-8 sessions) per full charge
• Modes: 3 (Massage, Expression, Smart Auto Mode)
• Suction Levels: 9
• Noise Level: < 40 dB
• Milk Collector Capacity: 6oz / 180ml
• Flange Size: 24mm (suitable for nipple diameters 13mm-24mm)
• Product Dimensions: 11.2 x 14.02 x 8.59 cm
• Item Weight: 720 g
• Dishwasher Safe: Yes (milk-contacting parts)

9. Warranty and Support

NaNaLazy is committed to providing high-quality products. While specific warranty details are not provided in this manual, if you have any questions or concerns about your product, the NaNaLazy team will respond to you within 24 hours.

For customer support, please contact:

Email: nanalazy_india@163.com

Please provide your model number (QY-102) and a detailed description of your issue when contacting support.
