1. Important Safety Information
Always wear a helmet and appropriate protective gear (wrist guards, elbow pads, knee pads) when riding the scooter. Adult supervision is recommended, especially for younger riders.
Do not ride the scooter in traffic or on wet, uneven, or slippery surfaces. Avoid riding at night or in low visibility conditions unless the scooter's lights are fully functional and visible.
Ensure all locking mechanisms are securely engaged before each ride. The maximum load capacity for this scooter is 220 lbs (100 kg).
This scooter is designed for users aged 6 and up.
2. Product Overview
The BELEEV V8 Scooter is a versatile 2-wheel folding scooter designed for kids, teens, and adults. It features a sturdy aluminum frame and a light-up deck for enhanced visibility and style.
Key Features:
- Light-Up Deck & Stem: Equipped with battery-powered LED lights offering 6 color effects for increased visibility and a unique look.
- Light-Up Wheels: LED flashing glowing wheels that require no batteries; they light up brighter the faster you ride.
- Adjustable Handlebar: Features a wide T-bar that adjusts to 4 different heights (80cm/31.5in, 89cm/35in, 96cm/37.8in, 104cm/40.9in) to accommodate various rider heights.
- Durable Construction: Sturdy aluminum frame and deck support riders up to 220 lbs.
- Smooth Ride: 200mm high-rebound PU extra-large wheels with ABEC-7 bearings and a shock absorption mechanism provide a comfortable ride on various surfaces.
- Easy to Fold & Carry: One-click folding system for compact storage and portability, includes a carry strap.
- Responsive Steering: 150-degree steering for natural movement, aiding in coordination and balance.
- Reliable Braking: Rear foot brake with reflective tape for quick and easy stopping.
- Handy Kickstand: Integrated kickstand for convenient upright parking.
Figure 2.1: The BELEEV V8 Scooter, shown both unfolded for riding and compactly folded for storage.

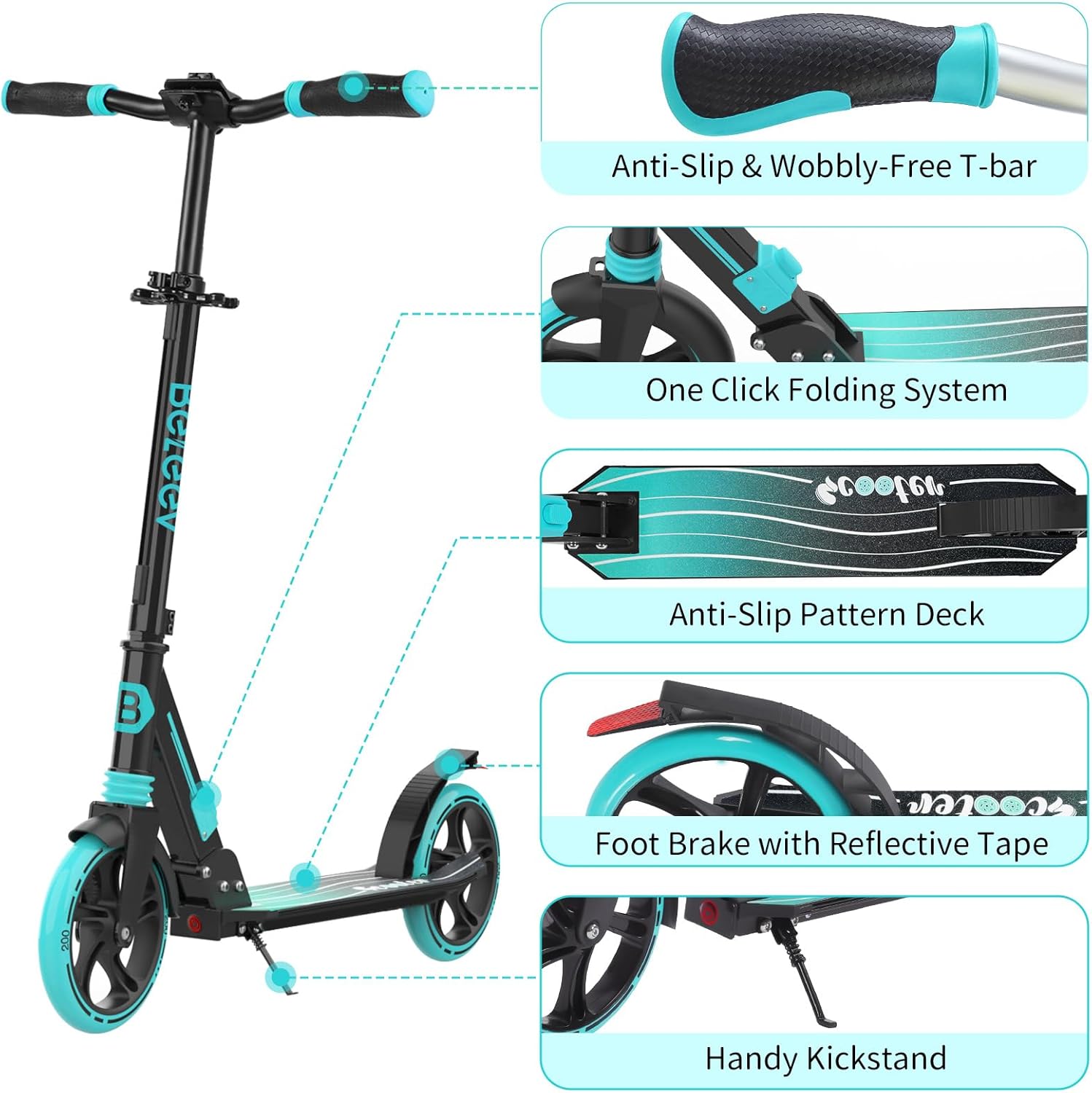

Figure 2.2: Key components of the BELEEV V8 Scooter, including the anti-slip T-bar, one-click folding system, anti-slip deck, foot brake with reflective tape, and handy kickstand.
3. Setup
3.1 Unfolding the Scooter
The BELEEV V8 Scooter comes pre-assembled and requires no complex setup. Simply unfold the T-tube until it locks into place. Ensure the folding mechanism is securely latched before use.
3.2 Adjusting Handlebar Height
To adjust the handlebar height, locate the quick-release clamp on the T-bar. Open the clamp, press the button on the stem, and slide the T-bar to your desired height setting. Ensure the button snaps into one of the four height adjustment holes. Close the quick-release clamp firmly to secure the handlebar.
Figure 3.1: The handlebar can be adjusted to four different heights to suit riders of various ages and sizes.
3.3 Installing Batteries for LED Lights
The LED lights on the stem and deck require 4 AA batteries (not included). Locate the battery compartment, typically on the underside of the deck. Open the compartment cover, insert the batteries according to the polarity indicators, and close the cover securely. The light-up wheels do not require batteries as they are powered by kinetic energy.
Figure 3.2: The scooter features LED lights on the stem and deck, which can be turned on or off via a button, offering various color effects.
Video 3.1: Official BELEEV V8 Scooter demonstration, highlighting its features and ease of use for kids aged 6+.
4. Operating Instructions
4.1 Riding the Scooter
Place one foot firmly on the textured non-slip deck. Use your other foot to push off the ground, gaining momentum. Once moving, place both feet on the deck, one behind the other, or side-by-side if preferred, maintaining balance.
4.2 Steering
The BELEEV V8 features 150-degree responsive steering, similar to a bicycle. To steer, gently turn the handlebars in the desired direction. The T-bar lock ensures a steady ride, preventing wobbling even on uneven surfaces.
4.3 Braking
To slow down or stop, apply pressure to the rear foot brake located above the back wheel. Press down firmly with your heel until the scooter comes to a controlled stop.
Figure 4.1: The scooter's 200mm PU wheels, ABEC-7 bearings, and front suspension system ensure a speedy and smooth ride.
5. Folding and Storage
The BELEEV V8 Scooter is designed for easy folding and compact storage. To fold, ensure the handlebar is at its lowest setting. Locate the one-click folding button near the base of the T-tube. Press the button and gently fold the T-tube down towards the deck until it locks into the folded position.
Once folded, the scooter is lightweight (approx. 9.5 lbs) and can be easily carried using the included carry strap. This makes it ideal for transport in a car or for storing in small spaces.

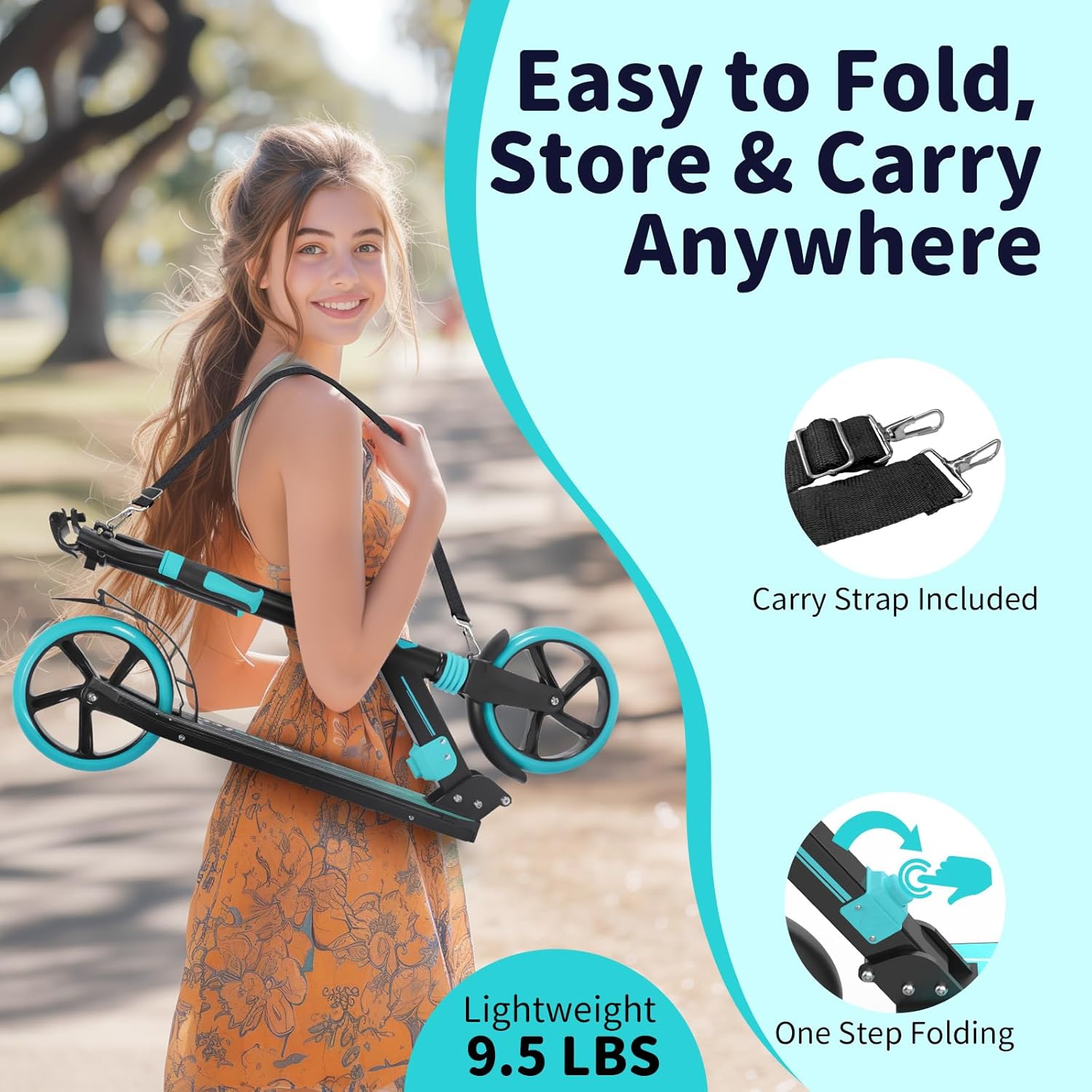

Figure 5.1: The scooter folds easily and includes a carry strap for convenient portability.
6. Maintenance
- Cleaning: Wipe the scooter clean with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Inspections: Regularly check all bolts, screws, and locking mechanisms to ensure they are tight and secure.
- Wheels & Bearings: Inspect wheels for wear and tear. Ensure bearings are clean and spinning freely. Replace worn parts as necessary.
- Brake: Check the rear brake for proper function and wear.
- Battery Compartment: If the deck/stem lights are not working, check the batteries and replace them if drained. Ensure the compartment is dry and free of corrosion.
7. Troubleshooting
- Lights Not Working:
- For deck/stem lights: Check battery installation and replace batteries if drained.
- For wheel lights: Ensure wheels are spinning fast enough to generate power.
- Wobbly Handlebar:
- Ensure the quick-release clamp is tightly secured.
- Verify the height adjustment button is fully engaged in a hole.
- Rough Ride:
- Check wheels for debris or damage.
- Inspect shock absorption mechanism for any issues.
- Brake Not Effective:
- Ensure the brake pad is not excessively worn.
- Check for any obstructions preventing full brake engagement.
8. Specifications
| Brand | BELEEV |
| Model Name | V8 |
| Color | Aqua (Current Product Variant) |
| Age Range (Description) | Big Kid (Ages 6+) |
| Weight Limit | 220 Pounds (approx. 100 kg) |
| Product Dimensions (L x W x H) | 33.89" x 12.8" x 5.51" (86.1 x 32.5 x 14 cm) |
| Item Weight | 9.5 lbs (4.3 Kilograms) |
| Number of Wheels | 2 |
| Wheel Material | Polyurethane (PU) |
| Wheel Size | 200mm |
| Frame Material | Aluminum |
| Handlebar Type | T-bar |
| Brake Style | Rear Braking |
Figure 8.1: Detailed dimensions of the BELEEV V8 Scooter, including height, length, and deck size.
9. Warranty and Support
This BELEEV V8 Scooter comes with a Limited Warranty. For specific warranty details and terms, please refer to the warranty card included in your product packaging or contact BELEEV customer support.
Customer Support:
For any questions, concerns, or support needs regarding your BELEEV V8 Scooter, please contact BELEEV Direct customer service. You can typically find contact information on the product packaging or the official BELEEV website.
Please have your model name (V8) and purchase details ready when contacting support for faster assistance.
