Generic Aluminum Truck Wheels 22.5 x 8.25 inch Instruction Manual

Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your new Generic 22.5 x 8.25 inch Aluminum Truck Wheels. Please read this manual thoroughly before installation and retain it for future reference. Proper care and adherence to these instructions will ensure optimal performance and longevity of your wheels.

Safety Information

• Always ensure wheels are installed by qualified personnel using appropriate tools and safety procedures.
• Verify correct wheel size, bolt pattern, and load capacity match your vehicle's specifications before installation.
• Maintain proper tire inflation pressure as recommended by the tire manufacturer and vehicle manufacturer.
• Regularly inspect wheels for damage, cracks, or signs of wear. Replace damaged wheels immediately.
• Do not exceed the maximum load capacity of 7400 lbs per wheel.

Product Overview and Features

The Generic 22.5 x 8.25 inch Aluminum Truck Wheels are designed for heavy-duty commercial vehicles, offering a combination of durability, efficiency, and aesthetic appeal. These wheels are hub piloted and feature a 10-hole bolt pattern.

Key Features:

• Durable and Lightweight: Forged aluminum construction provides superior strength and resistance to deformation while reducing overall vehicle weight, contributing to improved fuel efficiency.
• Both-Sided Mirror Polishing: High-quality mirror polishing on both sides enhances the appearance of the truck and simplifies cleaning.
• Superior Heat Dissipation: Forged aluminum offers enhanced heat dissipation compared to other hub materials, which helps reduce tire temperature, minimize wear, extend tire life, and support the brake system.
• Wide Vehicle Compatibility: Suitable for Class 8 Trucks, Semi-trucks, Dump Trucks, Tank & Refrigerated Trailers, Van & Flatbed Trailers requiring 22.5" x 8.25" wheels.
• Hub Piloted Design: Ensures precise wheel centering and secure mounting.

Image: A single, mirror-polished aluminum truck wheel, showcasing its reflective surface and hub-piloted design. This image highlights the aesthetic and structural quality of the wheel.

Specifications

Image: A technical diagram illustrating the various dimensions of the 22.5 x 8.25 inch truck wheel, including diameter, width, offset, bore, bolt pattern, and stud/vent hole sizes. This provides a visual reference for the detailed specifications.

Setup and Installation

1. Preparation: Ensure the vehicle is safely lifted and supported. Remove existing wheels. Clean the hub mounting surface thoroughly to remove any rust, dirt, or debris.
2. Inspection: Inspect the new aluminum wheel for any shipping damage. Verify that the wheel's specifications (size, bolt pattern, hub bore) match the vehicle's requirements.
3. Mounting Tires: Mount appropriate tires onto the wheels according to tire manufacturer guidelines. Ensure proper bead seating and inflation.
4. Installation: Carefully position the wheel onto the hub, ensuring it seats flush against the mounting surface. The hub-piloted design ensures correct centering.
5. Fastening: Install lug nuts and hand-tighten them. Lower the vehicle partially so the tires just touch the ground.
6. Torquing: Using a calibrated torque wrench, tighten the lug nuts in a star pattern to the vehicle manufacturer's specified torque settings. Do not over-tighten.
7. Final Check: Lower the vehicle completely. After driving the first 50-100 miles, re-check the lug nut torque to ensure they remain properly tightened.

Image: A close-up view of the wheel's center, clearly showing the 10 lug holes and the hub-piloted design. This illustrates the mounting interface for installation.

Operation Guidelines

• Tire Pressure: Always maintain the recommended tire pressure for your vehicle and load. Incorrect pressure can lead to premature tire wear, reduced fuel efficiency, and unsafe driving conditions.
• Load Capacity: Do not exceed the maximum load capacity of 7400 lbs per wheel. Overloading can cause wheel failure and serious accidents.
• Driving Conditions: While forged aluminum wheels are durable, avoid excessive impacts with potholes or curbs, which can cause damage.
• Regular Checks: Periodically check tire pressure and visually inspect wheels for any signs of damage before each trip.

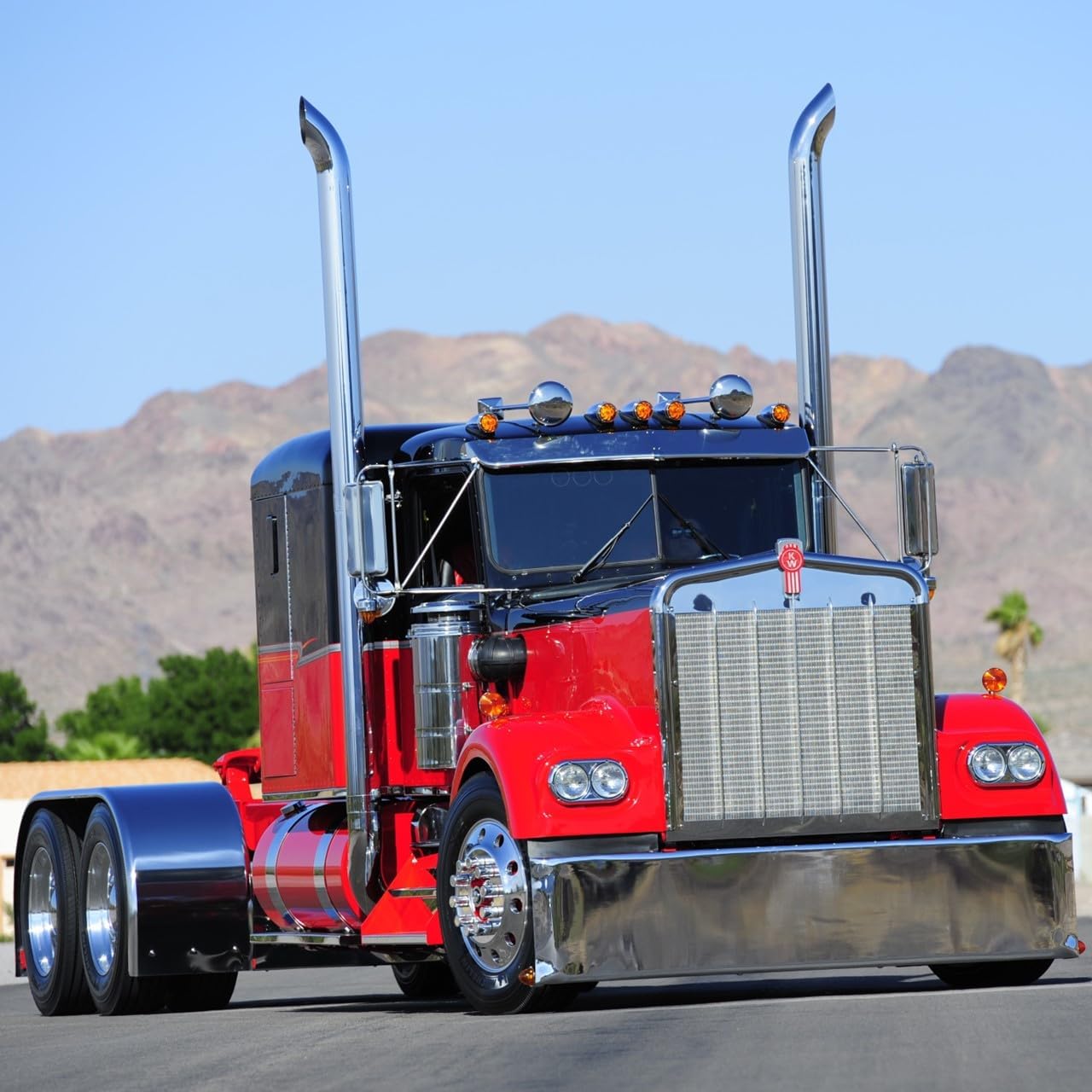

Image: A red semi-truck equipped with polished aluminum wheels, parked on a road with mountains in the background. This image demonstrates the wheels in an operational context on a commercial vehicle.

Maintenance

• Cleaning: The mirror-polished finish is designed for easy maintenance. Clean regularly with mild soap and water to remove dirt, road grime, and brake dust. Avoid abrasive cleaners or harsh chemicals that can damage the finish.
• Inspection: Routinely inspect the wheels for any signs of damage, such as cracks, bends, or corrosion. Pay close attention to the bead seat area and lug holes.
• Tire Rotation: Follow your vehicle manufacturer's recommendations for tire rotation to ensure even wear and extend the life of both tires and wheels.
• Storage: If storing wheels separately, keep them in a cool, dry place away from direct sunlight and harsh chemicals.

Image: A close-up shot of the polished aluminum wheel, emphasizing its smooth surface and the ease with which it can be cleaned with soap and water. This highlights the low-maintenance aspect of the finish.

Troubleshooting

Vibration or Wobble:

Possible Causes:

• Improper wheel balance.
• Loose lug nuts.
• Damaged tire or wheel.
• Debris between wheel and hub.

Solutions:

• Have wheels professionally balanced.
• Re-torque lug nuts to specifications.
• Inspect wheels and tires for damage; replace if necessary.
• Remove wheel and clean hub mounting surface.

Air Leakage:

Possible Causes:

• Improperly seated tire bead.
• Damaged valve stem.
• Puncture in tire.
• Corrosion on wheel bead seat.

Solutions:

• Re-seat tire bead.
• Replace valve stem.
• Repair or replace punctured tire.
• Clean and inspect wheel bead seat for corrosion.

Related Components: TR555D Valve Stems

This video provides an overview of the TR555D clamp-in metal valve stems, which are commonly used with truck wheels. While not included with the wheel itself, understanding valve stem features is important for proper tire mounting and maintenance.

Warranty Information

For specific warranty details regarding your Generic Aluminum Truck Wheels, please refer to the documentation provided at the time of purchase or contact the seller directly. Typically, warranties cover manufacturing defects under normal use and service conditions.

Customer Support

If you have any questions, require technical assistance, or need to report an issue, please contact your point of purchase or the manufacturer's customer service department. Please have your product model number (T171A) and purchase date available when contacting support.
