1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of the SONOTEC SONOFILE Ultrasonic Cutter model SH-3510.HP-8701. Please read this manual thoroughly before using the product and keep it for future reference.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.
- Always ensure the power supply matches the product's specifications (Single-phase AC 200V 50/60Hz).
- Do not operate the cutter with wet hands or in damp environments.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, during operation.
- Keep the work area clean and well-lit.
- Disconnect power before performing any maintenance or changing blades.
- Ensure proper ventilation and, for continuous use, supply air cooling to prevent overheating.
- Do not modify the product or use non-approved accessories.
3. Product Features
The SONOTEC SONOFILE Ultrasonic Cutter SH-3510.HP-8701 is designed for precision cutting tasks, offering robust performance and durability.
- Generates powerful and stable vibrations, suitable for high-load workpieces that are typically difficult to cut.
- Engineered for extended periods of continuous use.
- Utilized in demanding applications such as aircraft component processing.

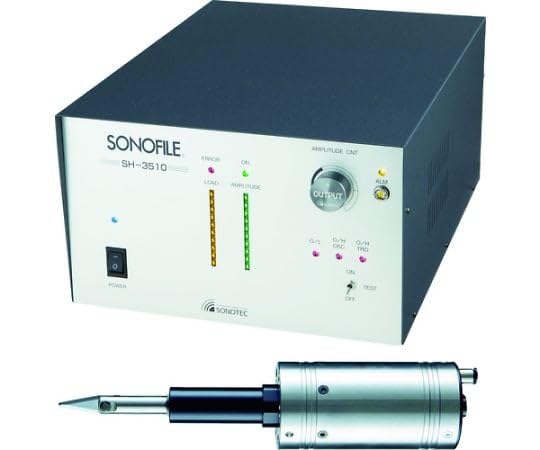

Image 1: The SONOTEC SONOFILE Ultrasonic Cutter SH-3510.HP-8701 unit, showcasing its compact design and main components.
4. Specifications
| Parameter | Value |
|---|---|
| Oscillation Frequency | 24 kHz |
| Oscillator Input | AC 200V, 50/60Hz |
| Oscillator Rated Current | 5 A |
| Oscillator Mass | 10.5 kg |
| Power Consumption (VA) | 1000 VA |
| Power Consumption (W) | 500 W |
| Handpiece Cord Length | 5 m |
| Maximum Output | 500 W |
| Oscillator Dimensions (W×D×H) | 300 × 400 × 200 mm |
| Frequency Adjustment | Automatic tracking type |
| Power Supply | Single-phase AC 200V, 50/60Hz |
| Output Adjustment | Stepless continuous variable type |
| Vibrator Dimensions | φ12 / φ23 / φ55 × L220.8 mm |
| Vibrating Element | PZT electrostrictive vibrator |
| Material/Finish (Blade Holding Part) | Titanium alloy |
| Material/Finish (Case) | SUS303 |
| Country of Origin | Japan |
| Code Number | 760-6508 |
5. Package Contents
Verify that all items listed below are included in your package:
- SONOTEC SONOFILE Ultrasonic Cutter Unit (SH-3510.HP-8701)
- Replacement Blade(s)
- Automatic Machine Connection Plug
- Power Cord
- User Manual (This document)
6. Setup
- Unpacking: Carefully remove all components from the packaging. Retain packaging for future transport or storage.
- Placement: Place the oscillator unit on a stable, level, and dry surface with adequate ventilation.
- Blade Installation: Refer to the specific instructions for installing the replacement blade into the handpiece. Ensure it is securely fastened.
- Connect Handpiece: Connect the handpiece cord to the designated port on the oscillator unit.
- Power Connection: Connect the power cord to the oscillator unit, then plug it into a single-phase AC 200V 50/60Hz power outlet.
- Air Cooling (Optional but Recommended for Continuous Use): If continuous operation is planned, connect an air cooling supply to the designated port to prevent overheating.
7. Operation
- Power On: Turn on the main power switch on the oscillator unit. The unit will perform an automatic frequency adjustment.
- Output Adjustment: Use the stepless continuous variable output adjustment control to set the desired cutting power. Start with a lower setting and gradually increase as needed.
- Cutting: Gently apply the blade to the workpiece. The ultrasonic vibrations will facilitate the cutting process. Avoid excessive force.
- Important Note on Tool Changes: The oscillator settings are sensitive to the specific vibrator and blade used. If you change the vibrator or blade, consult the manufacturer or a qualified technician to ensure proper recalibration or setting adjustments.
- Continuous Use: For prolonged operation, ensure that an air cooling system is actively supplying air to the unit to maintain optimal operating temperature.
- Power Off: After use, turn off the main power switch and disconnect the power cord from the outlet.
8. Maintenance
- Cleaning: Regularly clean the handpiece and oscillator unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Blade Inspection: Inspect blades for wear or damage before each use. Replace dull or damaged blades immediately to ensure optimal performance and safety.
- Cord Inspection: Check the power cord and handpiece cord for any signs of damage (fraying, cuts). Replace if damaged.
- Storage: Store the unit in a clean, dry, and dust-free environment when not in use.
- Professional Servicing: For internal maintenance or repairs, contact qualified service personnel. Do not attempt to open or repair the oscillator unit yourself.
9. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | No power supply; Power cord not connected; Faulty power outlet | Check power cord connection; Verify power outlet functionality; Ensure main switch is ON. |
| No vibration or weak cutting power | Blade improperly installed; Worn or damaged blade; Incorrect output setting; Handpiece cable issue | Reinstall blade correctly; Replace blade; Adjust output setting; Check handpiece cable connection. |
| Unit overheats during continuous use | Insufficient air cooling; Prolonged high-load operation without cooling | Ensure air cooling supply is connected and functioning; Reduce continuous operating time or provide adequate breaks. |
| Unusual noise or vibration | Loose blade; Internal component issue | Check blade tightness; If problem persists, discontinue use and contact service. |
10. Warranty and Support
For warranty information, technical support, or service inquiries, please contact your authorized SONOTEC dealer or the manufacturer directly. Please have your model number (SH-3510.HP-8701) and purchase date available when contacting support.
Manufacturer: SONOTEC
