SONGMICS LGR432B01 Heavy-Duty Clothes Rack Instruction Manual

Introduction

Thank you for choosing the SONGMICS LGR432B01 Heavy-Duty Clothes Rack. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new garment storage solution. Please read these instructions carefully before assembly and retain them for future reference.

Image: The fully assembled SONGMICS LGR432B01 clothes rack, showcasing its large capacity with clothes hanging on multiple rods and items stored on shelves.

Parts List

Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Vertical Poles (various lengths)
• Horizontal Hanger Rods
• Wire Shelves
• Plastic Clips (Taper Locks)
• Adjustable Leveling Feet
• Anti-Tip Kit (Wall anchors and straps)
• Instruction Manual (this document)

Image: A detailed diagram illustrating the overall dimensions (144.4 cm width, 40 cm depth, 193 cm height) and individual load capacities: 190 kg total, 20 kg per hanger pipe, and 15 kg per shelf.

Setup and Assembly

This clothes rack features a tool-free assembly design. Follow these steps for quick and easy setup:

1. Attach Leveling Feet: Screw the adjustable leveling feet into the bottom of the vertical poles. Ensure they are tightened securely.
2. Assemble Vertical Structure: Connect the vertical poles using the plastic clips. Snap the clips onto the poles at the desired height for your shelves. Ensure the clips are securely locked into the grooves on the poles.
3. Install Shelves: Slide the wire shelves over the top of the installed plastic clips. Press down firmly until the shelves rest securely on the clips.
4. Attach Hanger Rods: Secure the horizontal hanger rods between the vertical poles. The rods typically attach using specific clips or by resting on the shelves, depending on the design. Refer to the included diagram for precise attachment points.
5. Adjust Shelf Height: To adjust a shelf's height, remove the shelf, reposition the plastic clips to the desired height (in 2.54 cm increments), and then re-install the shelf.
6. Install Anti-Tip Kit: For enhanced safety, especially in households with children or pets, install the anti-tip kit. Secure the straps to the top of the rack and anchor them to a sturdy wall using the provided hardware.

Image: This image demonstrates the adjustable shelf feature, showing how plastic clips are used to set shelf height in 2.54 cm increments, and the tool-free taper lock design for easy assembly.

Image: A detailed view of how the horizontal hanger rods attach to the vertical poles, ensuring a secure connection for hanging garments.

Operating Instructions

The SONGMICS LGR432B01 clothes rack is designed for versatile garment storage. Follow these guidelines for optimal use:

• Load Capacity: The rack has a total static load capacity of 190 kg. Each hanger pipe can support up to 20 kg, and each wire shelf can hold up to 15 kg. Distribute weight evenly to maintain stability.
• Hanging Garments: Utilize the five hanger rods for hanging clothes such as coats, shirts, and dresses. Ensure hangers are spaced appropriately to prevent overcrowding and allow air circulation.
• Shelf Storage: Use the six adjustable shelves for folded clothing, shoes, bags, or storage boxes. Adjust shelf heights as needed to accommodate different item sizes.
• Stability: Always ensure the rack is placed on a flat, stable surface. Use the adjustable leveling feet to compensate for minor floor unevenness.

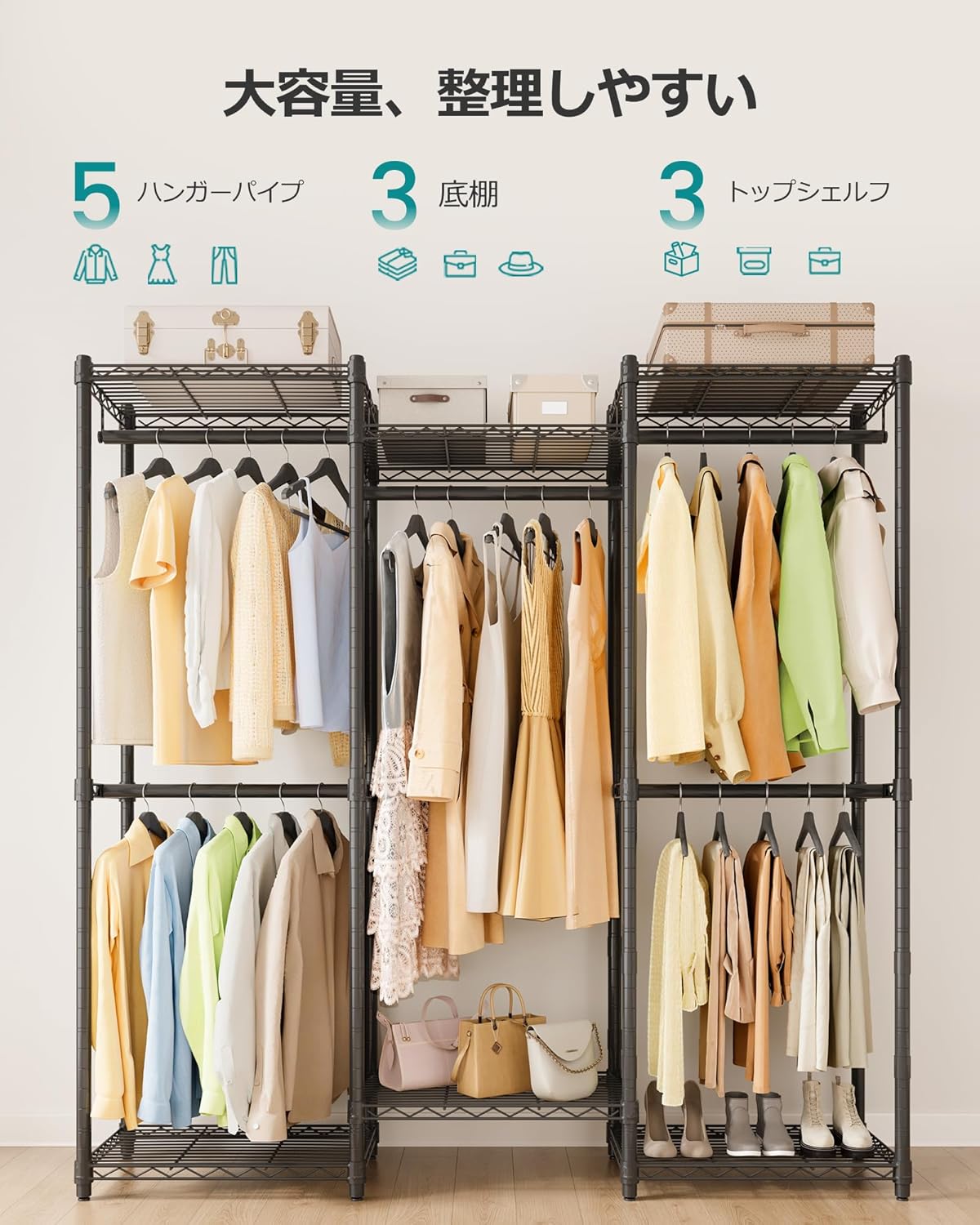

Image: The clothes rack fully utilized, displaying its large storage capacity for both hanging garments and items placed on shelves, organized neatly.

Maintenance

Proper maintenance will ensure the longevity and appearance of your clothes rack:

• Cleaning: Wipe the rack regularly with a soft, damp cloth. For stubborn dirt, use a mild detergent and then wipe dry immediately. Avoid abrasive cleaners or harsh chemicals.
• Rust Prevention: The rack is made of powder-coated steel for rust resistance. To maintain this, avoid prolonged exposure to excessive moisture. If used in a humid environment, ensure good ventilation.
• Stability Check: Periodically check all connections and screws to ensure they are tight. Re-tighten if necessary to maintain structural integrity.
• Anti-Tip Kit: Regularly inspect the anti-tip wall anchors and straps to ensure they remain securely fastened.

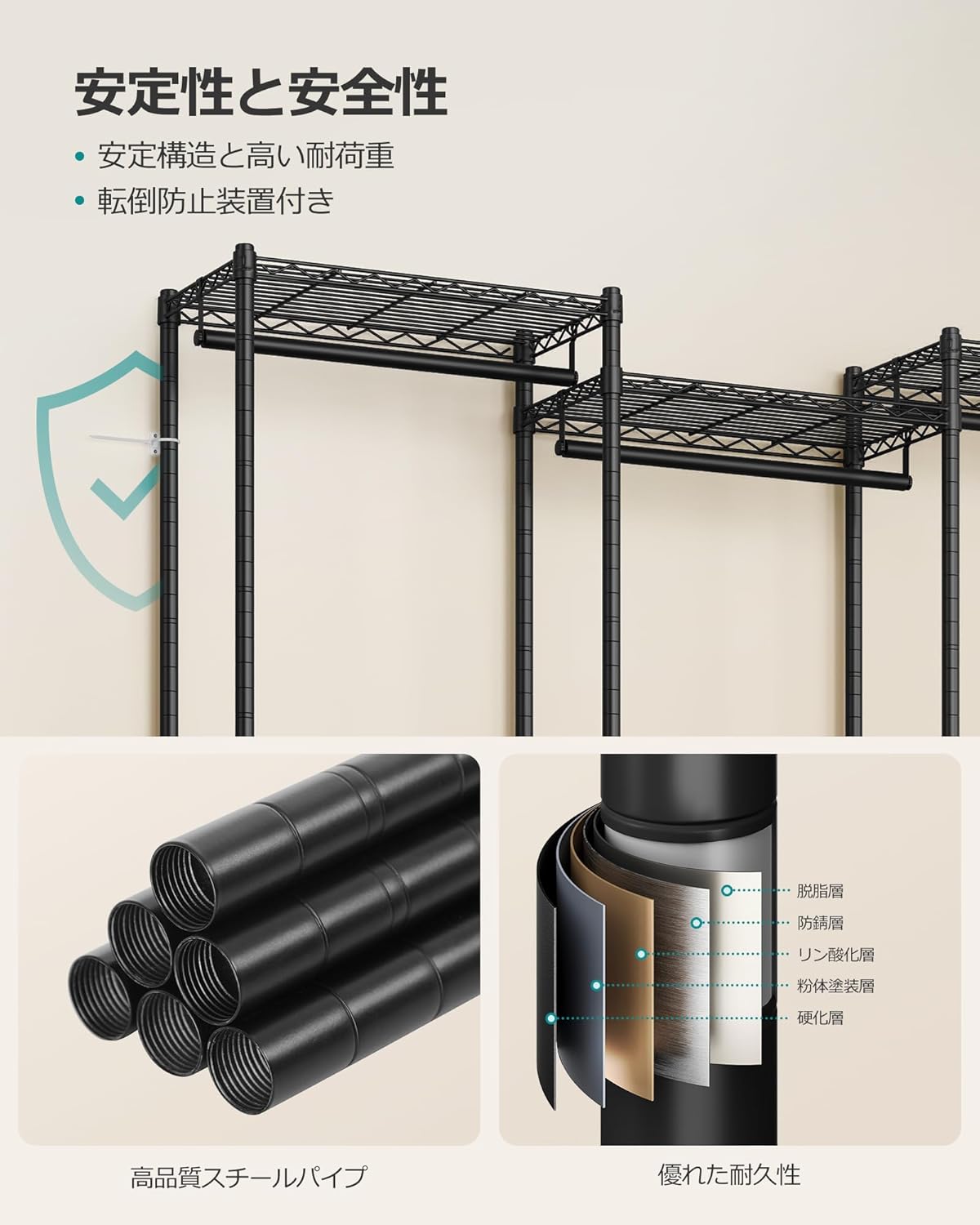

Image: This graphic highlights the rack's stability and safety features, including adjustable feet for uneven floors, the anti-tip kit, and a cross-section showing the durable powder-coated steel construction.

Troubleshooting

If you encounter any issues with your clothes rack, refer to the following common problems and solutions:

• Rack is Unstable/Wobbly:
  • Ensure all plastic clips are fully engaged and shelves are seated correctly.
  • Adjust the leveling feet to ensure all four corners are firmly on the ground and the rack is balanced.
  • Verify that the anti-tip kit is properly installed and secured to the wall.
• Difficulty Assembling:
  • Double-check the instruction manual diagrams for correct part orientation and clip placement.
  • Ensure plastic clips are snapped onto the poles at the same height for each shelf.
• Parts Missing or Damaged:
  • Carefully re-check the packaging. If parts are genuinely missing or damaged upon arrival, contact SONGMICS customer support immediately for assistance.

Image: A close-up view of the adjustable leveling foot, which can be rotated to stabilize the rack on uneven floor surfaces.

Specifications

Warranty and Support

For warranty information, product support, or to order replacement parts, please refer to the contact details provided with your purchase or visit the official SONGMICS website. Please have your model number (LGR432B01) and purchase date ready when contacting support.
