SONGMICS OBN086K01 Ergonomic Office Chair User Manual

1. Product Overview

The SONGMICS OBN086K01 Ergonomic Office Chair is designed to provide comfort and support for extended periods of sitting. It features a breathable mesh surface, adjustable height, a rocking mechanism, and foldable armrests for space-saving convenience. This manual provides instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use of your chair.

Figure 1: SONGMICS OBN086K01 Ergonomic Office Chair (Beige Cappuccino)

2. Safety Information

Please read and understand all safety information before assembling and using the chair.

• Do not exceed the maximum recommended weight of 150 kg (330 lbs).
• Adjust the backrest and armrests according to the instructions to ensure stability and comfort during use.
• Ensure all screws and bolts are securely tightened before use. Periodically check and re-tighten if necessary.
• Keep children away from the chair during assembly. Small parts may pose a choking hazard.
• Use the chair on a flat, stable surface to prevent tipping.

Figure 2: Maximum Weight Capacity

3. Setup and Assembly

The SONGMICS OBN086K01 chair is designed for straightforward assembly. All necessary parts and clear instructions are included in the package.

3.1 Unpacking

• Carefully open the packaging and remove all components.
• Verify that all parts listed in the instruction manual are present. Spare parts are often included.
• Place all components on a clean, flat, and soft surface to prevent scratches during assembly.

Figure 3: Chair components before assembly

3.2 Assembly Steps

Follow the detailed diagrams and numbered parts provided in the included assembly guide. General steps typically include:

1. Attach the casters (wheels) to the star base.
2. Insert the gas lift cylinder into the center hole of the star base.
3. Secure the seat plate mechanism to the underside of the seat cushion.
4. Attach the backrest to the seat assembly.
5. Connect the armrests to both the seat and backrest.
6. Place the assembled seat and backrest onto the gas lift cylinder.

Figure 4: Example assembly step (attaching base)

4. Operating the Chair

The SONGMICS OBN086K01 chair offers several adjustment features to customize your seating experience.

4.1 Seat Height Adjustment

To adjust the seat height, locate the lever on the right side beneath the seat.

• To raise the seat: Lift the lever while taking your weight off the seat. The seat will rise automatically.
• To lower the seat: Lift the lever while remaining seated. The seat will lower under your weight.
• Release the lever to lock the seat at the desired height. The seat height is adjustable from 44 cm to 55 cm.

4.2 Tilt Mechanism and Tension Control

The chair features a rocking mechanism for added comfort and relaxation.

• To unlock the tilt: Pull the same lever (used for height adjustment) outwards from the chair's center. This allows the chair to rock.
• To lock the tilt: Push the lever inwards towards the chair's center. The chair will lock in an upright position.
• Tilt Tension Adjustment: A round knob located beneath the seat, usually at the front, controls the tilt tension. Turn it clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).

Figure 5: Tilt function and tension adjustment

4.3 Foldable Armrests

The armrests can be folded upwards to allow the chair to be pushed further under a desk, saving space.

• To fold the armrests up: Simply lift them upwards until they lock into a vertical position.
• To lower the armrests: Pull them down until they lock into the horizontal position.

Figure 6: Foldable armrests for space-saving

Figure 7: Chair demonstrating armrest movement

4.4 Lumbar Support and Headrest

The chair features an integrated lumbar support and a wide headrest designed to provide ergonomic comfort. These are fixed components and do not require adjustment.

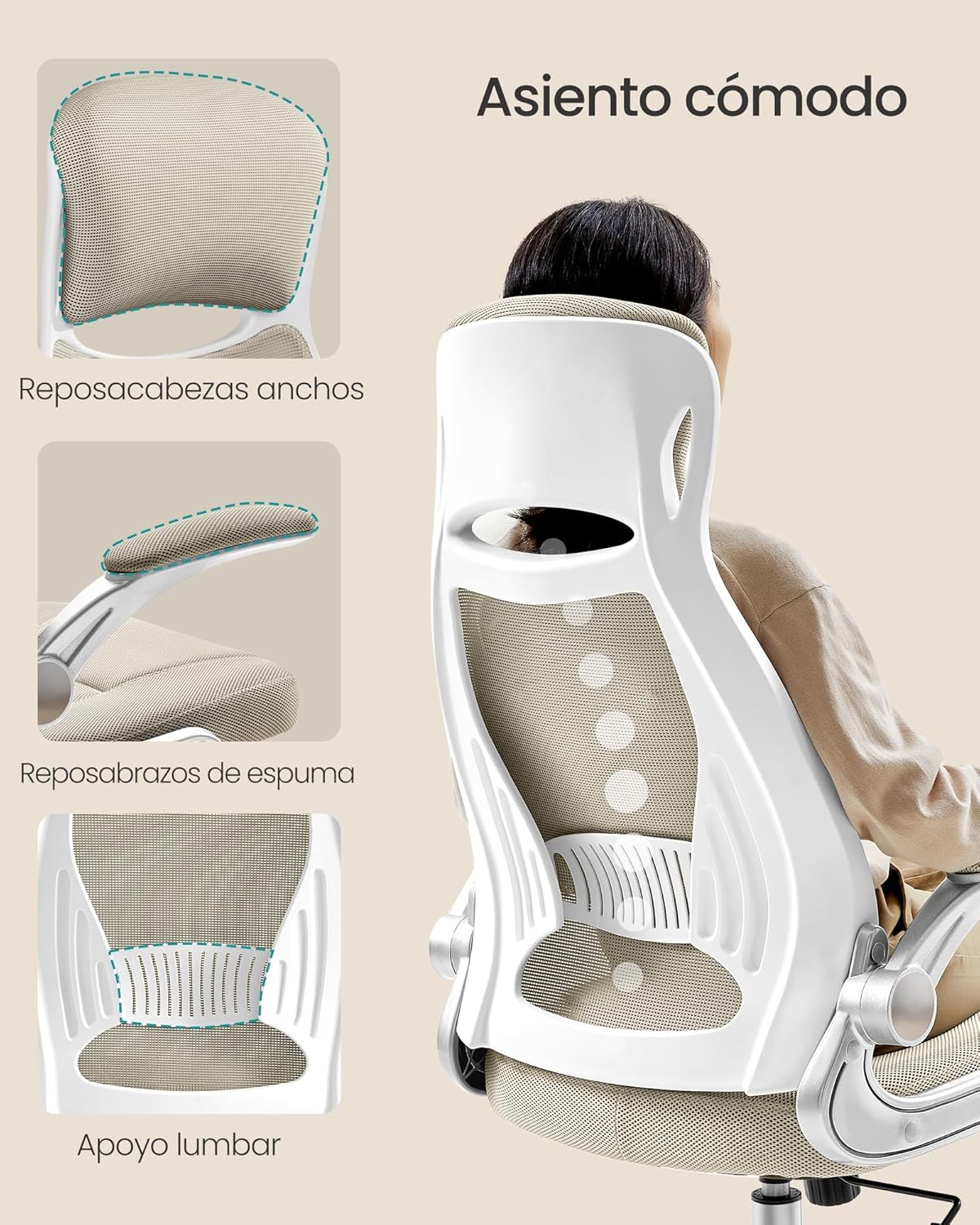

Figure 8: Comfortable seat features: wide headrest, foam armrests, and lumbar support

5. Maintenance

Regular maintenance will help prolong the life and appearance of your SONGMICS office chair.

• Cleaning: For general cleaning, use a soft, damp cloth. For localized stains, perform spot cleaning with a mild fabric cleaner. Avoid harsh chemicals or abrasive materials.
• Mesh Fabric: Gently vacuum the mesh backrest and seat to remove dust and debris.
• Frame and Base: Wipe metal and plastic parts with a damp cloth.
• Casters: Periodically clean hair and debris from the casters to ensure smooth rolling.
• Fasteners: Every few months, check all screws and bolts to ensure they are tight. Re-tighten if necessary to maintain stability.

6. Troubleshooting

If you encounter any issues with your chair, refer to the following common troubleshooting tips:

• Chair Squeaks:
  • Check all bolts and screws and tighten any that are loose.
  • Apply a small amount of silicone lubricant to moving parts or joints if tightening does not resolve the issue.
• Gas Lift Not Adjusting:
  • Ensure the height adjustment lever is fully engaged or disengaged as required.
  • Verify that the gas lift cylinder is correctly seated in the base and seat mechanism.
  • If the gas lift consistently fails, it may need replacement. Contact customer support.
• Casters Not Rolling Smoothly:
  • Remove any hair, dust, or debris that may be wrapped around the caster wheels.
  • Ensure casters are securely inserted into the star base.
• Chair Feels Unstable:
  • Re-tighten all assembly bolts and screws.
  • Ensure the chair is on a flat, even surface.

7. Specifications

Figure 9: Chair Dimensions Diagram

8. Warranty Information

Specific warranty terms and conditions for the SONGMICS OBN086K01 office chair may vary by region and retailer. Please refer to the warranty documentation included with your purchase or contact the retailer directly for detailed information regarding warranty coverage and duration.

9. Customer Support

For further assistance, questions, or to report any issues not covered in this manual, please contact the retailer from whom you purchased the product. You may also visit the official SONGMICS website for additional support resources.

Brand: SONGMICS
Model: OBN086K01
