Garden Winds Reinforced RipLock 350 Replacement Canopy Top Cover Instruction Manual

1. Product Overview

This document provides instructions for the Garden Winds Reinforced RipLock 350 Replacement Canopy Top Cover. This product is designed to replace the canopy top on specific 10' x 10' pop-up gazebos, offering enhanced durability and protection against outdoor elements. It is important to verify compatibility with your existing gazebo frame before installation.

Image: The Garden Winds Replacement Canopy Top Cover in Slate Gray, installed on a compatible 10' x 10' pop-up gazebo frame in an outdoor environment.

2. Safety Information

Please read and understand all safety warnings before assembling, disassembling, or using your canopy. Failure to follow these instructions may result in injury or damage to the product.

• Always assemble and disassemble the canopy on a stable, flat surface.
• Secure the canopy to a stable foundation to prevent tipping in windy conditions. Use appropriate anchoring methods such as stakes or weights.
• Be cautious when handling the metal frame and other components to avoid injury from pinching or sharp edges.
• Do not use the canopy in windy conditions exceeding 20 mph or during thunderstorms. High winds can cause the canopy to become airborne, leading to severe damage or injury.
• Keep all flame and heat sources away from the canopy fabric. The fabric is fire retardant but not fireproof.

3. Compatibility

This replacement canopy top is specifically designed for a custom fit with the following 10' x 10' pop-up gazebo models:

• Ozark Trail: 30957, WMT-1010NPC (SKU: 1434482, originally sold at Walmart and various retailers)
• POPUP SHADE: UCT110BU00, UC-7P10B

It is crucial to verify your gazebo's model number and dimensions to ensure proper fit. This product is a canopy top only; the metal frame and mosquito netting are not included.

Image: A diagram illustrating the approximate dimensions of the canopy top (118" x 118" base, 88.5" peak) and listing compatible Ozark Trail and POPUP SHADE model numbers.

4. Features

The Garden Winds Reinforced RipLock 350 Replacement Canopy Top Cover is engineered with advanced features for outdoor performance:

• RipLock 350 Fabric Construction: Made from 350 denier polyester with a reinforced grid pattern designed to limit tear spread.
• Outdoor-Rated Protection: Provides UPF 50+ UV resistance, water resistance, and CPAI-84 fire retardancy for reliable outdoor use.
• Precision Fit: Custom-designed for specific gazebo models to ensure a snug and secure fit.
• Ultra Stitch: Features reinforced 4-ply thread stitching for superior seam strength and durability.

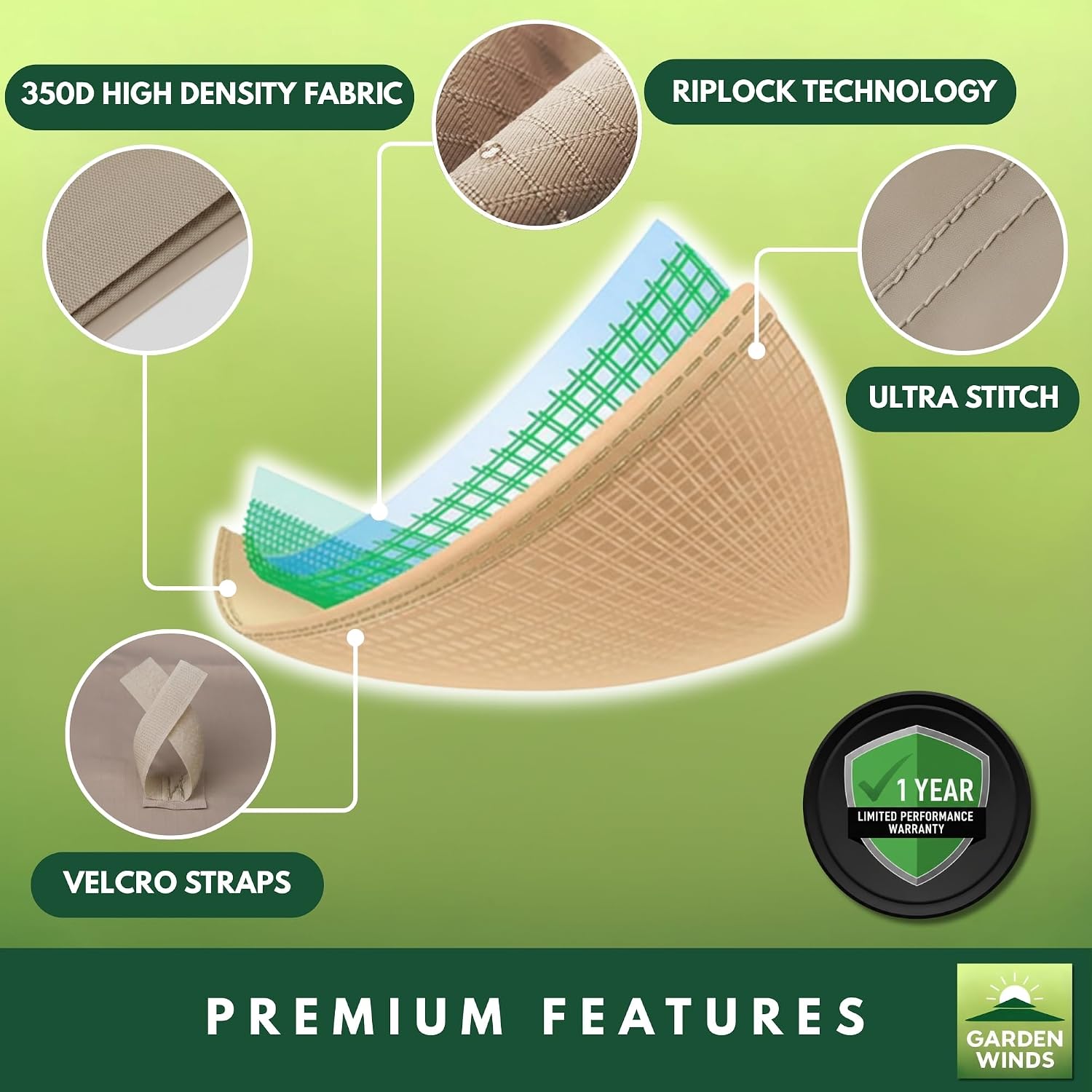

Image: An infographic highlighting the premium features of the canopy, including 350D high-density fabric, RipLock technology, Ultra Stitch, and Velcro straps, along with a 1-year warranty.

Image: A banner promoting RipLock technology, illustrating its anti-rip fabric, superior seam strength, and UPF 50+ UV protection.

Image: A graphic detailing four key features: Double RipLock Technology for strength, Ultra Stitch for seam durability, UPF 50+ for sun protection, and 'Made for the Outdoors' indicating water and fire resistance.

5. Setup Instructions

Follow these general steps to install your replacement canopy top. Always refer to your gazebo frame's original instruction manual for specific frame assembly or disassembly procedures.

1. Prepare the Frame: Ensure your gazebo frame is fully assembled and in good condition. If replacing an old canopy, carefully remove the old canopy top.
2. Identify Frame Details: Familiarize yourself with the frame's connection points, such as corner pockets, Velcro straps, and center pole attachments.
3. Unfold the Canopy: Carefully unfold the new replacement canopy top. It is recommended to have at least two people for installation.
4. Position the Canopy: Place the canopy top over the frame, aligning the corners and center.
5. Attach Corners: Securely attach the canopy's corner pockets to the corresponding corner posts of the frame.
6. Secure Center and Edges: Attach any internal Velcro straps or ties to the frame's crossbars. Ensure the canopy is taut and evenly distributed over the frame.
7. Final Adjustments: Make any necessary adjustments to ensure the canopy is properly seated and secured, minimizing loose fabric that could catch wind.

Image: A collage of images showing various parts of a gazebo frame, including the central hub, corner connections, and leg mechanisms, to assist with frame identification.

6. Operating Instructions

Once installed, your replacement canopy top provides shade and protection. To ensure its longevity and safe operation:

• Anchoring: Always ensure the gazebo frame is properly anchored to the ground using stakes, sandbags, or other suitable weights, especially in outdoor conditions.
• Weather Monitoring: Regularly check weather forecasts. In anticipation of strong winds, heavy rain, or snow, it is recommended to remove the canopy top or completely collapse the gazebo frame to prevent damage.
• Water Accumulation: Periodically check for water pooling on the canopy surface, especially after rain. If water accumulates, gently push up from underneath to release it, as prolonged pooling can stretch the fabric or damage the frame.

7. Maintenance

Proper maintenance will extend the life of your canopy top.

• Cleaning: Clean the canopy fabric periodically with mild soap and water. Use a soft brush or cloth to gently scrub away dirt and debris. Rinse thoroughly with clean water and allow it to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Regularly inspect the canopy for any signs of wear, tear, or damage. Check seams, grommets, and attachment points. Address minor issues promptly to prevent them from worsening.
• Storage: When not in use for extended periods or during off-season, remove the canopy top from the frame. Clean and dry it thoroughly, then fold it neatly and store it in a cool, dry place away from direct sunlight and pests.

8. Troubleshooting

Here are solutions to common issues you might encounter:

• Canopy Does Not Fit:
  Solution: Double-check your gazebo frame's model number and dimensions against the compatibility list. Ensure the canopy is oriented correctly on the frame. If it's a new installation, sometimes the fabric needs to stretch slightly after initial setup.
• Water Pooling on Canopy:
  Solution: Ensure the canopy is installed tautly and evenly across the frame. If pooling persists, check if the frame's peak or tensioning mechanisms are properly engaged. Gently push up from underneath to release accumulated water.
• Small Tears or Holes:
  Solution: For minor damage, use a fabric repair kit designed for outdoor polyester materials. For significant damage, consider replacing the canopy top.
• Canopy Blowing Off in Wind:
  Solution: Ensure the gazebo frame is securely anchored to the ground. Verify all canopy attachment points (corner pockets, Velcro straps) are firmly secured to the frame. Do not use the canopy in high wind conditions.

9. Specifications

10. Warranty and Support

This Garden Winds Replacement Canopy Top Cover is backed by a 1-year limited performance warranty. This warranty covers manufacturing defects and material failures under normal use conditions.

For warranty claims, product questions, or assistance with fit and compatibility, please contact Garden Winds customer support. Our US-based customer support team is available to provide assistance.
