User Manual for Ckzbx 61"H Black Metal Storage Cabinet

1. Introduction

Thank you for choosing the Ckzbx 61"H Black Metal Storage Cabinet. This versatile and durable cabinet is designed to provide ample storage and organization for various spaces, including kitchens, living rooms, dining rooms, offices, and garages. Crafted from high-quality cold-rolled steel with an electrostatic powder coating, it offers excellent durability, scratch resistance, and ease of cleaning. This manual will guide you through the assembly, usage, and maintenance of your new storage solution.

Figure 1: Ckzbx 61"H Black Metal Storage Cabinet with doors open.

2. Safety Information

Please read and understand all safety instructions before assembly and use to prevent injury or damage.

• Weight Capacity: Do not exceed the maximum weight capacity of 120 pounds (approximately 54 kg) per shelf. The total weight limit for the cabinet is 360 pounds (approximately 163 kg). Overloading can cause the cabinet to tip or shelves to collapse.
• Anti-Tipping Device: Always secure the cabinet to the wall using the provided anti-tipping configuration. This is crucial to prevent the cabinet from tipping over, especially in households with children or pets.
• Assembly: Assemble the cabinet on a soft, clean surface to prevent scratches. Ensure all screws and fasteners are tightened securely before use.
• Placement: Place the cabinet on a level and stable surface. Avoid placing it in areas with high humidity or direct sunlight, which may affect the material over time.

Figure 2: Importance of securing the cabinet with the anti-tipping device.

3. Components List

Before beginning assembly, please ensure all parts are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Cabinet Panels (Top, Bottom, Sides, Back)
• Doors (2)
• Adjustable Shelves (3)
• Metal Handles (2)
• Support Legs (4)
• Assembly Hardware (Screws, Shelf Pins, Magnetic Catches)
• Anti-Tipping Kit (Wall Anchors and Screws)
• Instruction Manual

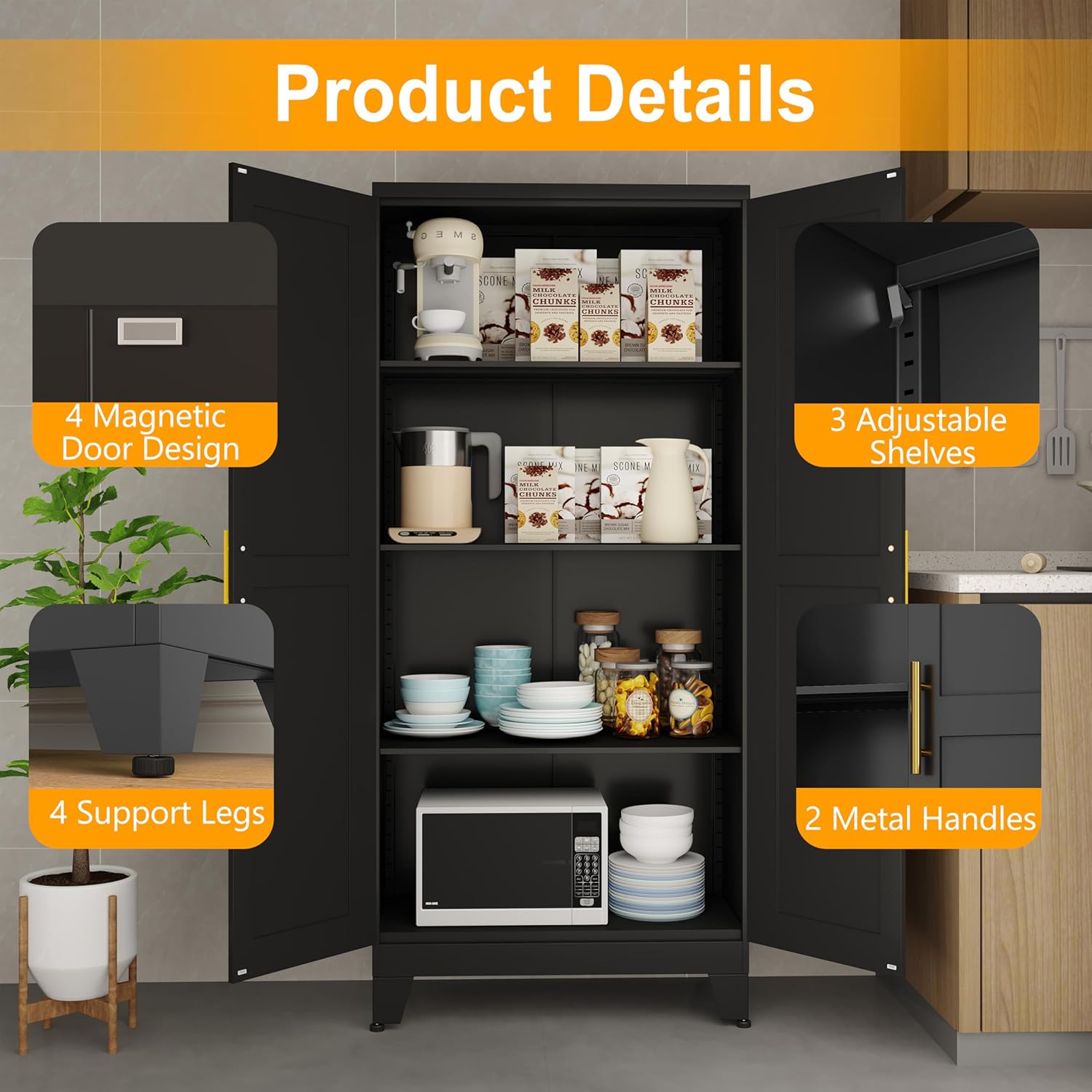

Figure 3: Key features and components of the cabinet.

4. Setup and Assembly

The Ckzbx Metal Storage Cabinet is designed for easy assembly. A screwdriver is the only tool required.

4.1 Before You Begin

• Clear a spacious area for assembly.
• Lay out all components and hardware.
• Have a Phillips head screwdriver ready.

4.2 Step-by-Step Assembly

1. Attach the support legs to the bottom panel.
2. Connect the side panels to the bottom panel.
3. Slide the back panel into place.
4. Attach the top panel.
5. Install the adjustable shelf pins at your desired height.
6. Place the shelves onto the pins.
7. Attach the doors and install the metal handles.
8. Secure the cabinet to the wall using the anti-tipping kit.

For detailed visual instructions, please refer to the included instruction manual. If you encounter any difficulties, please contact customer support.

4.3 Securing the Cabinet (Anti-Tipping)

The anti-tipping kit includes screws and wall anchors. Identify the pre-drilled holes on the top back of the cabinet. Mark the corresponding spots on your wall, drill pilot holes if necessary, insert the wall anchors, and then secure the cabinet to the wall using the provided screws. This step is essential for stability and safety.

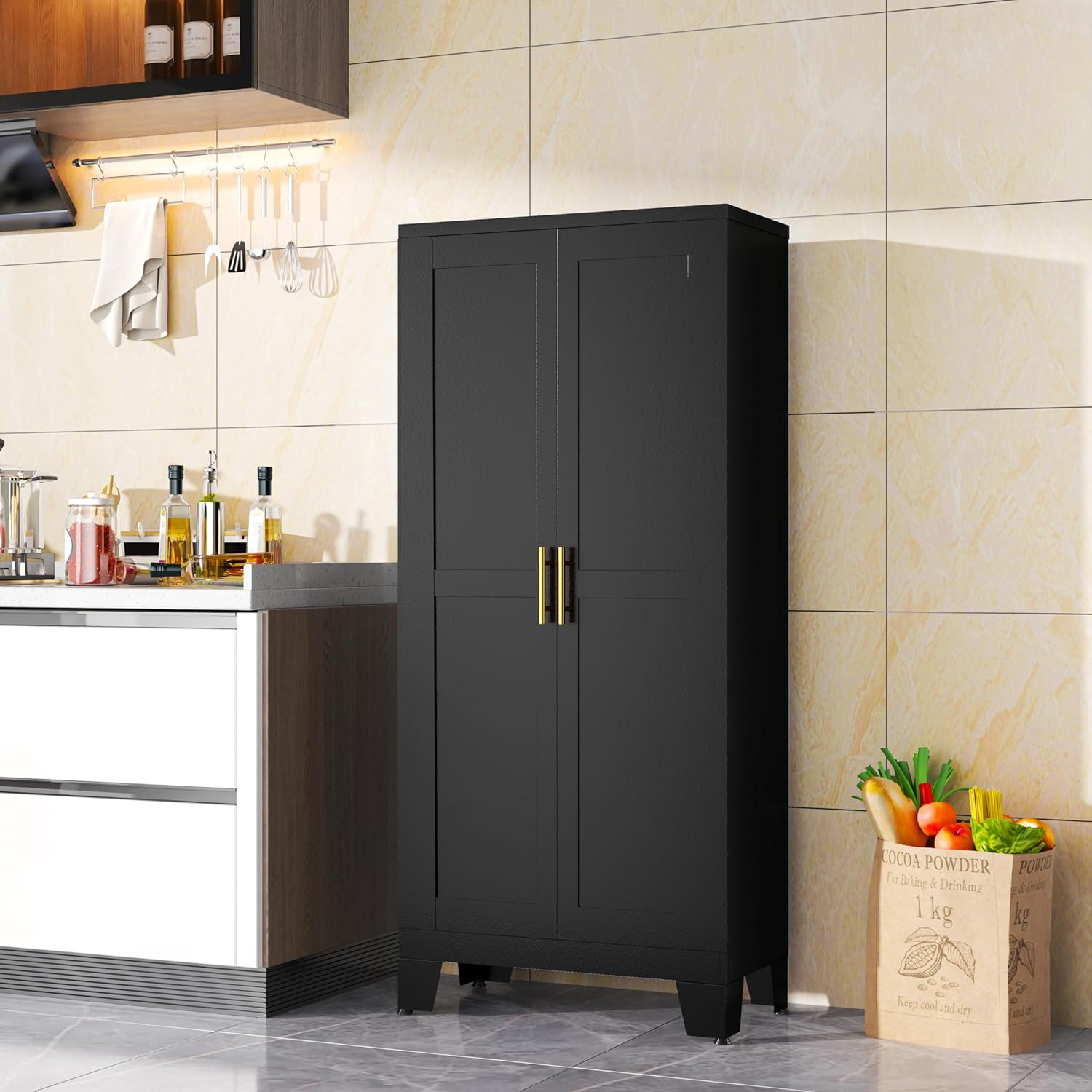

Figure 4: The cabinet seamlessly integrated into a kitchen environment.

5. Operating Instructions

5.1 Adjustable Shelves

The cabinet features three adjustable shelves, allowing you to customize the storage space to fit items of various heights. To adjust a shelf, simply remove the items, lift the shelf, reposition the shelf pins to the desired height along the pre-drilled holes on the side panels, and then place the shelf back onto the pins. Ensure all four pins are securely in place before loading the shelf.

5.2 Magnetic Door Design

The cabinet doors are equipped with a magnetic suction mechanism, ensuring a secure and easy closure. This design reduces wear and tear compared to traditional latching systems and keeps the doors firmly shut.

Figure 5: Cabinet dimensions and shelf capacity for optimal usage.

6. Care and Maintenance

To ensure the longevity and appearance of your Ckzbx metal storage cabinet, follow these simple care instructions:

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. For tougher stains, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as they may damage the electrostatic powder coating.
• Dusting: Regularly dust the cabinet with a dry, soft cloth to prevent dust buildup.
• Spills: Clean up spills immediately to prevent staining or corrosion.
• Inspection: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.

7. Troubleshooting

If you encounter any issues with your cabinet, please refer to the following common problems and solutions:

• Cabinet is Wobbly:
  • Ensure the cabinet is placed on a level surface.
  • Check that all assembly screws are securely tightened.
  • Verify that the anti-tipping device is properly installed and anchored to the wall.
• Doors Do Not Close Properly:
  • Check if the cabinet is level. Uneven placement can affect door alignment.
  • Ensure the magnetic catches are properly aligned and secured.
• Difficulty During Assembly (e.g., Missing Drilled Holes):
  • While rare, manufacturing variations can occur. Double-check the instruction manual to ensure correct orientation of parts.
  • If a hole is genuinely missing or misaligned, do not attempt to force parts. Contact Ckzbx customer support for assistance or replacement parts.

For issues not listed here, or if the problem persists, please contact Ckzbx customer support.

8. Product Specifications

9. Warranty and Customer Support

Ckzbx is committed to providing high-quality products and excellent after-sales service. While specific warranty details are not provided in this manual, if you encounter any issues with your product, or require assistance with assembly or parts, please do not hesitate to contact Ckzbx customer support. Our team is dedicated to ensuring your satisfaction and will provide high-quality service to resolve any concerns.

For support, please refer to the contact information provided at the point of purchase or visit the official Ckzbx store online.
