Maxslak CF96BK-LK
96" Industrial & Commercial HVLS Ceiling Fan with Light
Instruction Manual
Product Overview
The Maxslak 96" Industrial & Commercial HVLS Ceiling Fan with Light is designed for heavy-duty air circulation in large indoor and outdoor spaces. Featuring 7 aluminum blades and a high CFM brushless motor, it provides powerful airflow while operating quietly. This smart ceiling fan offers integrated intelligent remote control, Wi-Fi connectivity, and voice assistant compatibility (Alexa) for convenient operation. It also includes dimmable LED lighting with three color temperature settings.
Image: Maxslak 96 inch HVLS Ceiling Fan with Light, showcasing its large size and integrated light.
Safety Information
Always ensure the power supply is disconnected at the circuit breaker before installation, maintenance, or troubleshooting. This fan is equipped with safety rope accessories to enhance user safety. Ensure all connections are secure and follow local electrical codes. Do not operate the fan if any part is damaged or if the blades are not properly installed.
Image: Close-up view of the fan's motor housing showing the integrated safety cord for secure installation.
Package Contents
Before beginning installation, verify that all components are present and undamaged. The package includes:
- Fan Motor Assembly
- 7 Aluminum Blades
- Light Kit with Dimmable LED
- Remote Control
- Downrods (12", 24", 36" sizes included)
- Mounting Bracket and Hardware
- Safety Rope Accessories
Image: A display of the fan's packaging and included components, along with dimensional specifications.
Installation Guide
Refer to the detailed user manual for complete step-by-step instructions. Ensure the mounting surface can support the fan's weight (38.8 lbs). This fan is suitable for flat ceilings and sloped ceilings up to 12 degrees. Select the appropriate downrod size (12", 24", or 36") based on your ceiling height.
Video: Ceiling Fan Installation Tutorial
Video: Official installation guide for Maxslak 72-96 inch Industrial Smart Ceiling Fan.
Operating Instructions
The Maxslak ceiling fan offers multiple control options for your convenience:
Remote Control
- Fan Speed: Select from 6 adjustable speeds.
- Light Settings: Dimmable LED light with 3 color temperatures (3000K Warm, 4000K Natural, 6000K White).
- Timer: Set the fan to operate for 1, 4, or 8 hours.

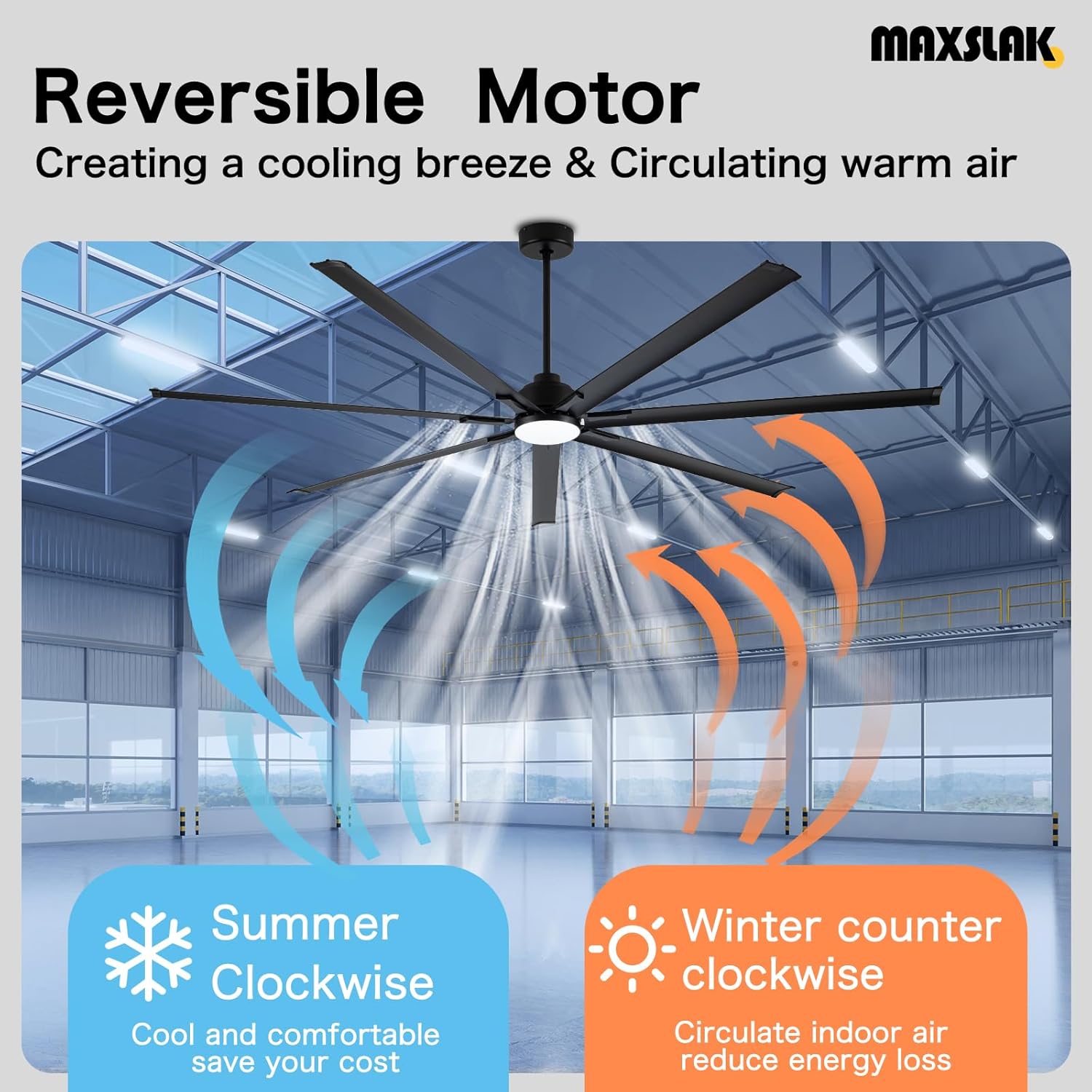

- Reverse Function: Change blade direction for summer cooling (clockwise) or winter air circulation (counter-clockwise).
Image: The remote control unit for the ceiling fan, showing buttons for speed, light, and timer functions.
Smart Control (Wi-Fi & Voice Assistants)
Connect your fan to the Smart Life App for Wi-Fi control and integrate with voice assistants like Amazon Alexa for hands-free operation.
- App Control: Manage all fan functions from your smartphone.
- Voice Control: Use simple voice commands with Alexa to turn the fan/light on/off, adjust speed, or change light settings.
Image: Illustration of voice control compatibility with Alexa and remote control functionality.
Video: Smart Life App & Amazon Alexa Connection Tutorial
Video: A tutorial demonstrating how to connect the fan to the Smart Life App and Amazon Alexa.
Maintenance
To ensure optimal performance and longevity of your Maxslak ceiling fan, regular maintenance is recommended:
- Cleaning: Dust the blades and motor housing periodically with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
- Blade Inspection: Check the blades for any signs of damage or warping. Ensure all blade screws are tightened securely.
- Motor Care: The DC motor is designed for energy efficiency and quiet operation. No lubrication is required.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Remote control battery low. | Check circuit breaker; Verify all wiring connections are secure; Replace remote control battery. |
| Fan is noisy | Loose blade screws; Mounting bracket not secure; Fan not balanced. | Tighten all blade screws; Ensure mounting bracket is firmly attached; Use balancing kit (if included) to balance blades. |
| Light does not work | Loose wire connection to light kit; LED panel issue. | Check light kit wiring; Contact customer support if LED panel is faulty. |
| Remote not working | Battery low/dead; Remote not paired with fan. | Replace battery; Re-pair remote control with the fan according to the manual. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Maxslak |
| Model Name | CF96BK-LK |
| Size | 96 inch |
| Color | Matte Black |
| Number of Blades | 7 |
| Blade Material | Aluminum |
| Motor Type | DC Brushless Motor |
| Air Flow Capacity | 11520 Cubic Feet Per Minute (up to 15,000 CFM) |
| Noise Level | Under 40dB (45 dB listed) |
| Light Type | Dimmable LED (3000K, 4000K, 6000K) |
| Control Method | App, Remote, Voice (Alexa compatible) |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Item Weight | 38.8 Pounds |
Warranty and Support
Maxslak is committed to providing high-quality products and excellent customer service. Your ceiling fan comes with a comprehensive warranty:
- 2 Years Full-Fan Warranty
- 5 Years Motor Warranty
For any inquiries, replacement parts, or support, please contact our customer service team. We offer 24/7 after-sales support.
Image: Warranty details showing 2 years for the full fan and 5 years for the motor, with 24/7 support.
